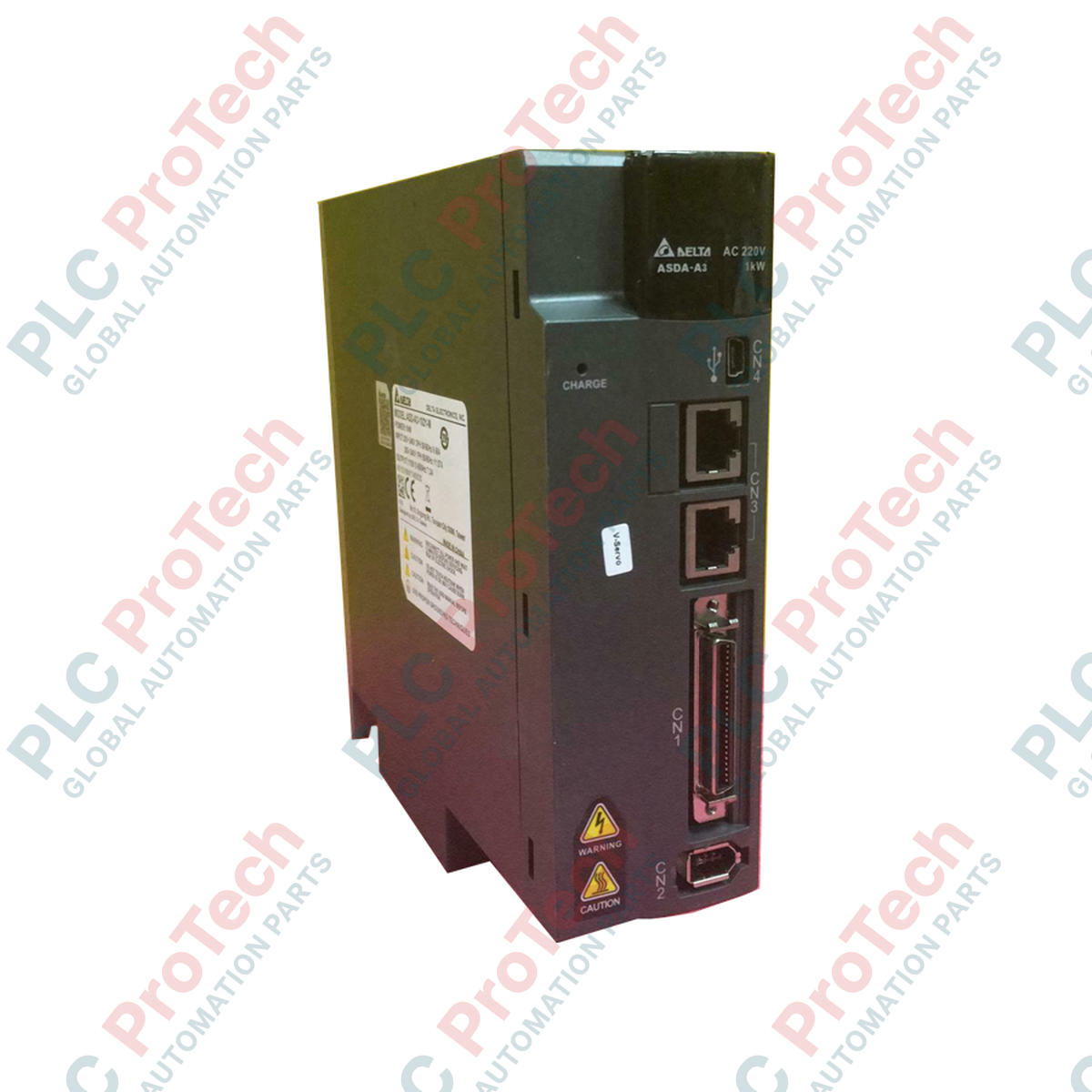

Delta ASD-A3-1521-L ASDA-A3 Series AC Servo Drive

Motion System Performance Overview

The Delta ASD-A3-1521-L (ASD-A3-1521-L) is a high-performance, intelligent AC servo drive engineered for the high-bandwidth ASDA-A3 automation platform. Deployed globally across precision motion industries such as multi-axis CNC machine centers, automated electronic assembly lines, high-speed pick-and-place robotics, and textile processing machinery, this drive controls permanent magnet synchronous motors. By implementing advancedSpace Vector Pulse Width Modulation (SVPWM) algorithms and supporting ultra-high-resolution 24-bit feedback systems, the drive ensures stable velocity tracking, reduces torque ripple, and protects complex mechanical linkages from high-speed positioning inaccuracies.

Control Architecture and Power Dynamics

This versatile 1.5 kW servo drive features a flexible power input stage configured to operate on either single-phase or three-phase 220 VAC supplies within a permissible range of 200 to 230 VAC (-15% / +10%). When operating under full three-phase load, the nominal input current draws 6.68 A, while single-phase configurations pull 11.57 A to deliver a continuous output current of 7.3 A. The output infrastructure features a built-in regenerative resistor to absorb deceleration energy and provides an instantaneous maximum peak current of 24.75 A to manage fast acceleration profiles. System tuning is handled via automated or manual modes, supported by an advanced smoothing strategy utilizing configurable low-pass and P-curve filters.

Technical Performance Matrix

Industrial Diagnostics and FAQs

How do you clear an overvoltage fault (ALE05) during sudden deceleration cycles?

An ALE05 fault indicates that the DC bus voltage has exceeded the maximum safety threshold due to regenerative energy returned from the motor. First, check that the built-in regenerative resistor parameters are correctly declared within the drive configuration parameters. If the built-in resistor cannot safely dissipate the load inertia, deactivate the internal resistor link jumper and wire an external, higher-capacity industrial braking resistor across the P and D terminals.

Can the ASD-A3-1521-L drive a 1.5 kW servo motor while powered by a single-phase 220 VAC source?

Yes. The drive is hardware-rated to accept a single-phase 220 VAC supply line. However, because single-phase input increases the current demand on the incoming terminal blocks to 11.57 A, the drive's thermal profile runs higher. Ensure the cabinet fan cooling system is working efficiently, and consider derating the motor's peak torque duty cycle during rapid multi-axis transitions to prevent localized input-stage thermal trips.

What parameters should be adjusted to stabilize a mechanical axis exhibiting audible high-frequency resonance?

Navigate to the tuning parameter group inside Delta's ASDA-Soft configuration tool and initiate the Auto-Tuning mode to calculate the structural frequency thresholds. The ASD-A3-1521-L incorporates advanced notch filters and an adjustable low-pass filter strategy. Setting the notch filters directly to the resonant frequency eliminates the acoustic oscillation without reducing the core positioning loops' response speed.

Field Commissioning and Enclosure Guidelines

• Main Circuit Line Wiring Compliance: Prior to energizing the unit, confirm that the incoming AC supply lines are landed on terminals L1, L2, and L3 (for three-phase) or L1 and L2 (for single-phase). Never connect the incoming AC power lines to terminals U, V, and W, as applying raw line voltage directly to the servo output inverter stage will instantly destroy the solid-state IGBT modules.

• High-Density Shield Grounding: Route the 24-bit encoder communication line completely separate from the U, V, W motor power cable. The encoder line must use a high-flex shielded twisted-pair cable with the overall braid clamped directly to the drive’s metallic grounding plate. This layout prevents high-frequency PWM switching transients from distorting the position feedback data packets.

• Thermal Clearances and Forced-Air Alignment: Mount the drive vertically to a flat, unpainted metallic sub-panel to maximize conductive thermal dissipation. Maintain an open clearance profile of at least 50 mm above and below the drive housing, and 10 mm on adjacent sides. Inspect the integrated cooling fan regularly to ensure it is free of airborne fibers, grease mist, or conductive metallic dust that could lead to internal component failure.
