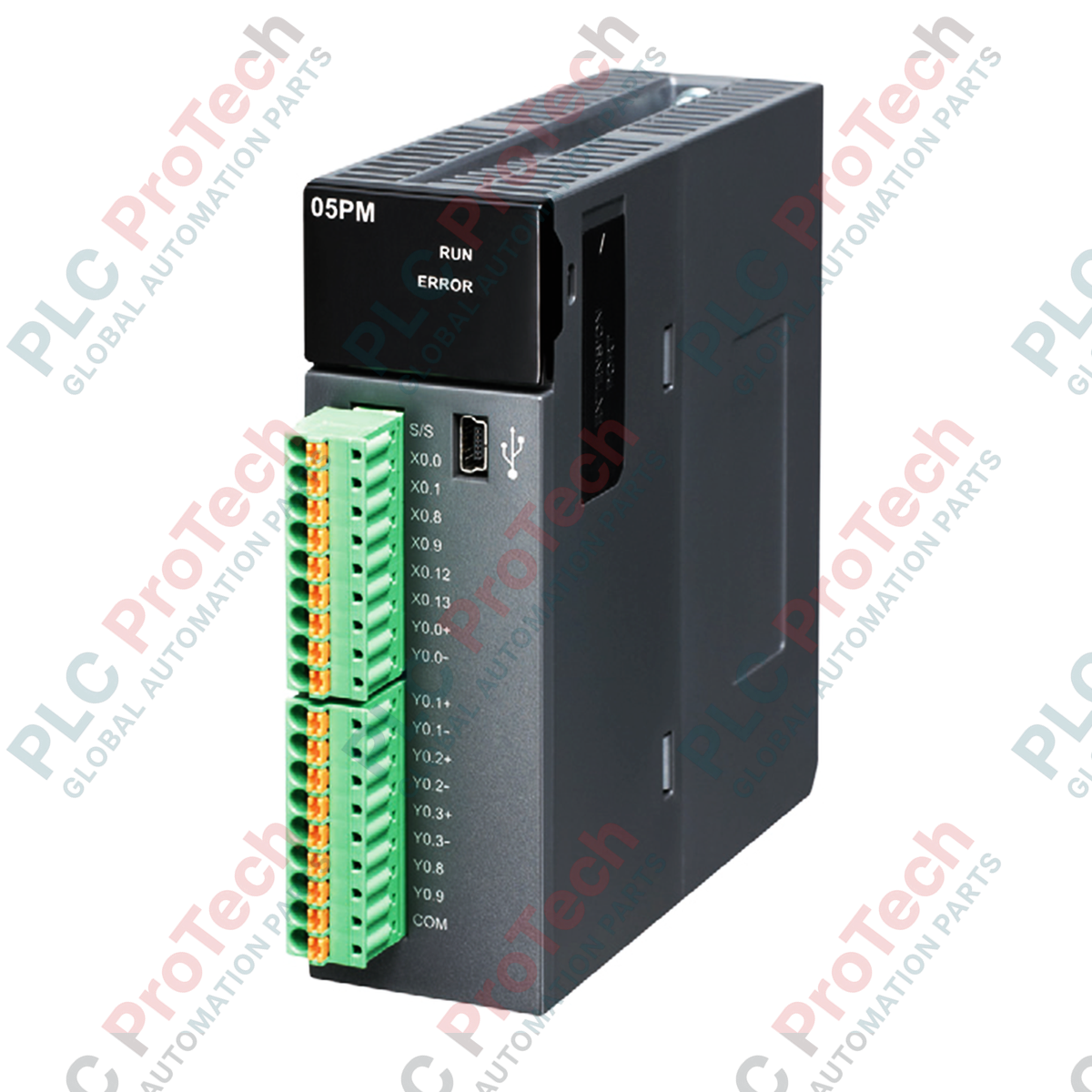

Delta Electronics AH05PM-5A AH Series Motion Control Module

SKU AH05PM-5A

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Delta Electronics
Product No.: AH05PM-5A
Country of origin:United States
Product Type: Motion Control Modules
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for highly precise positioning applications, the Delta Electronics AH05PM-5A serves as an intelligent 2-axis pulse train motion control module within the AH Series automation framework. This module enables advanced motion control profiles, providing multi-axis coordination without relying solely on the main PLC CPU. It features independent program execution with an integrated memory structure, enabling local processing of complex motion commands.

The unit supports standard programming methodologies, including direct G-code execution, simplifying the integration of CNC-like pathways. With support for multiple pulse output configurations and high-speed signal processing, this module delivers high accuracy for modern industrial manufacturing environments.

Features

Provides 2-axis high-speed pulse train output up to 1 MHz.
Supports complex motion paths with 2-axis linear and 2-axis circular/arc interpolation.
Features autonomous processing with 64K steps of program capacity and independent execution.
Compatible with multiple input/output modes including UD (Up/Down), PD (Pulse/Direction), and AB/4AB phase modes.
Includes a built-in Mini USB port for local configuration, program download, and monitoring.
Supports system maintenance with hot-swapping functionality and active diagnostic indicators.

Applications

CNC and precision metalworking machinery
Packaging, labeling, and filling lines
Semiconductor fabrication and assembly equipment
Pick-and-place gantry systems
Automated textile and printing machinery

Technical Specifications

Manufacturer	Delta Electronics
Model / Part Number	AH05PM-5A
Module Type	Motion Control Module (2-Axis Pulse Train)
CPU Speed	LD instruction @ 0.13 µs
Program Capacity	64K steps
Data Registers	D: 10K words / W: 64K words
Pulse Output Frequency	Maximum 1 MHz
Motion Interpolation	2-axis linear, 2-axis arc
Pulse Output Modes	UD, PD, AB, 4AB
Programming Support	G-code, independent execution
Terminal Interface	European removable terminal block
Programming Interface	Mini USB port
Internal Power Consumption	2.7 W
Hot-Swapping	Supported
Status Indication	LED indicators for module status and diagnostics
Shipping Weight	2.0 kg

Installation Guidelines

When installing the AH05PM-5A, ensure the module is securely fitted onto the backplane. To minimize electromagnetic interference on the high-frequency pulse outputs, use shielded twisted-pair cabling for all control signals and ground the shield at a single point. Maintain proper separation between control wiring and high-voltage power lines. If replacing the module under power, follow the designated hot-swap procedures specified in the AH Series system manual to prevent interface transients.

FAQ

Does the Delta AH05PM-5A require a host CPU to execute program logic?

No. The AH05PM-5A supports independent programming, program downloading, and autonomous execution, allowing it to process motion programs locally.

What pulse output modes are supported by the AH05PM-5A?

The module supports UD (Up/Down), PD (Pulse/Direction), and AB/4AB encoder/pulse modes, accommodating various servo and stepper driver interfaces.

What is the maximum output frequency of the pulse outputs?

The AH05PM-5A supports high-speed pulse outputs up to 1 MHz, ensuring high-precision positioning control.
