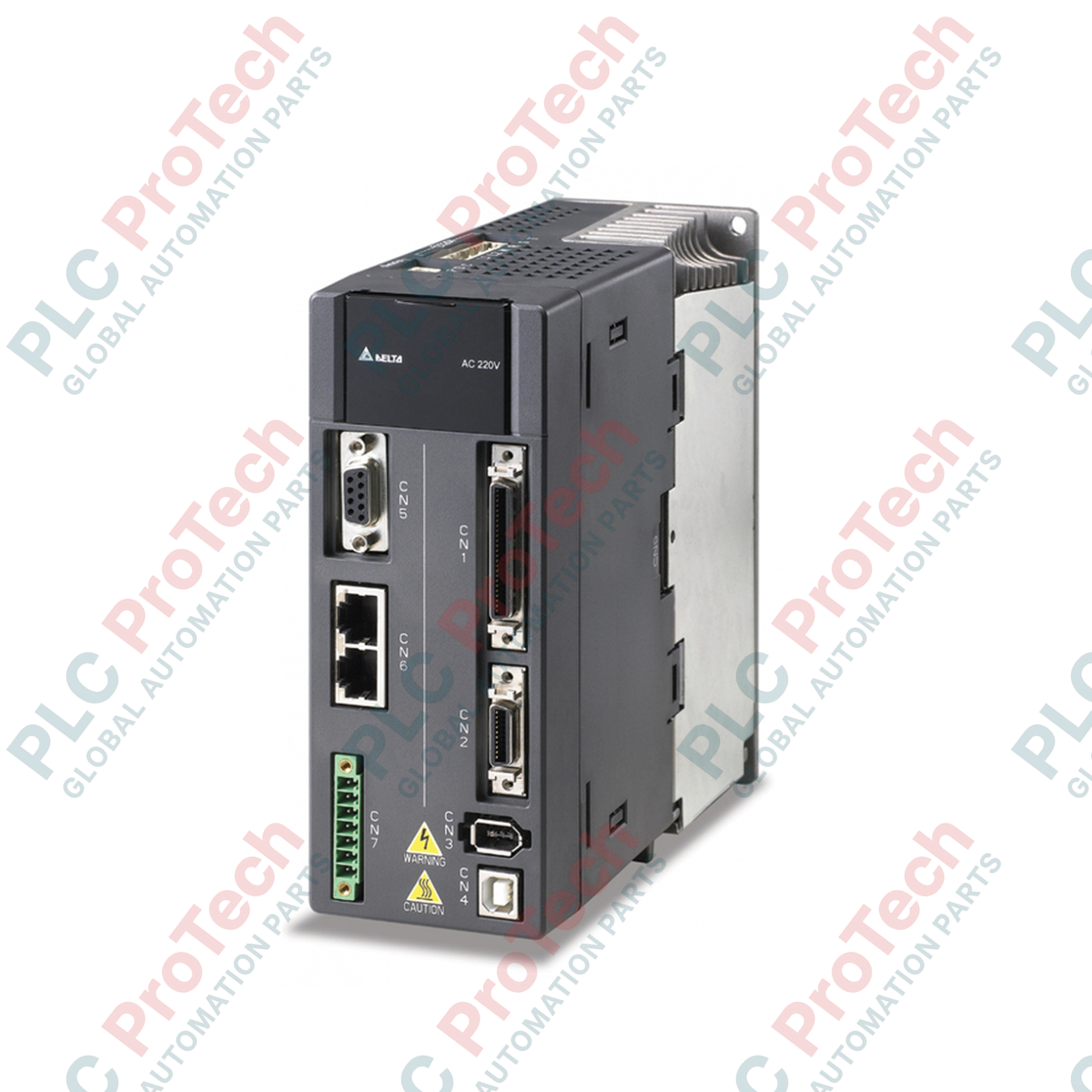

Delta Electronics ASD-A2-1521-U ASDA-A2 Series AC Servo Drive

Description

Designed to meet the demands of high-precision motion control systems, the ASD-A2-1521-U serves as a core drive module within the Delta Electronics ASDA-A2 Series. This high-performance AC servo drive delivers a rated output power of 1.5 kW, operating on a 220 V single-phase electrical supply. It is engineered to control synchronous servo motors with exceptional dynamic response and positioning accuracy.

The ASDA-A2 series architecture incorporates advanced digital signal processing (DSP) to handle complex motion control algorithms. The "U" designation represents a versatile interface configuration that integrates digital inputs and outputs, analog voltage command lines, and high-speed pulse train inputs. For system communication and commissioning, the drive features built-in USB and RS-485 serial communication ports, allowing seamless configuration via Delta's dedicated tuning software.

Features

• 1.5 kW Power Output: Efficiently drives high-torque servo motors designed for industrial machinery.
• Single-Phase 220V Input: Simplifies electrical integration in facilities lacking three-phase power infrastructure.
• Advanced Control Modes: Supports Position, Speed, and Torque control modes, along with dual-loop control capabilities.
• Vibration Suppression: Integrated automatic high-frequency resonance and low-frequency vibration filters to protect mechanical transmission components.
• Flexible Communication: Equipped with standard Modbus communication protocols via RS-485 and direct PC connectivity via USB.

Applications

• Precision CNC machining centers and milling machinery.
• Automated packaging and continuous labeling systems.
• Textile processing and precise winding equipment.
• Multi-axis pick-and-place robotic systems.

Technical Specifications

Installation Guidelines

• Mounting Orientation: Always mount the servo drive vertically on a flat, solid, and non-flammable backplate to facilitate proper convection cooling.
• Environmental Clearance: Maintain a minimum clearance of 50 mm above and below the drive unit, and 10 mm on each side for adequate ventilation.
• Shielding & Grounding: Ensure the drive's PE terminal is securely connected to the main panel ground. Use shielded twisted-pair cables for all encoder and low-voltage I/O signals to prevent electromagnetic interference.
• Enclosure Protection: Install the drive inside an electrical cabinet rated IP54 or higher when deploying in environments prone to dust, moisture, or conductive particles.
