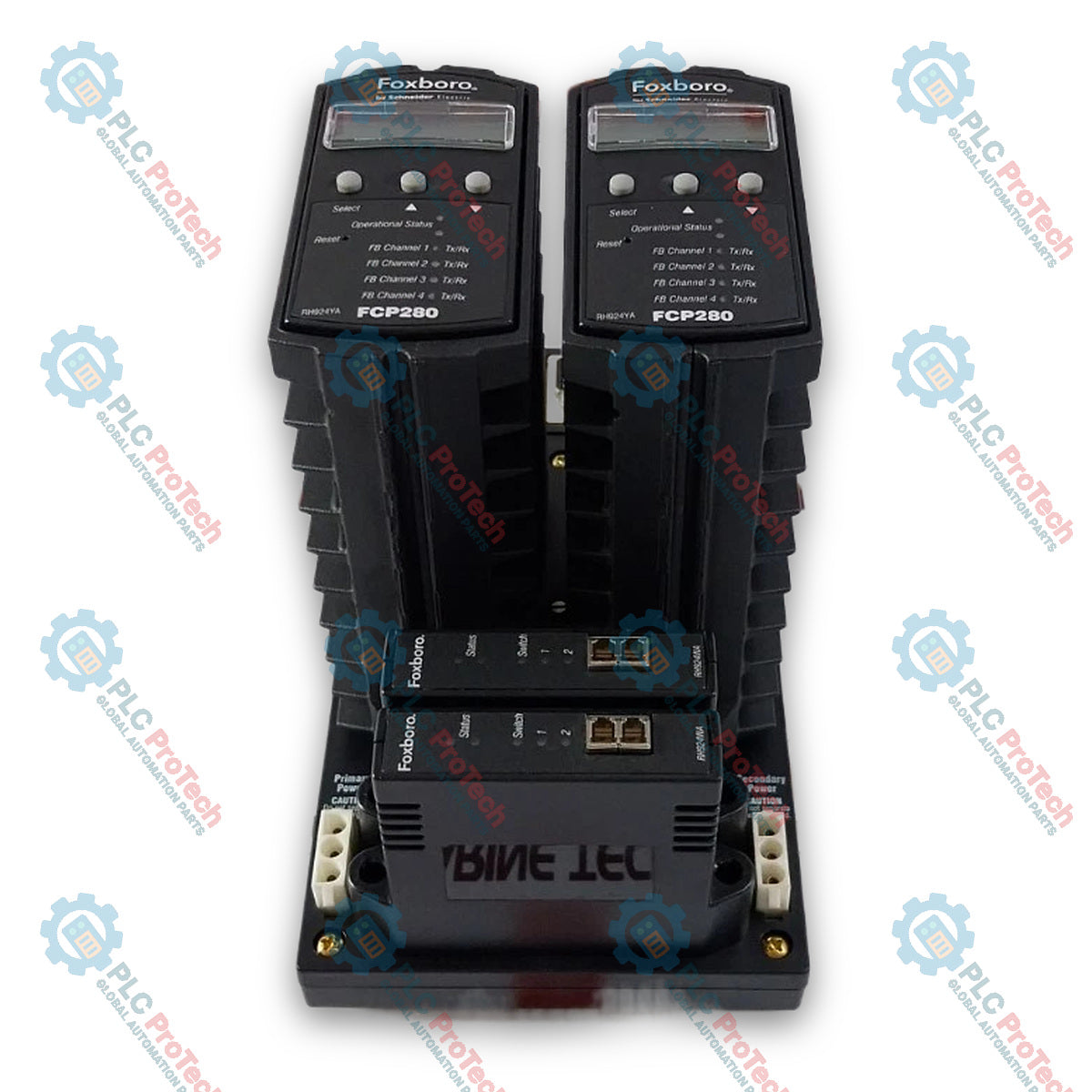

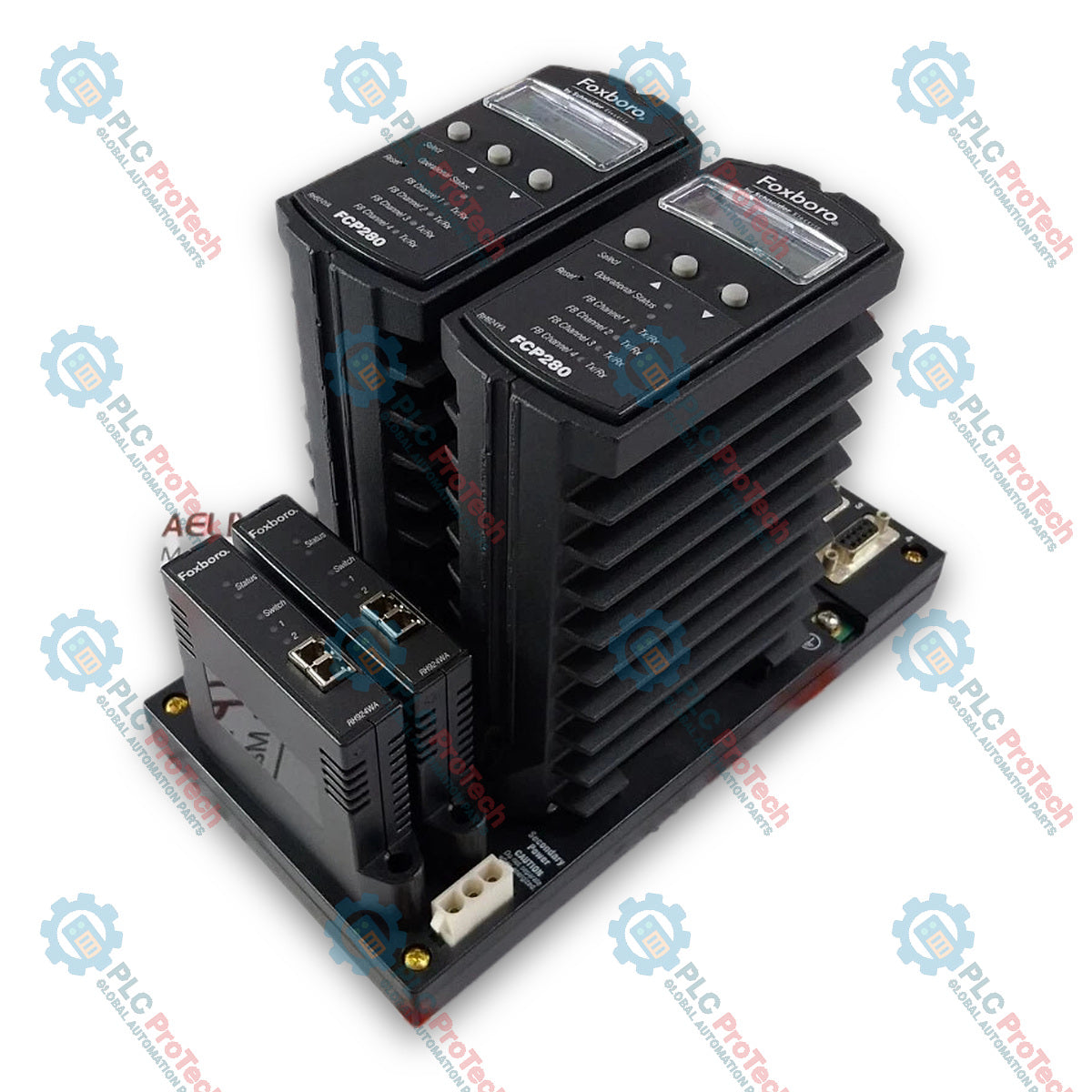

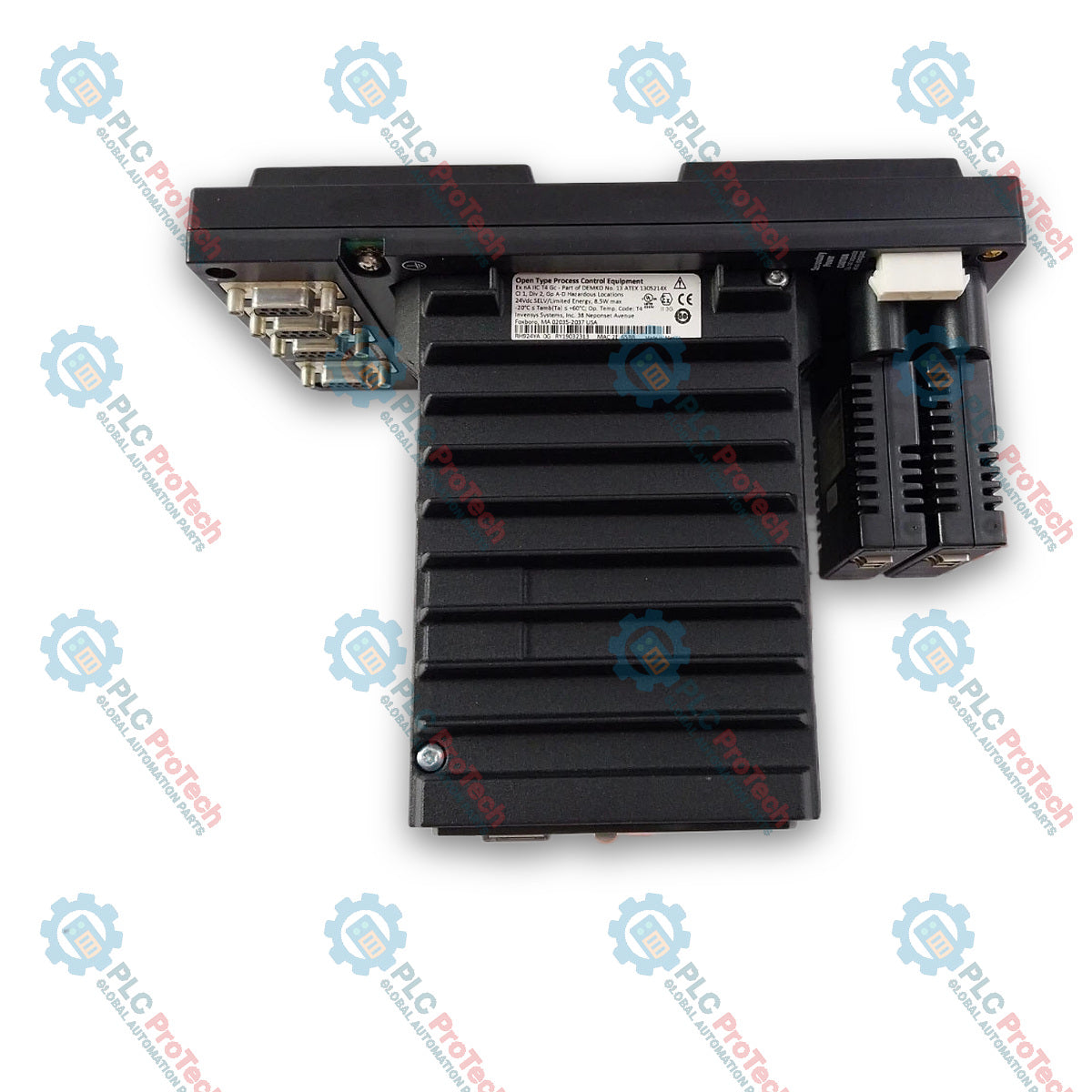

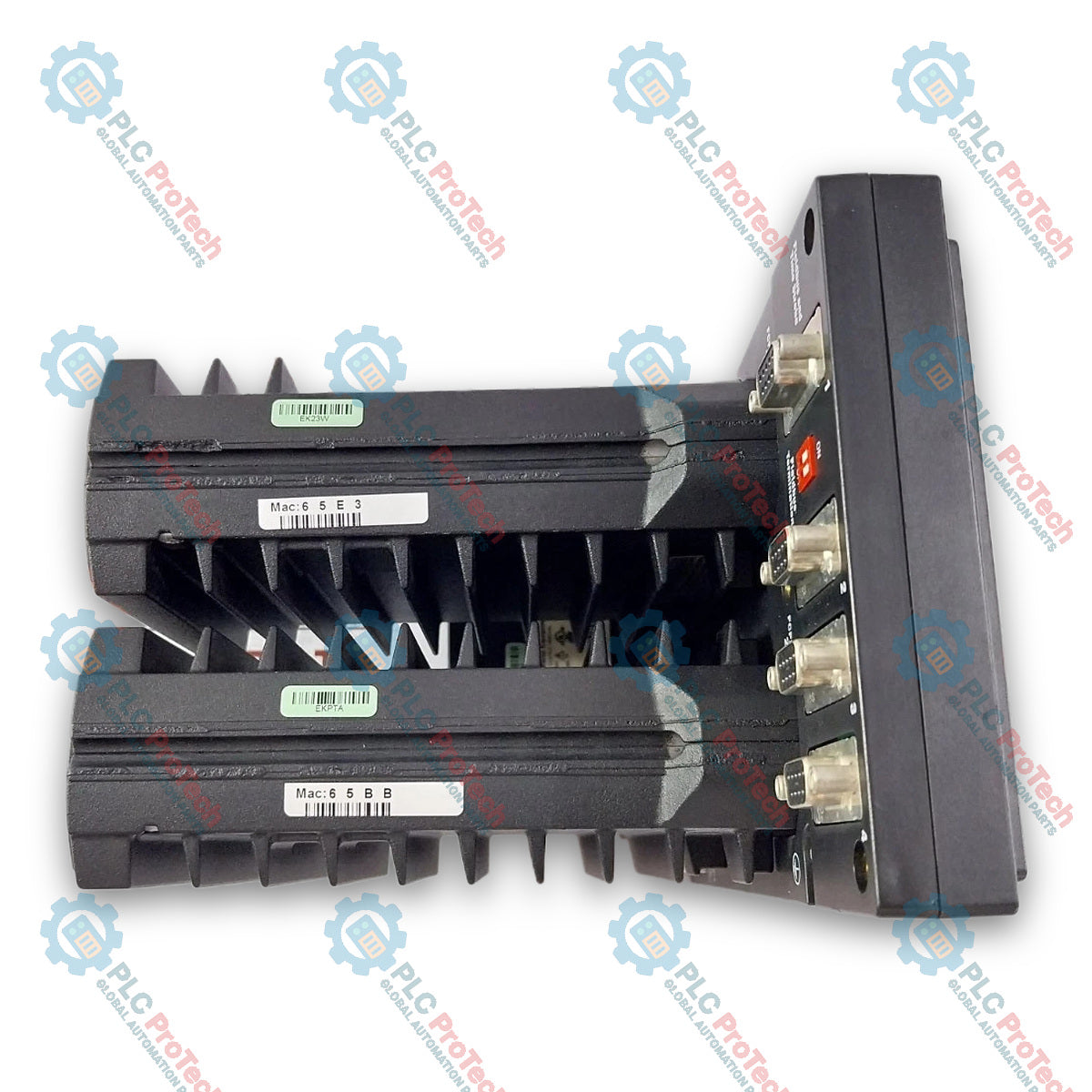

Foxboro FCP280 RH924WA Field Control Processor Module

Description

The Foxboro FCP280 RH924WA Field Control Processor Module is a distributed, optionally fault-tolerant, field-mounted controller module designed for process control and alarming functions. Operating within the Foxboro Evo Process Automation System, the device executes regulatory, logic, timing, and sequential control schemes in conjunction with connected Fieldbus Modules (FBMs), while also managing data acquisition, alarm detection, and notification tasks. The Foxboro FCP280 connects to The Mesh control network via standard fiber optic or copper 100 Mbps Ethernet cables from baseplate-mounted network adapters. In this specific hardware configuration, the RH924WA fiber adapter equips the module with ceramic LC connectors to interface via multimode fiber optic cabling.

The module interfaces with up to 128 Compact or standard 200 Series FBMs via a 2 Mbps HDLC fieldbus across four PIO channels (Expanded fieldbus). Alternatively, it supports up to 64 100 Series FBMs on a 268 Kbps HDLC fieldbus, with the remaining allocation made up of 200 Series modules up to the 128-module limit. Built with a rugged, non-vented die cast aluminum housing, the device is rated for Class G3 harsh environments and certified for field mounting in industrial process automation applications.

Features

• Performs regulatory, logic, timing, and sequential control along with data acquisition and alarm handling
• Supports up to 128 Compact/standard 200 Series FBMs, or a combination of up to 64 100 Series FBMs and 200 Series FBMs
• Connects to The Mesh control network using RH924WA fiber adapters with dual LC connectors
• Offers optional fault-tolerant pairing with bit-for-bit message comparison across two processor modules
• Includes self-hosting mode to boot and run control database from flash memory without host workstation connection
• Supports on-line image upgrade (OLUG) for fault-tolerant configurations

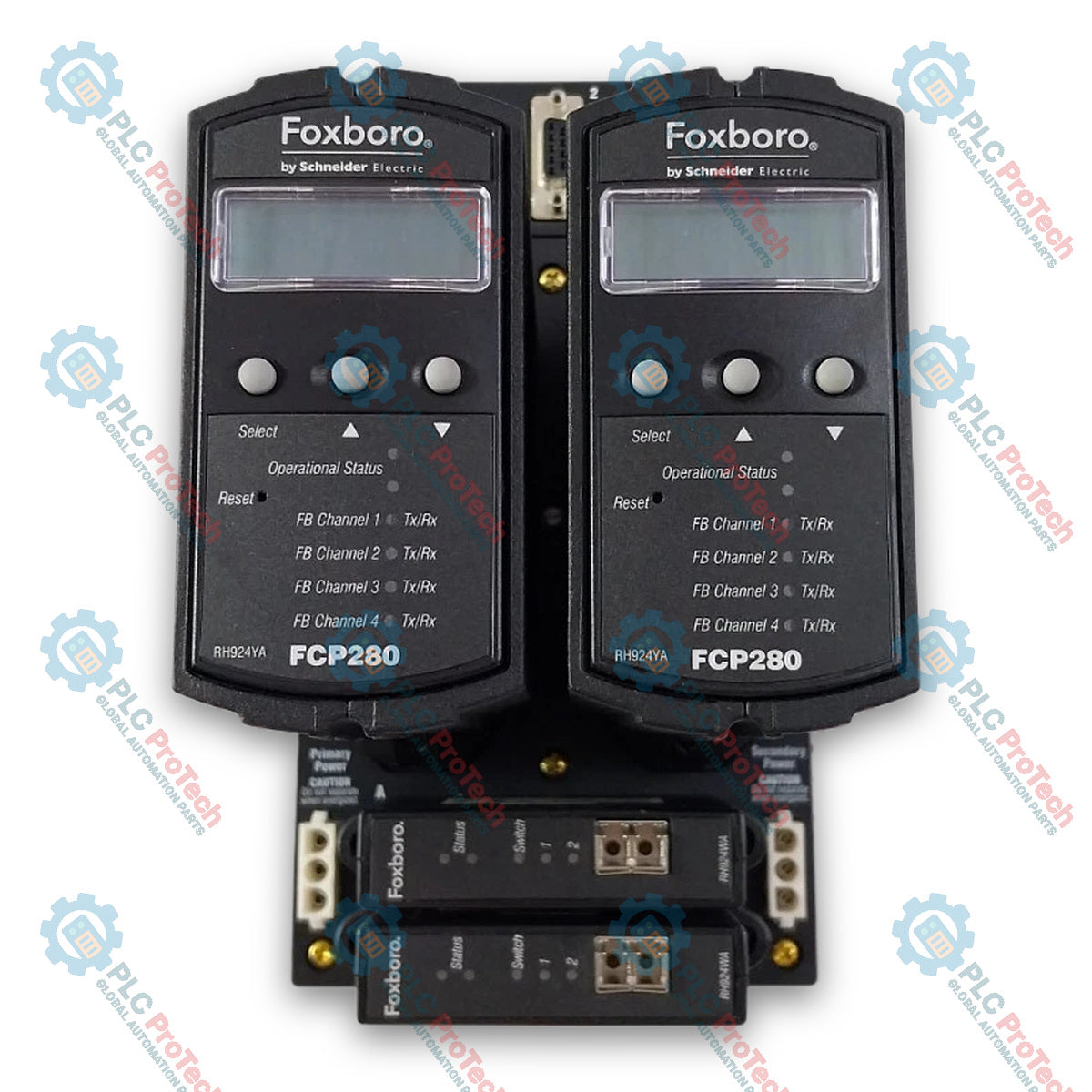

• Integrated Liquid Crystal Display (LCD) shows letterbug, operational roles, and network statuses
• Constructed in die cast aluminum housing rated for Class G3 harsh environmental conditions

Applications

• Distributed process control in Foxboro Evo Process Automation Systems
• Regulatory, logic, timing, and sequential process loop execution
• Field-mounted data acquisition, alarming, and Sequence Of Events (SOE) tracking
• Interface management for 100 Series and 200 Series Fieldbus Modules (FBMs)
• Integration with third-party PLCs and serial devices via Field Device System Integrators (FDSI)

Ordering Information

Technical Specifications

Connections/Interfaces

Installation Guidelines

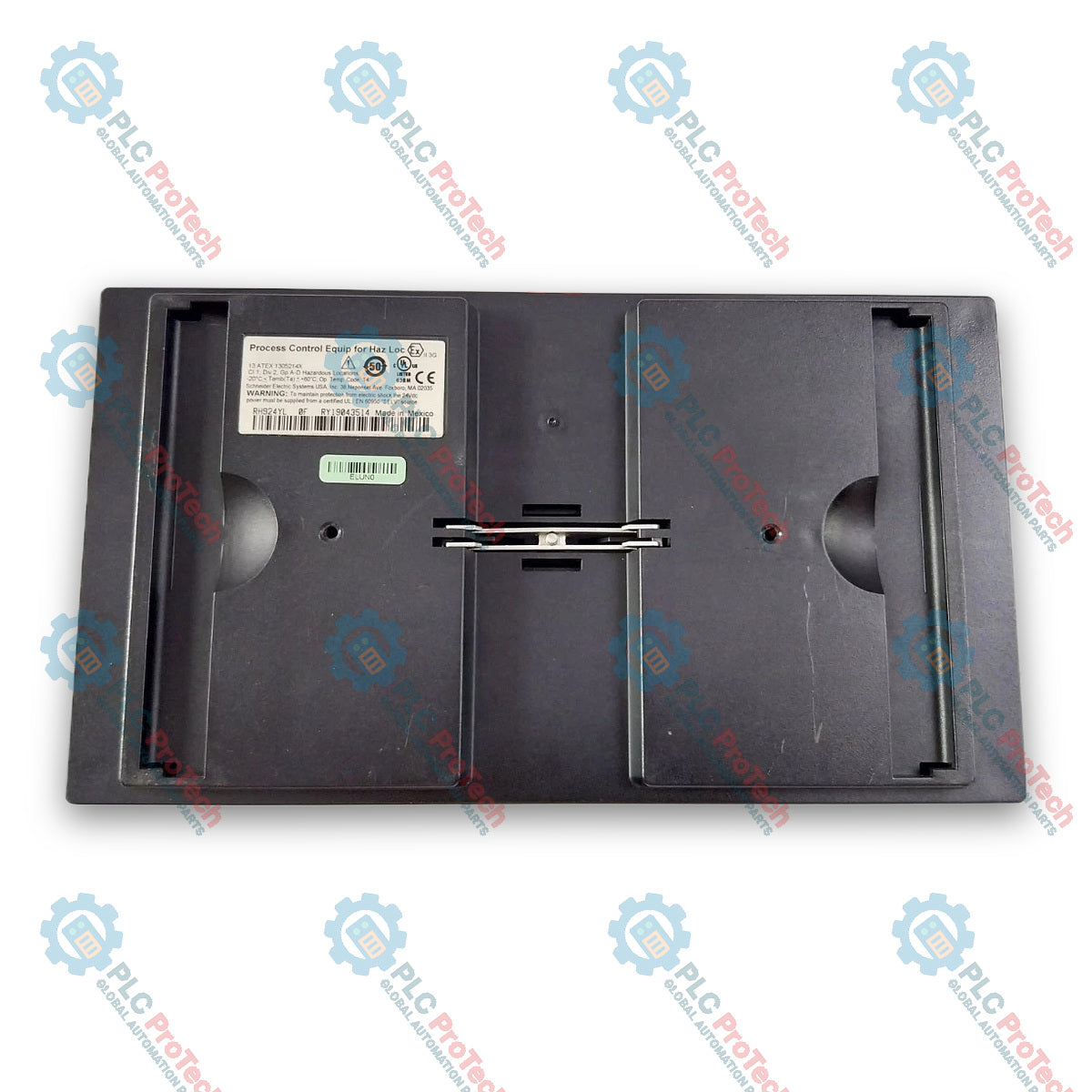

• Baseplate Mounting: Mount the FCP280 in dedicated, keyed slots on vertical (RH924YF) or horizontal (RH924YL) DIN rail baseplates. Vertical baseplates are recommended for optimized convection cooling.
• Fault-Tolerant Setup: Install fault-tolerant module pairs in adjacent FCP280 slots on the baseplate to enable direct internal interconnecting communication.
• Network Cabling: Connect the RH924WA fiber adapter to The Mesh Ethernet switches using 62.5/125 um multimode fiber optic cables up to a maximum distance of 2 km.
• Fieldbus Wiring: Ensure each Fieldbus port on the baseplate is dedicated exclusively to either a 2 Mbps HDLC fieldbus (200 Series) or 268 Kbps HDLC fieldbus (100 Series). The cable length for each Expanded fieldbus segment must not exceed 60 m without isolation/extension devices.

Compliance and Certifications

• EMC Directive: European EMC Directive 2004/108/EC meeting EN 61326-1, CISPR 11 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, and IEC 61000-4-8
• Product Safety: UL/UL-C listed for Class I, Groups A-D; Division 2 enclosure-based systems; Class 2 circuits per NEC Article 725 / CSA C22.1
• ATEX Directive: European Low Voltage Directive 2006/95/EC and ATEX Directive 94/9/EC certified Ex nA IIC T4 Gc (DEMKO) for Zone 2 classified areas
• Security Certification: Wurldtech Achilles Certification Level 1
