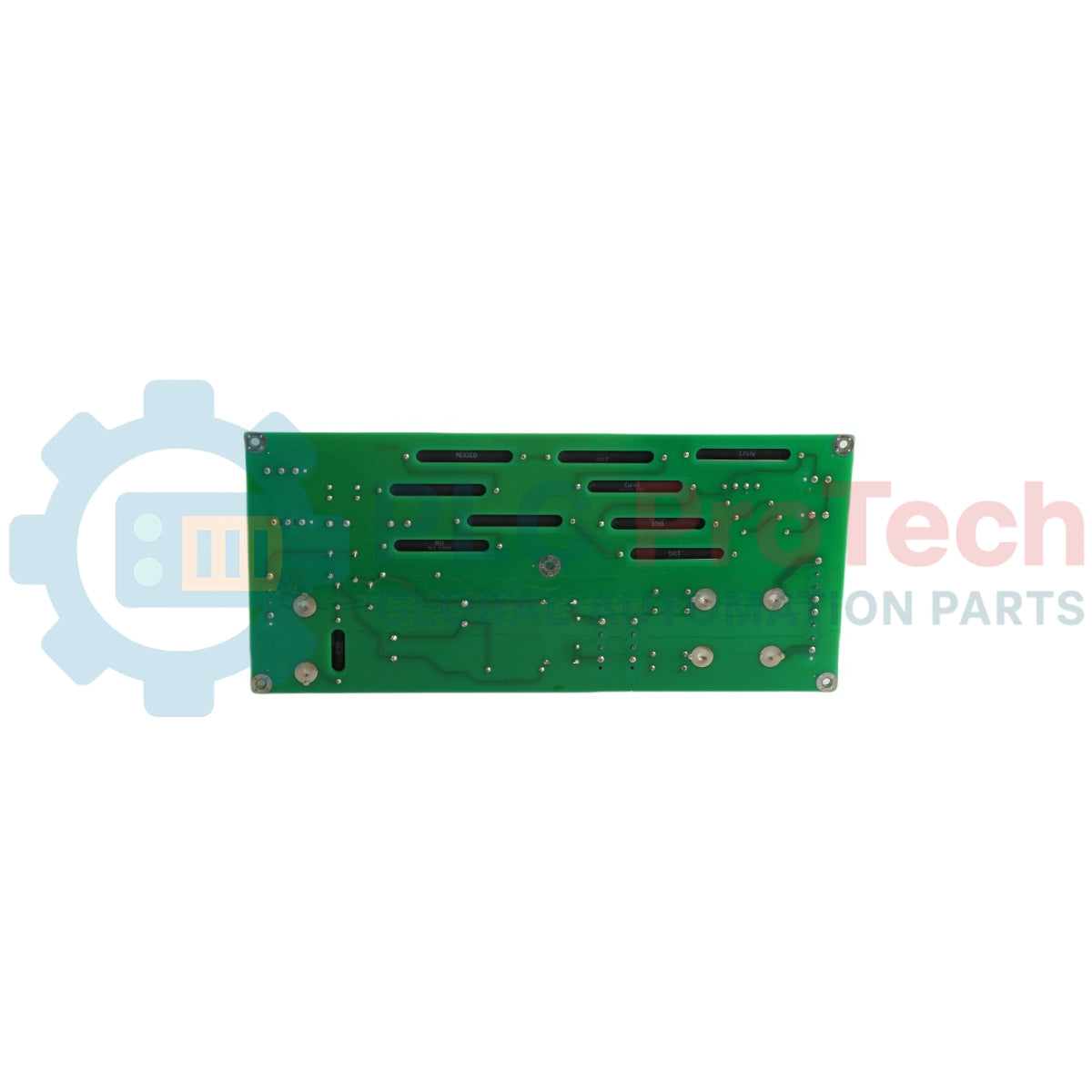

GE IS200WEORG1ACD Mark VIe Speedtronic Wind Turbine Output Board

Description

The IS200WEORG1ACD operates as a specialized wind turbine output board engineered by GE Energy for deployment within the Mark VIe Speedtronic turbine control platform. This printed circuit board balances localized electrical signals and provisions dedicated control communications for industrial wind turbine drive arrays. Designed with built-in power isolation transformers, the IS200WEORG1ACD provides secure load transfer across auxiliary system modules while maintaining rigid circuit separation via defined overcurrent and overvoltage protective paths.

Features

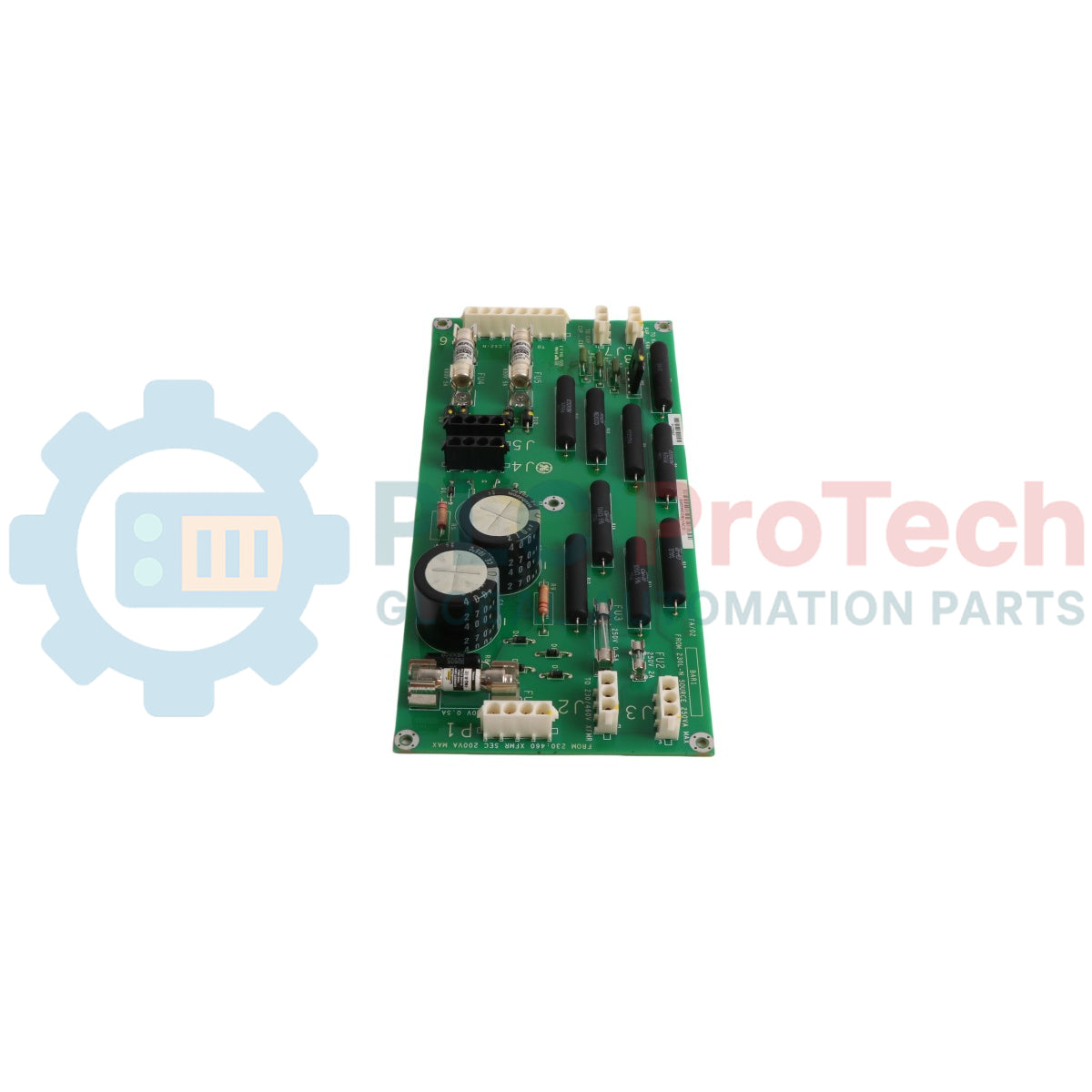

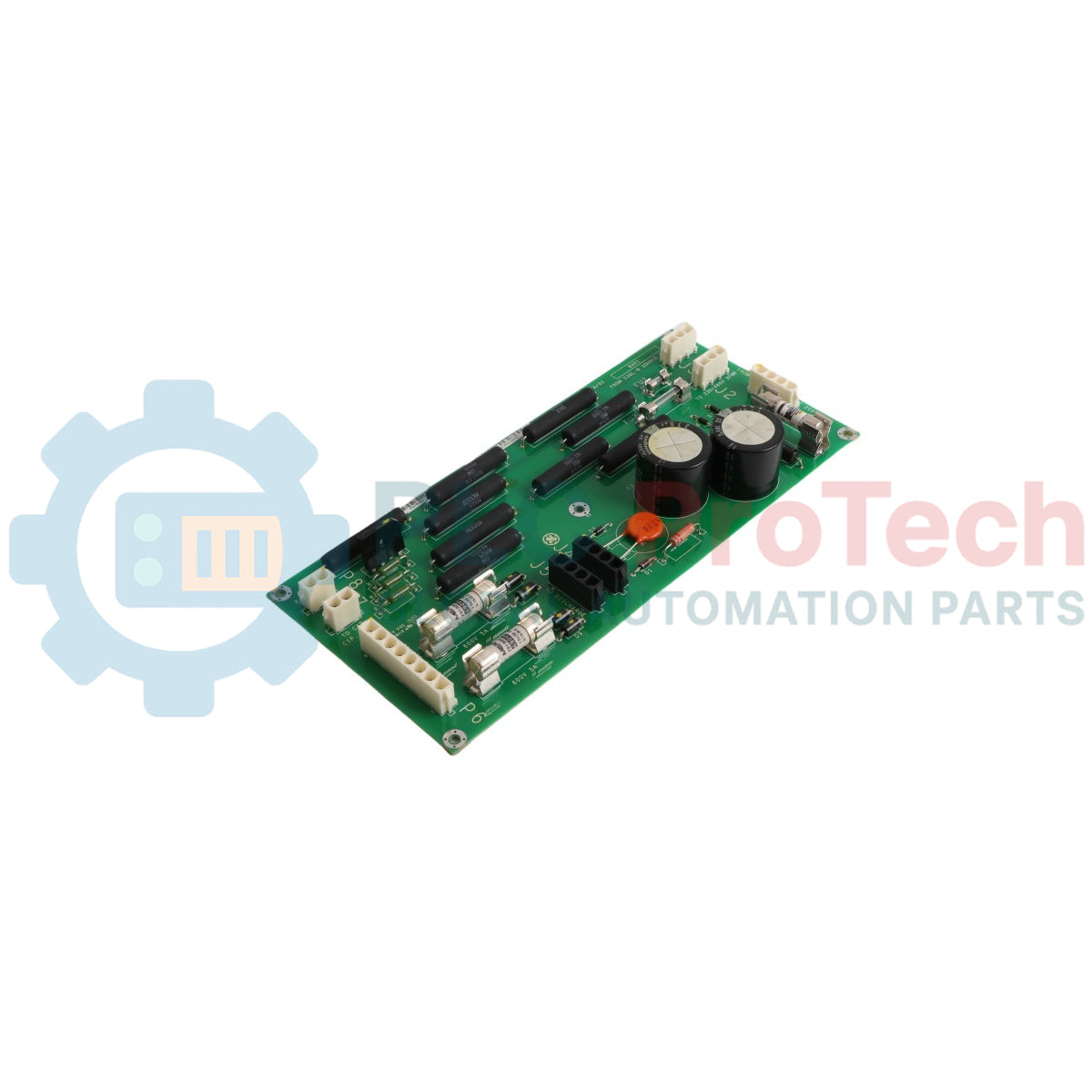

• Thermal-Resilient Filtering Subsystem: Equipped with two Nichicon 270uF 150 Celsius electrolytic capacitors labeled C1 and C3 to stabilize internal voltage loops under intense operating temperatures.
• Transient Voltage Suppression: Features an orange-coated 3kV single-layer ceramic capacitor (C2) situated near the primary filters to cushion circuits against industrial spikes.
• Segmented Overcurrent Fusing: Built with five onboard circuit fuses, explicitly including 250V protection units alongside 3 high-capacity 600V safety fuses.
• Isolated Power Transfer Transformers: Integrates high-reliability isolation transformers to safely bridge power lines from this assembly to adjacent network boards.
• Field Jumper Configurations: Provides accessible J4 and J5 hardware jumper selection points to streamline signal adaptation on-site.

Applications

• Mark VIe Speedtronic wind turbine drive installations
• Output regulation and safety balancing within alternative energy systems
• Automated industrial wind power generation networks

Technical Specifications

Installation Guidelines

• Resistor Crimp Clearance: Ensure proper mechanical crimp clearance is maintained between the high-power resistors (R1, R2, R3, R5, R9) and the foundation board surface to protect voltage-resistant paths and aid thermal regulation.
• Panel Mounting Execution: Mount the card securely into the target station box utilizing the 5 factory-drilled layout holes located on the perimeter framework.
• Electrostatic Grounding: Utilize an ESD-safe workspace and wear a standard grounding strap prior to adjusting hardware jumpers J4 or J5 to avert electronic disruption.
