GE IS215VPROH1B Mark VI Turbine Control System Turbine Protection Assembly Module

Description

The IS215VPROH1B executes localized emergency safety logic, acting as a dedicated hardware layer for emergency trip functions, emergency stop paths, and backup overspeed calculation. This turbine protection assembly module forms an integral part of the Speedtronic hardware platform for the Mark VI system, processing sensor signals independent of the primary control core to protect utility assets. It directly controls critical trip solenoids through its interface with the TREG board, allowing for automated application software logic checks as well as manual safety override commands. Designed with dual-stacked circuit boards and an integrated front faceplate, the IS215VPROH1B emergency protection assembly accepts diverse hardware sensor feeds including direct thermocouple terminations and analog process variables.

Features

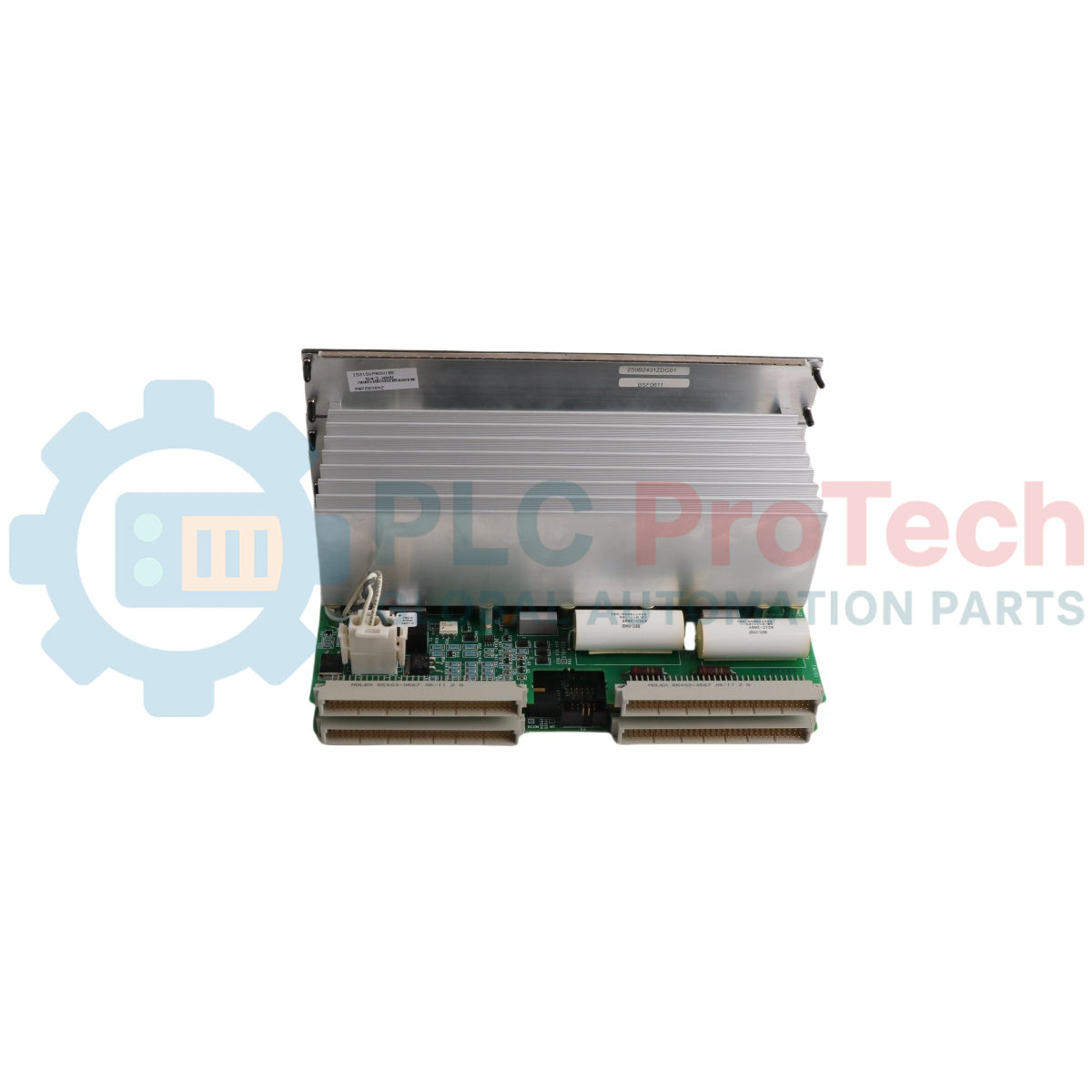

• Dual-board mechanical stack consisting of an upper IS200VPRW card secured to a lower base backplane via threaded standoff screws.
• Speed difference detection and built-in backup synchronization check protection logic.
• High-reliability electronic construction utilizing polyester vinyl capacitors, carbon composite resistors, and discrete inductor coils.

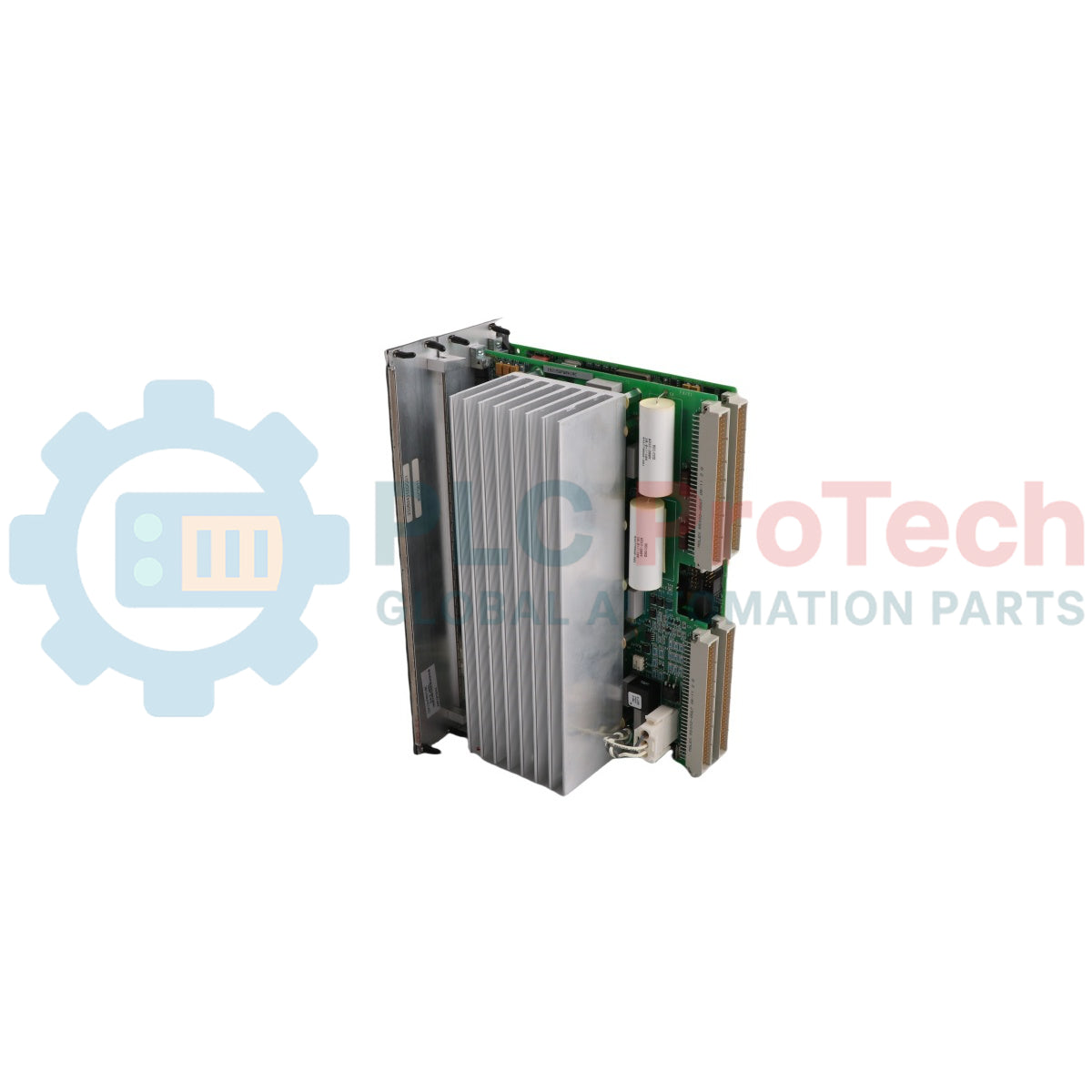

• Integrated thermal management featuring a front right-side heatsink for continuous heat dissipation.

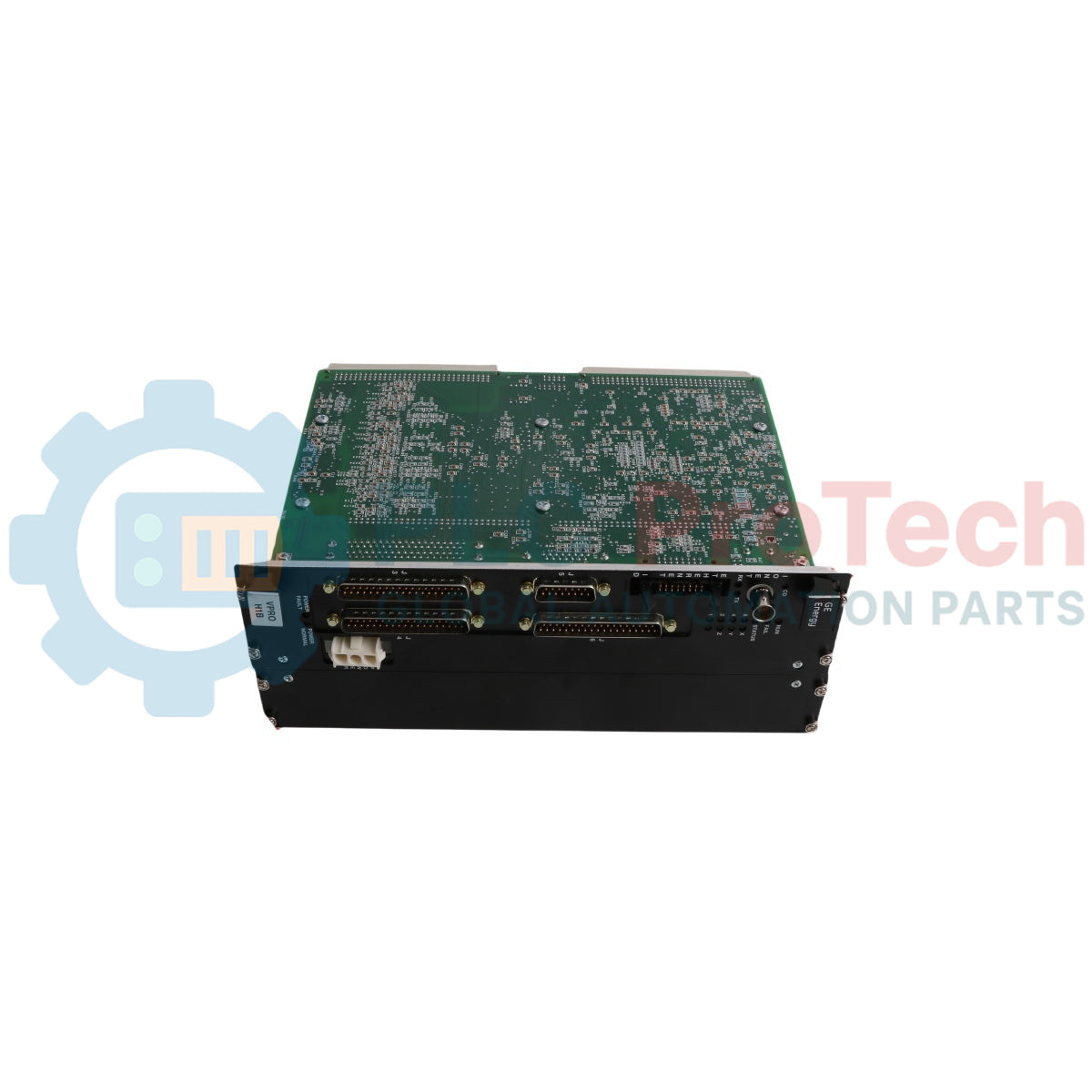

• Heavy-duty dual-width front faceplate equipped with a physical power switch and standard industrial communications interfaces.
• Factory-printed nomenclature labels applied directly to the faceplate for clear identification of all local diagnostic elements and cable paths.

Applications

• Emergency overspeed protection for utility gas and steam turbines
• Wind turbine automated drive safety installations
• Trip solenoid control and valve monitoring via TREG board integration
• Independent safety interlock processing in Speedtronic turbine networks

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Rack Mounting: Align the base printed circuit board with the guide rails of a standard Mark VI VME Rack Mounting Assembly. Slide the assembly inward until the rear connectors interface with the backplane.
• Faceplate Securing: Fasten the dual-width front faceplate to the rack frame using the designated panel mounting screws to ensure structural support and proper grounding path.
• Component Clearance: Verify that the front right-side heatsink area is free from any cable blockages to maintain ambient airflow for internal component cooling.
• Handling Protocols: Utilize grounded ESD wrist straps when managing the stacked card hardware to avoid damaging the internal oscillating chips and discrete semiconductor devices.
