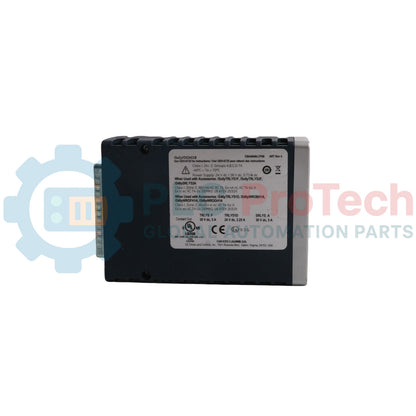

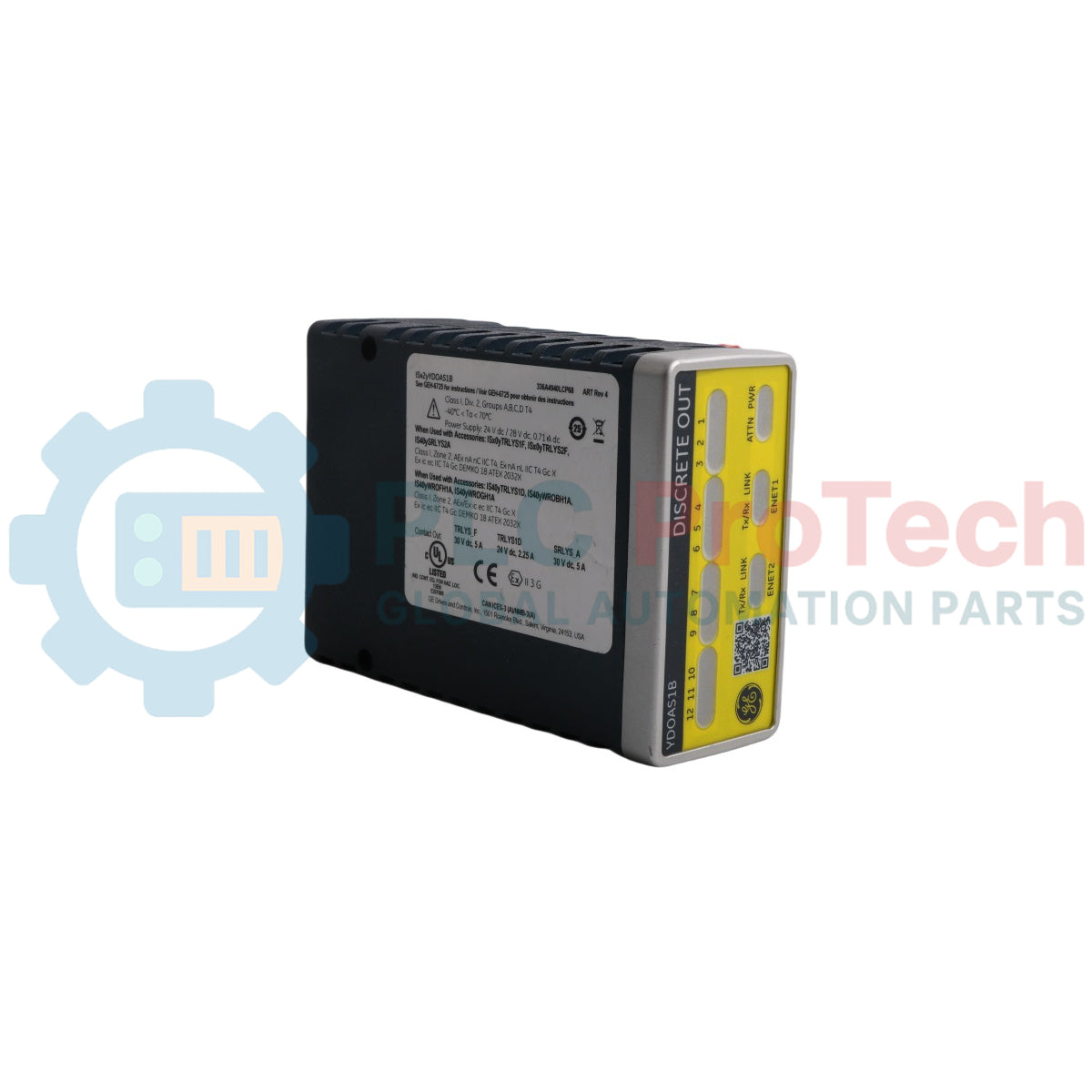

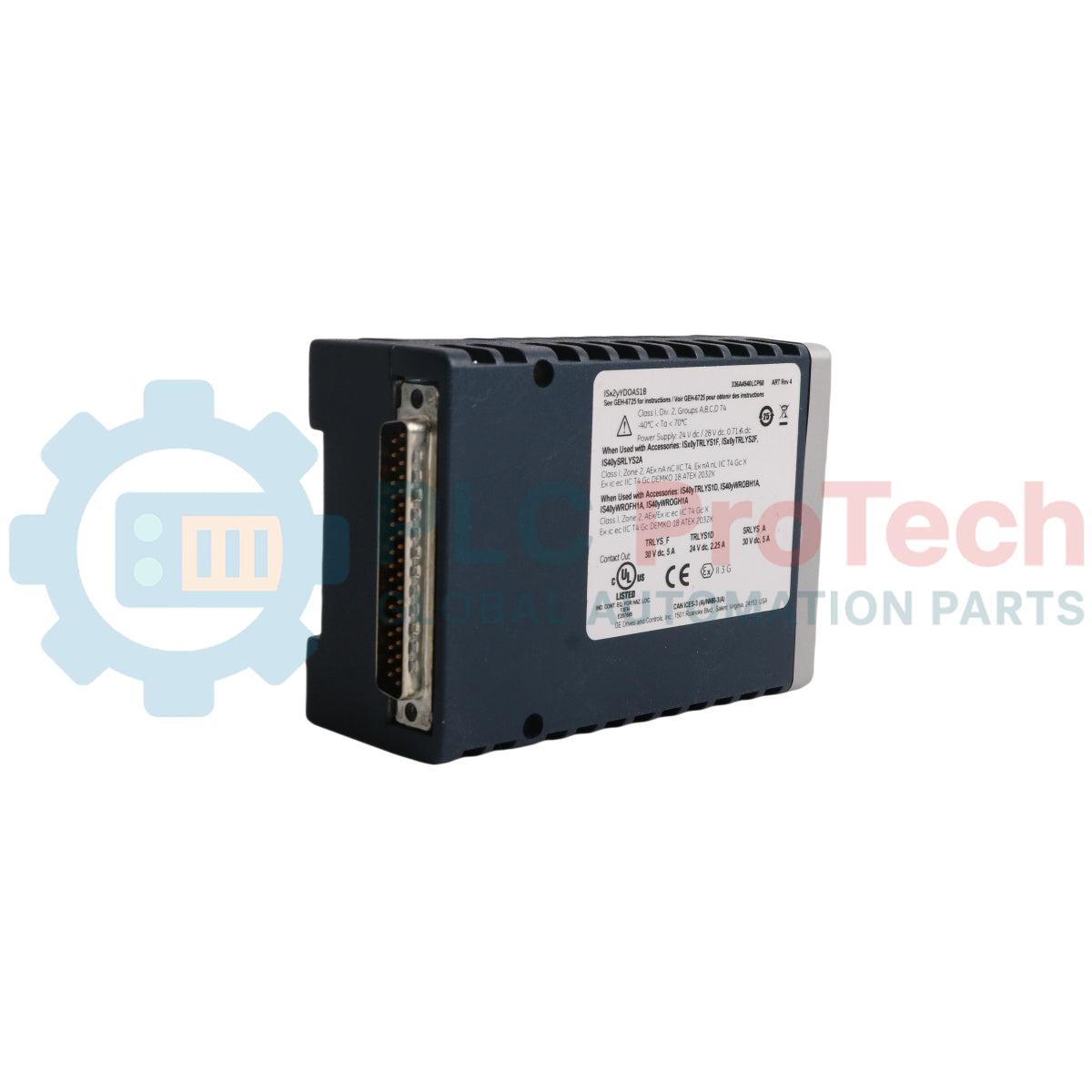

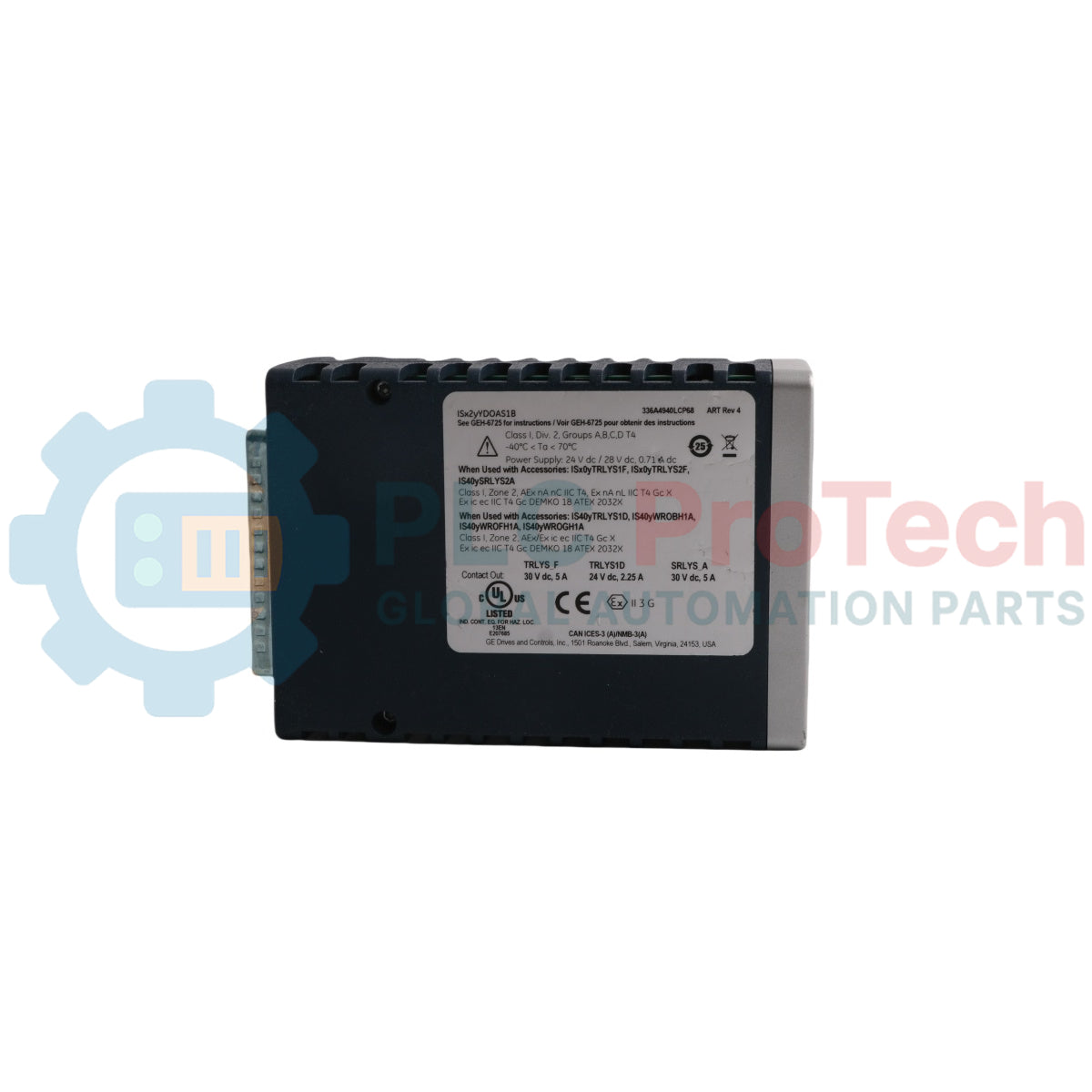

GE IS420YDOAS1B Mark VIeS Functional Safety Discrete Output I/O Pack

Description

The IS420YDOAS1B is a discrete output I/O pack developed for the General Electric Mark VIeS Functional Safety System. It provides a high-reliability electrical and logical interface between control logic and discrete process actuators, operating across 12 discrete output channels. The module accepts logic commands from the safety controller and translates them into control signals distributed via a compatible terminal board.

Designed for deployment in safety-critical loops, the IS420YDOAS1B works in tandem with terminal boards like the IS410SRLYS2A for simplex setups or the IS410TRLY series for configurations requiring dual-fusing, contact wetting, load integrity sensing, or TMR (Triple Modular Redundant) 2-out-of-3 voting. The unit features internal diagnostics to continuously verify commanded output states against physical hardware feedback.

Features

• Provides hardware and logic interfacing for 12 discrete/contact output circuits.
• Universally compatible across all standard safety discrete/contact output configurations.
• Supports integration into both Simplex and Triple Modular Redundant (TMR) safety architectures.
• Enables power-up self-testing, hardware health monitoring, and loop diagnostics.
• Integrated visual status LEDs for immediate, localized module health diagnosis.
• Circuit health variables are explicitly exposed to the control logic for real-time monitoring.

Applications

• Mark VIeS Functional Safety Systems.
• Emergency Shutdown (ESD) systems.
• Critical solenoid and process actuator control.
• High-availability, SIL-rated relay contact output loops.
• Interfacing in hazardous industrial environments.

Technical Specifications

System Compatibility and Terminal Boards

The IS420YDOAS1B I/O pack must be paired with a compatible terminal board to execute field operations. The board selection dictates the circuit redundancy, voting behavior, and fusing attributes.

Installation Guidelines

• Mounting: The I/O pack mounts directly onto the designated header pins of the compatible S-type or TMR relay contact output terminal board. Secure the unit mechanically using the hardware provided to withstand environmental vibration.
• Power Connection: Deliver local control power through the integrated Micro Mate-N-Lok receptacle. Ensure the input voltage stays within the nominal 24 to 28 V dc limits to avoid thermal overload or tripping safety boundaries.
• Ventilation: Maintain clean airflow around the aluminum casing. Ambient temperatures surrounding the module must not exceed 70 degC under continuous operation.
• Field Wiring: All field wiring is terminated directly on the host terminal board (using Euro-style or barrier blocks depending on model selection) rather than the I/O pack itself. Wire sizing should be between 24 AWG minimum and 12 AWG maximum.

Compliance and Certifications

• Functional Safety: Compliant with IEC 61508.
• Hazardous Locations: Class 1, Div 2 / Class 2, Zone 2 / ATEX compliant for designated applications.
