Product Overview

The IS215REBFH1BA is a specialized, high-reliability Renewable Energy Bridge Interface printed circuit board (PCB) developed by GE Energy for the Mark VIe and Mark VIeS control platforms. Operating as a critical communication and diagnostic gateway, this module serves as the primary hardware link between the main controller and the power electronics bridge circuits used in wind turbine converters and solar photovoltaic inverters. Industrial green-energy installations—including utility-scale onshore and offshore wind parks and high-capacity commercial solar grids—rely on the IS215REBFH1BA to regulate rapid power modulation loops. By facilitating real-time data acquisition from the power bridge and handling high-speed switching commands, this card helps optimize reactive power injection and voltage stabilization. This dedicated tracking minimizes grid faults, shields sensitive igbt assemblies from overcurrent surges, and reduces asset unprogrammed downtime.

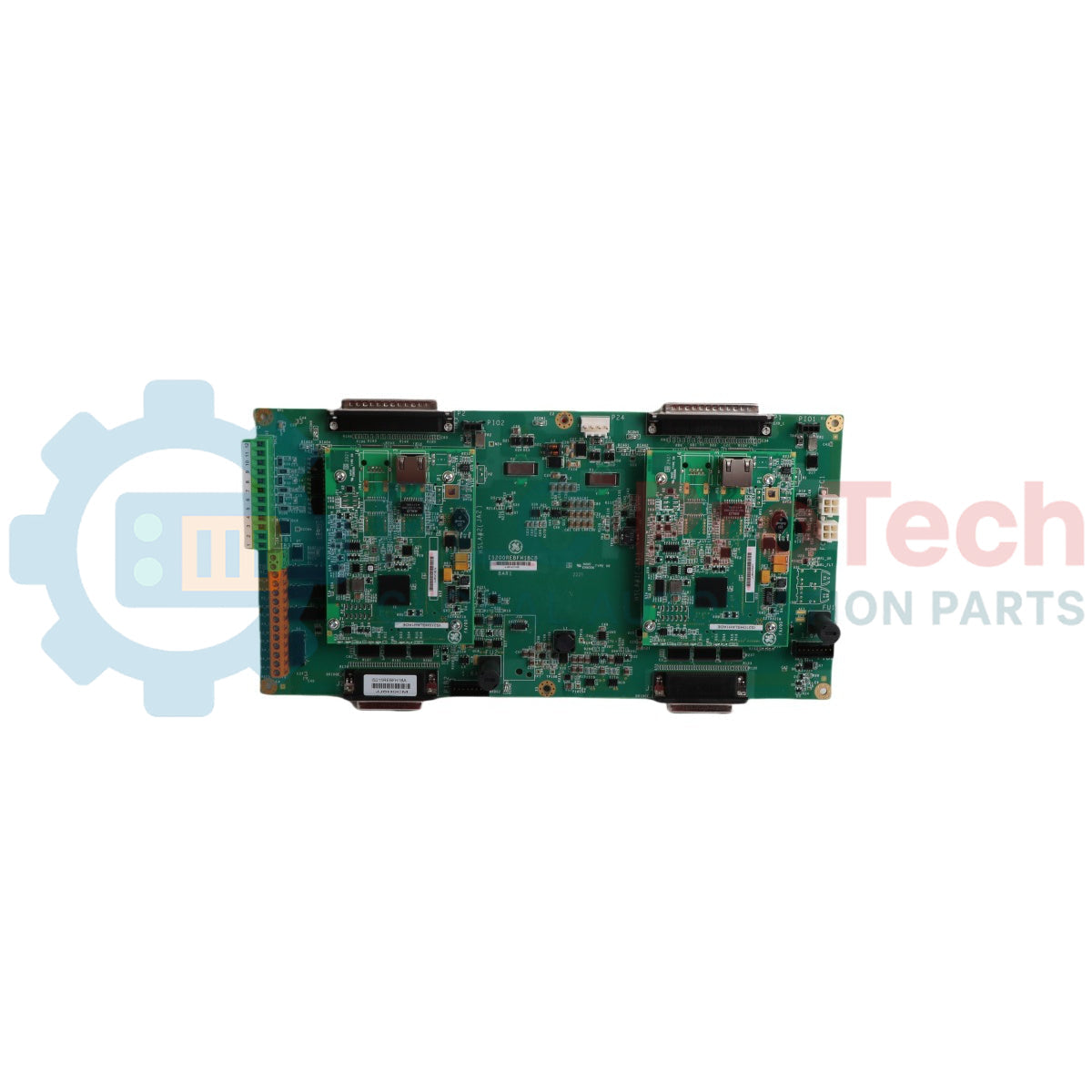

Circuit Topography & Interfacing Architecture

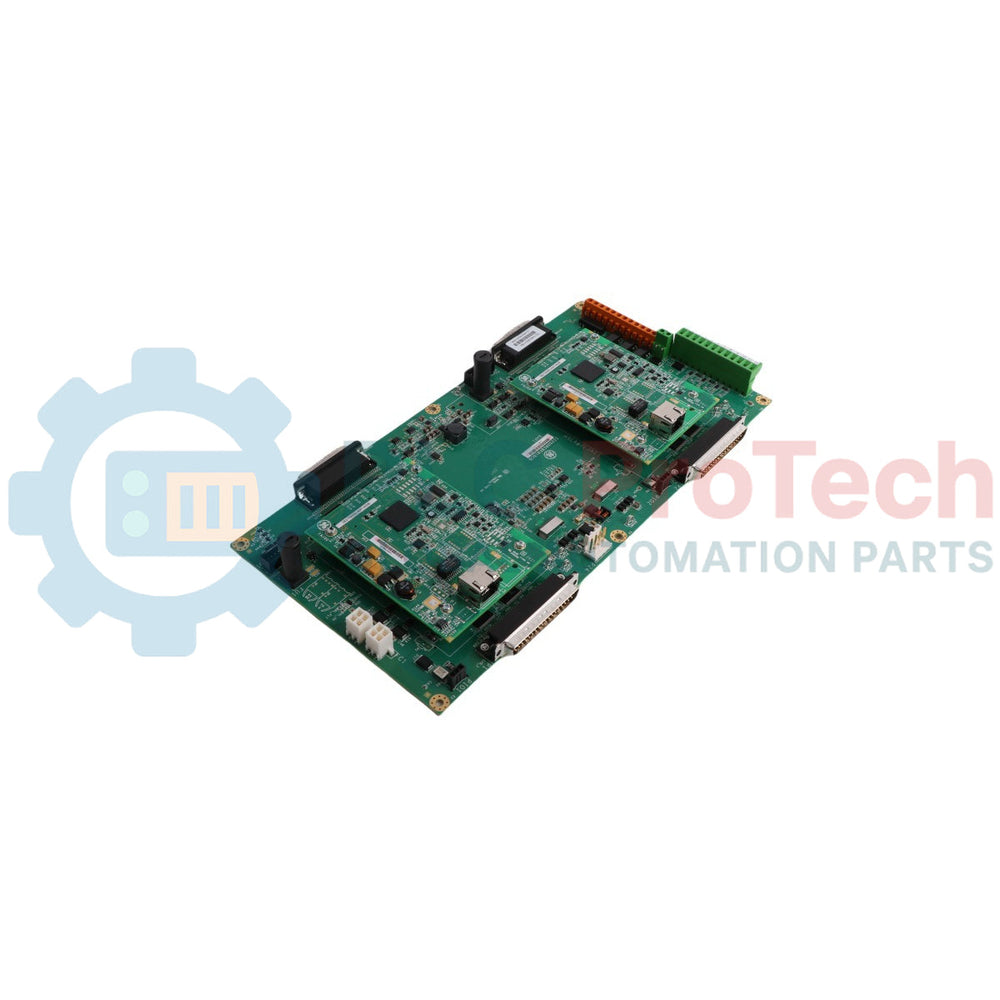

The board layout, high-speed transceiver networks, and localized diagnostic channels of the IS215REBFH1BA interface substrate maintain strict control coordination over high-power bridges.

• Fiber-Optic Communication Rails: Features high-speed fiber-optic ports designed to transfer digital gating commands and bridge diagnostics, isolating the controller from high-voltage electrical noise.

• Bridge Diagnostic Conditioners: Outfitted with specialized analog conditioning circuits that track bridge temperatures, phase currents, and DC bus voltage metrics.

• IONet Network Integration: Communicates directly with the master controller via GE’s proprietary IONet Ethernet protocol, enabling deterministic synchronization across parallel power bridges.

• Onboard Logic Core: Integrates local field-programmable gate arrays (FPGAs) to decode high-speed control matrices and manage immediate trip actions if a local bridge fault is detected.

Technical Performance Standards & Operating Bounds

Green-Energy Control & Diagnostics FAQs

What primary function does the IS215REBFH1BA perform in wind converter enclosures?

The card acts as the high-speed interface between the main Mark VIe turbine controller and the liquid-cooled power bridge. It processes real-time gate firing signals for the inverter's power semiconductors while collecting temperature and voltage feedback to ensure clean synchronization with the electrical grid.

How does fiber-optic isolation improve hardware safety on this board?

By using fiber-optic links to send and receive gating commands, the card isolates low-voltage control circuits from high-voltage power inverter components. This physical separation prevents dangerous voltage surges or ground-loop transients from travelling back to damage the primary controller racks.

What does the H1BA revision code indicate regarding field replacements?

The H1BA designation indicates the specific hardware build and component layout for this REBF variant. When replacing a faulty card in a running converter panel, technicians must match this suffix group exactly to ensure compatibility with existing factory firmware and plug layouts.

Field Engineering & Installation Guide

• Fiber-Optic Cable Management and Minimum Bend Radii:

  When connecting the fiber-optic leads to the IS215REBFH1BA ports, inspect the cable tips to ensure they are free of dust, grease, or condensation. Clean the tips using specialized fiber-optic wipes if necessary. Avoid twisting or pulling the lines, and maintain a bend radius greater than the minimum standard allowed for the fiber assembly. Sharp bends can kink the inner glass core, causing signal loss and intermittent communication drops on the master network.

• Anti-Static Grounding Protocols for Inverter Panels:

  The FPGAs and transceiver components on this module are highly sensitive to electrostatic discharge (ESD). Field engineers must wear a properly bonded anti-static wrist strap connected to the enclosure chassis before pulling the board from its static-shielded packaging. Handle the module strictly by its fiberglass borders or mechanical standoffs to avoid touching exposed trace routes.

• Environmental Controls for Outdoor Enclosures:

  Renewable energy control panels are often located in remote areas subject to high humidity, ambient heat, or salt spray. While the card features a conformal coating layer for protection, technicians must ensure that the cabinet's cooling fans, heat exchangers, or air-conditioning systems are working properly. Keep the ambient temperature inside the panel within the certified 0 to 60 deg C operating window to prevent thermal degradation.
