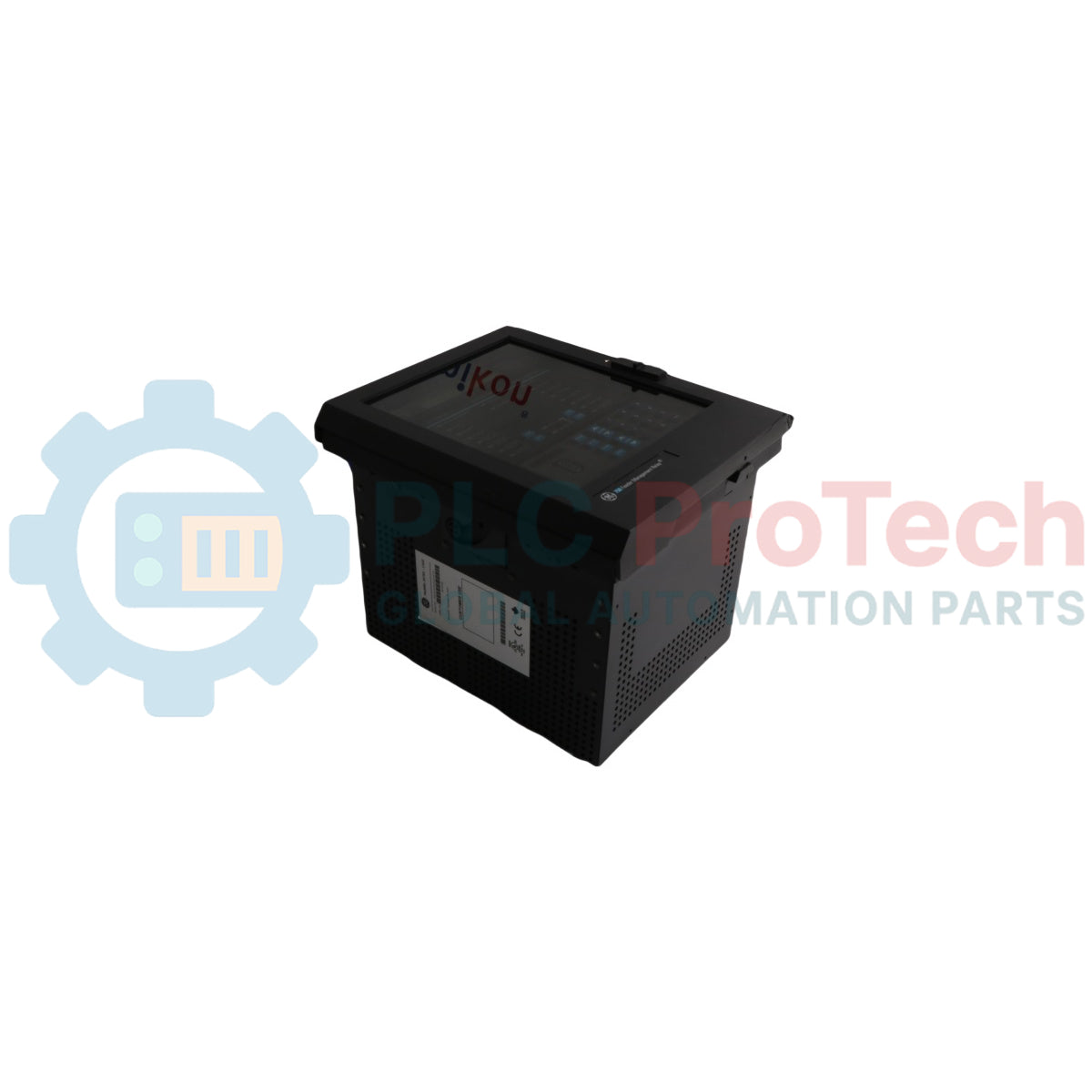

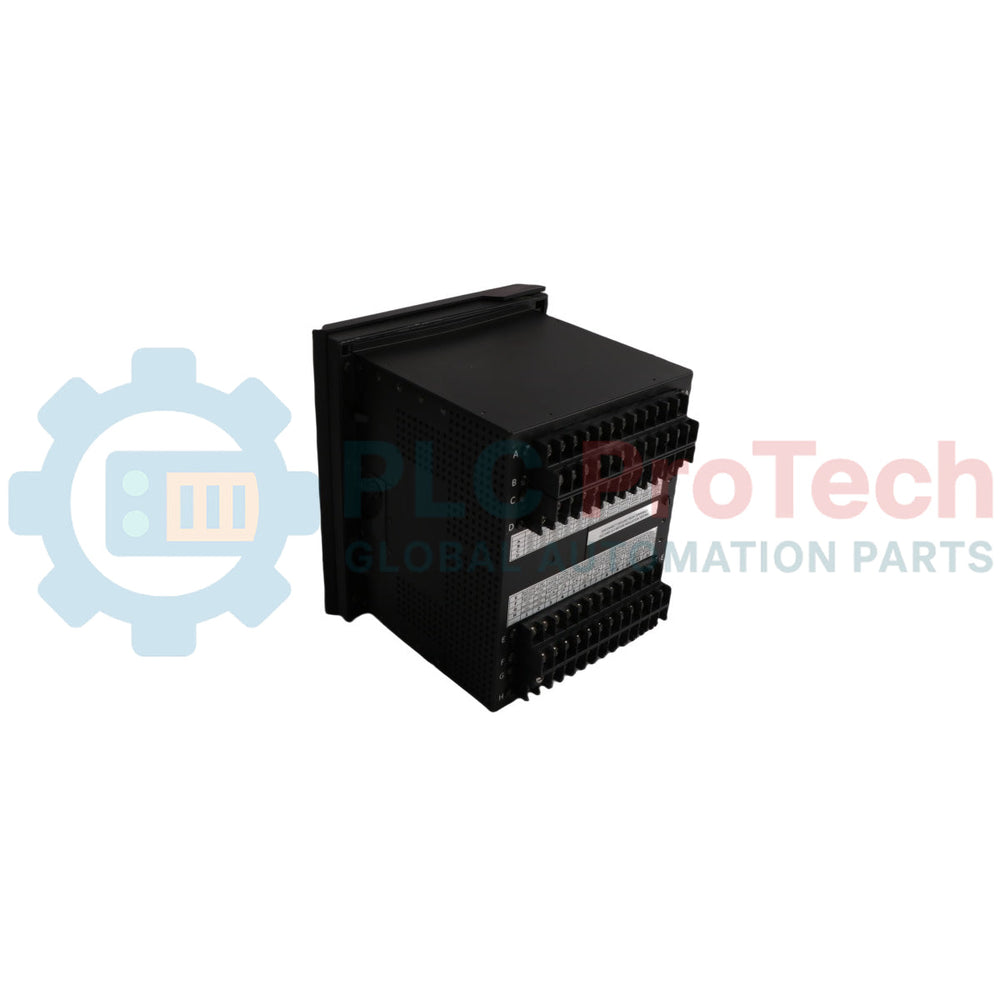

The 750-P5-G5-S5-HI-A1-R-E-H is a microprocessor-based feeder management relay engineered by General Electric (GE Multilin) for the comprehensive protection, control, and monitoring of utility and industrial distribution feeders. Operating within critical electrical substations, oil and gas electrical networks, and heavy industrial processing plants, this specialized protection platform handles overcurrent, directional, voltage, and frequency protection elements. By continuously analyzing waveform data and executing high-speed trip logic, the relay protects downstream transformers and cables from thermal degradation, minimizes equipment damage during catastrophic faults, and ensures grid stabilization to drive down unplanned distribution system downtime.
The numeric segmentation of the model number 750-P5-G5-S5-HI-A1-R-E-H dictates its factory-installed hardware and software build:
750: Baseline Feeder Management Relay platform identifier.
P5: 5 A Phase Current Transformer (CT) inputs.
G5: 5 A Ground Current Transformer (CT) inputs.
S5: 5 A Sensitive Ground Current Transformer (CT) inputs for low-fault detection.
HI: High-voltage control power supply (88-300 VDC / 85-264 VAC).
A1: Standard Analog Inputs (0-1 mA, 0-20 mA, or 4-20 mA arrays) and 10 A Form A/C output relays.
R: Enhanced front-panel display variant with comprehensive status LEDs and tactile programming keypad.
E: Integrated 10Base-T Ethernet communication port supporting industrial networking protocols.
H: Harsh environment conformal coating applied to the internal printed circuit boards.
| Parameter | Specification |
| Model | 750-P5-G5-S5-HI-A1-R-E-H |
| Brand | GE Multilin (General Electric) |
| Origin | Canada / USA |
| Product Type | Digital Feeder Management Protection Relay |
| Phase/Ground CT Inputs | 5 A nominal capacity |
| Power Supply (HI) | 88 to 300 VDC / 85 to 264 VAC at 50/60 Hz |
| Network Interfacing | 10Base-T Ethernet, RS485, RS232 |
| Protocols Supported | Modbus RTU, Modbus TCP/IP, DNP 3.0 |
| Waveform Capture | Up to 64 cycles at 16 samples per cycle |
| Protection Coating | Conformal Coated (H option for corrosive environments) |
| Enclosure Rating | IP40 (Front panel when flush mounted) |
| Operating Temp | -40 to +60 deg C |
How does the "H" option alter the environmental durability of this relay?
The "H" suffix specifies a factory-applied conformal coating on all internal electronic sub-assemblies. This transparent polymer barrier insulates internal components against conductive dust, moisture, salt spray, and atmospheric chemical corrosion typical of chemical plants and offshore platforms.
Can this relay be integrated into a modern SCADA network using Modbus TCP/IP?
Yes. The "E" configuration code signifies the presence of a dedicated Ethernet network port, enabling seamless mapping of protection registers, waveform data, and event logs directly over Modbus TCP/IP or DNP 3.0 networks to a central HMI or SCADA master.
What action should be taken if a "Relay Inoperative" self-diagnostic alarm triggers?
Isolate the unit and verify the health of the logic power supply rails via the diagnostic menu. If input voltage is stable within the 88-300 VDC range, the error indicates an internal hardware checksum failure or RAM failure, requiring a depot-level board replacement or system re-flash.
Ensure that all phase and ground CT circuits are completely shorted out via external shorting blocks prior to disconnecting or removing the terminal blocks from the rear chassis of the relay. Open-circuiting an active CT will generate lethal high-voltage transients that can destroy the relay's internal analog input card and pose fatal arc-flash hazards to personnel. Double-check that polarity markings (H1/X1) match the engineering wiring diagram exactly to ensure accurate directional overcurrent calculations.
When routing the RS485 or Ethernet communication lines through high-voltage switchgear line-ups, utilize double-shielded, twisted-pair cables. Terminate the shield drain wire at a single point—typically at the master SCADA gateway panel. Do not ground the shield at both ends, as this introduces ground loops that inject high-frequency noise into the serial data stream, causing dropped packets and corrupted telemetry.
Maintain a minimum clearance of 50 mm around the top and bottom ventilation slots of the flush-mount drawout case to facilitate natural thermal convection. Route high-current AC terminal wiring away from sensitive low-voltage digital input or analog input lines within the wire ducting to minimize magnetic cross-talk and false logic state transitions during external system faults.
