Product Overview

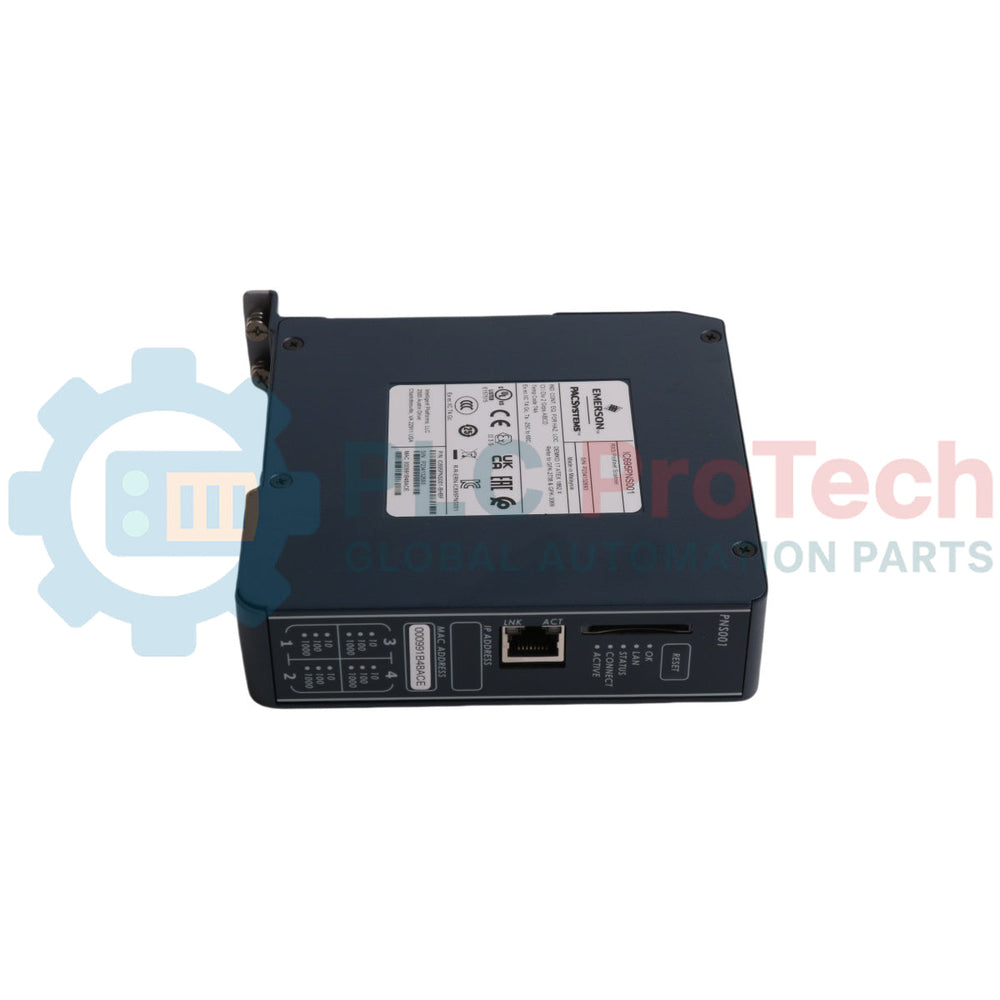

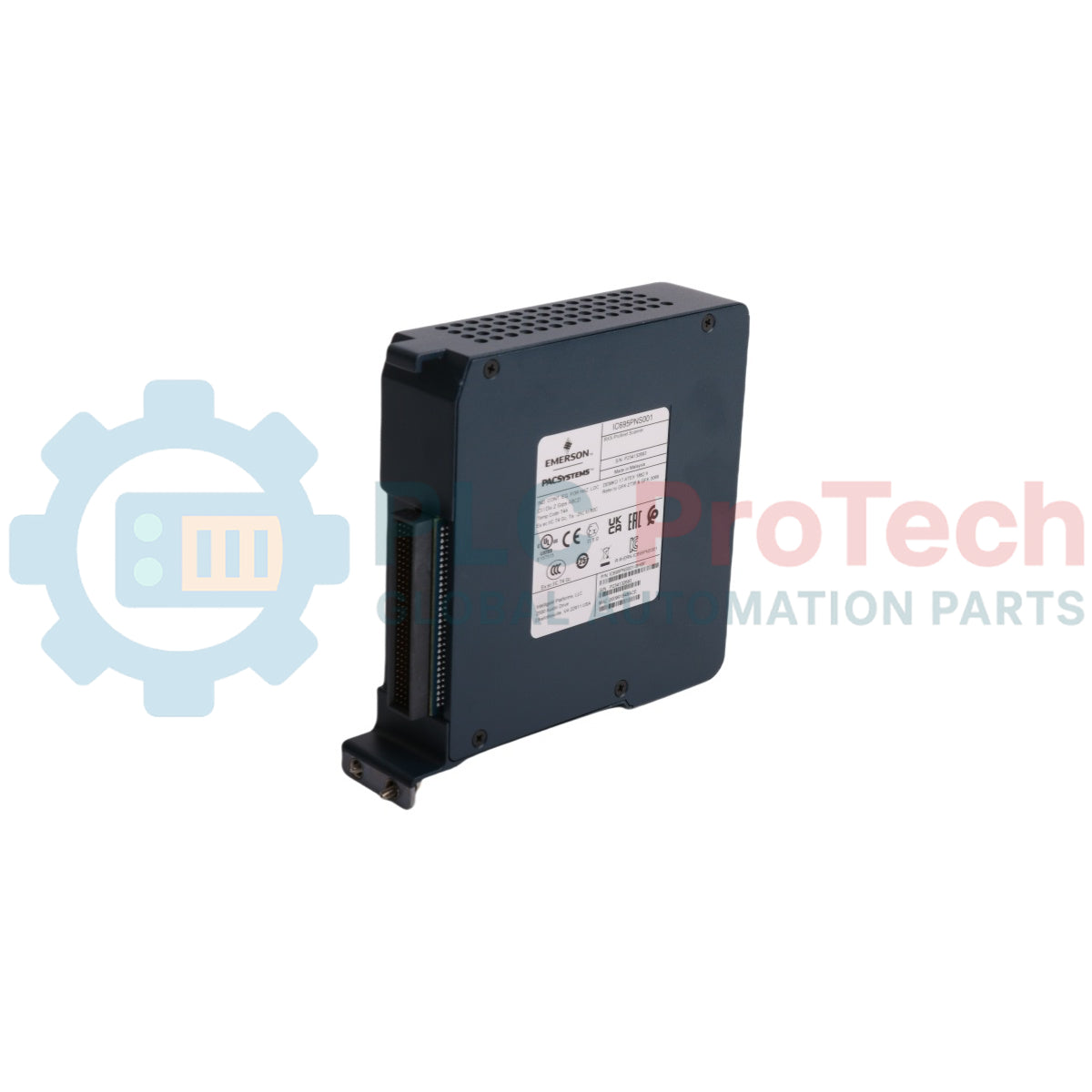

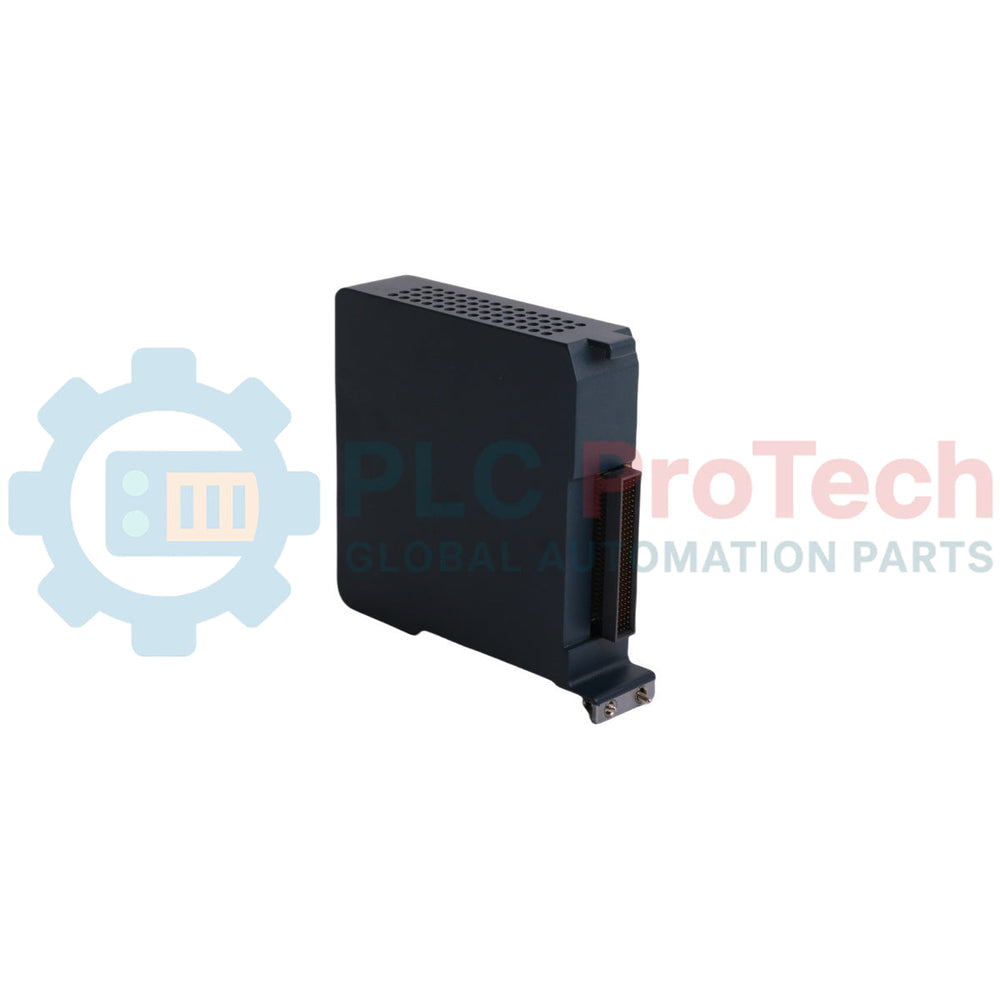

The IC695PNS001CA-ABAH (IC695PNS001CA-ABAH) is a high-performance, deterministic PROFINET network scanner module manufactured by General Electric for the PACSystems RX3i control platform. Deployed in demanding process industries such as petrochemical refining, modern power generation utilities, and massive mining operations, this module establishes high-speed decentralized network architectures. It bridges a remote universal RX3i backplane containing Series 90-30 or RX3i I/O modules directly to a primary PROFINET I/O Controller. By retrieving real-time input data, supplying output values, and maintaining determinism over the network LAN, this module drastically reduces field-to-control room latency. The specific -ABAH designation ensures a certified combination of hardware revision and firmware execution baseline, providing standardized local fallback logic that safely manages I/O states if upstream controller communication is lost. This defensive feature prevents system-wide process trips, significantly lowers unexpected plant downtime, and protects expensive field equipment from mechanical shock.

Technical Configuration

The IC695PNS001CA-ABAH architecture incorporates dual network processing layers designed to handle intensive deterministic traffic over industrial networks. The configuration logic and operational firmware support the following core engineering features:

• Conformal Coating (CA Suffix): The internal multi-layer printed circuit boards feature a factory-applied polymer coating. This protective layer insulates the surface components against moisture, conductive particulate dust, and harsh airborne chemical contaminants, meeting strict G3 environmental standards.

• Revision-Specific Architecture (-ABAH Build): This specific version identifier guarantees compatibility with specific high-density backplane communication chips and defines the factory-loaded bootloader revision. It ensures the internal logic maps perfectly to the primary controller's configuration tables without registering revision mismatch faults.

• Dual Infrastructure Interfaces: The hardware layout integrates two RJ-45 copper network interfaces and two SFP (Small Form-factor Pluggable) slots. This setup allows field engineers to configure redundant star, line, or ring topologies using either standard copper wiring or long-distance multi-mode/single-mode fiber optic links.

• Intelligent Localized Fallback: The scanner independently manages the configuration and state parameters of all modules residing in its remote rack. If the primary network uplink fails, the module initiates a localized fallback routine, forcing discrete and analog outputs into pre-programmed safe states (Hold Last State, Force High, or Force Low) to isolate localized infrastructure.

Technical Specifications

FAQs

• What is the structural significance of the "-ABAH" suffix when sourcing a replacement module?

• The -ABAH suffix is the exact product revision block used by GE factory logistics. When replacing a failed unit in a highly regulated system (such as nuclear power generation or critical chemical loops), sourcing the exact -ABAH revision guarantees that the internal hardware revisions and initial firmware layers perfectly match the approved system baseline, preventing software handshake rejections.

• Can this module execute standard PROFINET communication over a 10 Mbps Ethernet link?

• No. Active PROFINET deterministic communication protocols require a minimum network link speed of 100 Mbps or 1000 Mbps. While the physical port can auto-negotiate down to 10 Mbps, that lower bandwidth is restricted exclusively to non-critical background Ethernet traffic such as basic network PING routines.

• Why does a module mismatch fail to generate a System Configuration fault for certain cards in the remote rack?

• The scanner categorizes downstream components by generalized Distinguishing Classes. If a physically installed card belongs to the exact same functional class as the card designated in the software configuration (for example, swapping an alternate density discrete module within the same input class), the scanner will bypass mismatch fault triggers on the Controller Fault Table.

Field Engineering & Commissioning Procedures

Rigid Backplane Mechanical Installation Constraints

The module does not support hot-swapping or insertion/removal while power is applied to the Universal Backplane. Turn off all primary rack power supplies before seating the unit. The card must be installed exclusively in Slot 1 or 2 of a 7, 12, or 16-slot Universal Backplane, or in Slot 6 of a 7-slot variant. Align the card precisely, engage the top rear pivot hook into the corresponding notch on the upper edge of the backplane rail, and swing the bottom of the card firmly inward until the high-density PCI connector fully seats. Fasten the integrated machine screws at the base of the faceplate to the backplane ground rail to prevent vibration-induced disconnections.

Network Architecture and Loop Prevention Rules

When wiring the network switch fabric across the four ports, never connect two or more interfaces on a single scanner module directly or indirectly to the same physical external network switch device. Each network port on the module operates on an entirely independent media channel. Creating unintended parallel loops will flood the PROFINET broadcast domain, causing instant communication collapse across the remote I/O link. For ring topologies, ensure the network ring structure is actively governed by the PROFINET Media Redundancy Protocol (MRP) master configuration.

RX3i DC Power Supply Wiring and Grounding Recommendations

When deploying this module alongside RX3i DC power supplies (such as the IC695PSD140), the negative side of the 24 VDC input must be directly bonded to earth ground. Failure to establish this reference point can result in localized power supply faults where the P/S Fault LED illuminates on un-powered adjacent supplies, cutting off power distribution to the internal backplane modules during startup sequences.
