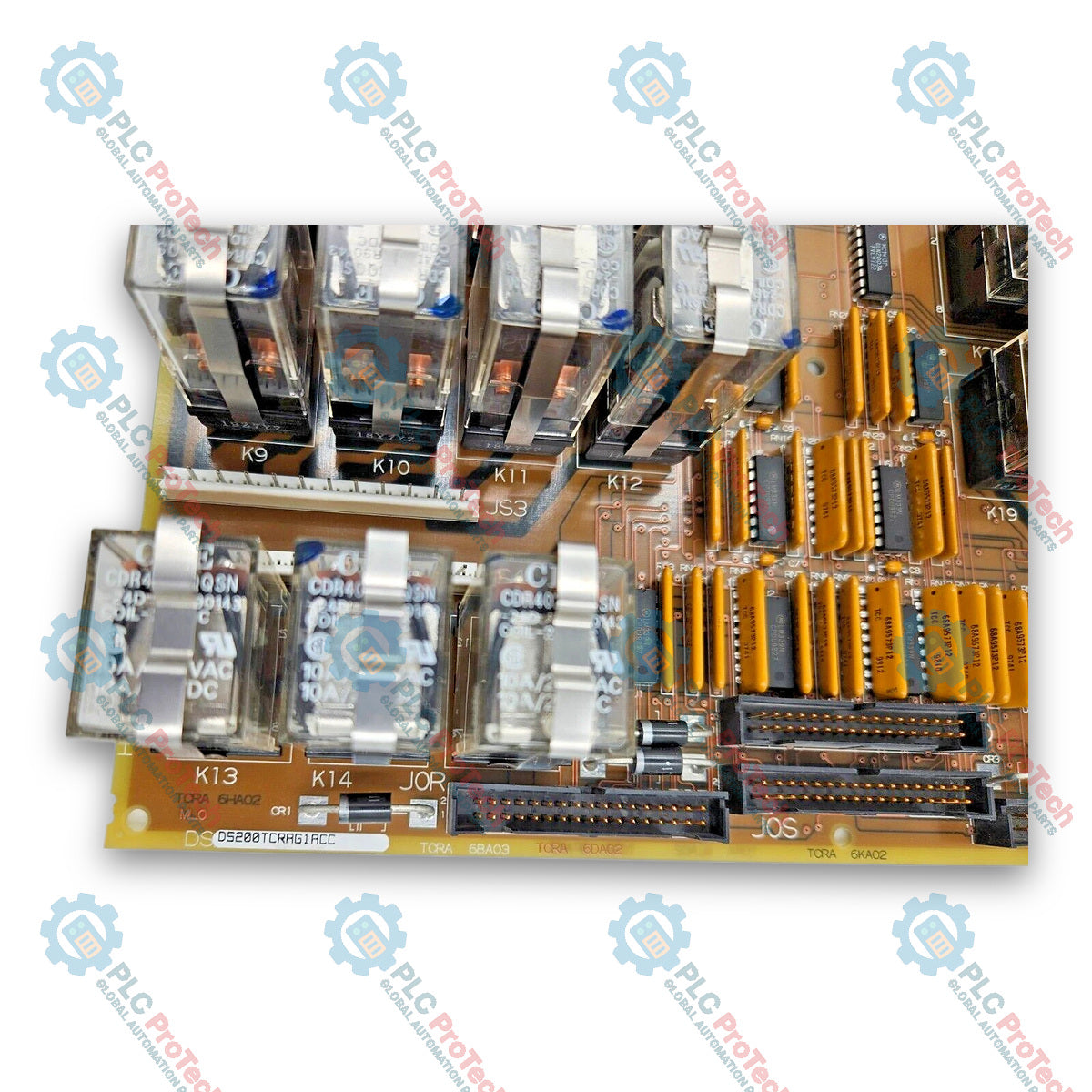

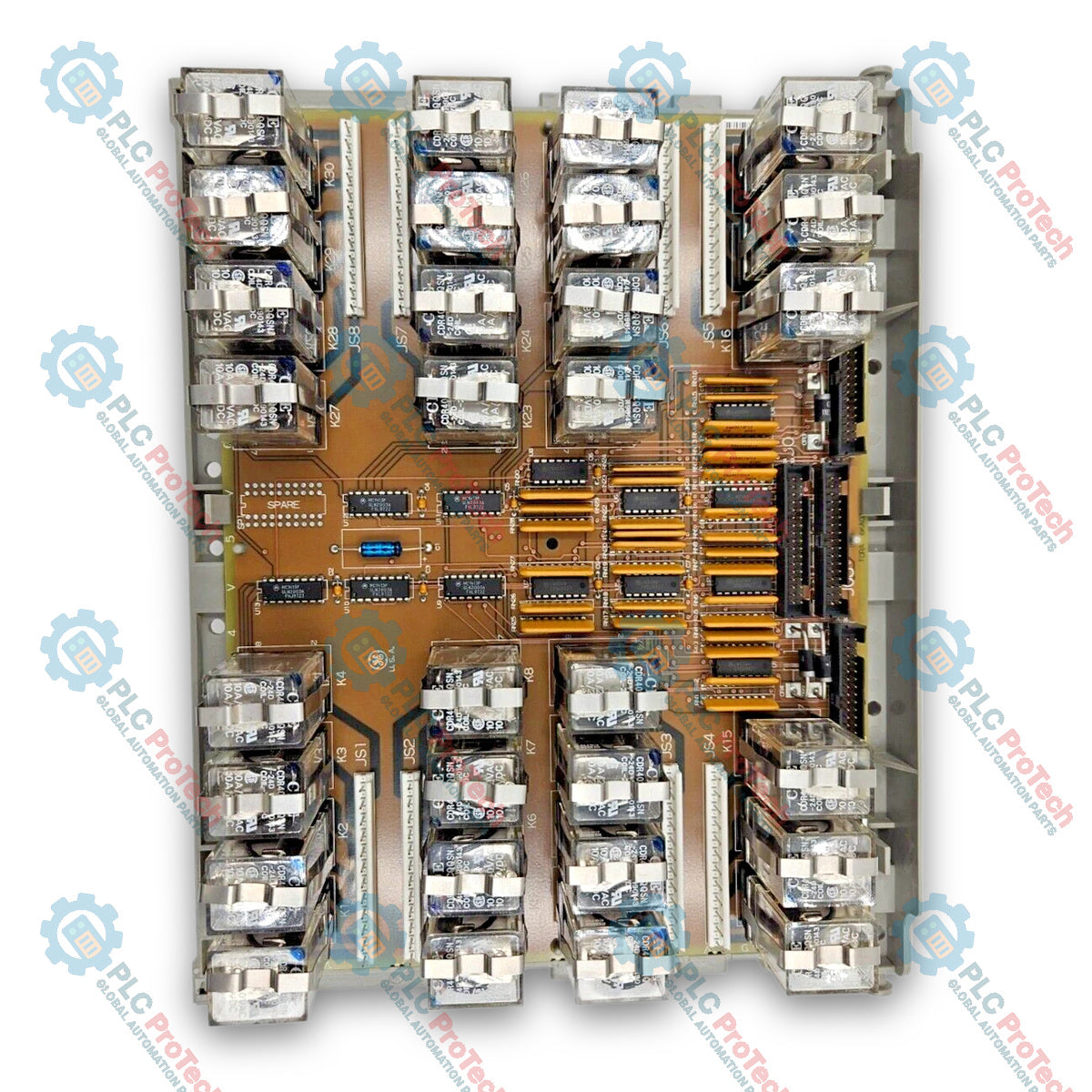

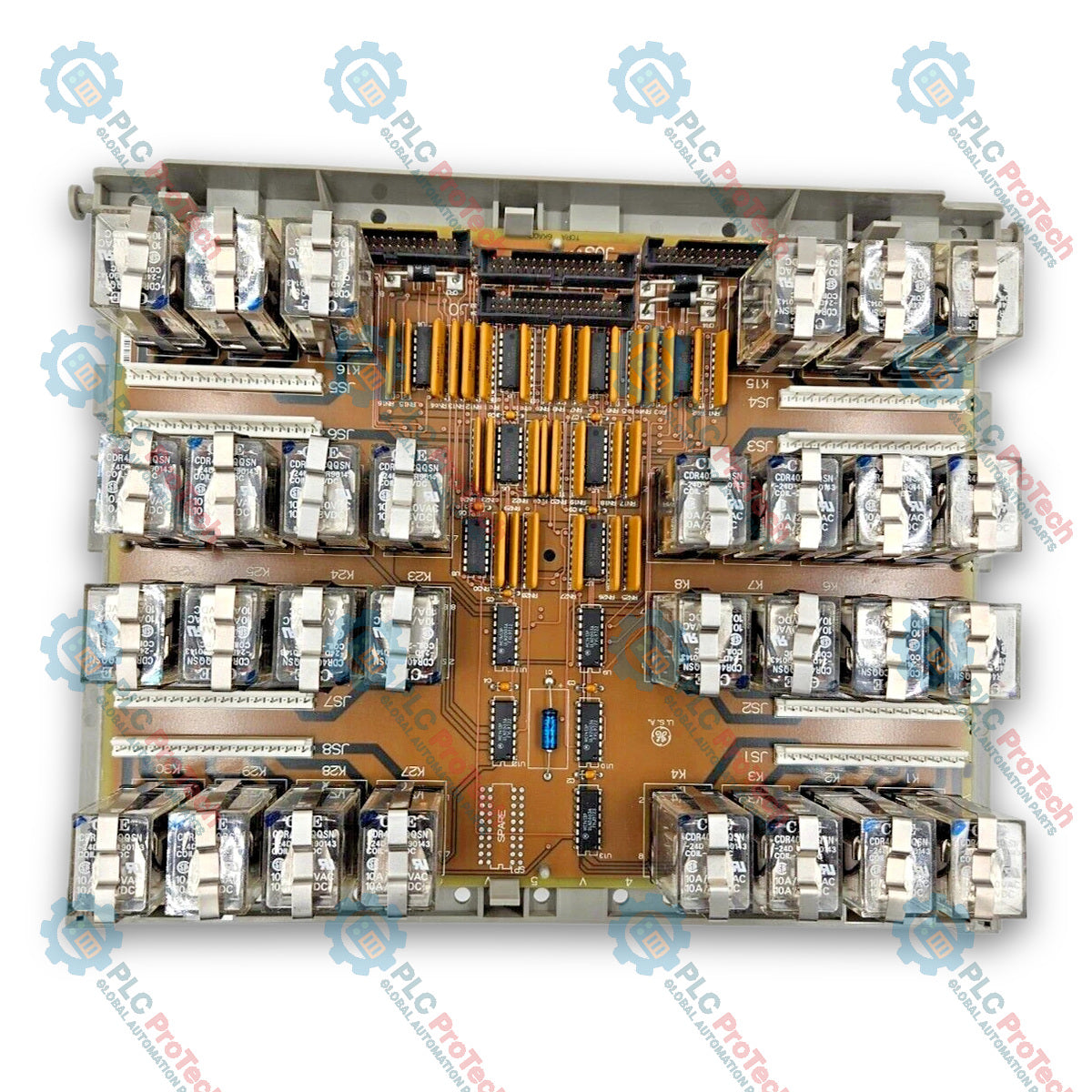

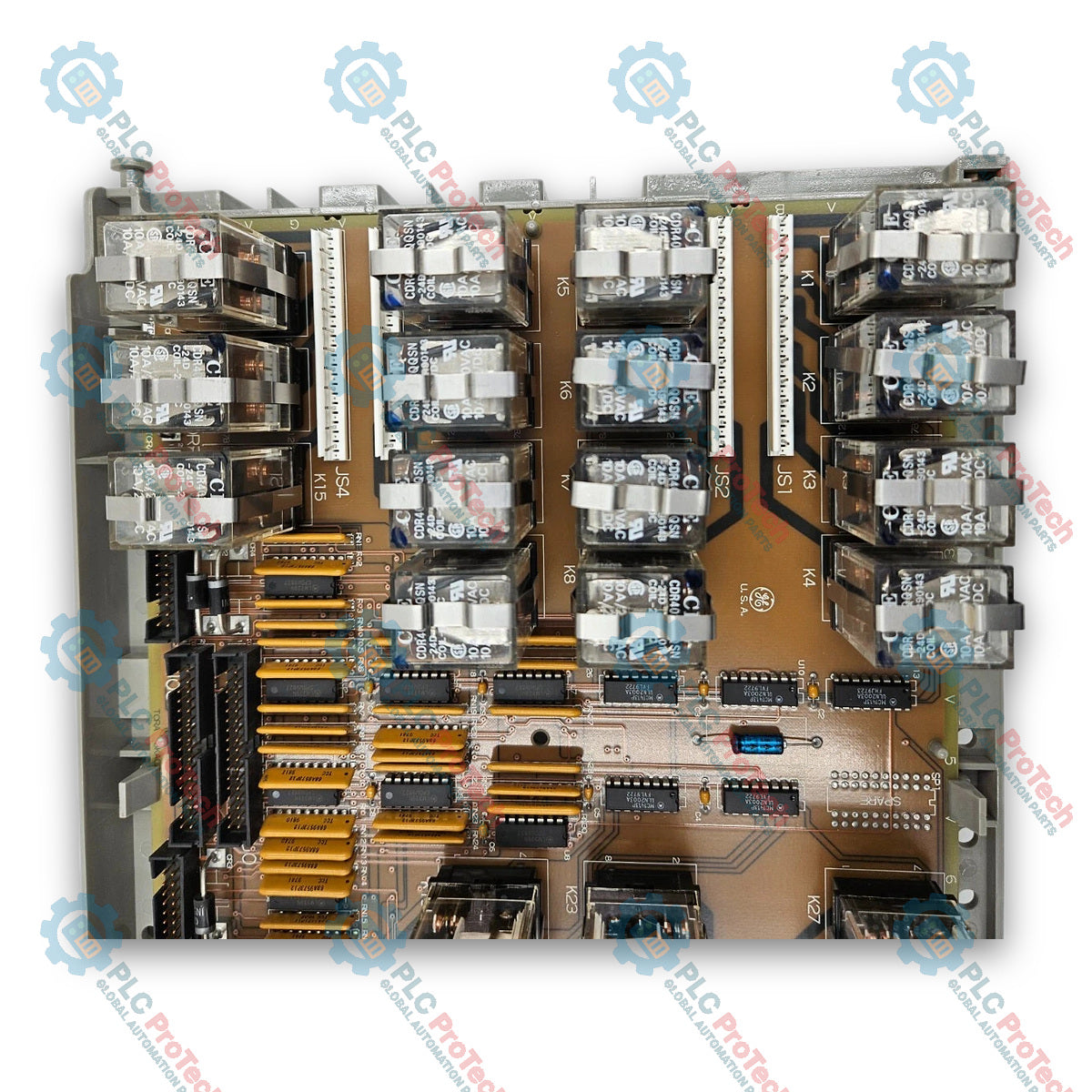

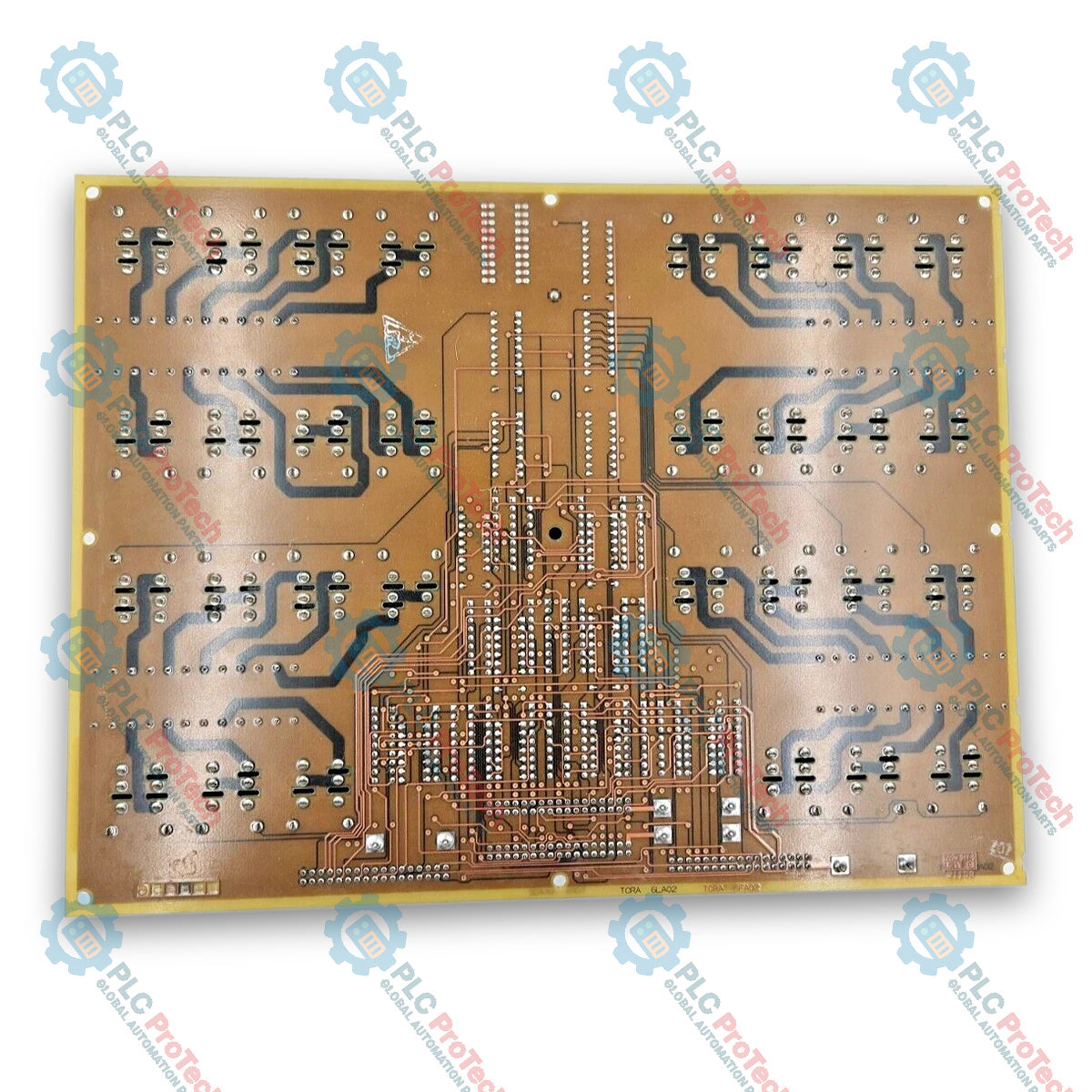

General Electric DS200TCRAG1ACC Mark V TC2000 Analog Board

General Electric DS200TCRAG1ACC Mark V TC2000 Analog Board

Only 2 item(s) left in stock

  • Manufacturer: General Electric

  • Product No.: DS200TCRAG1ACC

  • Country of origin:United States

  • Product Type: Control Boards

  • Payment: T/T, Western Union

  • Weight: 600g

  • Dimensions: 280 mm x 210 mm x 50 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The GE DS200TCRAG1ACC is a TC2000 Analog Board designed for placement in the General Electric Mark V Turbine Control System Series. Used within management and control systems for wind, gas, and steam turbine automated drive assemblies, the DS200TCRAG1ACC operates as an analog I/O board interface to the Common Data Processor, enabling communication across system controllers. This module contains an 80196 microprocessor, programmable read-only memory (PROM) modules, one diagnostic LED visible from the side view, and 50-pin interface connectors (including JCC and JDD). It features conformal coating to protect printed circuit board components in industrial turbine environments.

Features

  • Microprocessor Architecture: Equipped with an 80196 microprocessor for processing instructions and managing board operations.
  • Onboard Programmable Memory: Incorporates socketed, removable Programmable Read-Only Memory (PROM) modules containing embedded firmware and operating code.
  • Visual Diagnostics: Features a side-visible diagnostic LED to monitor board status.
  • Interface Connections: Integrates dual 50-pin connectors (JCC and JDD) alongside board-level signal and power distribution connectors.
  • Conformal Coating: Formulated with protective PCB coating to withstand harsh industrial operating conditions.

Applications

  • General Electric Mark V Turbine Control Systems
  • Gas turbine control and automated drive assemblies
  • Steam turbine management systems
  • Wind turbine control architectures

Technical Specifications

Parameter Specification
Manufacturer GE General Electric
Series Mark V
Part Number DS200TCRAG1ACC
Functional Description TC2000 Analog Board
Functional Acronym TCRA
Microprocessor 80196
PCB Coating Conformal Coated
1st Functional Revision A
2nd Functional Revision C
Artwork Revision C

Connections/Interfaces

Connector Pin Function
2PL TCPS Board Power Distribution Connector
3PL STCA, TCCA, and TCCB Boards Data Bus Conditioned Signals Connector
JAA CTBA Terminal Board 4-20 mA Output Signals Connector
JBB CTBA Terminal Board 4-20 mA Input Signals Connector
JCC TBCA Terminal Board RTD Input Signals Connector (50-pin)
JDD TBCA Terminal Board RTD Input Signals Connector (50-pin)
JAR/S/T TBQA Terminal Board Input Signals Connector
JC TCPS Board Power Supply Diagnostic Signals Connector
JEE Vestigial Connector

Installation Guidelines

  • ESD Protection: Always wear an ESD protective device, such as a grounded wrist strap, when handling the board or memory components to prevent static damage.
  • PROM Module Replacement: Use a flat-bladed screwdriver to gently lift each end of socketed PROM modules when replacing or transferring firmware from an existing board. Immediately store removed modules in static protective bags.
  • Connector Alignment: Ensure proper pin alignment for all multi-pin harness connectors, including the 50-pin JCC and JDD connectors, before fully seating them.
  • Handling Precautions: Avoid touching conductive pins or board traces during installation and maintenance.
Loading product navigation…

RECOMMENDED RELATED MODELS

Product Image Model Number / Title Condition Availability Action
General Electric DS200TCDAH1BHE Mark V Digital I/O Board General Electric DS200TCDAH1BHE Mark V Digital I/O Board Original New In Stock View Details
Key Features:
#Control Boards #Mark V #TC2000

What is the GE DS200TCRAG1ACC used for?
The GE DS200TCRAG1ACC is a TC2000 Analog Board used in GE Mark V Turbine Control Systems to process analog signals and interface with the Common Data Processor.

Which system does the DS200TCRAG1ACC board belong to?
The DS200TCRAG1ACC belongs to the General Electric Speedtronic Mark V Turbine Control System series.

What microprocessor is used on the DS200TCRAG1ACC board?
The DS200TCRAG1ACC board is equipped with an 80196 microprocessor.

How are firmware updates managed on the board?
Firmware and instructions are stored on removable PROM modules socketed onto the board, which can be transferred or updated using proper ESD precautions.
