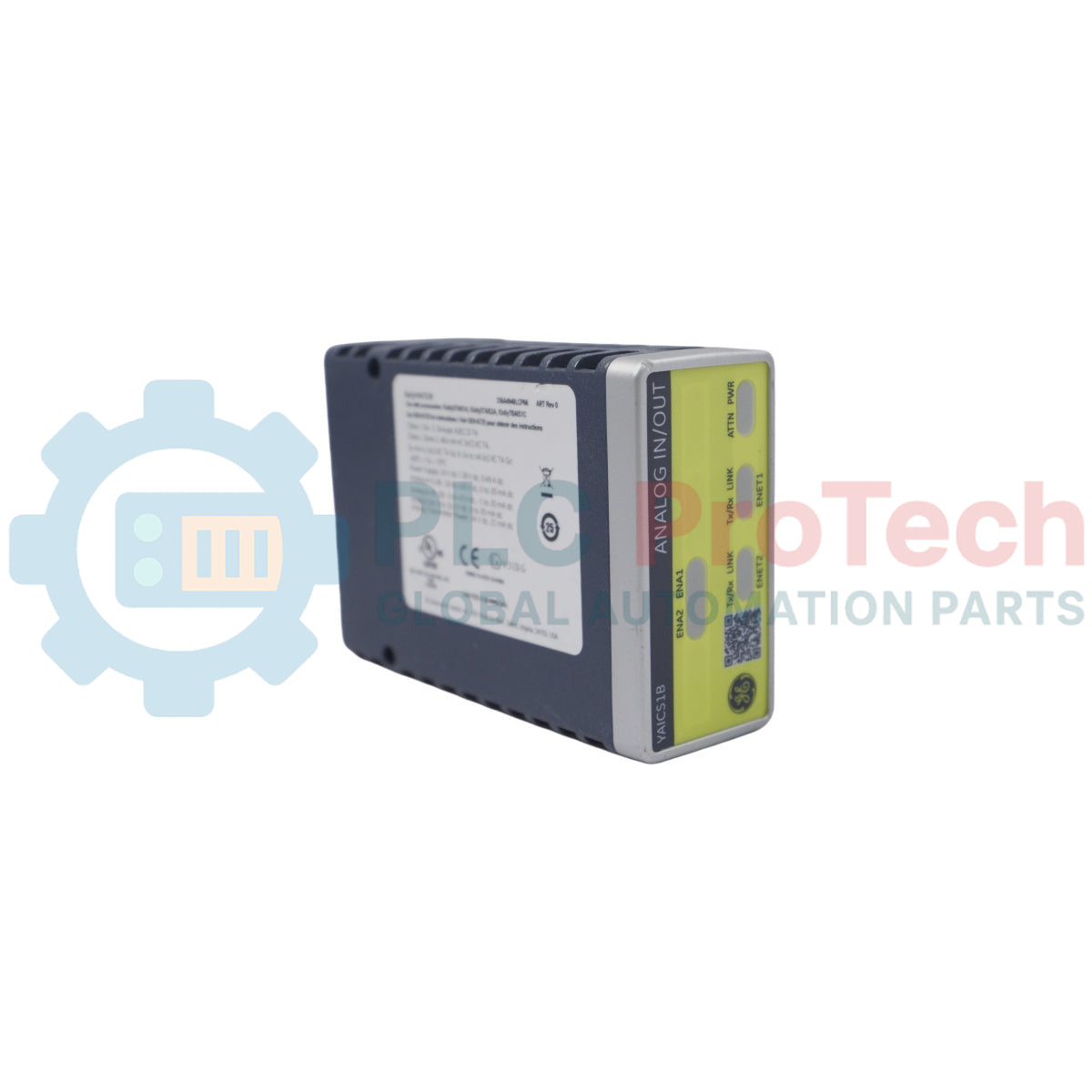

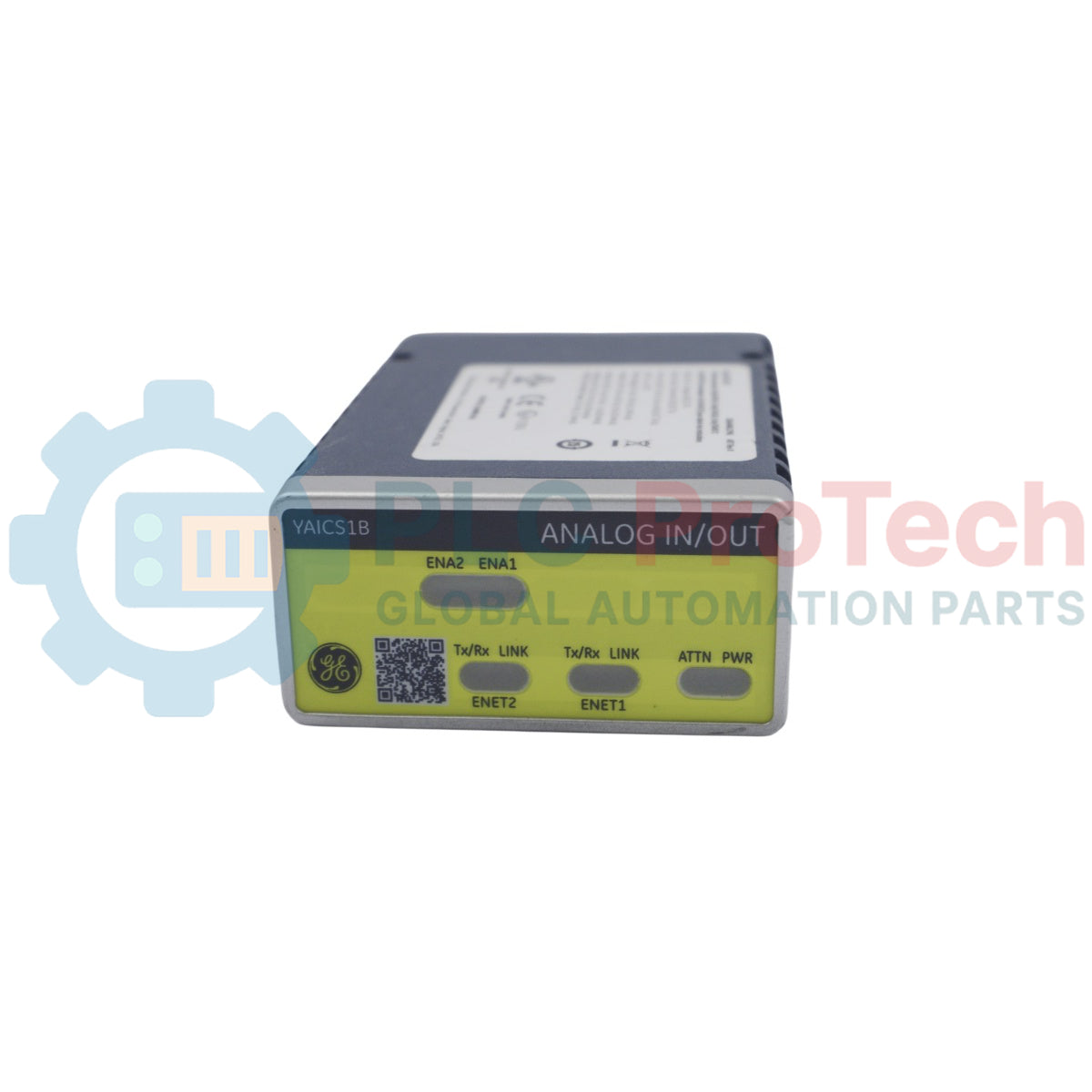

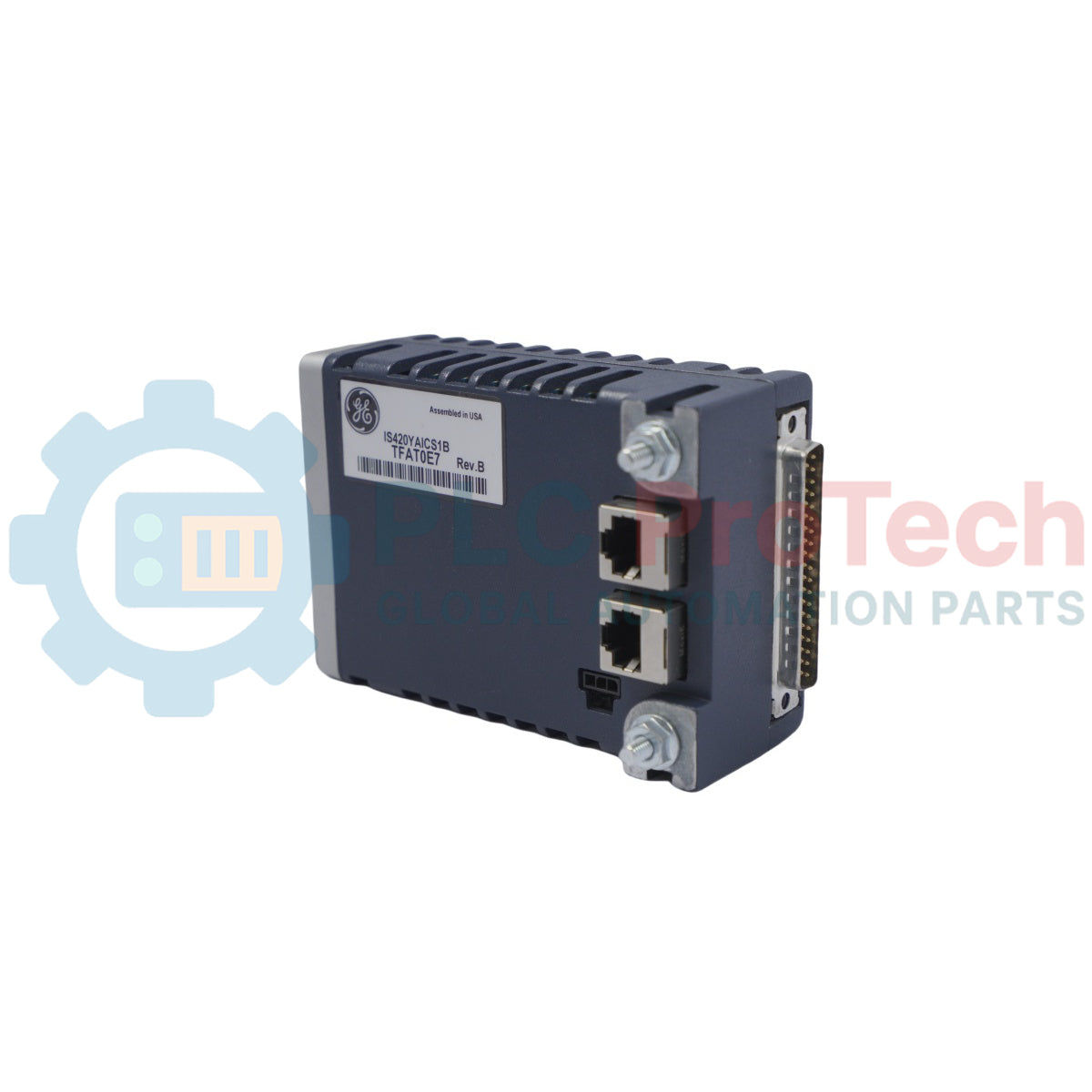

General Electric IS420YAICS1B Mark VIe Analog I/O Pack

SKU IS420YAICS1B

In stock

12-month warranty
Free returns within 30 days

Manufacturer: General Electric
Product No.: IS420YAICS1B
Country of origin:United States
Product Type: Analog I/O Pack
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 680g
Dimensions: H 3.25 in x W 1.65 in x D 4.78 in
Shipping port: Xiamen
Warranty: 12 months

GE IS420YAICS1B is an Analog I/O Pack designed for integration with Mark VIe and Mark VIeS control systems. The pack interfaces between a terminal analog I/O board and up to two Ethernet networks while supporting ten analog input channels. It incorporates a common processor board and a dedicated data acquisition board, with diagnostic fault detection executed through the acquisition circuitry. The unit supports simplex and TMR architectures and is compatible with TBAIS1C and STAIS2A terminal boards for turbine control applications in gas, steam, and wind power installations.

Features

Analog I/O Pack for Mark VIe and Mark VIeS control platforms
Interfaces between terminal analog I/O boards and Ethernet networks
Supports up to ten analog input channels
Two channels configurable as plus or minus 1 mA or 4-20 mA current inputs
Eight channels configurable as plus or minus 5 V, plus or minus 10 V, or 4-20 mA current loop inputs
Dual RJ45 Ethernet communication ports
Dedicated processor board and data acquisition board architecture
16-bit ADC input conversion resolution
Power-up self-diagnostics for flash memory, RAM, processor hardware, and Ethernet ports
Continuous monitoring of internal power supplies
Compatible with simplex and TMR redundancy architectures

Applications

Gas turbine control systems
Steam turbine control systems
Wind turbine automation systems
Power generation facilities
Analog process signal acquisition
Plant instrumentation monitoring
Turbine protection and control architectures
Redundant control system deployments requiring TMR architecture

Technical Specifications

Manufacturer	General Electric
Product Series	Mark VIe / Mark VIeS
Part Number	IS420YAICS1B
Functional Abbreviation	YAIC
Processor Board	BPPC
Power Consumption	5.3 Watts Typical
Input Converter Resolution	16-bit ADC
Supported Analog Inputs	10 Channels Maximum
Ethernet Ports	Dual RJ45
Compatible Terminal Boards	TBAIS1C, STAIS2A
Redundancy Configuration	Simplex or TMR
ControlST Version	V06.01 and Later
Compatible Firmware	V05.01 or Later
Ambient Temperature Range	-40 to 158 degF
Dimensions	H 3.25 in x W 1.65 in x D 4.78 in
Technical Manual	GEH-6855 Volume I and II
Country of Origin	United States
Shipping Weight (Calculated)	1.5 lb
Package Dimensions (Calculated)	8 x 6 x 4 in

Installation Guidelines

CRITICAL WARNING
De-energize the Mark VIe rack, associated terminal board circuits, and all connected field instrumentation before installation or replacement. Verify lockout and tagout procedures are complete. Never insert or remove the I/O pack while system power is present. Confirm that all TMR packs installed on the same terminal board are identical hardware versions before commissioning.

1 Inspect the pack housing, RJ45 ports, and backplane connector for mechanical damage before installation.

2 Verify compatibility with the installed TBAIS1C or STAIS2A terminal board and confirm firmware requirements.

3 Seat the pack fully into the terminal board assembly and verify positive connector engagement without side loading.

4 Connect both Ethernet ports according to the control network architecture and verify network integrity.

5 Apply power and review diagnostic indicators, self-test results, and ControlST status before returning the unit to service.

FAQ

How many analog inputs are supported?

The pack supports up to ten analog input channels.

Which terminal boards are compatible?

The supported terminal boards are TBAIS1C and STAIS2A.

Does the pack support TMR architectures?

Yes. The unit supports both simplex and TMR configurations.

What diagnostic functions are included?

The pack performs startup self-tests and continuously monitors internal power supplies.

Which software versions are supported?

ControlST V06.01 and later with firmware V05.01 or later.
