Description

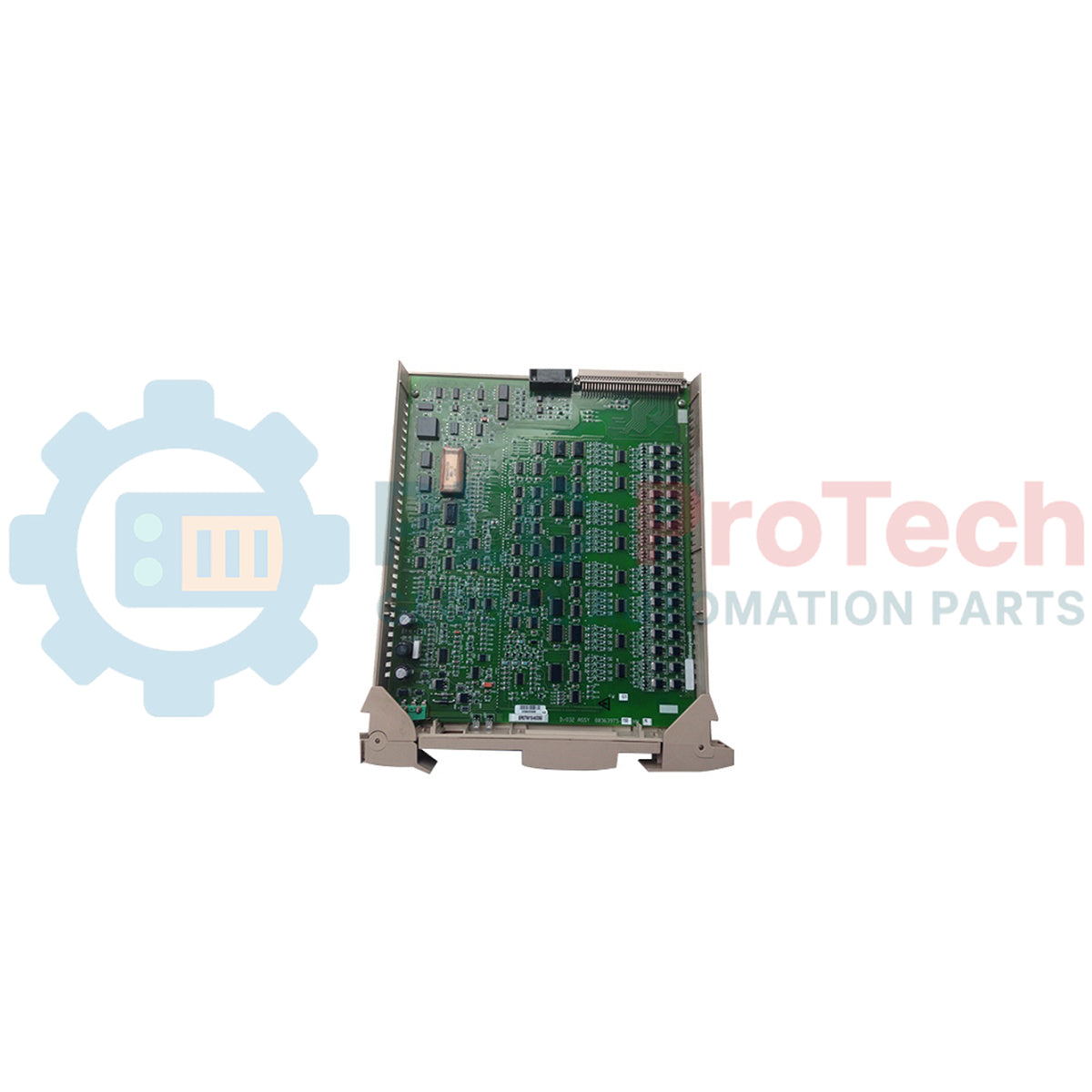

Processing critical high-density field measurements within the Experion PKS architecture, the Honeywell MC-PHAI01 (part number 51403479-150) functions as a high-reliability C300 Analog Input Module. It provides seamless acquisition of analog process variables, converting field signals for execution by the C300 controller. This conformal-coated module integrates directly into the Series C Input/Output Termination Assembly (IOTA) block, ensuring robust environmental protection and continuous operation in demanding control rooms and remote instrument enclosures.
Key Features
-
Dual I/O Link Support: Interfaces with up to two independent physical I/O links for robust signal path redundancy.
-
Selectable Link Speeds: Autoconfigures for 375 Kbaud when communicating with PM I/O hardware, or 750 Kbaud for Series C I/O modules.
-
Time Synchronization: Utilizes SNTP protocol with a highly stable 1-minute update period to maintain unified time stamping across the control network.
-
Redundancy Capable: Fully supports redundant pairs to ensure zero control disruption during primary module failure.
-
FTE Network Integration: Connects natively to the Fault Tolerant Ethernet (FTE) control network via designated C300 Control Firewalls.
Applications
- Distributed Control Systems (DCS) in oil refining and petrochemical plants.
- Continuous process monitoring in power generation and boiler control facilities.
- High-density temperature, pressure, and flow transmitter interface loops.
- Critical safety-monitoring networks demanding redundant physical IO links.
Technical Specifications
| Parameter |
Value / Specification |
| Manufacturer |
Honeywell |
| Model Number |
MC-PHAI01 |
| Part Number |
51403479-150 |
| Series |
Experion C300 |
| Module Type |
Analog Input Module (Conformal Coated) |
| Supported Networks |
Fault Tolerant Ethernet (FTE) via Control Firewall |
| Device Index Limits |
Configurable between 1 and 510 |
| I/O Link Capacity |
Supports up to 2 physical I/O links |
| I/O Link Speeds |
375 Kbaud (PM I/O), 750 Kbaud (C Series I/O) |
| Base Execution Period |
50 ms |
| CM/SCM Execution Rates |
50, 100, 200, 500, 1000, 2000 ms (Configurable) |
| Like-for-Like Update Rates |
100, 200, 500, 1000 ms (Configurable) |
| Time Synchronization |
SNTP (1-minute update cycle) |
| Redundancy Support |
Yes, Dual I/O module physical redundancy |
| Shipping Weight (Calculated) |
2.0 kg |
Alternative Models & Compatibility
The MC-PHAI01 features conformal coating (designated by the "MC" prefix), which differentiates it from non-coated variants or legacy Series A equivalent modules. It is physical-form-factor compatible with standard C300 IOTAs. While migrating from older PM I/O networks, this module can bridge communications down to 375 Kbaud, but requires native 750 Kbaud links to fully harness Series C diagnostic and speed benefits. Check your Experion PKS system release to ensure matching controller firmware block definitions.
Application Pitfalls & Engineering Notes
-
Control Firewall Rule: Each MC-PHAI01 C300 module must connect to an active Control Firewall (CF9) on the FTE network. Direct switch routing bypassing the CF9 can result in signal interruption or high packet-drop rates during peak network traffic.
-
Thermal Behavior: In enclosed panels, do not restrict vertical air movement around the C300 IOTA. Ensure adjacent module power loads do not exceed cabinet thermal thresholds.
-
Execution Period Matching: Ensure the execution period of the Control Module (CM) reading this block is set in increments of the module's 50 ms base rate to avoid aliasing and process variable latency.
Commissioning & Wiring Tips
-
Shield Grounding: Instrument shield drains must terminate strictly at the designated ground bar on the IOTA plate. Avoid multi-point shield grounding to prevent low-frequency ground loops that distort 4-20 mA instrument loops.
-
Index Setting: Verify that the physical rotary switches or system index parameters are set between 1 and 510. Duplicate indices on the same physical I/O link will trigger a duplicate node fault inside the Experion System Management tool.
Installation Guidelines
CRITICAL WARNING: Verify that the C300 system power is fully isolated or that the specific IOTA slot is de-energized before inserting or extracting the module. Live insertion is supported under redundant power architectures, but care must be taken to prevent momentary ground disturbances on the shared I/O link backplane.
1
Inspect the module edge connector and pins on the IOTA assembly for dust, oxidation, or alignment anomalies.
2
Set the network device index on the module using the hardware address configurations to match your Experion project configuration database.
3
Carefully slide the module onto the IOTA mounting guides, pressing firmly until the securing latches snap in, guaranteeing solid electrical contact with the backplane.
4
Power the system up and monitor the module LED indicators to verify normal communication startup and FTE link active status.
