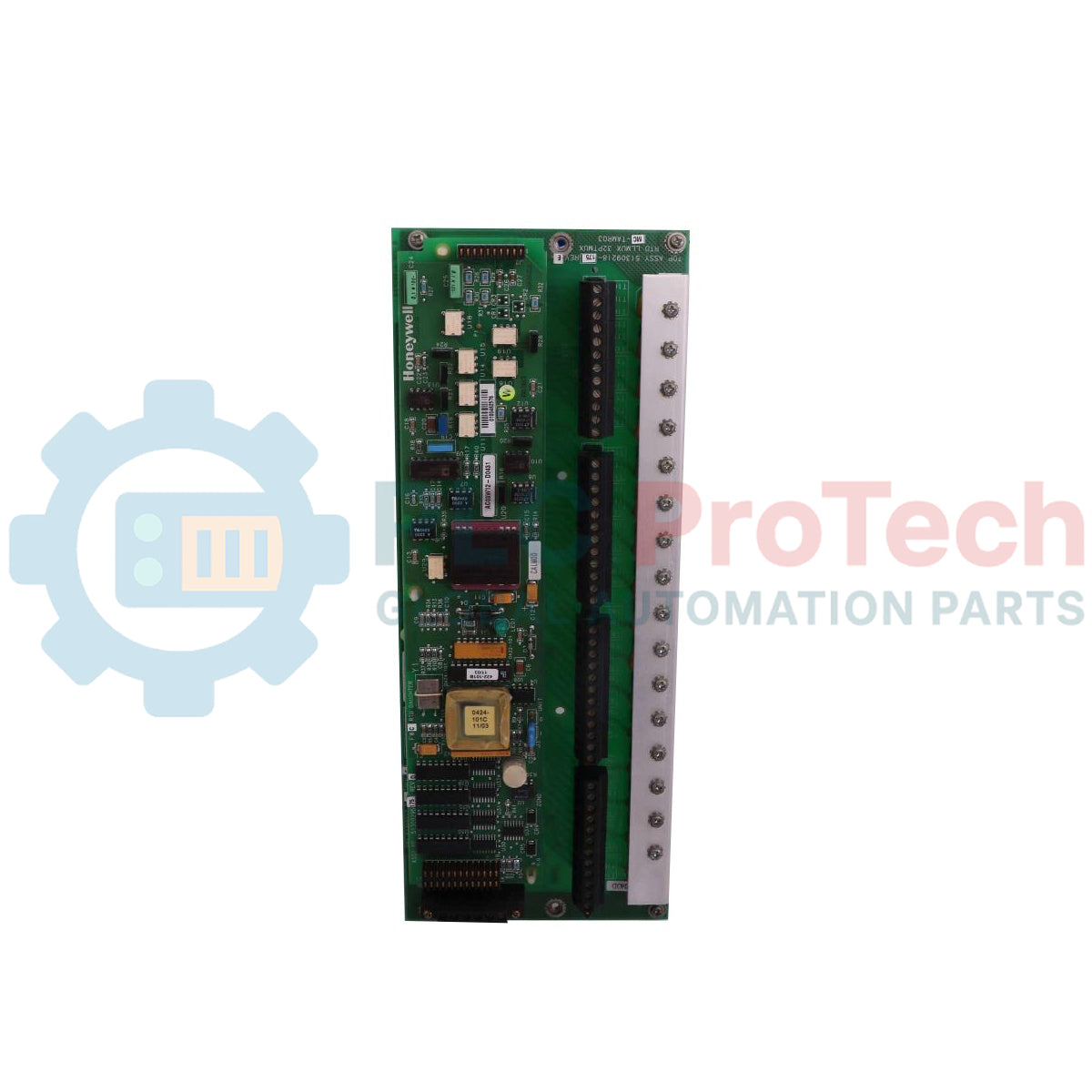

Honeywell TC-SMPC01 51309516-225 Power Adapter SIM PCB

SKU TC-SMPC01

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Honeywell
Product No.: TC-SMPC01
Country of origin:United States
Product Type: Power Adapter SIM PCBs
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Designed to supply stable operating voltage within high-availability industrial networks, the Honeywell TC-SMPC01 (part number 51309516-225) serves as a specialized power adapter SIM PCB circuit board. Operating on a wide-range input of 100-240 VAC (nominal range of 85-265 VAC) at 50/60 Hz, this module distributes dependable power to Serial Interface Modules (SIM) within Experion PKS platforms. Engineered with a dual-channel layout, it ensures proper channel isolation and robust current protection capped at 0.45 A, mitigating the risk of downstream circuit damage during utility fluctuations.

Features

Dual-channel design provides isolated distribution pathways.
Wide input voltage capability accommodates standard global industrial grids.
Compact printed circuit board form-factor for direct integration into serial interface sub-assemblies.
Over-current protection rated up to 0.45 A per channel.
Optimized thermal profile tailored for continuous operation in enclosed control cabinets.

Applications

Experion PKS C300 controller cabinets.
Serial Interface Module (SIM) carrier assemblies.
Distributed Control System (DCS) infrastructure.
Process manufacturing plant power distribution networks.

Technical Specifications

Parameter	Value / Specification
Manufacturer	Honeywell
Model Number	TC-SMPC01
Part Number	51309516-225
Product Type	Power Adapter SIM PCB Circuit Board
Input Voltage (Nominal)	100-240 VAC
Input Voltage Range	85-265 VAC
Frequency	50 / 60 Hz
Rated Input Current	0.45 A
Number of Channels	2 Channels
Shipping Weight	2.0 kg (including protective packaging)

Empirical Engineering Insights

Alternative Models & Compatibility

The TC-SMPC01 is interchangeable with earlier revisions of the 51309516 series of SIM board power inputs. Always verify firmware dependencies of the connected Serial Interface Module cards if swapping older legacy boards during standard field maintenance.

Application Pitfalls & Engineering Notes

In enclosed environments subject to elevated ambient temperatures, ensure the cabinet cooling system maintains internal conditions below 60 degrees Celsius. Continuous thermal stress near upper rating thresholds accelerates electrolytic capacitor wear, leading to voltage ripple issues on the serial communication line.

Commissioning & Wiring Tips

When utilizing both output channels, implement dual-feed AC feeds with independent circuit protection upstream. This isolates channel-specific short circuits and prevents a single input-side trip from shutting down both communication paths on the Serial Interface Module.

Installation Guidelines

CRITICAL WARNING

Isolate and lock out all primary power sources before commencing installation, removal, or wiring of this board. Failure to de-energize primary feeds may result in severe shock hazard and permanent electrical damage to the associated Experion controller modules.

1

Verify that the incoming lines match the nominal 100-240 VAC parameters and are equipped with 0.45 A rated upstream branch circuit breakers.

2

Mount the TC-SMPC01 board securely into its designated chassis position, ensuring all grounding screws are fully torqued to maintain chassis ground continuity.

3

Connect input wiring to the channels, making sure to avoid wire tension or pressure on the board connectors.

4

Perform a pre-power-up continuity check across all grounding pins, and then apply line voltage to verify channel indicators light up.

FAQ

What is the primary function of the TC-SMPC01 in Honeywell Experion systems?

It serves as a dedicated dual-channel AC-to-DC power adapter board for the Serial Interface Modules (SIM), providing isolated power rails to prevent communication interference.

What are the acceptable input voltage limits for the 51309516-225 module?

While nominal voltage is 100-240 VAC, the board operates within a physical limit of 85-265 VAC at 50/60 Hz, accommodating standard line fluctuations.

How are the dual channels structured on the TC-SMPC01 board?

The board features two isolated power paths to deliver redundant distribution fields, ensuring a failure on one communication channel does not affect the other.

Does this module require a separate chassis grounding line?

Yes, grounding is achieved directly through the structural mounting screws when secured to the SIM carrier chassis. Ensure screws are torqued to OEM specifications.
