Description

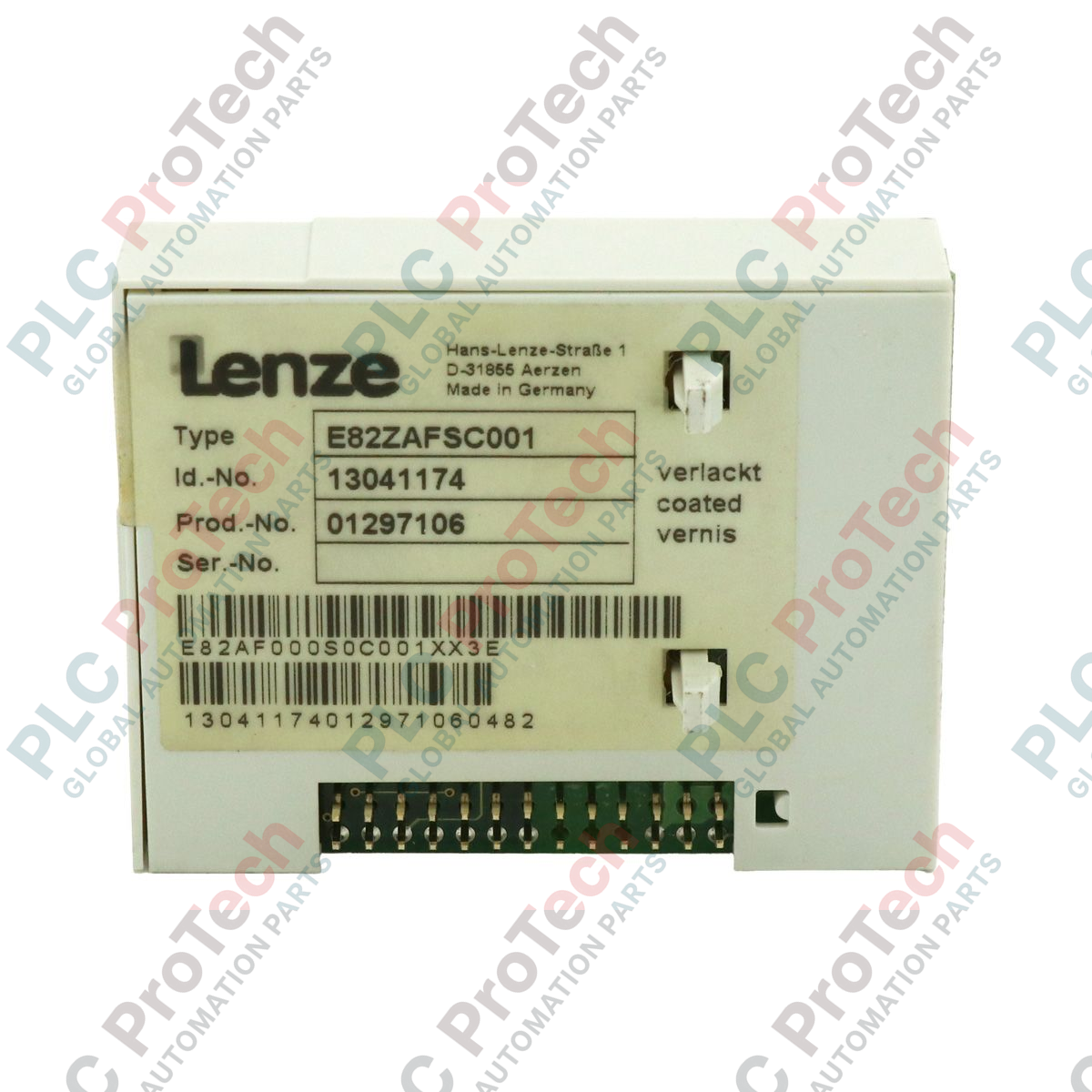

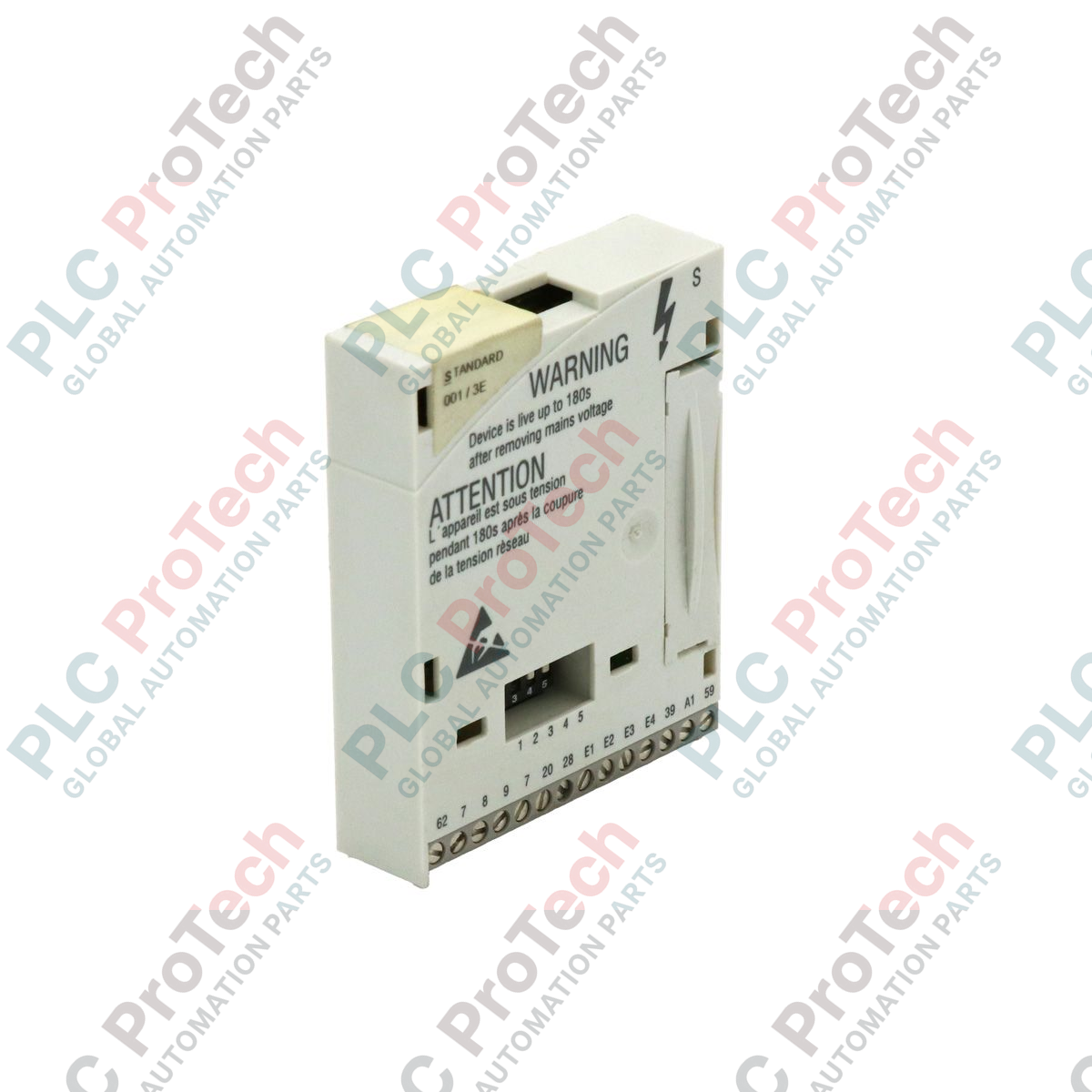

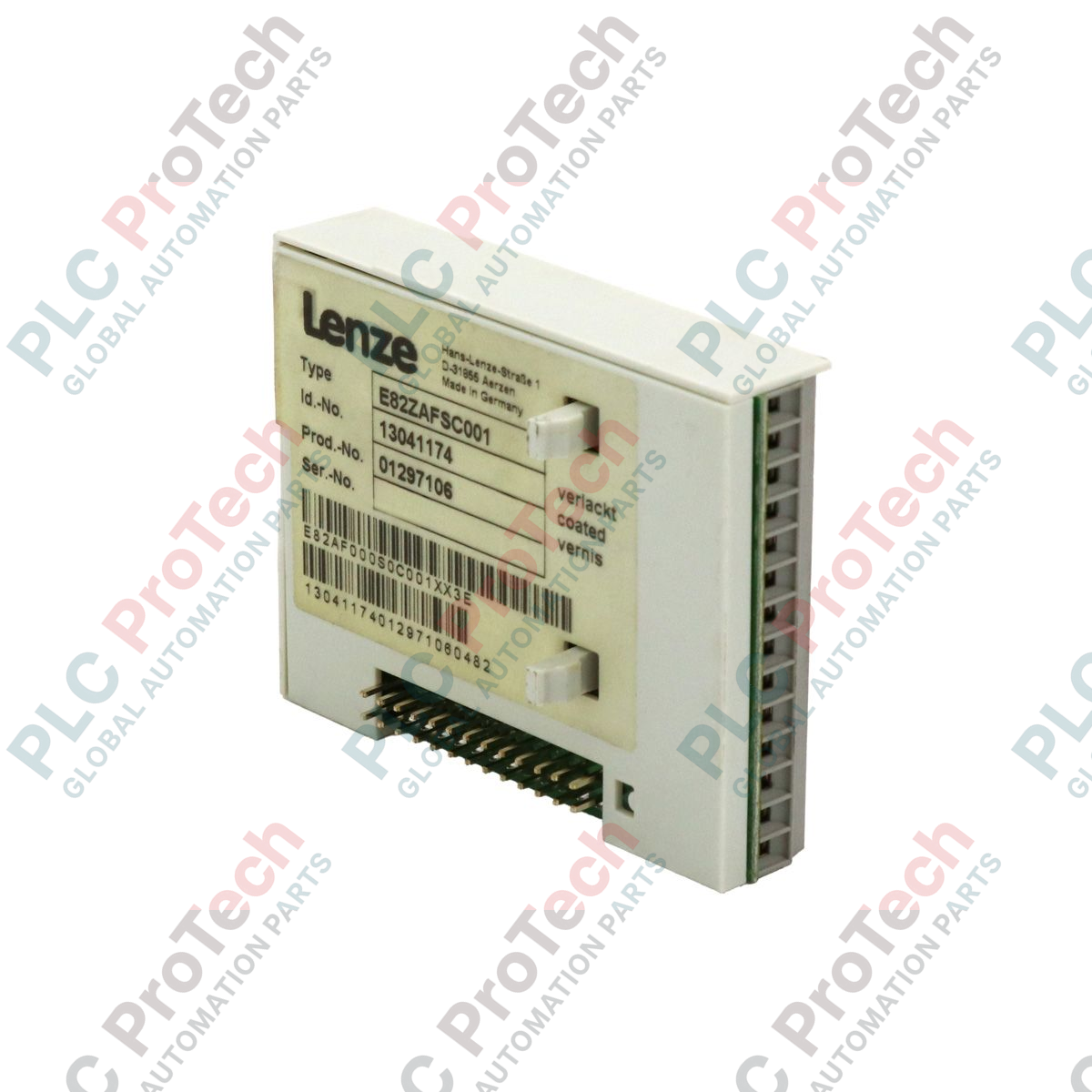

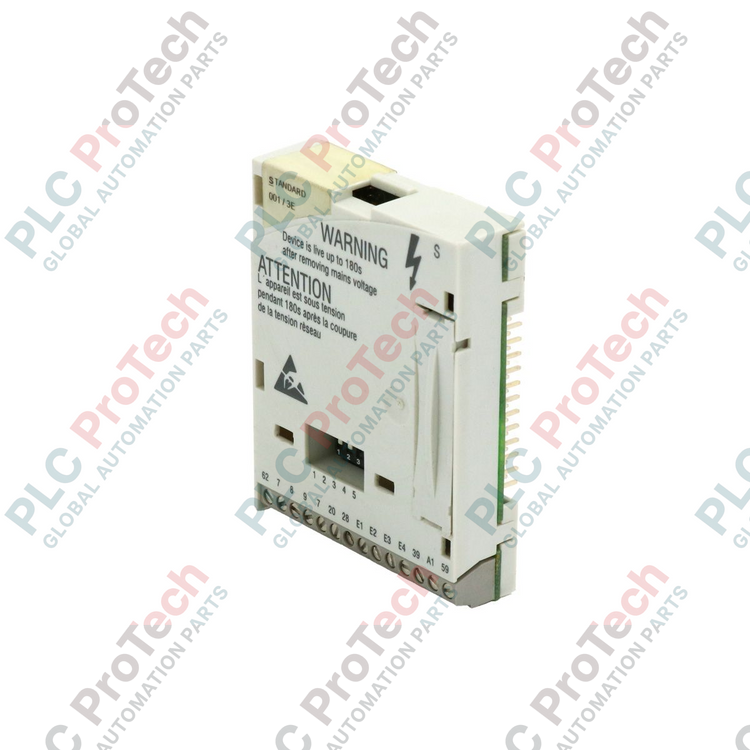

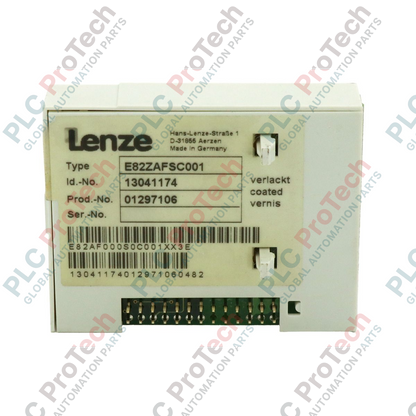

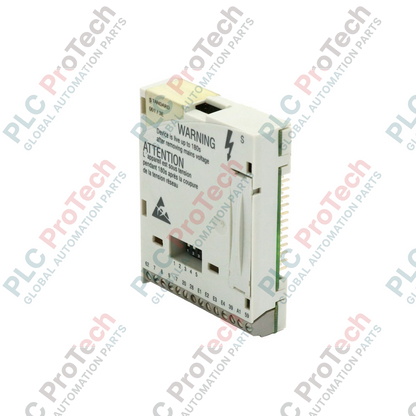

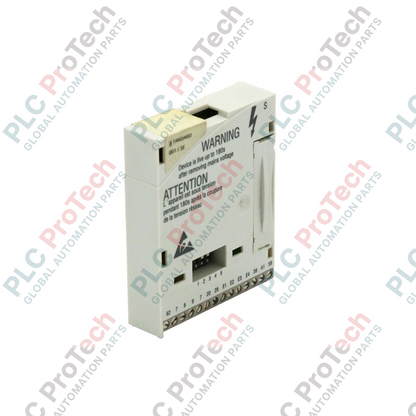

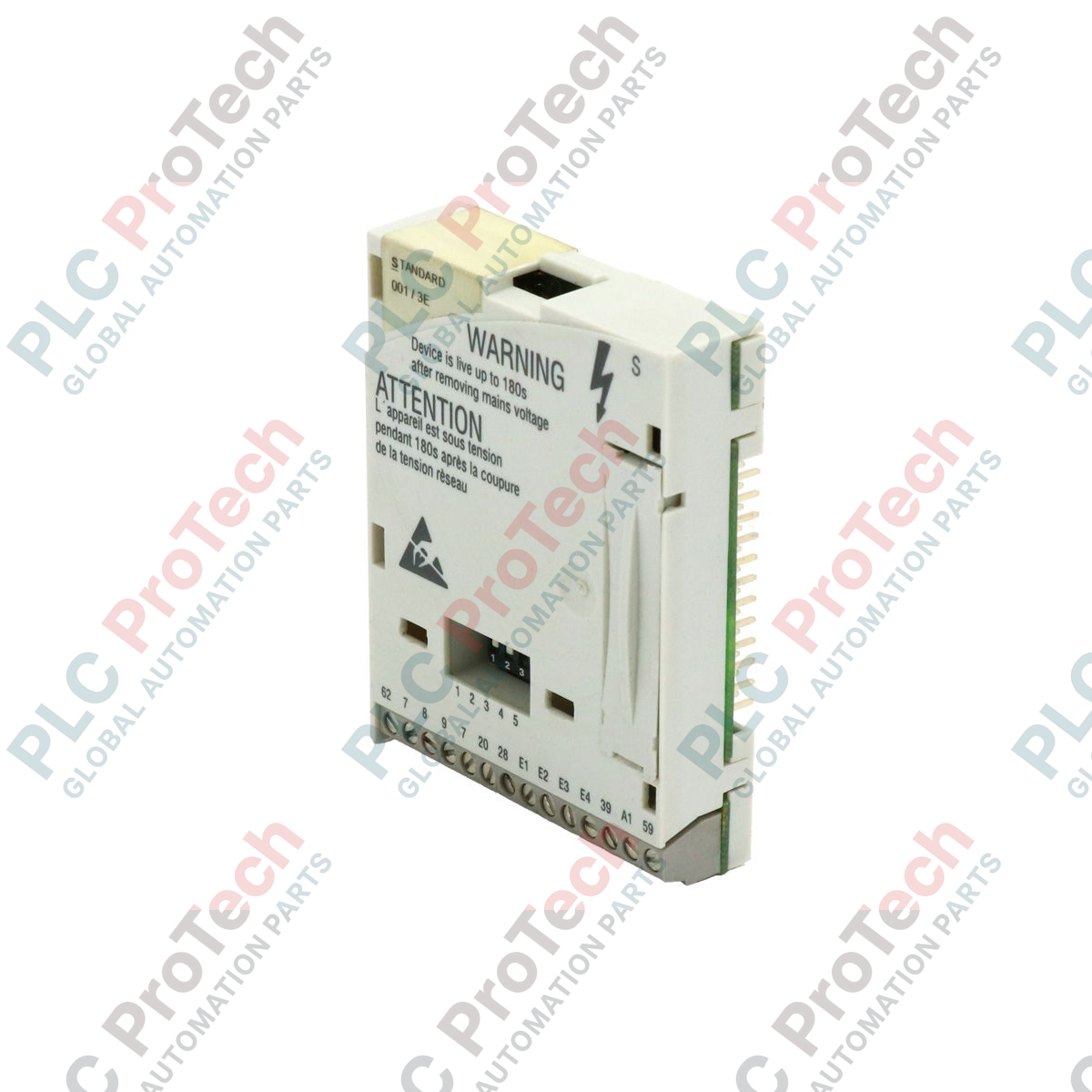

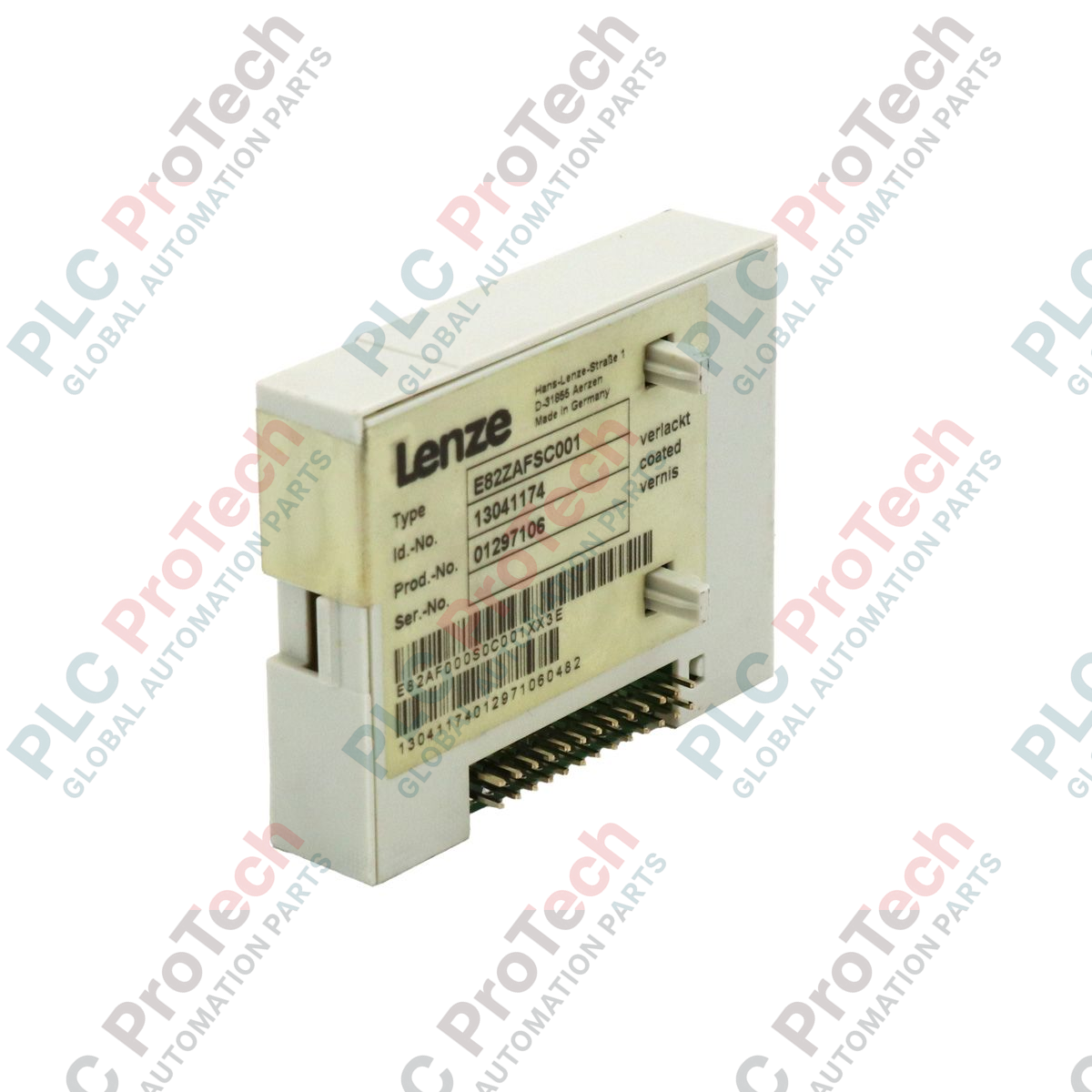

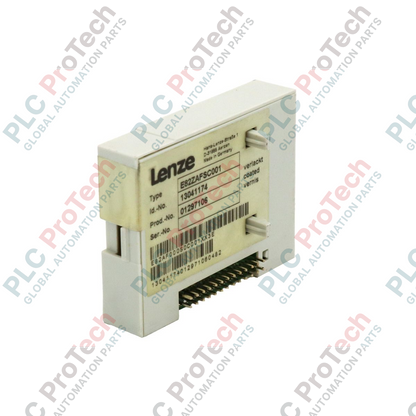

Integrating control signals into the Lenze 8200 Vector frequency inverter series is facilitated by the E82ZAFSC001 standard I/O function module. This pluggable accessory expands the base drive's control topology, providing dedicated analog and digital interfaces for system integration. Designed as a modular expansion component, it mounts directly onto the front interface slot of the 8200 Vector inverter, enabling direct communication with external PLC systems, sensors, and actuators without requiring external bus systems.
The E82ZAFSC001 is engineered for legacy system maintenance and retrofitting, offering a reliable solution for applications requiring hardwired analog and digital control loops. Its compact form factor ensures that the drive's overall footprint remains unchanged when the module is installed.
Features
- Pluggable design for direct mounting on Lenze 8200 Vector frequency inverters.
- Expands control terminal capabilities with standard analog and digital inputs/outputs.
- Host-powered directly from the drive's internal control voltage supply.
- Compact form factor optimized for space-constrained control cabinet enclosures.
- Screw terminal connections for secure field wiring.
Applications
- Retrofitting and maintenance of legacy Lenze 8200 Vector drive systems.
- Factory automation systems requiring basic hardwired I/O control.
- Pumping, ventilation, and conveyor systems utilizing localized speed control.
Technical Specifications
Manufacturer
| Lenze |
Part Number/Model
| E82ZAFSC001 |
Series
| 8200 Vector |
Product Type
| Standard I/O Function Module |
Dimensions
| 5.10 cm x 6.30 cm x 2.50 cm |
Weight
| 0.05 kg |
Commodity Code
| 85044095 |
Lifecycle Status
| Phase-out (Legacy component) |

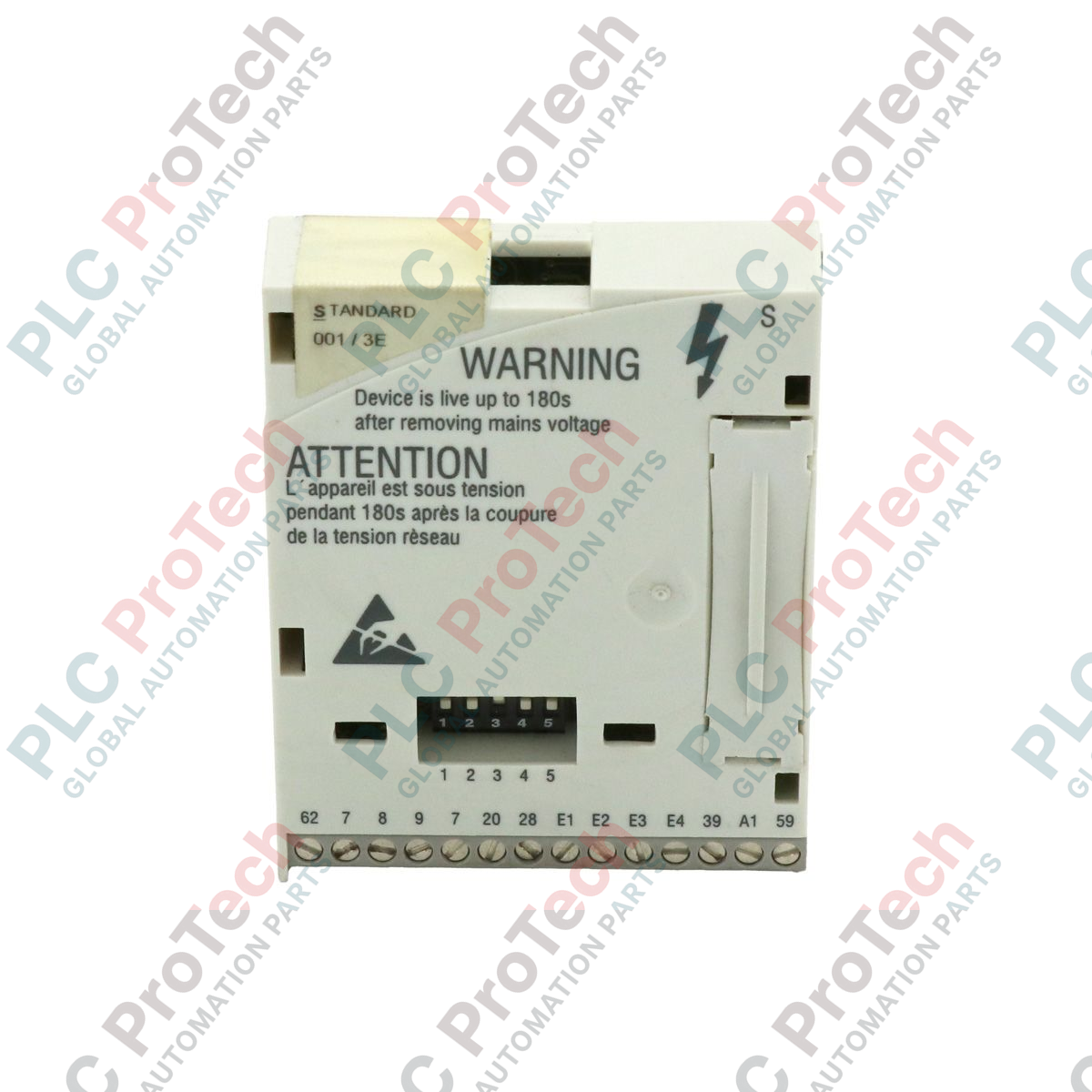

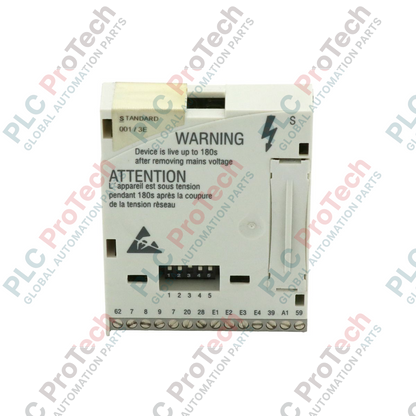

Connections and Interfaces
| Terminal |
Function |
| 7 |
Analog input (0-10 V, 0/4-20 mA) |
| 8 |
Analog output (0-10 V) |
| 9 |
Internal DC voltage supply (+24 V) |
| 20 |
Digital input 1 (Start/Stop) |
| 28 |
Digital input 2 (Parameter set selection) |
| 39 |
GND / Reference potential |
| 62 |
Digital output 1 |
Installation Guidelines
- Ensure the frequency inverter is completely powered down and the DC bus capacitors are fully discharged before inserting or removing the module.
- Align the module pins with the front interface slot of the 8200 Vector inverter and press firmly until it clicks into place.
- Secure control wiring using shielded cables to prevent electromagnetic interference (EMI) from the motor cables.
- Route control cables separately from high-voltage power cables.
