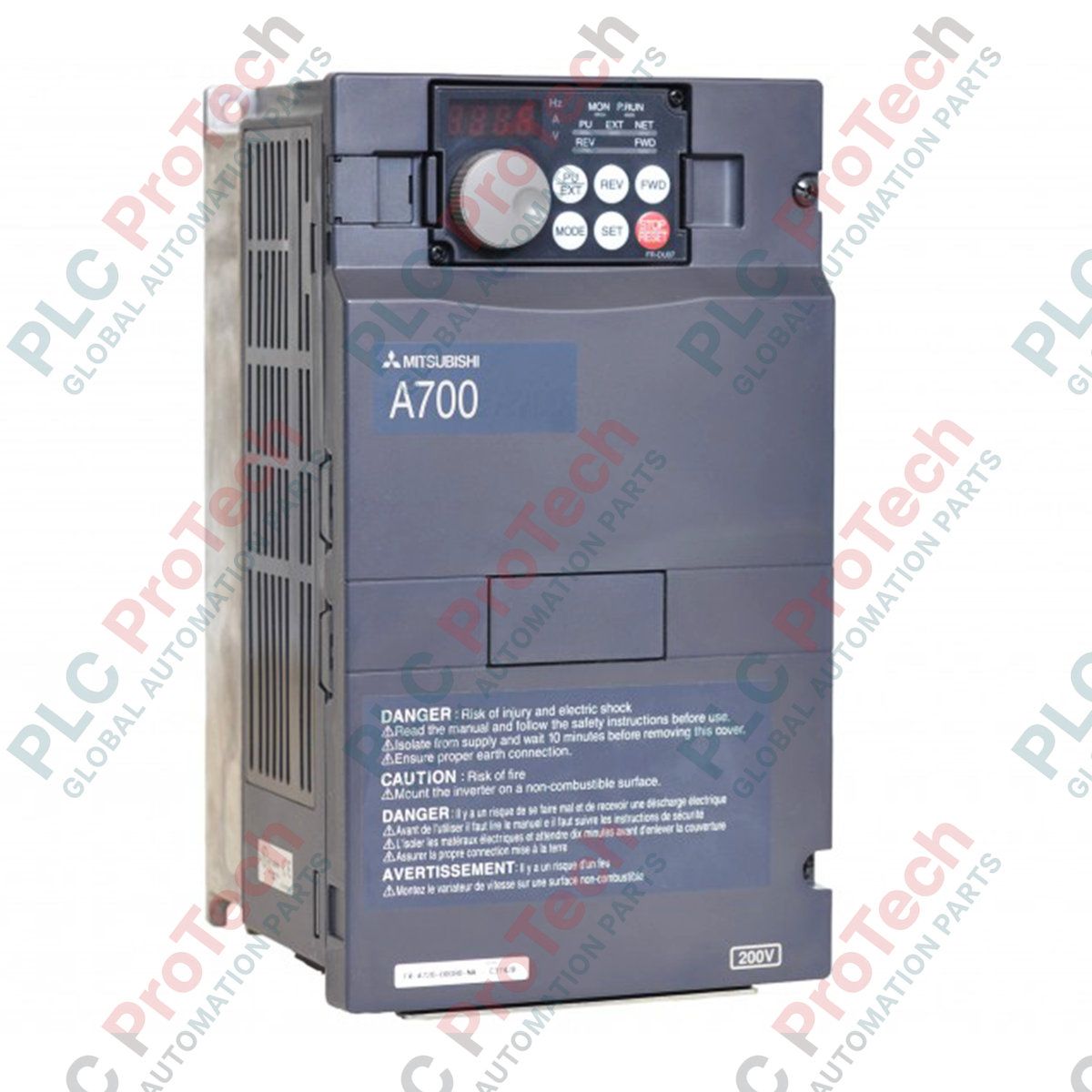

Mitsubishi Electric FR-A740-15K-CHT FR-A700 Variable Frequency Drive

SKU FR-A740-15K-CHT

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: FR-A740-15K-CHT
Country of origin:United States
Product Type: Variable Frequency Drives
Payment: T/T, Western Union
Weight: 9000g
Shipping port: Xiamen
Warranty: 12 months

Overview

Mitsubishi Electric FR-A740-15K-CHT is a 15 kW, 400 V class variable frequency drive in the FREQROL-A700 series. The page data lists a 31 A rated output, IP20 enclosure and forced-air cooling.

Features

Real sensorless vector control.
Overload rating of 150% for 60 seconds and 200% for 3 seconds.
Integrated EMC filter to minimize high-frequency electromagnetic emissions.
Enclosed IP20 protective structure suitable for standard control cabinet installations.
Forced-air cooling.

Technical Specifications

Manufacturer	Mitsubishi Electric
Part Number / Model	FR-A740-15K-CHT
Series	FR-A700
Applicable Motor Capacity	15 kW
Rated Output Capacity	23.6 kVA
Rated Output Current	31 A
Rated Output Voltage	Three-phase 380 to 480 V
Input AC Voltage / Frequency	Three-phase 380 to 480 V, 50Hz/60Hz
Permissible AC Voltage Fluctuation	323 to 528 V, 50Hz/60Hz
Permissible Frequency Fluctuation	+/-5%
Overload Current Rating	150% for 60 seconds, 200% for 3 seconds (surrounding air temperature 50 degC limit)
Protective Structure	Enclosed type (IP20)
Cooling System	Forced air cooling
Approximate Shipping Weight	9.0 kg

Connections and Interfaces

Terminal Marking	Function Description
R/L1, S/L2, T/L3	Three-phase AC power input connection terminals
U, V, W	Three-phase AC output connection terminals to induction motor
P/+, PR	Connection terminals for external regenerative braking resistor
P/+, N/-	DC link bus terminals for common bus configurations
Earth / Ground	Chassis protective ground connection terminal

Replacement Note

Mitsubishi Electric’s FR-A700 replacement guide maps the base model FR-A740-15K to FR-A840-15K. Verify the full order code, option hardware, parameters and panel details before migration; the mapping does not by itself confirm a direct swap for every regional suffix.

Installation Guidelines

Mounting Position: Always install the drive vertically on a flat, non-flammable surface to facilitate optimal air convection.
Clearance Requirements: Ensure a minimum clearance of 50 mm on both sides and 100 mm above and below the unit for proper heat dissipation.
Grounding: Connect the protective earth terminal strictly to a low-impedance ground to prevent electromagnetic interference and electric shock.
Environmental Limits: Protect the unit from direct sunlight, corrosive gases, flammable materials, and fine conductive dust.

Compliance and Certifications

CE (European Conformity)
UL Listed / cUL

FAQ

What is the continuous motor output capacity supported by the FR-A740-15K-CHT?

This model is designed to drive three-phase induction motors with an applicable capacity of up to 15 kW (approximately 20 HP).

What is the overload rating of this variable frequency drive?

The FR-A740-15K-CHT has a dual overload capacity rating of 150% of rated current for 60 seconds, and 200% of rated current for 3 seconds under standard ambient operating conditions up to 50 degC.

Does this unit require an external cooling fan?

No, the FR-A740-15K-CHT comes equipped with an internal forced air cooling fan system to regulate temperature during continuous operation.
