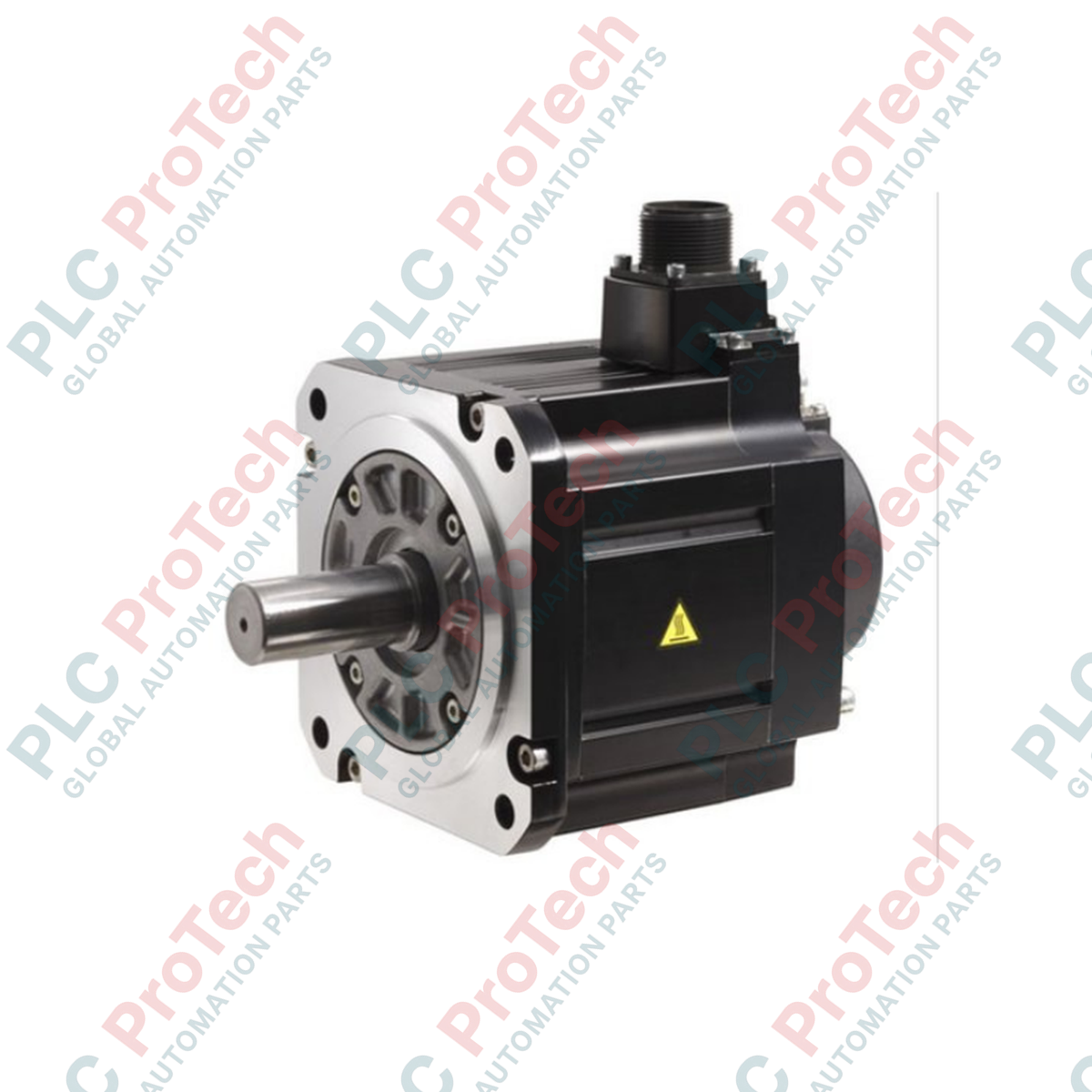

Providing reliable dynamic positioning and precise speed control under heavy industrial loads, the Mitsubishi Electric HG-SN302J-S100 is an AC servo motor engineered for compatibility with high-performance motion control drives. This unit features a 3.0 kW rated output and operates at a rated speed of 2000 r/min, delivering high torque performance while maintaining structural stability. Equipped with an integrated oil seal (designated by the "J" suffix) and built to an IP67 protection rating, this motor is specifically sealed against dust and liquid ingress, making it suitable for rigorous industrial machinery installations.
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | HG-SN302J-S100 |
| Series Name | HG-SN Series |
| Rated Output | 3.0 kW |
| Rated Torque | 14.3 Nm |
| Rated Speed | 2000 r/min |
| Maximum Speed | 2500 r/min |
| Instantaneous Permissible Speed | 2875 r/min |
| Rated Current | 11 A |
| Maximum Current | 33 A |
| Recommended Load Inertia Ratio | 15 times or less |
| Insulation Class | 155 (Class F) |
| Enclosure Structure | Totally enclosed, natural cooling (IP67) |
| Vibration Rank | V10 |
| Operating Temperature | 0 degC to 40 degC (non-freezing) |
| Storage Temperature | -15 degC to 70 degC (non-freezing) |
| Operating Humidity | 10% to 80% RH (non-condensing) |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| Maximum Altitude | 2000m or less above sea level |
| Vibration Resistance | X: 24.5 m/s2, Y: 49 m/s2 |
| Weight | 16 kg |
| Shipping Weight (Calculated) | 17 kg |
The HG-SN302J-S100 is designed for optimized pairing with the MR-JE-300A and MR-JE-300B servo amplifiers. When upgrading older HC-SFS series installations to the HG-SN series, verify parameters related to the incremental encoder interface, as resolution registers differ. Ensure your MR Configurator2 software is updated to support the correct electronic gear and encoder resolution parameters to avoid feedback mismatch errors.
This model features a built-in oil seal (J-type). While this provides highly effective protection, do not install the motor in environments where the oil level rises above the oil seal lip. For horizontal configurations, design standard oil-escape mechanisms in the machine gearbox to prevent oil from pooling against the seal and eventually seeping into the stator. Because the motor relies entirely on natural cooling, do not obstruct the air path around the motor frame inside the enclosure; maintain at least 100mm of clearance from adjacent structures.
Always use dedicated, shielded cables for encoder feedback (MR-EKCBL) and power supply (MR-PWCNS). Ground the motor’s main protective earth (PE) terminal directly to the servo amplifier’s ground plate, using a heavy-gauge wire to prevent high-frequency noise from corrupting encoder signals, which can cause erratic rotation or speed loop instability during commissioning.
CRITICAL WARNING: HIGH VOLTAGE AND THERMAL HAZARD
Ensure main control and three-phase power lines are completely de-energized and locked out before attempting installation or cable connection. Wait at least 15 minutes after power-off to allow internal amplifier bus capacitors to fully discharge. Motor housing surfaces can exceed 70 degC during heavy dynamic cycles; allow cooling before physical contact.
