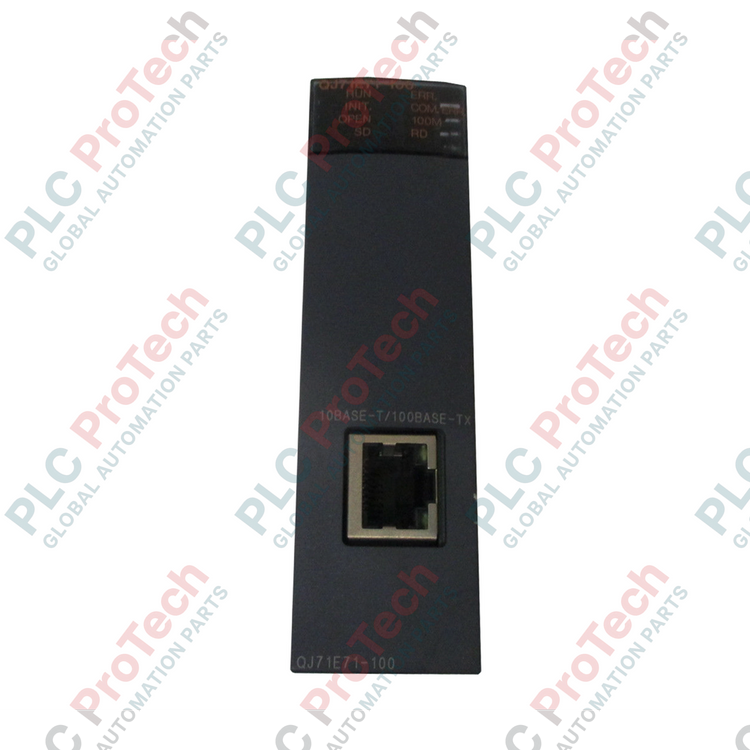

Mitsubishi Electric QJ71E71-100 MELSEC-Q Series Ethernet Module

Mitsubishi Electric QJ71E71-100 MELSEC-Q Series Ethernet Module

Only 10 item(s) left in stock

  • Manufacturer: Mitsubishi Electric

  • Product No.: QJ71E71-100

  • Country of origin:United States

  • Product Type: Ethernet Modules

  • Payment: T/T, Western Union

  • Weight: 110g

  • Dimensions: 27.4 mm x 98 mm x 90 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Facilitating seamless industrial network communications, the QJ71E71-100 serves as a high-performance Ethernet interface module for the Mitsubishi Electric MELSEC-Q Series PLC platform. This module enables direct, reliable connections between Q-Series programmable controllers and host systems, supervisory personal computers, or other Ethernet-enabled automation devices. Operating at speeds up to 100 Mbps, it supports simultaneous open connections and robust, secure data transmission across complex manufacturing cells and plant-wide industrial networks. By offloading processing overhead from the main CPU, it ensures optimized system-level performance.

Features

  • Dual-rate transmission support accommodating 10BASE-T and 100BASE-TX interfaces.
  • Supports up to 16 simultaneously open connections for parallel host and peer-to-peer communications.
  • Compact single-slot footprint designed for seamless integration within standard MELSEC-Q backplanes.
  • Direct configuration and parametric setup utilizing standard GX Works2 or GX Developer programming software.
  • Front-panel diagnostic LEDs providing immediate physical feedback on link, run, and communication error status.

Applications

  • Industrial supervisory control and data acquisition (SCADA) network integration.
  • High-speed peer-to-peer inter-PLC data exchange.
  • Centralized database connectivity and remote machine telemetry monitoring.
  • Manufacturing execution systems (MES) and enterprise resource planning (ERP) system integration.

Technical Specifications

Manufacturer Mitsubishi Electric
Part Number / Model QJ71E71-100
Series MELSEC-Q Series
Product Type Ethernet Interface Module
Data Transmission Rate 100 Mbps / 10 Mbps
Transmission Method Baseband
Maximum Segment Length 100 m (between hub and node)
Maximum Nodes per Connection Cascade connection: Maximum 2 (for 100BASE-TX)
Simultaneous Open Connections 16
Number of Occupied I/O Points 32 points (I/O assignment: Intelligent function module)
Internal Current Consumption (5V DC) 0.50 A
Dimensions (W x H x D) 27.4 mm x 98 mm x 90 mm
Weight 0.11 kg

Installation Guidelines

  • Always isolate the main power supply to the MELSEC-Q base unit before mounting or removing the communication module to prevent module damage or electric shock.
  • Ensure the module is securely seated in the base unit slot and the module fixing screw is tightened to the recommended torque specification.
  • Utilize shielded twisted pair (STP) cabling rated Category 5 or higher for 100BASE-TX configurations to maximize noise immunity.
  • Route communication cables physically isolated from high-voltage power lines and motor drive wiring to minimize electromagnetic interference (EMI).
Key Features:
#Ethernet Modules #MELSEC Q Series

What is the maximum data transmission rate of the QJ71E71-100?
The QJ71E71-100 Ethernet module supports standard dual-speed communication rates of 100 Mbps (100BASE-TX) and 10 Mbps (10BASE-T).

How many simultaneous connections can the QJ71E71-100 handle?
The module allows up to 16 simultaneously open connections for concurrent communication with host PCs, SCADA systems, or other PLCs.

How many slots does this module occupy on the MELSEC-Q base unit?
The QJ71E71-100 is a single-slot module that occupies 32 I/O points designated as an intelligent function module.
