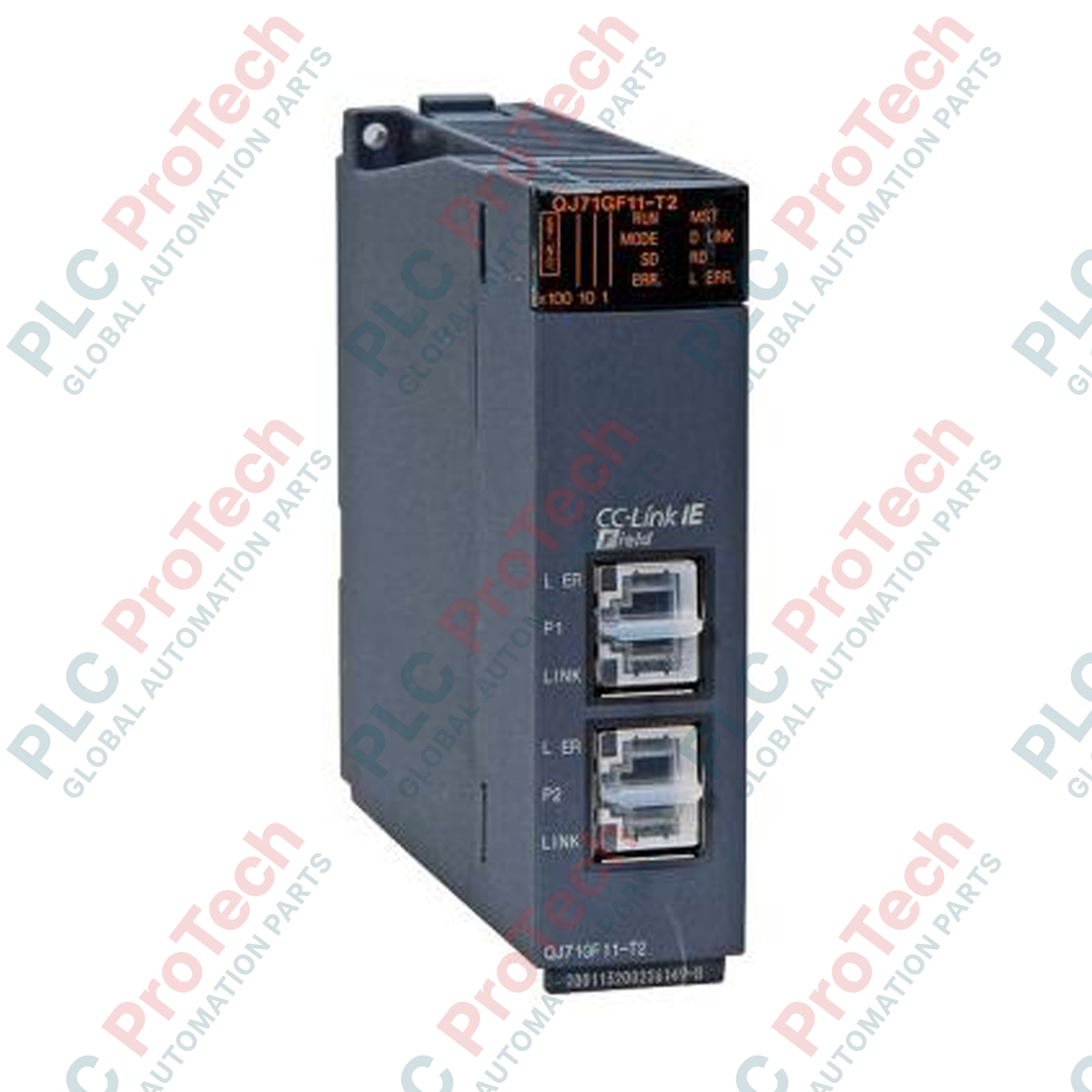

Integrating seamlessly into high-speed industrial networks, the QJ71GF11-T2 serves as a high-performance communication interface within the MELSEC-Q automation platform. This module enables deterministic, high-capacity data exchange by functioning as either a master or local station on a CC-Link IE Field network. Operating at a transmission speed of 1 Gbps, it manages extensive digital and analog I/O points across distributed automation architectures, ensuring synchronized control and rapid diagnostic capabilities.
The unit supports versatile physical layouts including line, star, and ring network topologies, which can be combined to suit complex factory floor environments. Its integration within the MELSEC-Q series allows for straightforward configuration via GX Works software, reducing engineering overhead and optimizing data throughput for heavy industrial processing.
| Manufacturer | Mitsubishi Electric |
| Part Number / Model | QJ71GF11-T2 |
| Module Type | CC-Link IE Field Network Master/Local Module |
| Communication Speed | 1 Gbps |
| Station Types | Master Station, Local Station |
| Communication Method | Token passing method |
| Maximum RX Points | 16,384 points |
| Maximum RY Points | 16,384 points |
| Maximum RWr Points | 8,192 points |
| Maximum RWw Points | 8,192 points |
| Connection Cable Type | Category 5e or higher (Double-shielded, STP) straight cable |
| Max Station-to-Station Distance | 100 m (Compliant with ANSI/TIA/EIA-568-B Category 5e) |
| Max Total Distance (Line) | 12,000 m (1 master and 120 slave stations) |
| Max Total Distance (Ring) | 12,100 m (1 master and 120 slave stations) |
| Occupied I/O Points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal Current Consumption (5 VDC) | 0.85 A |
| Dimensions (W x H x D) | 27.4 mm x 98 mm x 115 mm |
| Weight | 0.18 kg |
| Port Label | Connector Type | Functional Description |
|---|---|---|
| PORT1 | RJ45 | Primary CC-Link IE Field connection port (1000BASE-T) |
| PORT2 | RJ45 | Secondary CC-Link IE Field connection port for ring, line, or star daisy-chaining |
