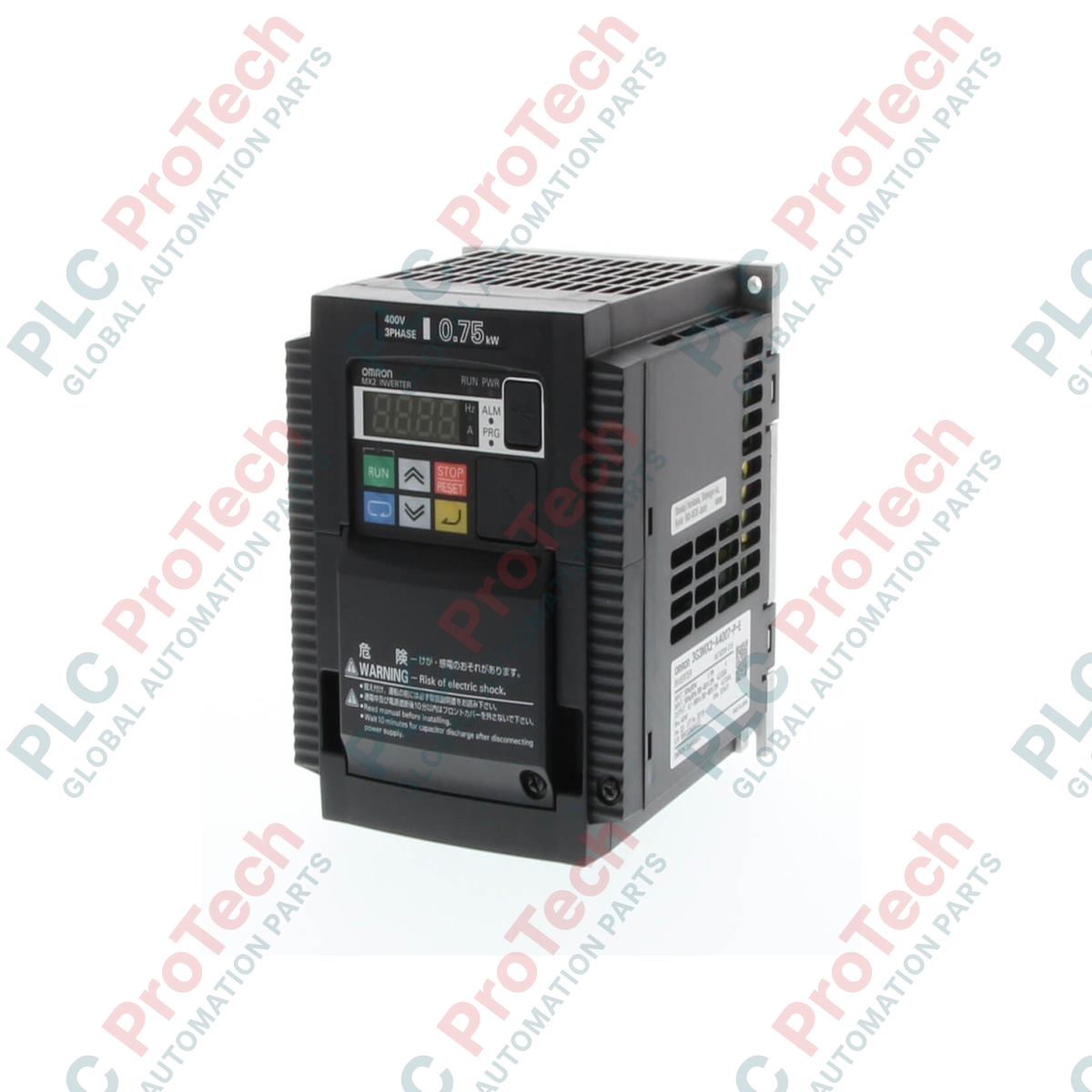

Designed for highly dynamic and precise motor speed control, the Omron 3G3MX2-A4030-ZV1 compact inverter provides reliable three-phase AC power regulation within the MX2 Series architecture. By integrating PM motor control options and sensorless vector performance, this variable frequency drive delivers 200% starting torque at near-zero speeds, making it highly effective for heavy-duty starting cycles. The unit features built-in safety functions conforming to ISO13849-1 Cat 3 PLd, ensuring safe torque-off (STO) without requiring external contactors. The ZV1 designation marks an enhanced functional version supporting custom program logic and seamless system integration.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Omron |
| Model Number | 3G3MX2-A4030-ZV1 |
| Voltage Class | 3-phase 400 V AC Class (380 to 480 VAC, +10% / -15%) |
| Input Frequency | 50/60 Hz (+/- 5%) |
| Max Motor Capacity (Constant Torque) | 3.0 kW |
| Max Motor Capacity (Variable Torque) | 4.0 kW |
| Rated Output Current (CT) | 7.2 A |
| Rated Output Current (VT) | 9.2 A |
| Enclosure Rating | IP20 (Panel-mounting / closed wall) |
| Control Method | Phase-controlled sinusoidal PWM (V/f, Sensorless Vector) |
| Maximum Output Frequency | 400 Hz |
| Cooling Method | Forced-air cooling |
| Ambient Operating Temperature | -10 to +50 degC (no derating) |
| Country of Origin | Japan |
| Net Weight | 1.9 kg |
| Shipping Weight (Calculated) | 4.0 kg |
| Package Dimensions (Calculated) | 230 x 180 x 200 mm |
| Terminal Symbol | Function / Circuit Assignment |
|---|---|
| L1, L2, L3 | 3-Phase AC Main Power Input (380-480 V) |
| U, V, W | 3-Phase Motor Output Connections |
| +1, + | DC Link Reactor External Connection Terminals |
| B1, B2 | Dynamic External Braking Resistor Terminals |
| S1 to S7 | Multi-Function Digital Inputs (Sink/Source selectable) |
| H, O, OI, L | Analog Input Terminals (Voltage Reference / Current Reference / Common) |
This model seamlessly replaces older non-ZV1 units (e.g., standard 3G3MX2-A4030). The ZV1 designation features updated internal firmware that expands logic functions via DriveProgramming. Parameter files are compatible and can be transferred using CX-Drive software version 2.9 or higher, though any custom internal PLC logic should be verified to confirm I/O mapping consistency.
When operating at low output frequencies (under 10 Hz) under a high constant torque load, ensure the connected motor is auxiliary-cooled or rated for inverter duty. Standard self-cooled motors cannot dissipate heat adequately at low rotational speeds, risking thermal overload. If installing multiple units side-by-side in a control panel, follow specified spacing guidelines or apply current output derating to prevent localized heat accumulation.
For stable analog reference signals, connect a dedicated shielded twisted-pair (STP) cable to terminals O/OI and ground the shield at the drive's control common terminal (L) only. Do not apply external voltage to the safety input terminals GS1 and GS2; these must be routed through dry-contact safety devices. If Modbus RTU interface issues arise, verify that parameter C071 (Communication Speed) matches the master network rate and that a 120-ohm termination resistor is active at the end of the trunk.
