Description

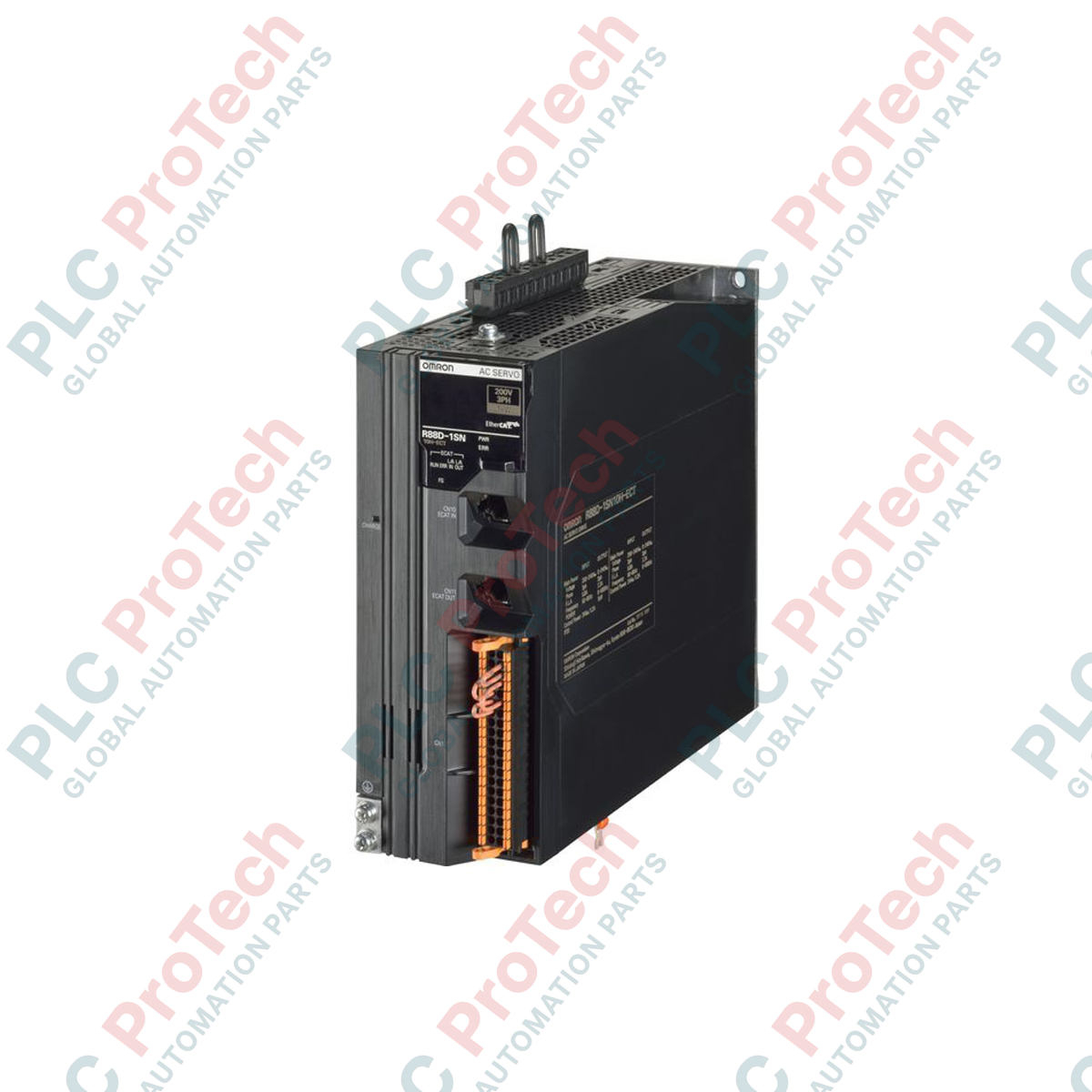

Designed for high-performance motion control, the Omron R88D-1SN08H-ECT serves as a core communication-type servo drive within the Sysmac automation platform. Operating on the 1S Series architecture, this compact drive offers optimized installation space and simplified setup parameters. It provides highly accurate position, speed, and torque control by utilizing real-time communications over industrial networks.
This unit is engineered to match seamlessly with the R88M-1M75030(H/T) servo motor series, delivering a cohesive electrical transmission loop. By incorporating high-resolution encoder processing and high-speed control cycles, the system ensures stable and dynamic movement profiles in complex multi-axis machinery designs. Built-in functional safety mechanisms further protect downstream machinery and operator environments from hazardous operational conditions.
Features
- Integrated EtherCAT communications interface supporting CAN application protocol over EtherCAT (CoE).
- 750 W output capacity optimized for medium-inertia industrial positioning tasks.
- Single-phase or three-phase 200 to 240 VAC input voltage compatibility.
- Advanced control algorithms for vibration suppression and precise positioning tracking.
- Support for functional safety protocols, minimizing external wiring and safety relay requirements.
- Direct integration with Sysmac Studio software for unified configuration, programming, and diagnostics.
Applications
- Packaging and sealing machinery.
- High-speed material handling and sorting systems.
- Pick-and-place assembly robotics.
- Semiconductor fabrication and assembly tools.
- Textile processing and winding equipment.
Technical Specifications
| Manufacturer |
Omron |
| Model Number |
R88D-1SN08H-ECT |
| Series |
1S Series |
| Drive Type |
Communications type (EtherCAT) |
| Capacity |
750 W |
| Input Voltage |
200 to 240 VAC |
| Communication Protocol |
EtherCAT |
| Applicable Servo Motor |
R88M-1M75030(H/T) |
| Weight |
2.0 kg |
| Operating Temperature |
0 to 55 degC |
Connections and Interfaces
| Interface/Connector |
Function Description |
| CN1 |
Control Input/Output signals |
| CN2 |
Feedback encoder connection |
| CN4 |
Hardwired safety connection (STO) |
| ECAT IN |
EtherCAT network input RJ45 port |
| ECAT OUT |
EtherCAT network output/daisy-chain RJ45 port |
| L1, L2, L3 |
Main circuit power supply terminal block |
| U, V, W |
Motor output power terminals |
Installation Guidelines
-
Mounting: Mount the drive vertically inside a closed metal control cabinet to facilitate natural convection.
-
Clearance: Maintain at least 10 mm of free space on the sides and 50 mm of free space above and below the unit for proper cooling.
-
Shielding: Use shielded cables for all motor power, encoder, and control signal lines. Ground the shields to the cabinet panel to prevent electromagnetic interference (EMI).
-
Grounding: Connect the protective earth (PE) terminal of the drive to the primary cabinet ground busbar using a low-impedance connection.
Compliance and Certifications
- CE Marked
- cULus Listed
- KC (Korean Certification)
- RoHS Compliant
