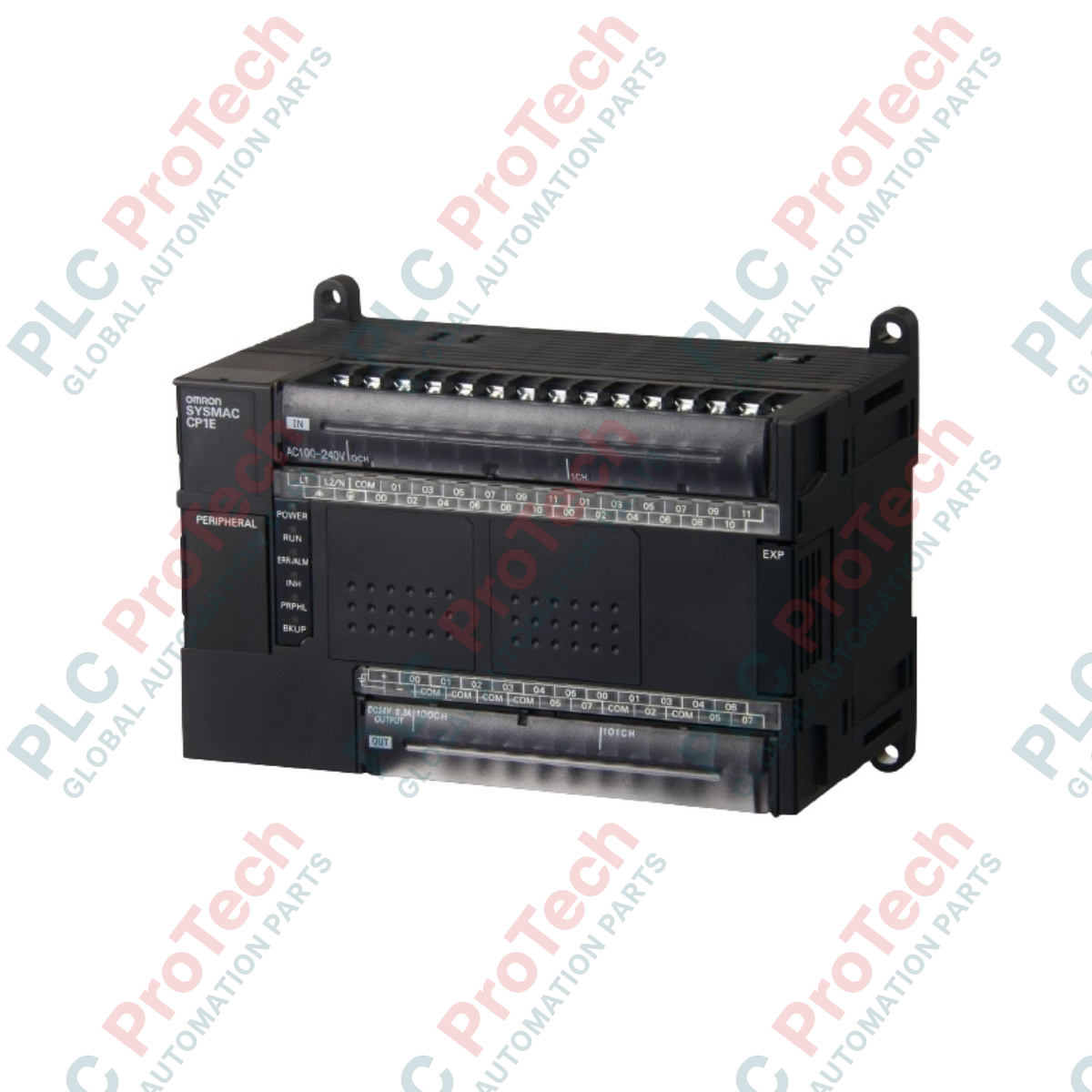

Omron CP1E-N60DT-D CP1E CPU Unit

Description

Engineered for compact and efficient industrial control, the Omron CP1E-N60DT-D functions as an application-model central processing unit (CPU) within the highly versatile CP1E controller family. This micro programmable logic controller (PLC) offers an optimal balance of processing power, high-speed input/output capability, and essential communication interfaces, making it an ideal choice for stand-alone machines and distributed automation nodes.

The unit features 60 built-in I/O points, comprising 36 DC inputs and 24 transistor sinking outputs. Designed for direct current electrical systems, the CPU operates on a standard 24 VDC power supply. By integrating high-speed counter inputs and high-speed pulse outputs, the CP1E-N60DT-D enables precise motion and positioning control without requiring external expansion cards. Programming and configuration are simplified via a built-in USB peripheral port and an integrated RS-232C serial communication interface.

Features

• 60 built-in digital I/O points (36 inputs and 24 outputs) to handle extensive local field signals.
• Fast execution speed for basic instructions, ensuring responsive machine control logic.
• Built-in peripheral USB 2.0 port for programming, debugging, and online monitoring using CX-Programmer.
• Integrated RS-232C port facilitating standard serial communication with HMIs, temperature controllers, and barcode readers.
• Support for high-speed counters (up to 100 kHz) and pulse outputs (up to 100 kHz) for straightforward multi-axis positioning tasks.
• Transistor sinking outputs ideal for high-frequency switching operations and interfacing with servo drives.

Applications

• Packaging and labeling machines requiring fast indexing and high-speed registration.
• Conveyor systems, sorters, and general material handling systems.
• Textile machinery and processing lines.
• Pumping, water treatment, and environmental control panels.
• HVAC and small-scale building utility control.

Technical Specifications

Installation Guidelines

• Mounting: Mount the controller securely onto a standard 35 mm DIN rail or using direct M4 screw mounting. Ensure the unit is installed horizontally to maintain proper airflow.
• Ventilation: Maintain a minimum clearance of 10 mm above, below, and on the sides of the CPU to prevent overheating during continuous operation.
• Wiring: Always separate high-voltage AC lines from DC input/output signal lines to minimize electromagnetic interference (EMI). Use appropriate ferrules and terminal lug size for secure electrical connections.
• Grounding: Connect the functional ground (FG) terminal to a dedicated low-impedance ground point (under 100 ohms) to ensure reliable noise suppression.

Compliance and Certifications

• CE Mark
• UL Listed (cULus)
