Omron NS5-SQ01-V2 NS Series Interactive Display Panel

Description

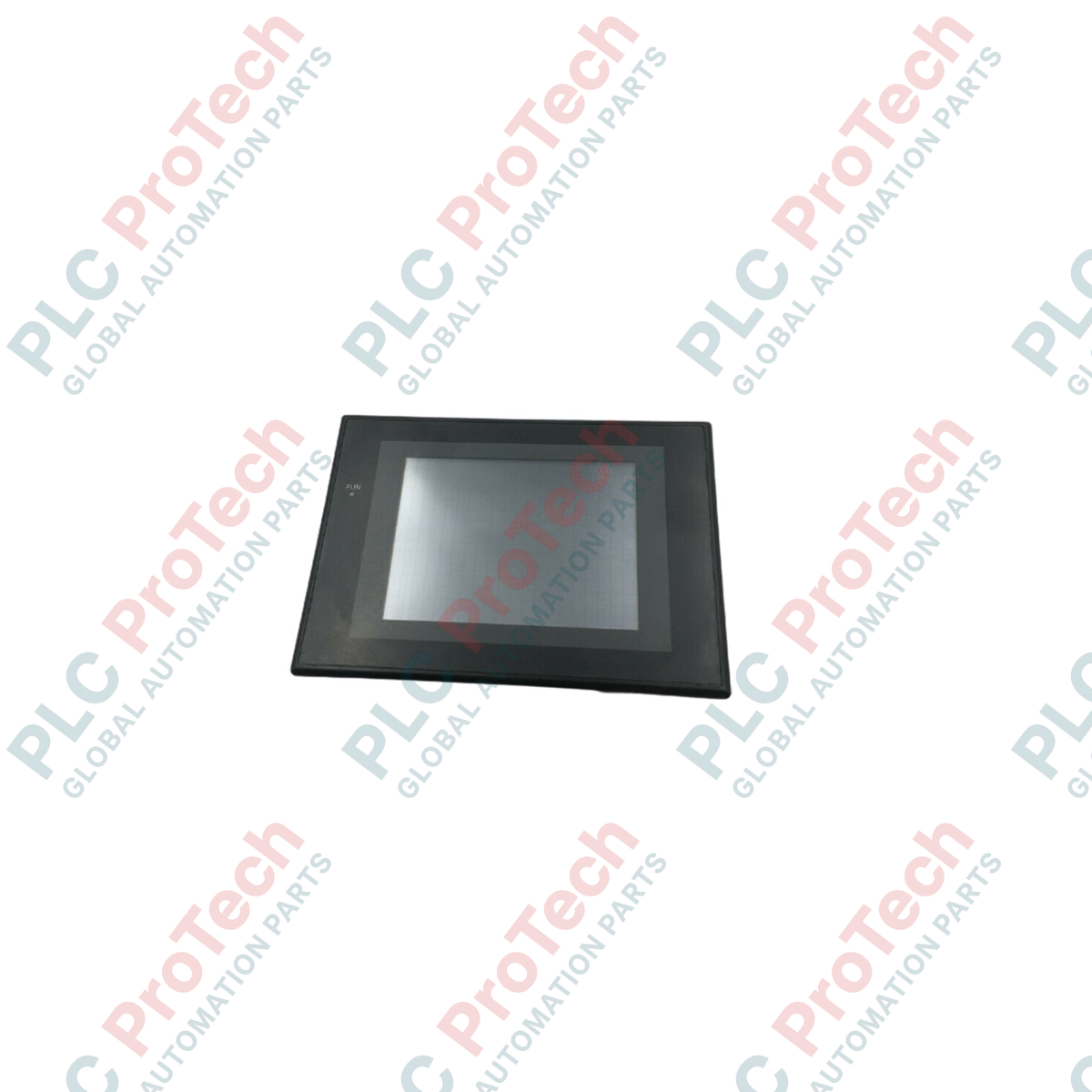

Engineered to deliver clear, localized visualization, the NS5-SQ01-V2 serves as an interactive touch-screen terminal for industrial automation environments. This 5.7-inch high-luminance color TFT display interfaces seamlessly with Omron PLCs and modern control architectures to provide real-time monitoring, parameter adjustment, and graphical diagnostic capabilities. Sporting a silver bezel and a compact footprint, the terminal is designed for space-constrained control cabinets and panels without sacrificing functional screen real estate.

The unit features dual onboard RS-232C serial ports alongside dedicated USB connectivity, facilitating direct communication and high-speed project transfers. Support for CX-Designer configuration software ensures rapid screen development, structured data mapping, and straightforward maintenance routines. Built with a robust front-panel enclosure rating, the device ensures long-term operational stability when subjected to the demands of dust-heavy or wet processing floors.

Features

• High-contrast 5.7-inch TFT color LCD displaying clear QVGA graphics.
• Integrated touch panel interface for precise, multi-point screen interactions.
• Dual serial ports (RS-232C) for flexible multi-device and PLC communication links.
• Built-in USB Type-B slave port for simplified screen data uploads and firmware updates.
• Expandable memory capabilities via specialized system expansion slots.
• Dynamic multi-language support and historical data logging functionality.

Applications

• Automated packaging and material handling lines
• Water and wastewater monitoring nodes
• HVAC control and building management systems
• Food and beverage production machinery
• Discrete parts manufacturing assembly stations

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Panel Mounting: Ensure the mounting panel is flat, rigid, and between 1.6 mm and 4.8 mm thick to secure an even seal against the IP65F environmental gasket.
• Clearance: Maintain at least 100 mm of open space behind and around the unit to facilitate convective cooling and allow strain relief on communication cables.
• Grounding: Connect the dedicated functional ground terminal directly to a separate, high-quality industrial ground point (Class 3 grounding, 100 Ohms or less) using a minimum of 2 mm squared wire.
• Power Supply Routing: Route the 24 V DC supply cables away from high-voltage AC power lines to minimize potential electromagnetic noise coupling.

Compliance and Certifications

• CE Mark
• UL Listed (Class I, Division 2 Hazardous Locations)
• cULus
