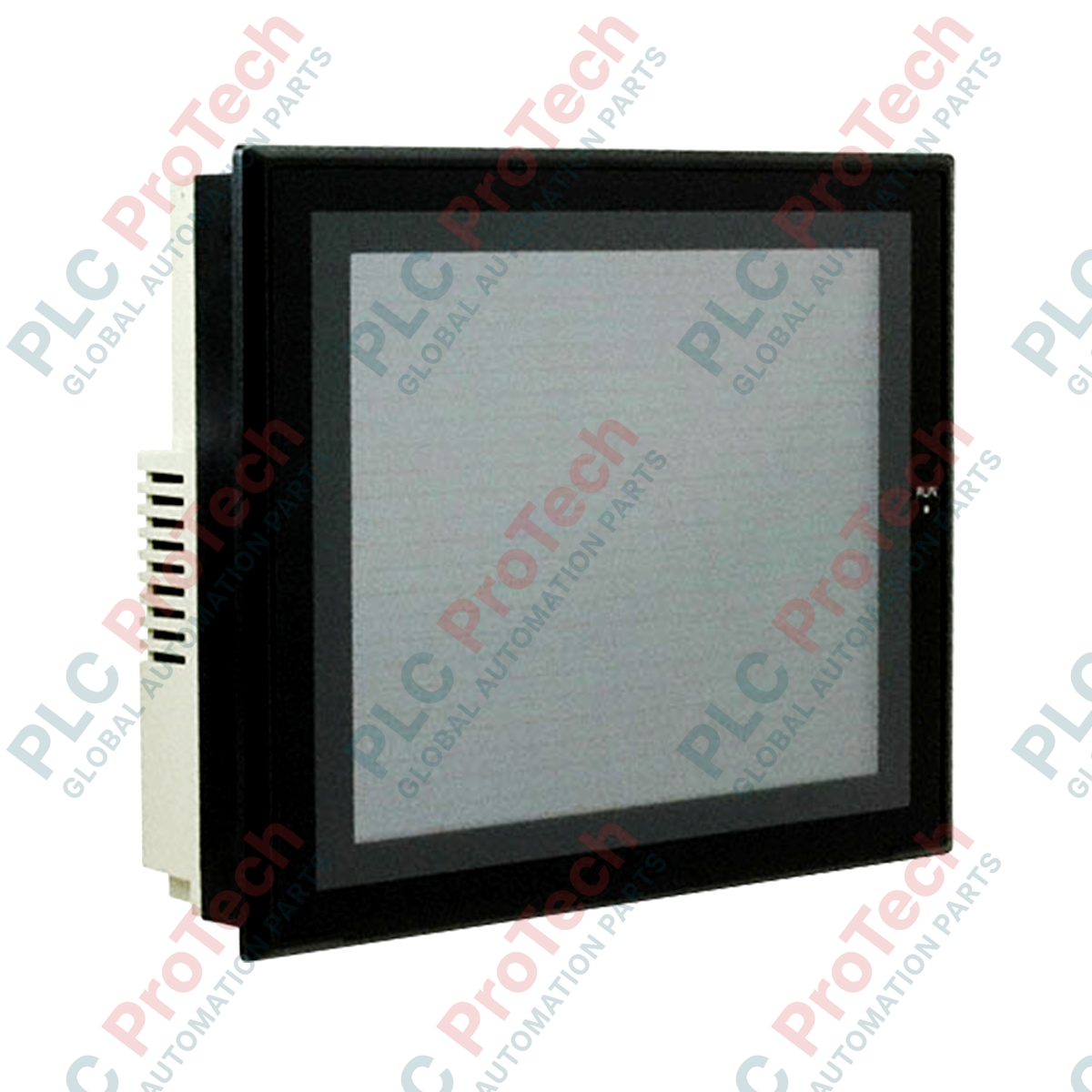

Omron NS8-TV01B-V2 NS Series HMI Touch Screen Terminal

SKU NS8-TV01B-V2

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: NS8-TV01B-V2
Country of origin:Japan
Product Type: Touch Screen HMIs
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for robust industrial automation control and machinery visualization, the Omron NS8-TV01B-V2 is a high-performance human-machine interface (HMI) terminal within the respected NS Series lineup. This operator interface is engineered to provide clear, real-time machine status and diagnostics directly on the plant floor. Featuring an 8.4-inch TFT color display with a high-efficiency LED backlight, the module enables precise touch response and sharp graphics for complex operator control screens.

Equipped with integrated Ethernet connectivity, the NS8-TV01B-V2 facilitates seamless data exchange with PLC systems and supervisory networks. It supports advanced utility functions, including direct ladder monitoring, which allows maintenance personnel to troubleshoot PLC program states directly from the HMI screen without requiring a separate laptop or programming software. The durable black case configuration is optimized for standard panel mounting in demanding manufacturing environments.

Features

High-contrast 8.4-inch TFT color display with interactive touch panel controls.
Integrated Ethernet port supporting high-speed controller communications and data sharing.
Built-in ladder monitor function for efficient on-site PLC diagnostics and maintenance.
Long-life LED backlight ensuring consistent brightness and reduced power consumption.
Compact, space-saving mechanical profile with a durable black front bezel.

Applications

Automotive assembly lines and robotic work cells.
Packaging machinery and automated sorting systems.
Water and wastewater treatment monitoring panels.
Material handling systems and conveyor controls.
Food and beverage processing equipment control interfaces.

Technical Specifications

ParameterSpecification

Manufacturer	Omron
Model / Part Number	NS8-TV01B-V2
Series	NS Series
Display Type	TFT Color LCD (LED Backlight)
Screen Diagonal	8.4 inches
Resolution	640 x 480 pixels (VGA)
Ethernet Port	Yes (Built-in RJ45 interface)
Case Color	Black
Rated Power Supply Voltage	24 VDC
Allowable Voltage Range	20.4 to 27.6 VDC (24 VDC +/-15%)
Power Consumption	25 W maximum
Weight	2.0 kg

Connections and Interfaces

Interface PortFunction / Connectivity

Ethernet Port	10/100 Base-TX RJ45 connection for network and PLC communications
Power Supply Terminal	3-pin terminal block for 24 VDC input and functional ground connection

Installation Guidelines

Panel Mounting: Install the terminal into a flat panel cutout with a panel thickness of 1.6 mm to 4.8 mm. Secure the unit using the provided mounting brackets to maintain protective sealing.
Thermal Management: Ensure adequate clearance behind the unit for natural ventilation. Do not install the device in direct sunlight or adjacent to high-heat-generating industrial components.
Power & Grounding: Use a dedicated, regulated 24 VDC power supply. Connect the functional ground terminal directly to a clean, low-impedance system earth ground to minimize electrical noise interference.
Cable Routing: Separate communication cables (Ethernet/Serial) from high-voltage AC power lines to prevent signal corruption.

FAQ

What is the primary function of the Omron NS8-TV01B-V2 HMI?

The Omron NS8-TV01B-V2 is a human-machine interface (HMI) designed for industrial visualization and machine control, featuring a color touch screen, Ethernet connectivity, and PLC ladder monitoring capabilities.

What is the display size and resolution of this terminal?

The terminal features an 8.4-inch TFT color display with a resolution of 640 x 480 pixels (VGA) and an energy-efficient LED backlight.

What are the power requirements for the NS8-TV01B-V2?

It operates on a rated power supply voltage of 24 VDC, with an allowable voltage range of 20.4 to 27.6 VDC and a maximum power consumption of 25 W.

Does this model support direct PLC ladder monitoring?

Yes, the NS8-TV01B-V2 supports direct ladder monitoring functions, allowing operators and maintenance technicians to view and debug PLC ladder logic directly on the screen.

What communication interfaces are built into this unit?

The unit includes an integrated Ethernet port (RJ45 connection) for high-speed industrial network communication and data exchange.
