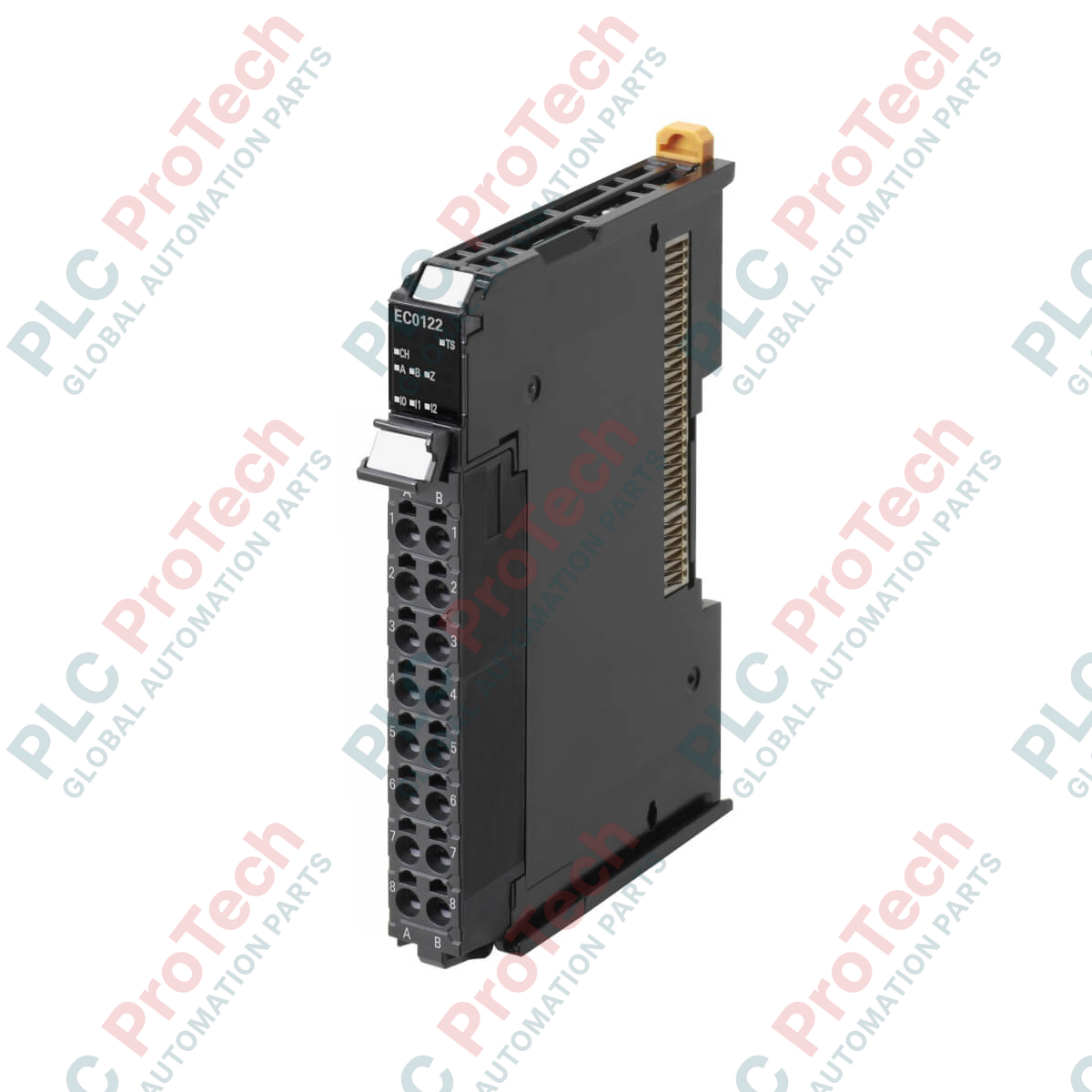

High-speed position tracking within EtherCAT and PLC architectures is executed by the Omron NX-EC0112, a high-performance NX-series position interface module. This module is engineered to provide precise incremental encoder feedback directly to the control loop, eliminating processing latency. By utilizing a robust 16-point screwless push-in clamping terminal block, the device guarantees secure, vibration-resistant electrical connections in harsh industrial environments. It supports highly flexible integration, allowing control systems to adapt dynamically through multiple synchronization and task-prioritized refreshing methods.
| Specification Parameter | Value / Rating |
|---|---|
| Manufacturer | Omron |
| Model Number | NX-EC0112 |
| Series | NX-series Position Interface |
| Number of Channels | 1 Channel |
| Input Signals | Counter (Phases A, B, Z) + 3 External Inputs |
| Input Form | Voltage Input (24 VDC) |
| Counting Unit | Pulses |
| I/O Refreshing Methods | Free-Run, Synchronous, Task Period Prioritized |
| Connection Interface | Screwless Clamping Terminal Block (16 Terminals) |
| Device Weight | 70 g maximum |
| Shipping Weight (Calculated) | 1.0 kg |
Alternative Models & Compatibility: The unit serves as the 24 VDC single-ended voltage input version in the position interface lineup. If your system design switches to line driver encoder types (differential interfaces), you must migrate to the differential alternative (such as the NX-EC0122) to ensure hardware signal matching. Ensure your Sysmac Studio software matches the firmware revision of the NX-series CPU to prevent diagnostic communications faults upon first power-on.
Application Pitfalls & Engineering Notes: Because the encoder inputs operate on 24 VDC voltage logic, they are more susceptible to electromagnetic noise than differential line drivers. Avoid routing the encoder input cables in the same conduit or cable tray as high-current motor drive output lines or AC power distribution networks to prevent positioning jitter or phantom counts.
Commissioning & Wiring Tips: Utilize high-quality shielded twisted-pair (STP) cabling for Phases A, B, and Z. Connect the shield line exclusively to the functional ground terminal of the NX-series backplane assembly to provide an effective path for high-frequency noise mitigation.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: NX-EC0112
Country of origin:Japan
Product Type: Incremental Encoder Interface Modules
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
