Omron NX-EC0122 NX Series Encoder Input Module

SKU NX-EC0122

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron

  • Product No.: NX-EC0122

  • Country of origin:Japan

  • Product Type: Encoder Input Modules

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Dimensions: 104.5 mm x 12 mm x 80.1 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

Designed for high-speed motion tracking within the Sysmac automation platform, the Omron NX-EC0122 provides high-speed incremental encoder input processing over the high-speed NX I/O Bus. It supports high-resolution PNP incremental encoders, offering real-time synchronization with machine controllers for applications demanding exact positioning. This module allows multi-mode signal processing, adapting to varying scan cycle demands to maintain system performance.

Features

  • Single-channel incremental encoder input supporting PNP interface types.
  • High-speed response capability with a maximum input frequency of 500 kHz.
  • Flexible processing architectures, featuring Free running, Synchronous, and Task period prioritized modes.
  • Direct integration with the Sysmac Studio software platform for simplified configuration and diagnostics.
  • Detachable, toolless push-in connection system to minimize wiring time and physical footprint.
  • Four IOV and four IOG power supply terminals, allowing integrated encoder distribution.

Applications

  • High-speed packaging and continuous rotary sealing lines.
  • Synchronized conveyor belt material tracking and sorting.
  • Web handling, unwinding, and tension control processes.
  • Dynamic positioning systems coupled with servo and variable speed drives.

Technical Specifications

Parameter Specification
Manufacturer Omron
Model Number NX-EC0122
Module Type Encoder Input (Incremental)
I/O System Connection NX I/O Bus
Digital Input Type Incremental encoder, PNP
Number of Channels 1 Channel
Max. Encoder Input Frequency 500 kHz
Signal Processing Modes Free running, Synchronous, Task period prioritized
I/O Connection Type Push-in Terminal Block (12 terminals)
Detachable Terminal Block Yes
Power Terminals 4x IOV (V+), 4x IOG (V-)
IP Rating IP20
Dimensions (H x W x D) 104.5 mm x 12 mm x 80.1 mm
Net Weight 70 g
Shipping Weight (Calculated) 1.0 kg (packaged)

Connections and Interfaces

Terminal Label Function Assignment
A / B / Z Incremental Encoder Phases A, B, and Z inputs (PNP level)
IOV Power supply positive terminals for connected encoders (4 terminals total)
IOG Power supply common/ground terminals for connected encoders (4 terminals total)
NC No connection / Reserved

Alternative Models & Compatibility

The NX-EC0122 is designed for PNP interface configurations. If your hardware architecture requires NPN open-collector or differential line driver signal handling, you must source the NX-EC0112 (NPN) or NX-EC0142 (Line Driver) respectively. It integrates directly with NX-series bus couplers (EtherCAT or EtherNet/IP) and Sysmac NX102 or NX1P2 series controllers.

Application Pitfalls & Engineering Notes

Verify the aggregate current load drawn from the IOV/IOG distribution terminals. While the 4 terminals simplify wiring, they draw from the internal NX-bus power supply; if the encoder's power consumption exceeds the NX bus limits, an external auxiliary power supply must be integrated to prevent bus voltage dropouts. At high pulse frequencies close to the 500 kHz threshold, signal distortion can occur if routing cabling over distances greater than 10 meters without high-quality low-capacitance shielded wire.

Commissioning & Wiring Tips

Ensure encoder cables are separated from high-voltage AC power lines by at least 100 mm to suppress electromagnetic interference. Terminate the cable shield only at the designated industrial grounding bar or communication coupler clamp. To prevent damage to the push-in spring clamps, use only recommended wire ferrules with solid cores, keeping the insulation stripping length precise to avoid short circuits between adjacent active terminals.

Installation Guidelines

CRITICAL WARNING: Ensure all power supplies to the NX rack assembly, auxiliary distribution networks, and field sensors are physically isolated and locked out before attempting installation, wiring, or maintenance of this unit.
1
Align the guide rail on the side of the NX-EC0122 with the adjacent NX unit on the DIN rail.
2
Slide the module down until it firmly clicks onto the 35mm DIN rail and is locked with its neighbor unit.
3
Wire the encoder connections (Phases A/B/Z and IOV/IOG supply paths) using ferruled control lines inserted into the push-in block.
4
Power up the system and verify standard operational LED status via the primary industrial communication coupler.

FAQ

What is the maximum input frequency supported by the NX-EC0122?

This module supports high-speed incremental encoder inputs with a maximum input frequency of up to 500 kHz.

Does this module support NPN or differential line driver encoders?

No, the NX-EC0122 is designed specifically for PNP type inputs. For NPN configurations, you should specify the NX-EC0112, and for line driver connections, use the NX-EC0142.

What options are available for signal processing modes?

The module allows configurable signal processing in Free running, Synchronous, or Task period prioritized modes to align precisely with your controller cycle times.

Are separate terminal blocks required to distribute power to the encoder?

No, the module features four IOV (V+) and four IOG (V-) terminals on its push-in block, enabling direct connection and distribution of power to the encoder.

View all FAQs →

Quantity
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
Reviews
1 of 1
Only 5 item(s) left in stock
Quantity
View full details

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS

Country of origin
Japan

Technical knowledge

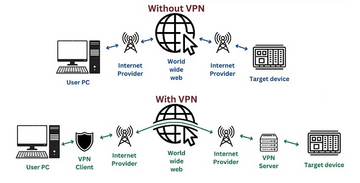

Securing Remote PLC Access Beyond the VPN
