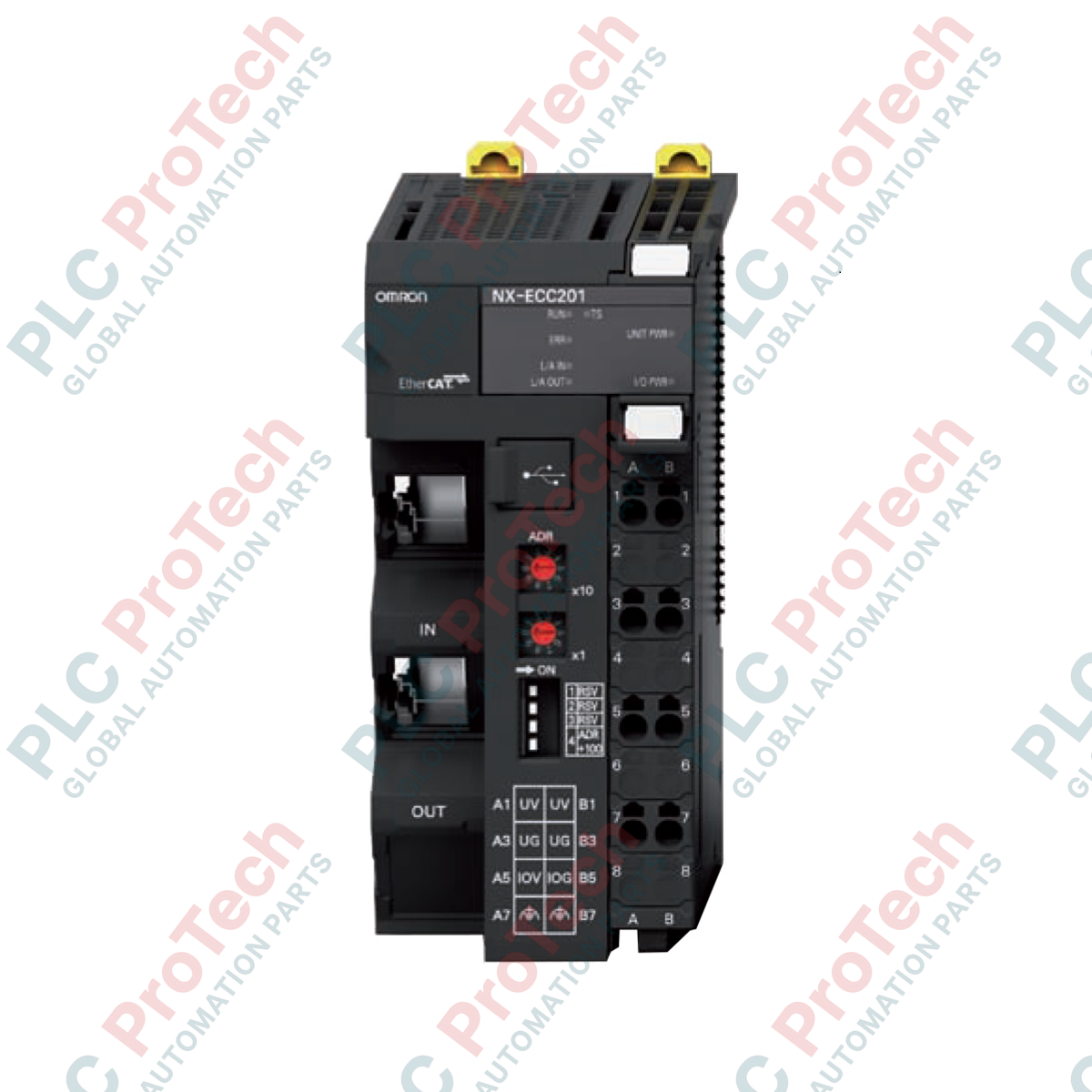

Omron NX-ECC201 EtherCAT Coupler Unit

Only 3 item(s) left in stock

Manufacturer: Omron
Product No.: NX-ECC201
Country of origin:Japan
Product Type: EtherCAT Coupler Unit
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

The NX-ECC201 is a high-performance EtherCAT Coupler Unit designed to serve as the gateway between an EtherCAT network and the Omron NX-series I/O family. This unit enables seamless, high-speed communication between a master controller (such as an Omron NJ/NX machine automation controller) and distributed I/O modules, allowing for modular, scalable machine architectures.

With a compact width of 46 mm, the NX-ECC201 manages the local power supply and communication for connected NX units, ensuring synchronized data exchange across the EtherCAT network. It supports a rated voltage of 24 VDC for the unit power supply and provides robust power distribution for connected I/O, supporting up to 4A for the I/O power supply.

Features

Network Protocol: EtherCAT (high-speed, real-time industrial Ethernet)
Integration: Central hub for modular NX-series I/O modules
Power Management: Manages local unit power (24 VDC) and distributed I/O power (5–24 VDC, 4A max)
Synchronization: Supports high-speed, deterministic data exchange for motion and process control
Design: Slim 46 mm width for space-efficient cabinet mounting

Applications

Distributed I/O systems for multi-axis motion control
High-speed manufacturing and packaging lines
Integrated plant-wide data acquisition
Modular machine designs requiring easy expansion

Technical Specifications

Feature	Specification
Manufacturer	Omron
Model	NX-ECC201
Product Type	EtherCAT Coupler Unit
Width	46 mm
NX Unit Power Supply	24 VDC (10 W max)
I/O Power Supply	5–24 VDC (4A max)
Weight	0.17 kg

Installation Guidelines

Mounting: Snap the coupler onto a standard 35 mm DIN rail. Ensure the connection pins on the side are aligned to facilitate communication with the first NX-series I/O module.
Network Wiring: Use shielded Category 5e (or higher) Ethernet cables to ensure reliable communication in high-EMI industrial environments.
Power Supply: Use a dedicated, stable 24 VDC power supply for the NX Unit and ensure the I/O power supply meets the specific requirements of the connected sensors and actuators.
Configuration: Integrate the coupler into your EtherCAT network using the Sysmac Studio software to map I/O data and ensure the bus configuration is validated.

Key Features:

#EtherCAT Couplers #Omron

What is the primary role of the NX-ECC201?

The NX-ECC201 functions as a communications gateway, connecting the EtherCAT network to a modular stack of Omron NX-series I/O modules.

What power capabilities does this coupler provide?

It provides power to the connected NX-series I/O units (10W max) and can handle up to 4A for the I/O power supply circuit.

Which software is required to configure the NX-ECC201?

Omron's Sysmac Studio software is typically used to configure, map, and troubleshoot the EtherCAT coupler and its connected I/O units.
