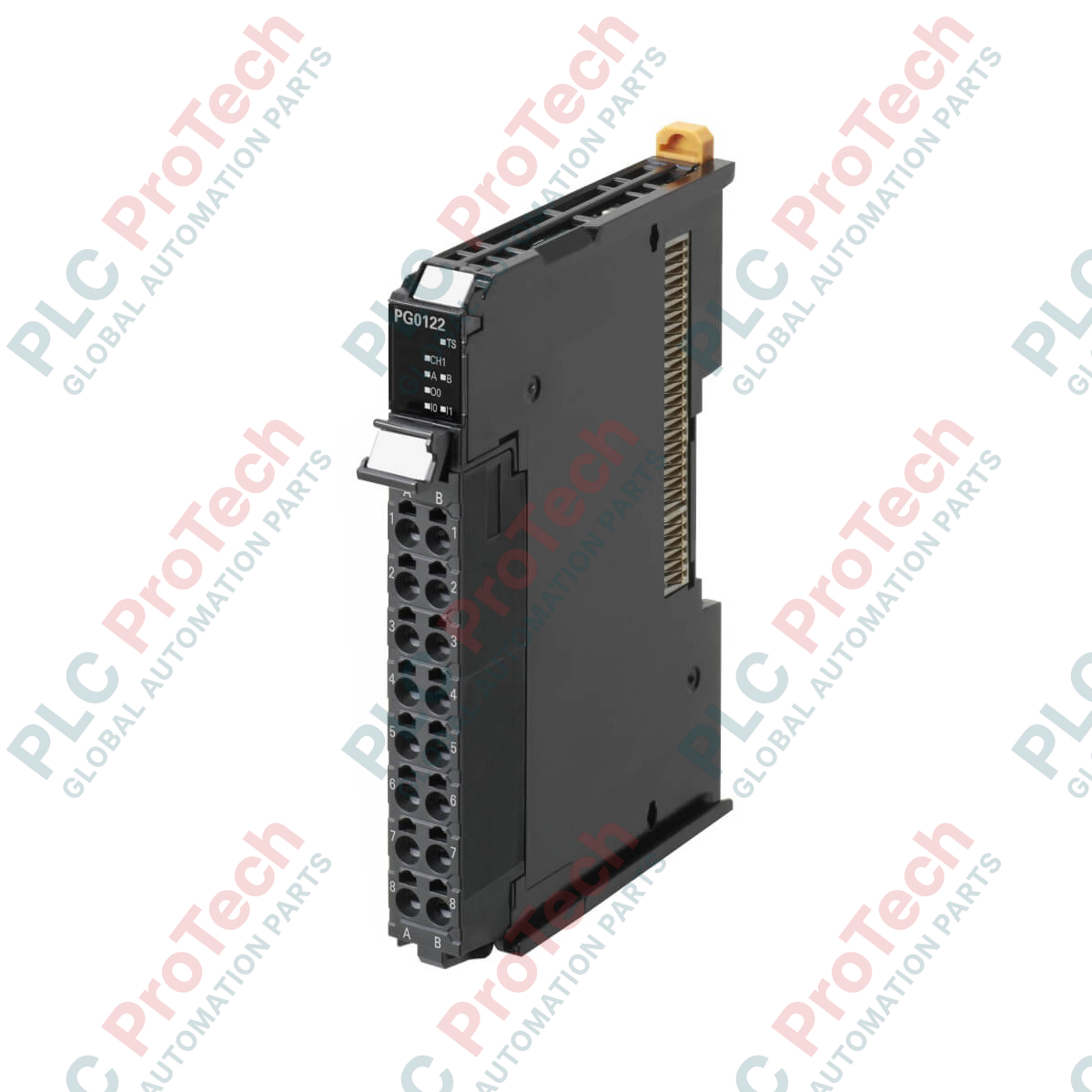

Omron NX-PG0122 NX Series Pulse Output Unit

Only 6 item(s) left in stock

Manufacturer: Omron
Product No.: NX-PG0122
Country of origin:Japan
Product Type: Pulse Output Units
Payment: T/T, Western Union
Weight: 70g
Dimensions: 12 x 100 x 71 mm
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for high-speed, synchronized motion control within the Sysmac automation platform, the NX-PG0122 functions as a high-performance pulse output module. This single-channel unit is engineered to control stepper motor drives and servo drives that accept pulse string inputs, offering an open-loop control configuration. Operating with an open collector, PNP-type output, the module delivers exceptional response times and precision control.

The NX-PG0122 integrates seamlessly into the Omron NX-series I/O system, supporting synchronous I/O refreshing and task period prioritized refreshing to coordinate motion tasks perfectly with the primary CPU unit. Featuring a compact 12 mm width, it optimizes control cabinet space while offering robust performance for complex positioning profiles.

Features

Single-channel pulse output control for versatile motion applications.
Open collector output design utilizing PNP polarity.
Supports both Forward/Reverse pulse outputs and Pulse + Direction command methods.
Synchronous I/O refreshing ensures high-precision, jitter-free timing.
Screwless clamping terminal block with 16 connection terminals for rapid and secure wiring.
Extensive position and velocity control ranges to accommodate high-accuracy demands.

Applications

Servo and stepper motor control in automated assembly lines.
High-speed positioning axes in packaging and labeling machinery.
Material handling systems requiring precise feed control.
Open-loop position control in general factory automation.

Technical Specifications

Manufacturer	Omron
Model / Part Number	NX-PG0122
Product Type	Pulse Output Unit (Open Collector, PNP Type)
Number of Channels	1
Control Method	Open-loop control through pulse string output
Pulse Output Form	Open collector output (PNP)
Maximum Pulse Output Speed	500 kpps
Pulse Output Methods	Forward/reverse direction outputs, or Pulse + direction outputs
Position Control Range	-2,147,483,648 to 2,147,483,647 pulses
Velocity Control Range	1 to 500,000 pps
I/O Refreshing Method	Synchronous I/O refreshing or task period prioritized refreshing
External Connections	Screwless clamping terminal block (16 terminals)
Current Consumption	20 mA maximum (from I/O power supply)
Maximum Cable Length	3 m
Dimensions (W x H x D)	12 x 100 x 71 mm
Weight	0.07 kg

Connections and Interfaces

Signal Type	Quantity	Description
Inputs	2	External inputs for event/limit sensing
Outputs	3	Forward direction pulse output, reverse direction pulse output, and one external PNP output
Terminal Interface	16-pin	Push-in screwless terminal connections

Key Features:

#Omron NX Series #Pulse Output Units

What is the maximum output frequency of the Omron NX-PG0122?

The NX-PG0122 supports a maximum pulse output speed of 500 kpps (pulses per second).

What type of output does the NX-PG0122 module use?

It features an open collector output design with PNP polarity.

Does the NX-PG0122 support synchronous communication?

Yes, it supports Synchronous I/O refreshing to achieve highly coordinated time-based control within the NX system.

What is the limit for external cabling on this module?

To ensure signal integrity and reliable operation, the external cable length must not exceed 3 meters.

What kind of drives can be controlled by the NX-PG0122?

It is designed to control servo drives or stepper motor drives that utilize a pulse string command interface.
