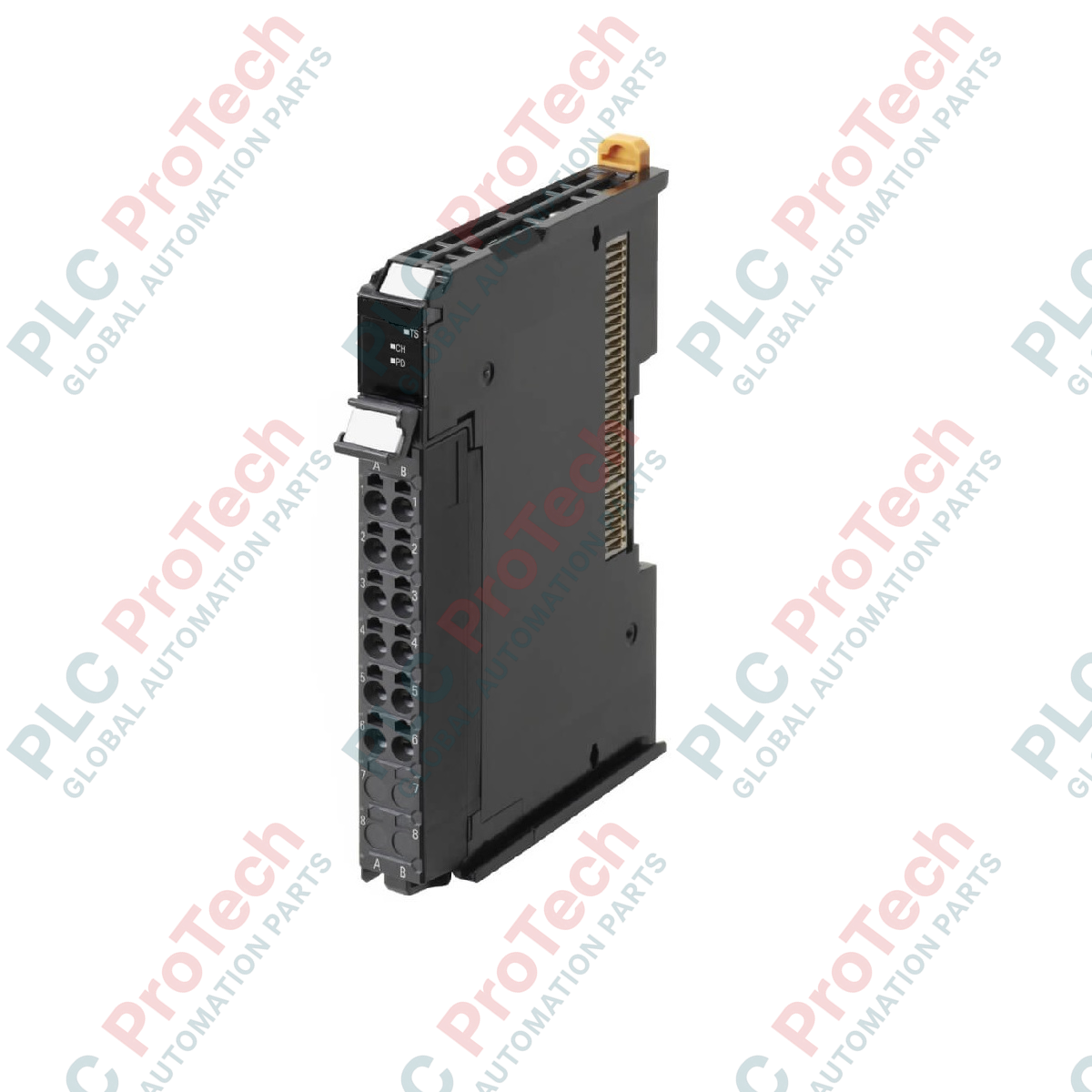

Omron NX-TS2102 NX Series Temperature Input Unit

Description

Designed for high-speed thermal monitoring within the Sysmac automation platform, the Omron NX-TS2102 delivers high-resolution temperature data acquisition directly to the NX bus interface. This 2-point thermocouple input unit enables real-time temperature tracking with an ultra-low conversion cycle time of 10 ms per unit, making it an excellent choice for dynamic closed-loop heating and cooling processes. Utilizing a screwless clamping terminal block with 16 connection terminals, the module simplifies field commissioning while ensuring vibration-resistant wire terminations in demanding industrial environments.

Features

• Dual-Channel Input: Supports two independent thermocouple input points within a compact 12 mm wide profile.
• Rapid Conversion Speed: Achieves a fast 10 ms conversion time per Unit for rapid thermal response loop configurations.
• High-Resolution Measurement: Yields a maximum resolution of 0.01 degC for highly precise process regulation.
• Universal Thermocouple Compatibility: Directly interfaces with K, J, T, E, L, U, N, R, S, WRe5-26, and PLII sensor types.
• Robust Isolation: Employs galvanic isolation via a transformer and digital isolator between inputs and the internal NX bus, as well as channel-to-channel.
• Free-Run Refreshing: Leverages the Free-Run I/O refreshing method for continuous, non-synchronized background processing.

Applications

• Plastic Extrusion & Injection Molding: High-precision barrel zone temperature control.
• Packaging Machinery: Thermal management of sealing jaws and shrink wrapping heating elements.
• Industrial Ovens & Furnaces: Multi-zone heat treatment profile logging and burner control.
• Semiconductor Processing: Critical ambient chamber thermal monitoring and stability analysis.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The NX-TS2102 is highly compatible across the entire Sysmac platform, including NX102, NX1P2, and NJ series controllers when utilizing EtherCAT or EtherNet/IP coupler units. If your process requires RTD sensors (such as Pt100) instead of thermocouples, consider the alternative NX-TS2101 model. For installations requiring higher density in a single slot, the 4-channel NX-TS3102 is a direct functional alternative with similar conversion characteristics.

Application Pitfalls & Engineering Notes

To achieve the specified maximum conversion resolution of 0.01 degC, the module requires a warm-up period of 45 minutes after system start-up. In high-density control enclosures, avoid placing high-power components (like contactors, variable frequency drives, or power supplies) immediately adjacent to the temperature unit, as localized thermal radiation can distort the built-in cold junction compensation (CJC) reference reading.

Commissioning & Wiring Tips

When wiring the 16-pin screwless terminal block, ensure that thermocouple extension wires match the correct alloy chemistry of the sensor type (e.g., K-type extension wire for K-type thermocouples) up to the terminal clamp to prevent parasitic junctions. Shielded thermocouple cables should be used, with the shield terminated at a single low-impedance ground point to minimize electrical noise induced from adjacent mains wiring.
