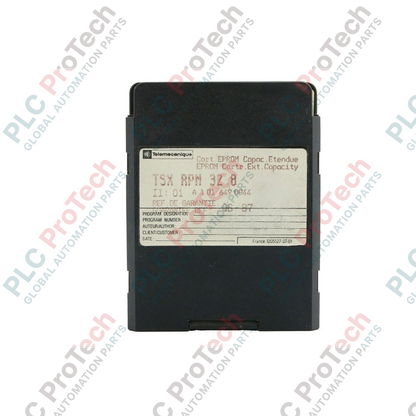

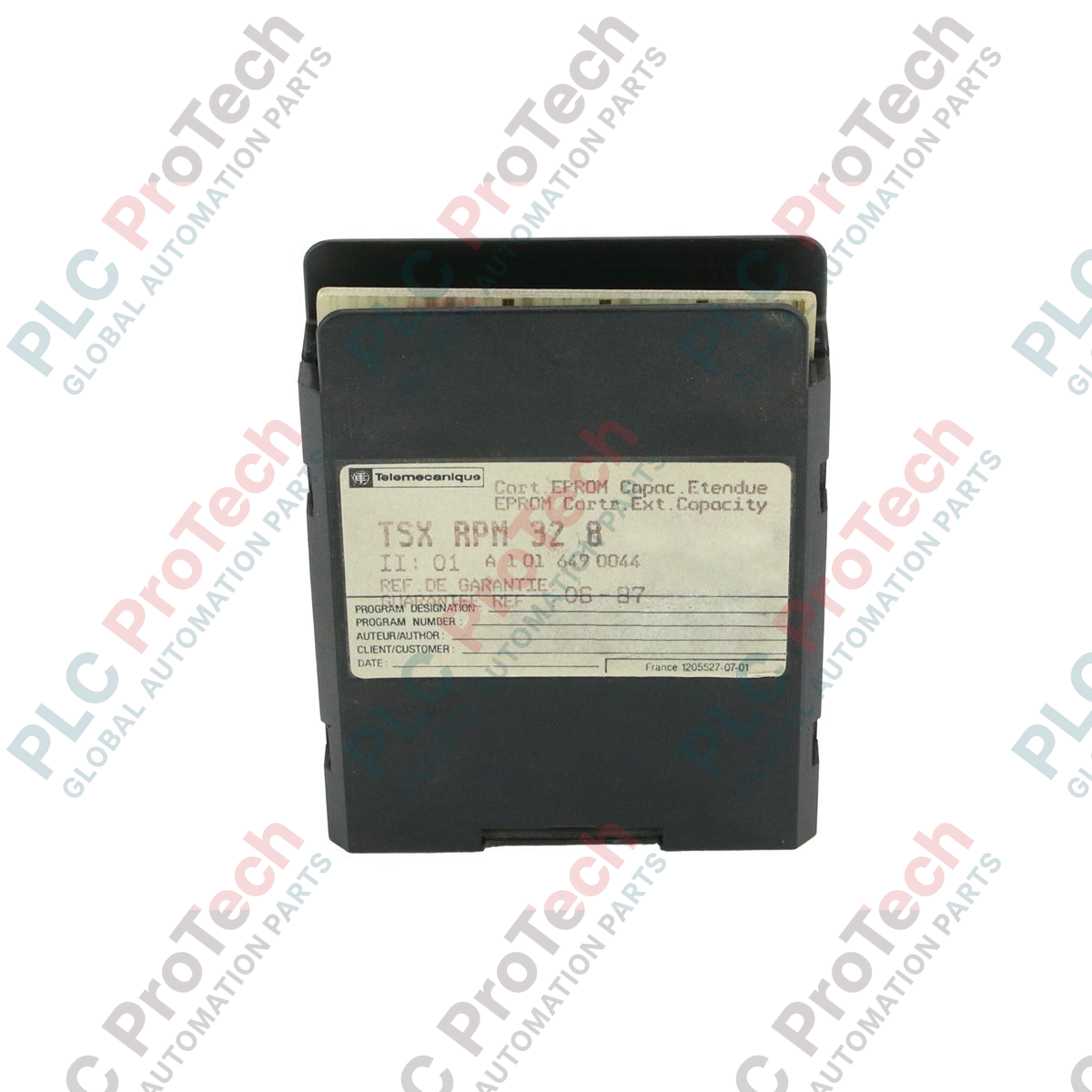

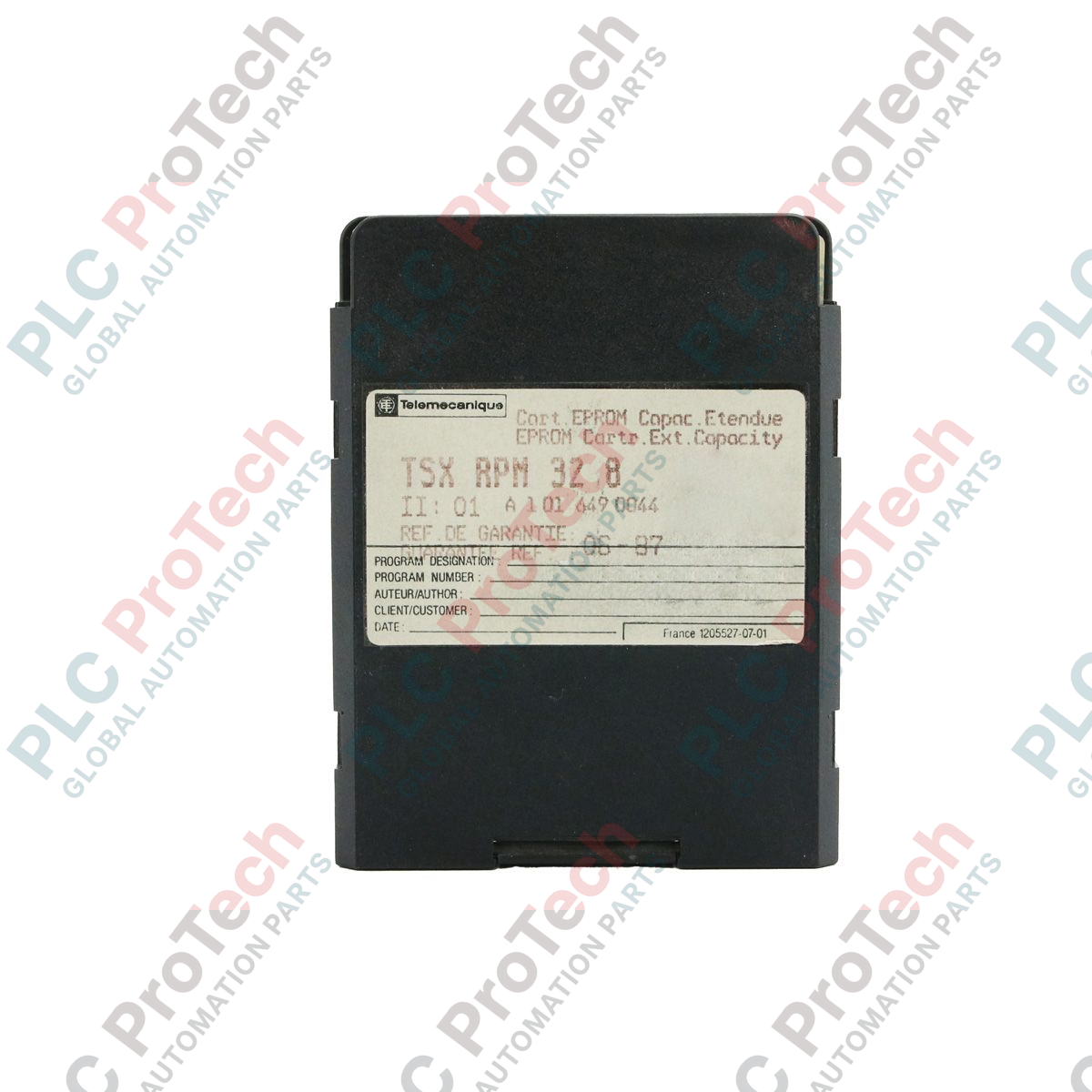

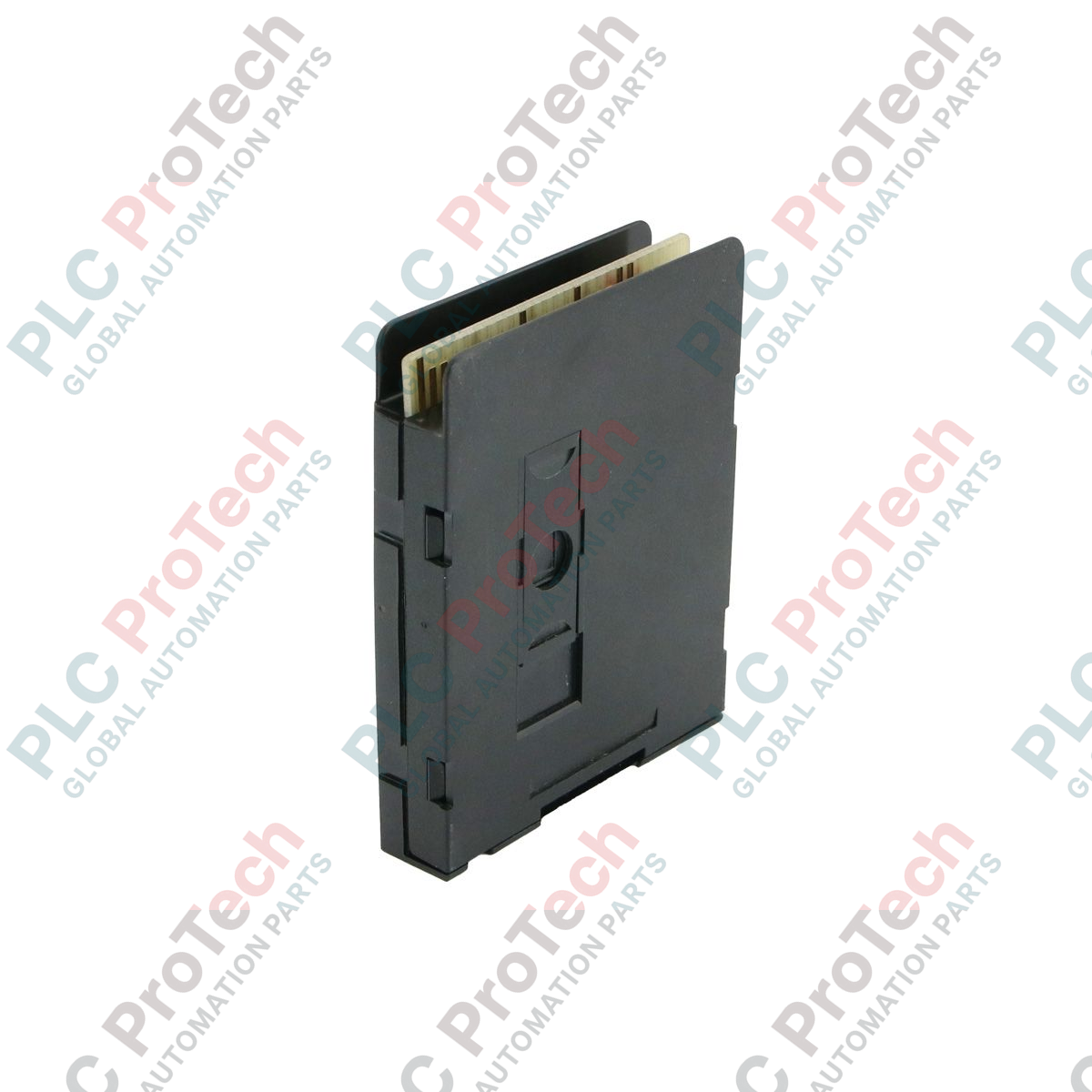

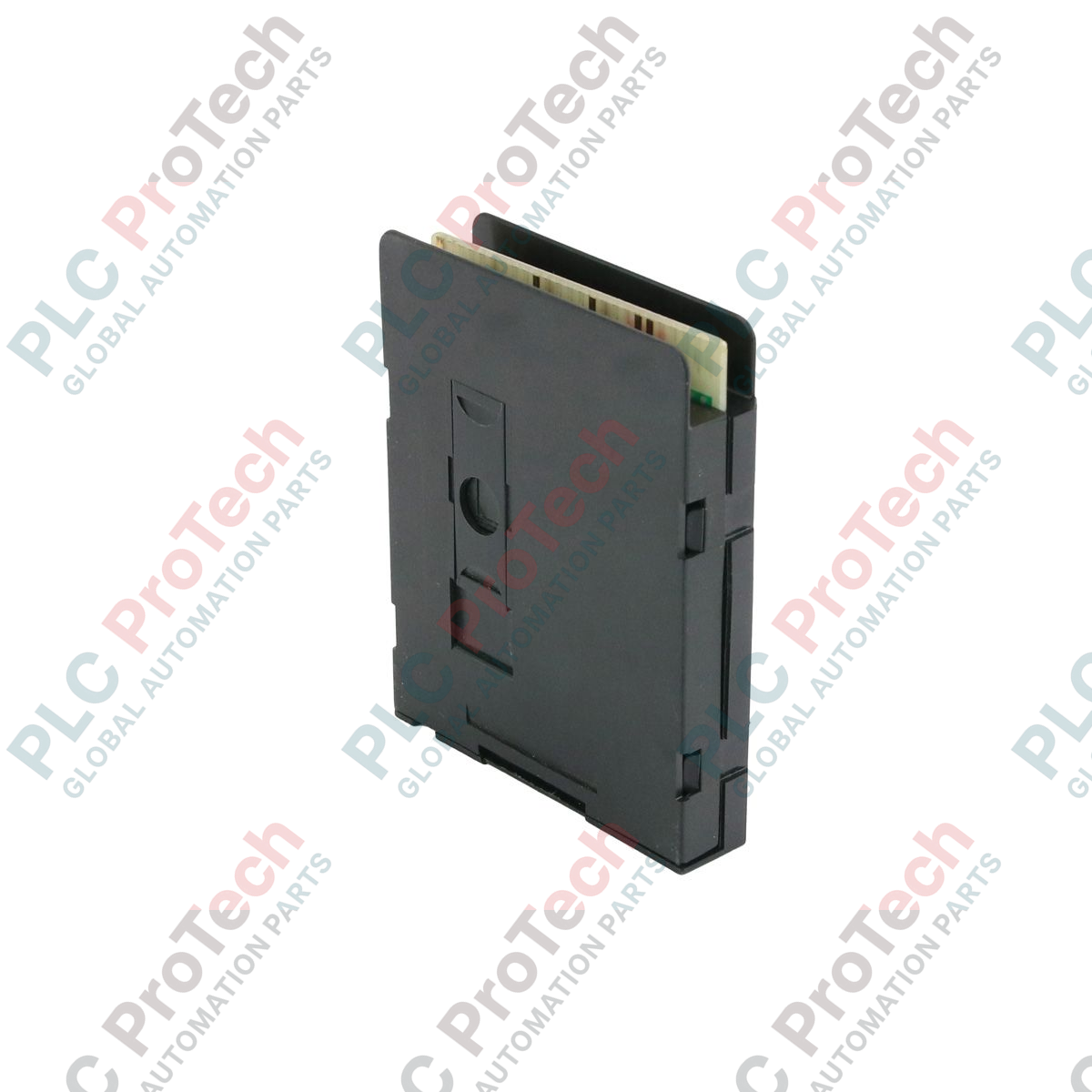

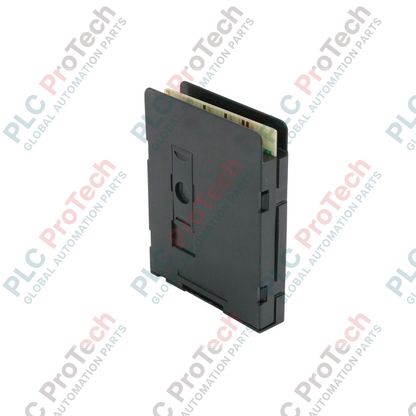

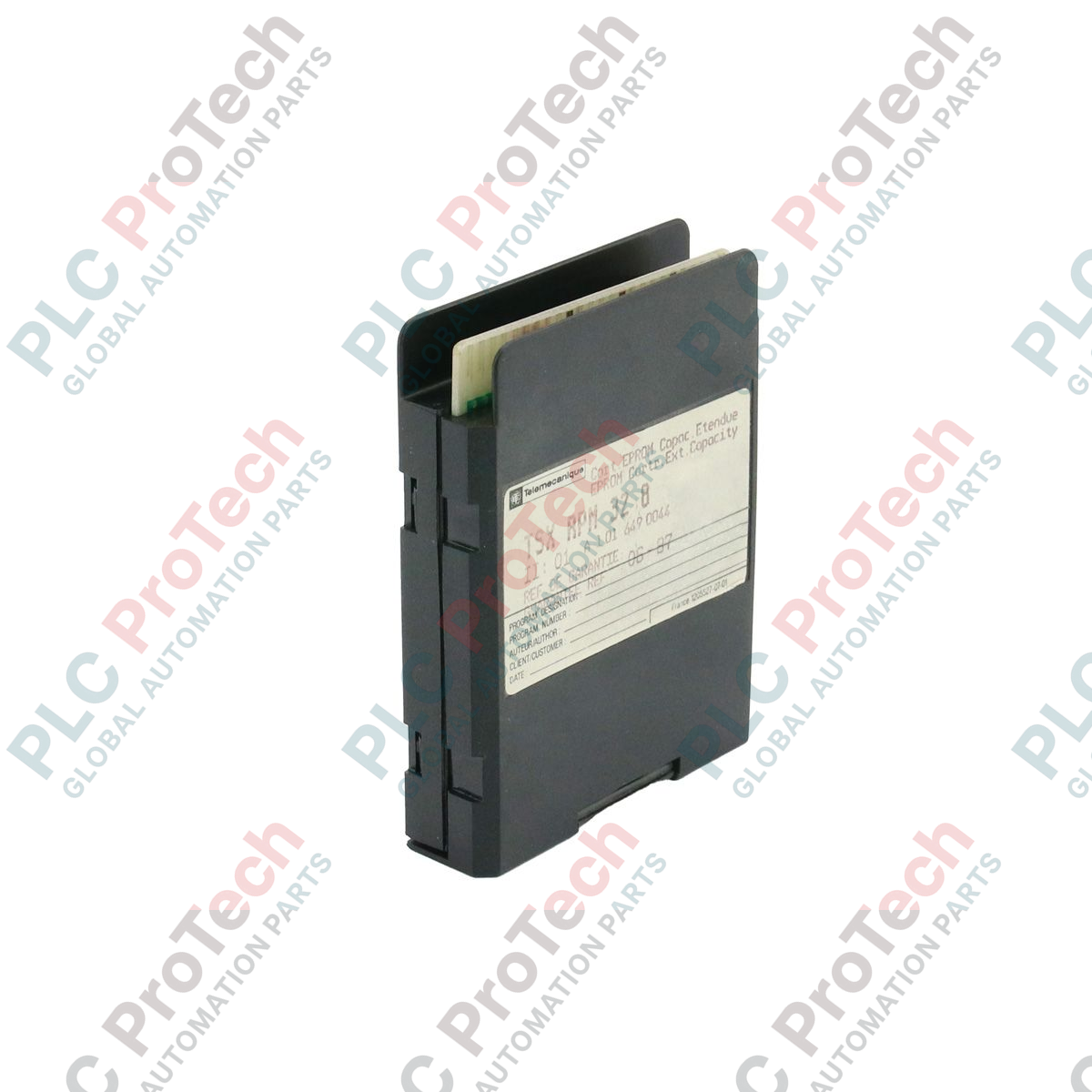

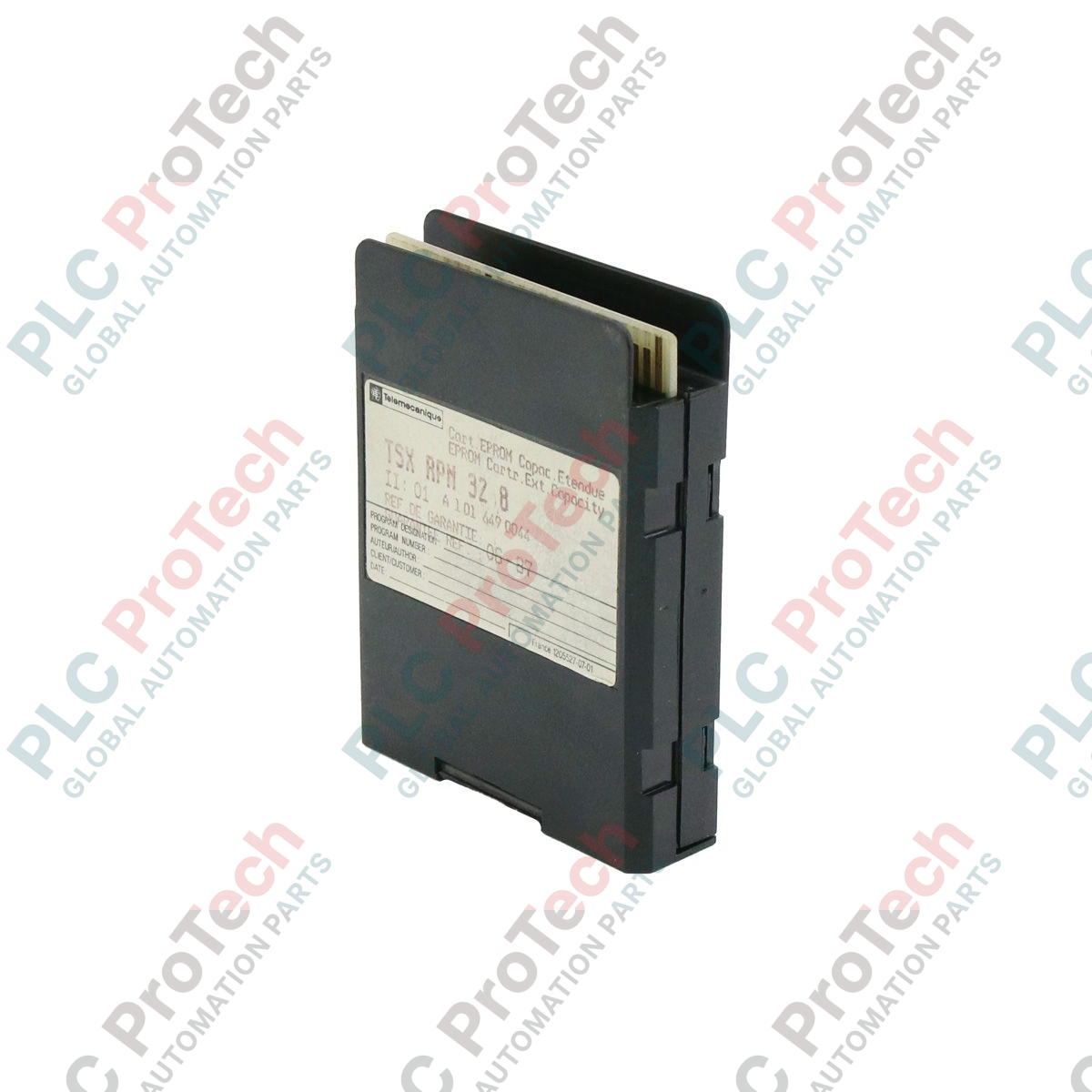

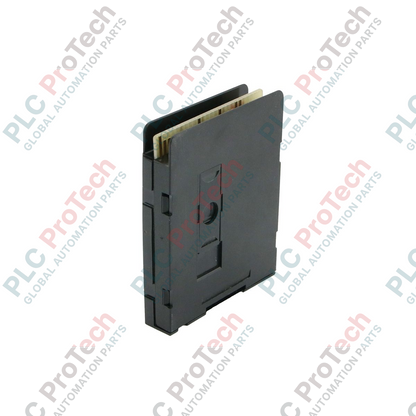

Schneider Electric TSXRPM328 Modicon Premium Memory Module

SKU TSXRPM328

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Schneider Electric
  • Product No.: TSXRPM328
  • Origin France
  • Product Type: Memory Modules
  • Payment: T/T, Western Union
  • Weight: 0.1 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Memory Modules Modicon Premiums
Quantity
Call sales Contact

Product Description

Description

Designed for reliable long-term data backup within the Modicon Premium automation platform, the TSXRPM328 serves as a rugged EPROM memory cartridge with a storage capacity of 32 kilobytes (32K bytes). This module secures critical user programs, configuration profiles, and system parameters against power loss or processor failure. By utilizing high-reliability non-volatile memory technology, it ensures the absolute persistence of industrial application code without relying on internal back-up batteries, making it an essential component for system recovery and program transportability.

Features

  • Engineered specifically for seamless integration with Schneider Electric Modicon Premium PLCs.
  • Provides 32K bytes of non-volatile EPROM storage for program security.
  • Robust, compact cartridge design allows for quick physical insertion and slot alignment.
  • Secures data retention without requiring external back-up battery systems.
  • Facilitates fast controller swapping and minimal downtime during maintenance cycles.

Applications

  • Legacy Modicon Premium PLC control systems.
  • Industrial automation program distribution and disaster recovery.
  • Machinery control programs requiring permanent non-volatile backup.
  • Process control systems within manufacturing and assembly facilities.

Technical Specifications

Manufacturer Schneider Electric
Part Number / Model TSXRPM328
Product Series Modicon Premium
Module Type Memory Module (EPROM Cartridge)
Memory Capacity 32K Bytes
Weight 0.10 kg
Commodity / HS Code 85371099
Lifecycle Status Phase-Out (Legacy spare part available)

Installation Guidelines

  • Power Off: Ensure the Modicon Premium PLC processor rack is fully powered down before inserting or extracting the TSXRPM328 memory module to prevent electrical damage or memory corruption.
  • Alignment: Align the cartridge keys correctly with the slot on the processor module. Do not force the module into the slot.
  • Seating: Push firmly until the module is fully seated and locked into place.
  • Verification: Apply power to the PLC system and monitor the system status LEDs or use engineering software to confirm that the CPU has successfully recognized the EPROM cartridge.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the storage capacity of the TSXRPM328?
The TSXRPM328 has a non-volatile EPROM storage capacity of 32K bytes.
Is the TSXRPM328 memory cartridge hot-swappable?
No, you must completely power down the Modicon Premium PLC processor before inserting or removing the memory cartridge to avoid data corruption or hardware damage.
With which system is this memory module compatible?
The TSXRPM328 is designed specifically for use with Schneider Electric Modicon Premium programmable logic controllers (PLCs).
Does the TSXRPM328 require a battery for data retention?
No, because it uses non-volatile EPROM technology, it does not require an internal or external backup battery to retain stored program data.
