Siemens 6AV3607-5BB00-0AG0 | SIMATIC HMI | OP7 Series Operator Panel

Description

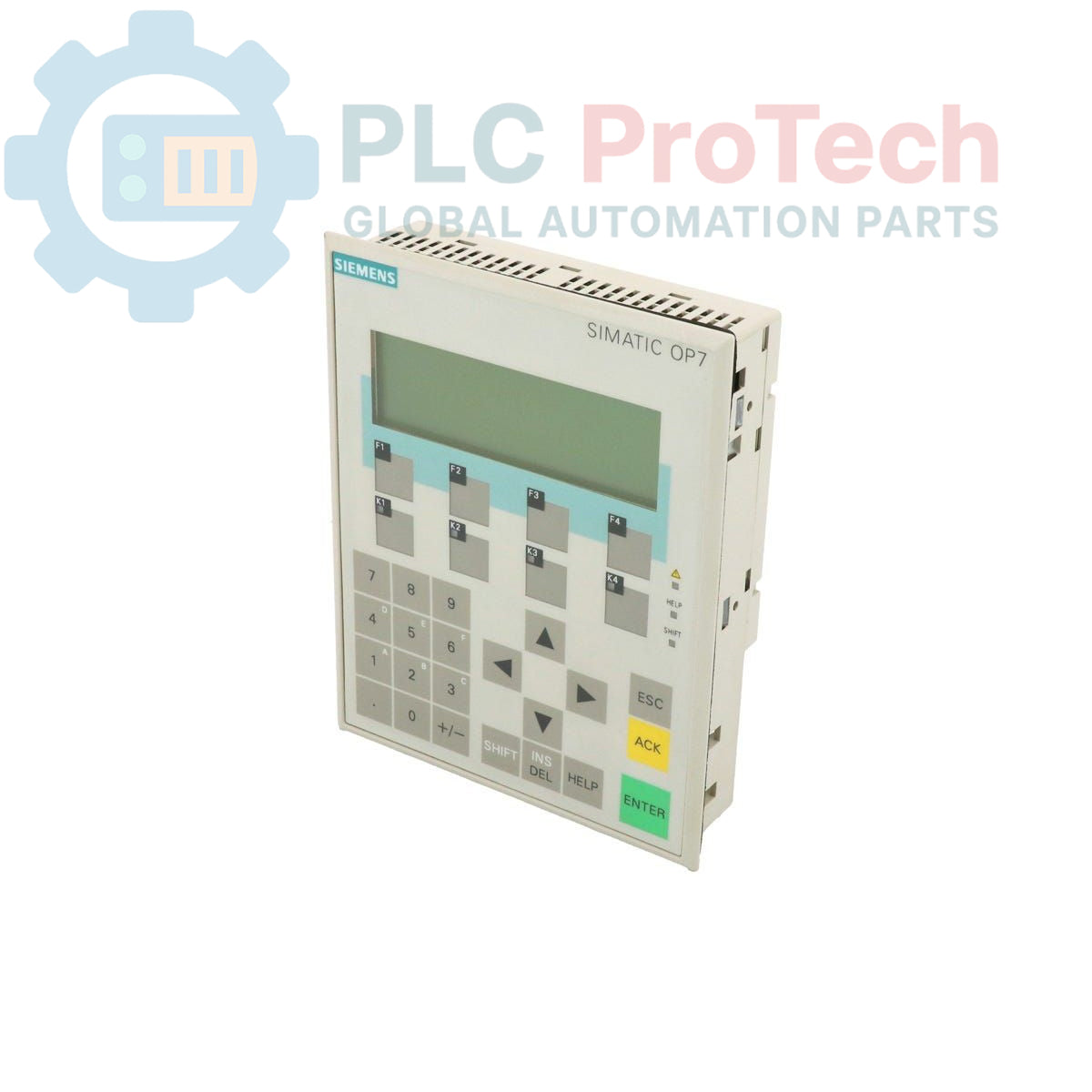

The 6AV3607-5BB00-0AG0 is a specialized SIMATIC HMI OP7/DP operator panel, featuring a customer-specific design (Version B) originally developed for SAT-GmbH. While the unit includes custom configurations for specific application requirements, it is delivered with a standard front interface consistent with the broader OP7 series. This device is utilized for machine-level control, providing essential visualization and input capabilities within Siemens-based automation architectures. The panel is designed to be reliable in demanding industrial environments, though it is currently classified as an obsolete product.

Features

• Based on the proven OP7/DP operator panel architecture
• Features a standard front design for consistency in maintenance and operation
• Engineered for specific industrial machine control (SAT-GmbH integration)
• Compact form factor optimized for panel-mount installation
• Reliable interface for process management and data entry

Applications

• Human-Machine Interface (HMI) for specialized machine control systems
• Status monitoring and alarm management
• Parameter entry and process setpoint adjustment
• Maintenance and replacement for legacy SAT-GmbH platforms
• Integration into industrial Siemens SIMATIC automation environments

Technical Specifications

Installation Guidelines

• Panel Cutout: Ensure precise measurement of the control cabinet cutout to provide a secure, airtight fit for the panel.
• Mounting: Use the integrated clamping mechanisms to fix the unit against the panel surface, ensuring it remains vibration-resistant during operation.
• Electrical Connection: Confirm pin compatibility with the PROFIBUS/DP network architecture prior to installation. Ensure power input matches specifications to avoid board damage.
• Maintenance: Keep the front overlay free from abrasive materials; clean only with a damp, non-linting cloth to preserve the interface graphics.
