Siemens 6SL3244-0BA21-1FA0 SINAMICS G120 Control Unit

Description

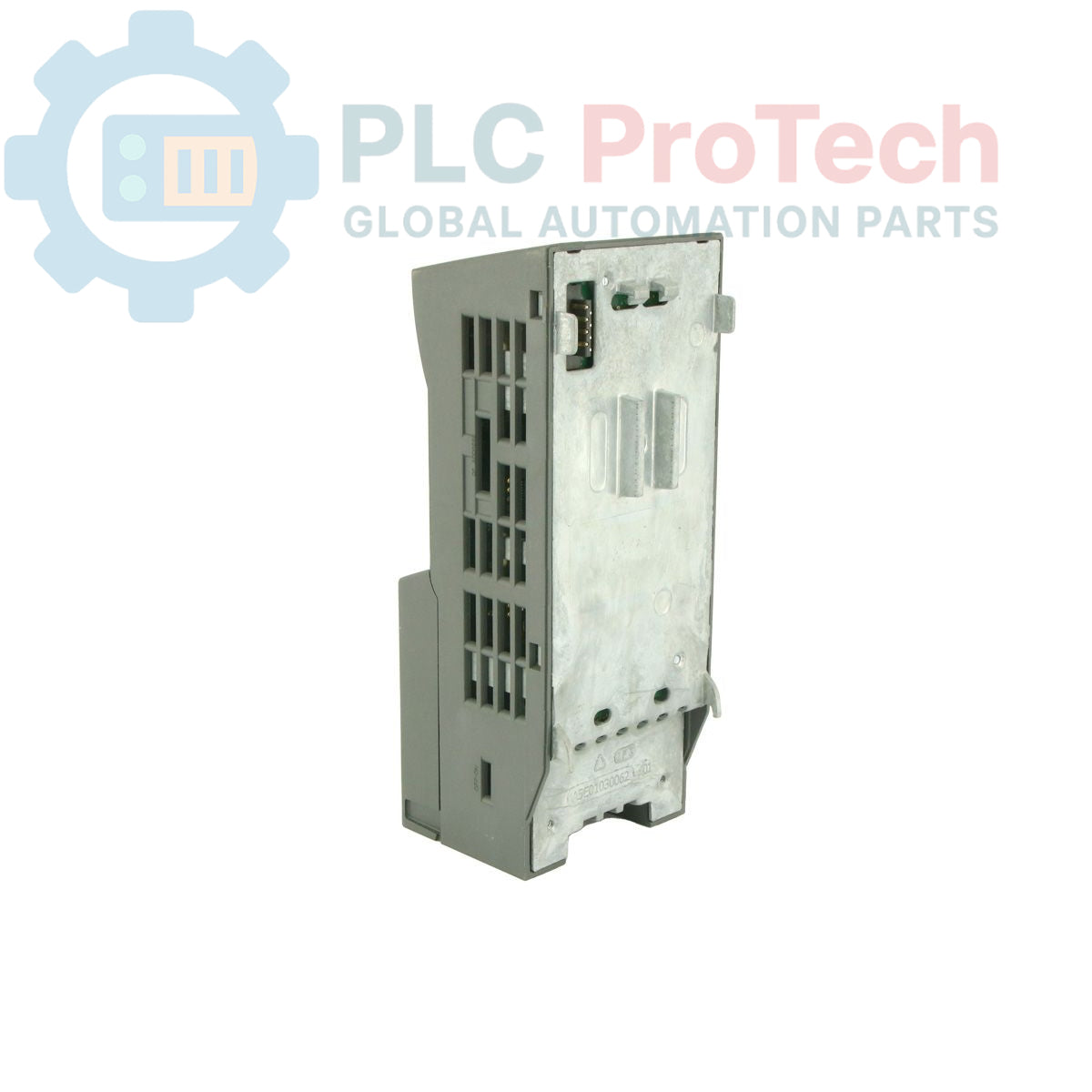

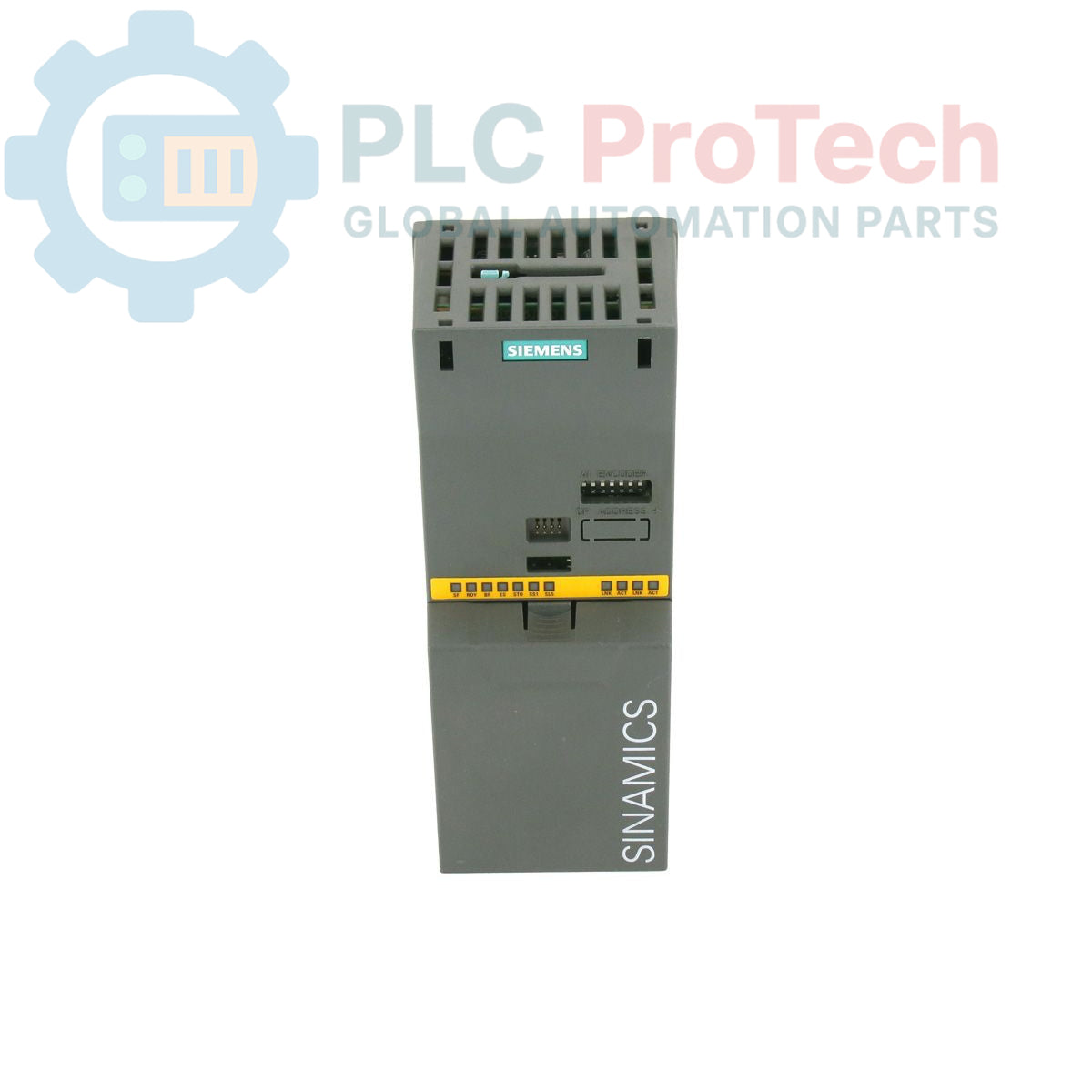

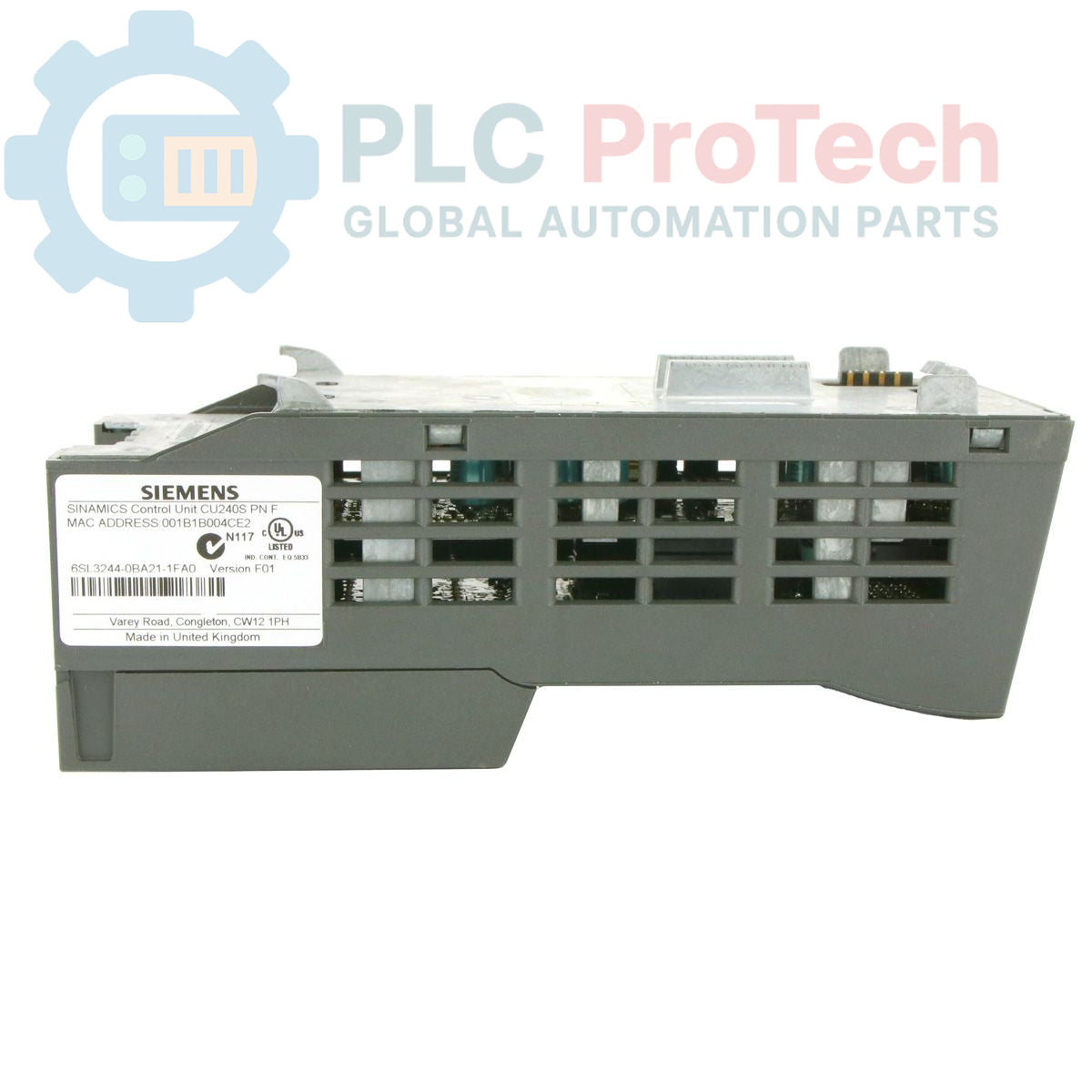

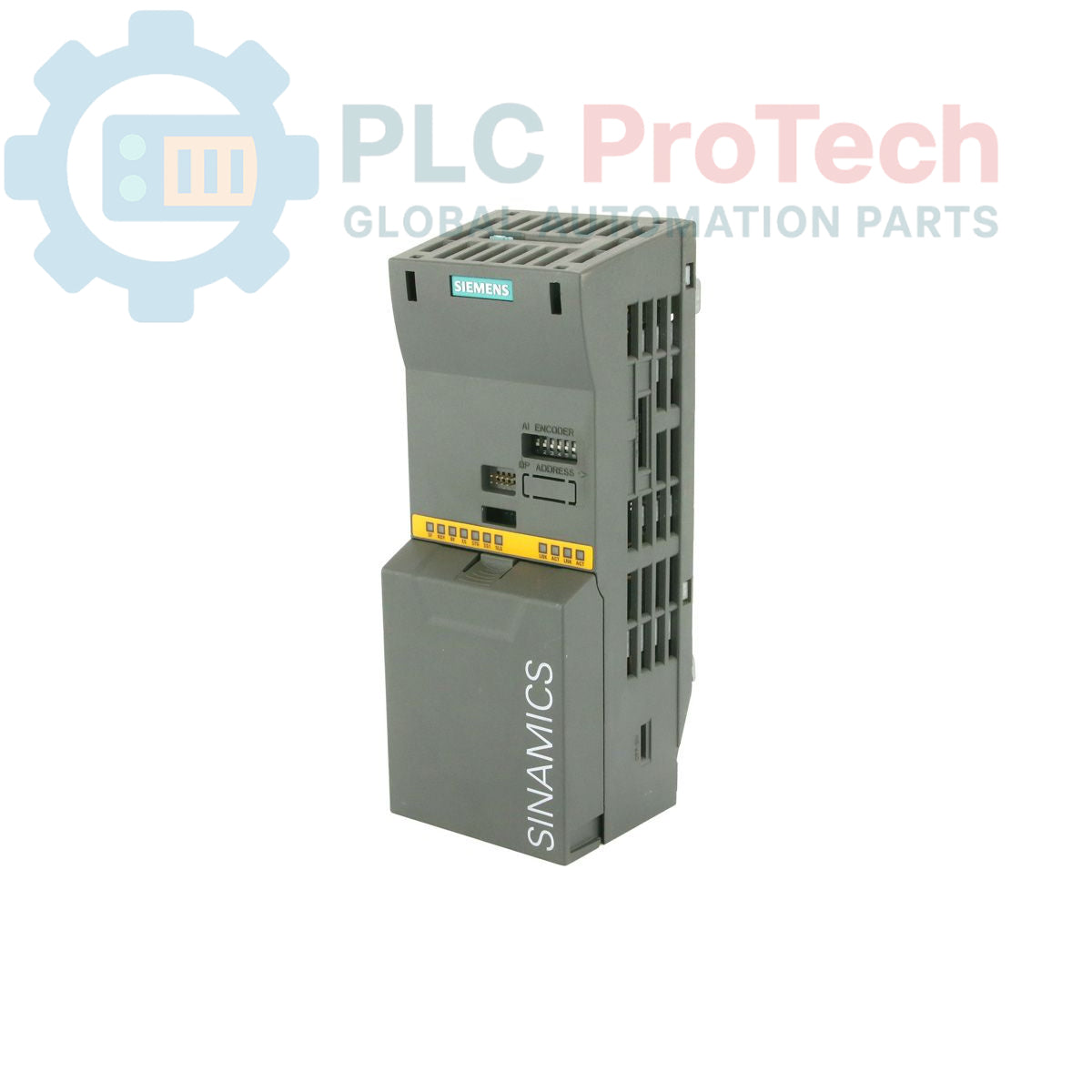

The 6SL3244-0BA21-1FA0 is a SINAMICS G120 CU240S PN-F control unit, designed for high-performance motion control and industrial automation. This S-type unit features Safety Integrated functionality and native PROFINET communication, enabling seamless integration into complex, networked production environments.

The module provides extensive I/O capacity, including 8 digital inputs, 3 digital outputs, 2 analog inputs, and 2 analog outputs. It also includes specialized interfaces for PTC/KTY temperature sensors, an encoder interface for precise feedback, and an electromechanical brake relay. Rated for IP20 protection, this unit is intended for cabinet mounting and operates within an ambient temperature range of 0 to 40 degC. This control unit is supplied as a standalone component without a Power Module or Basic Operator Panel (BOP), supporting flexible, modular system configurations.

Features

• PROFINET communication interface for advanced network integration
• Safety Integrated functionality for fail-safe operations
• 8 digital inputs, 3 digital outputs
• 2 analog inputs, 2 analog outputs
• Dedicated PTC/KTY interface for motor temperature monitoring
• Integrated encoder interface and emergency brake relay
• Compact IP20 design for control cabinet installation

Applications

• High-speed production line automation
• Safety-critical conveyor and material handling systems
• CNC machine tool axis control
• Pump and fan applications requiring integrated safety and feedback
• Complex factory automation requiring PROFINET connectivity

Technical Specifications

Installation Guidelines

• Mounting: Install the 6SL3244-0BA21-1FA0 within a clean, dry control cabinet. Ensure adequate clearance for airflow above and below the unit to prevent overheating.
• Communication: Utilize shielded PROFINET cables to ensure data integrity in electrically noisy industrial environments.
• Safety Wiring: Ensure that the Safety Integrated circuits are wired according to the specific safety requirements of the machine and local regulations.
• Power Modules: As this unit is sold without a Power Module, ensure the selected Power Module is fully compatible with the CU240S series specifications before installation.
• Grounding: Use a common grounding point for the control unit and the associated Power Module to minimize potential differences and signal interference.
