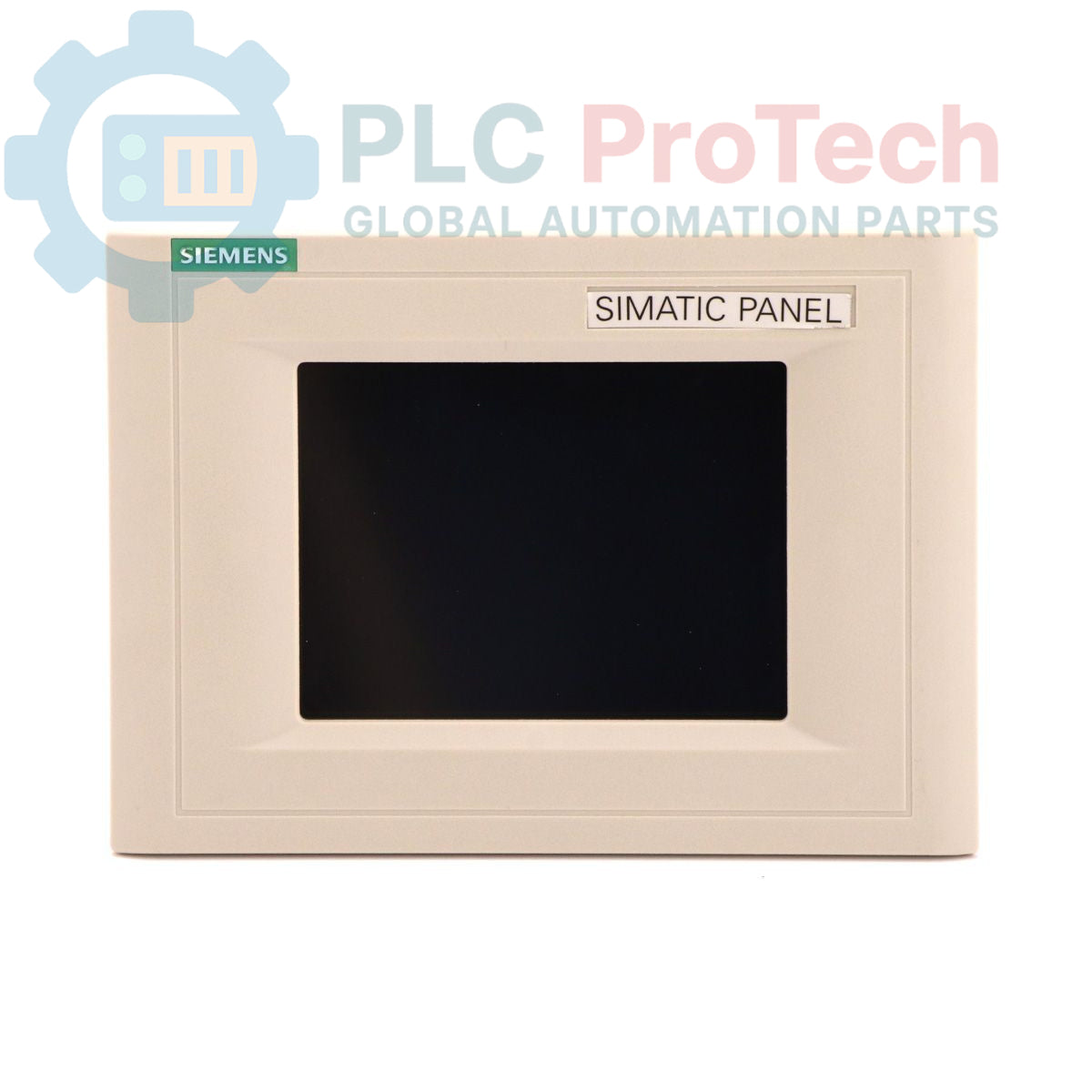

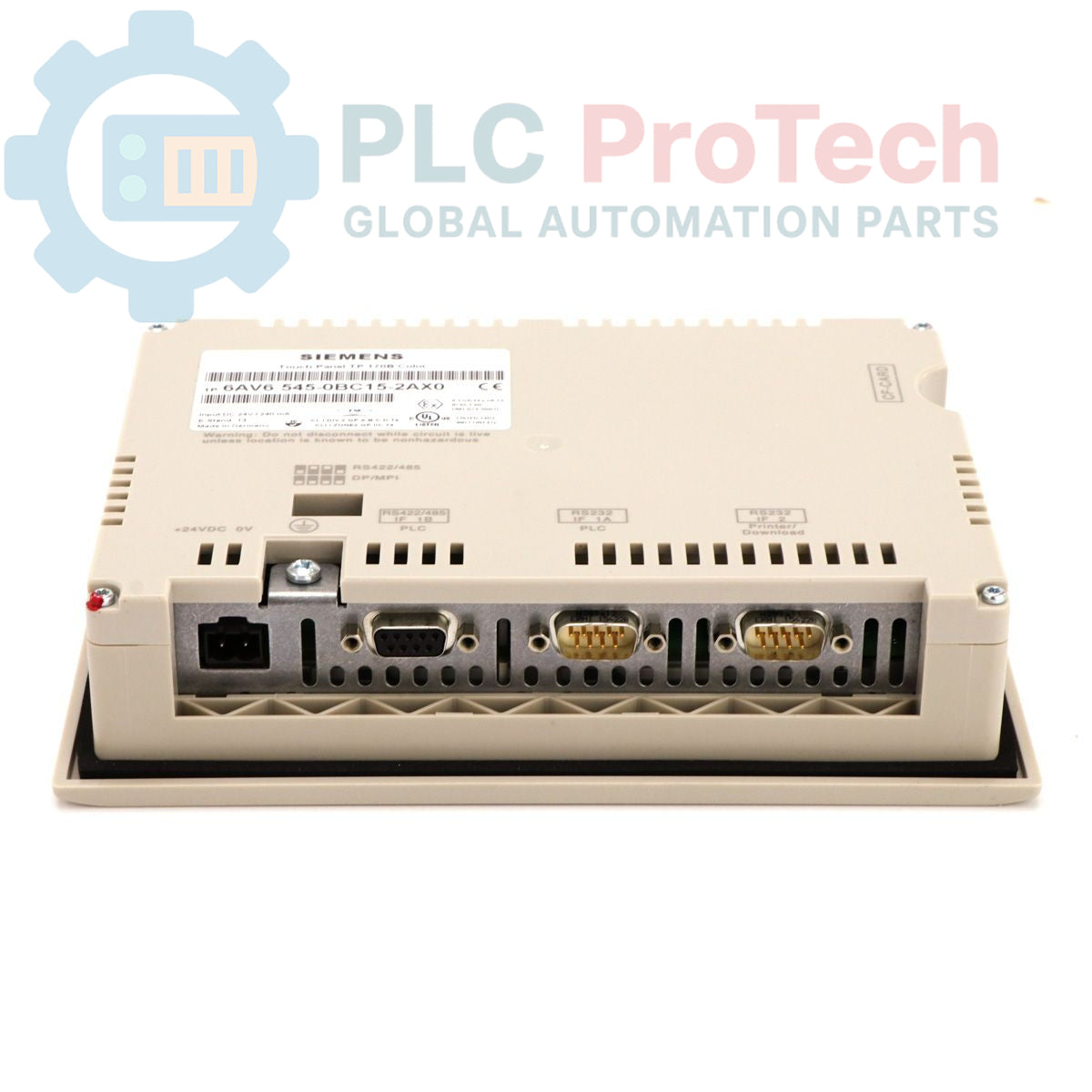

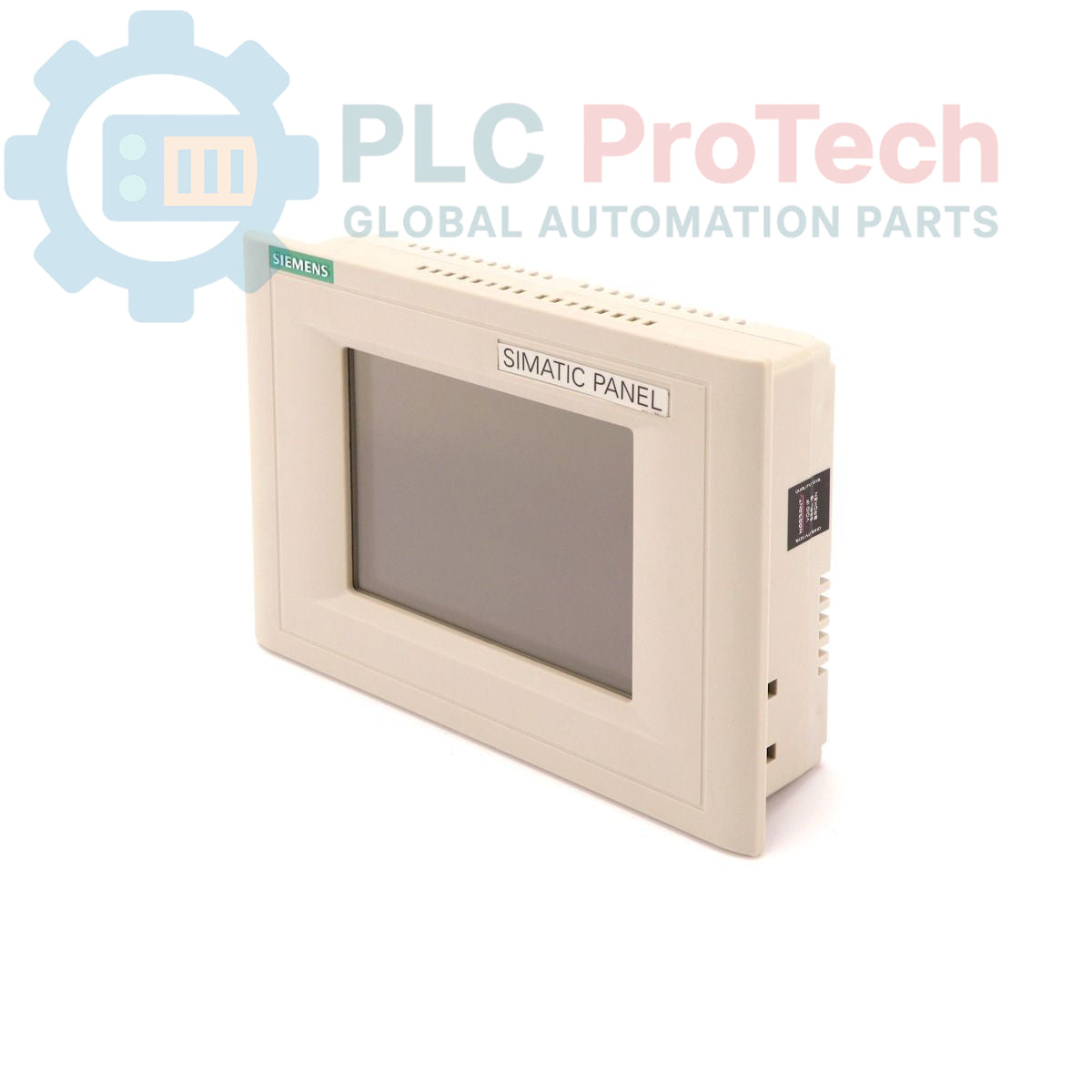

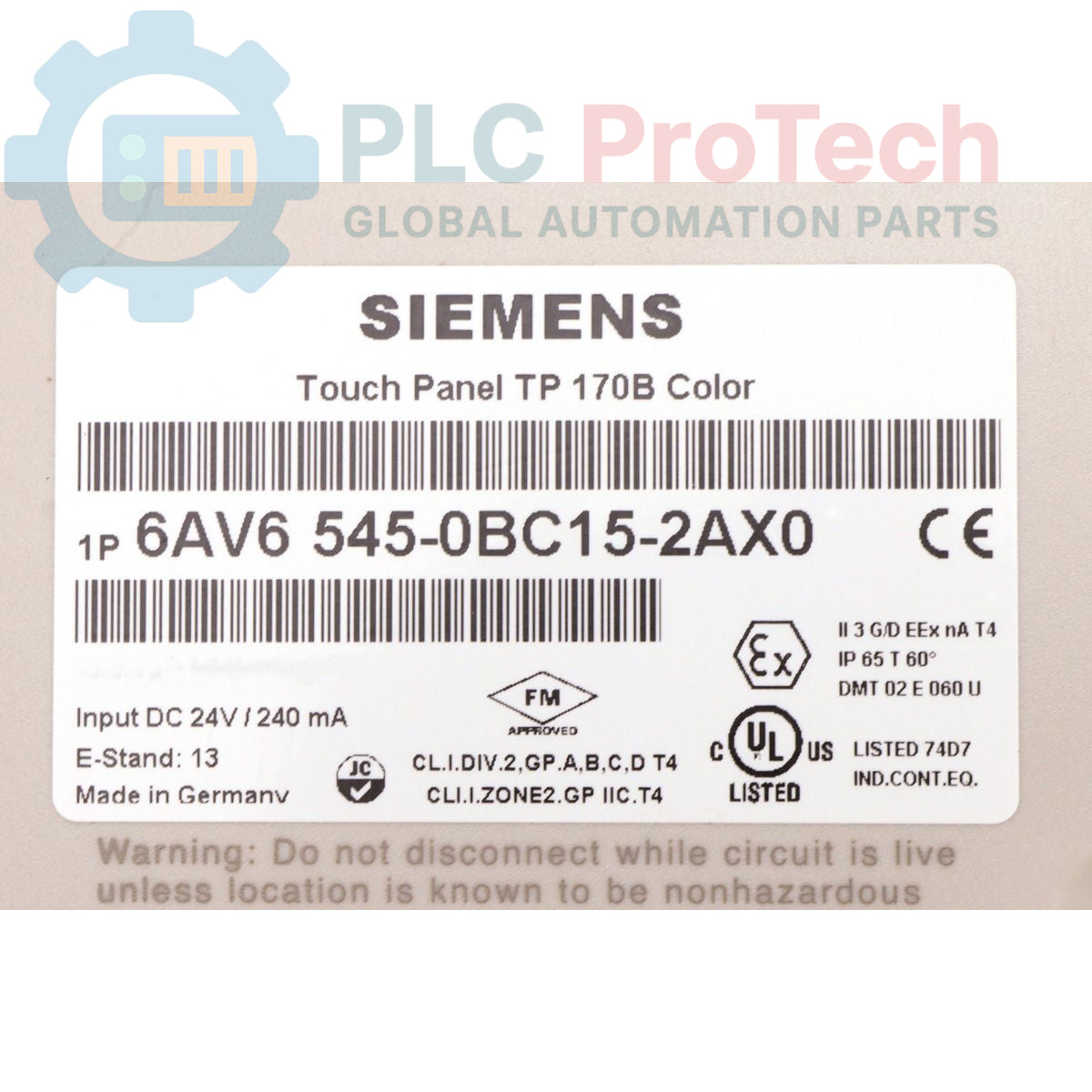

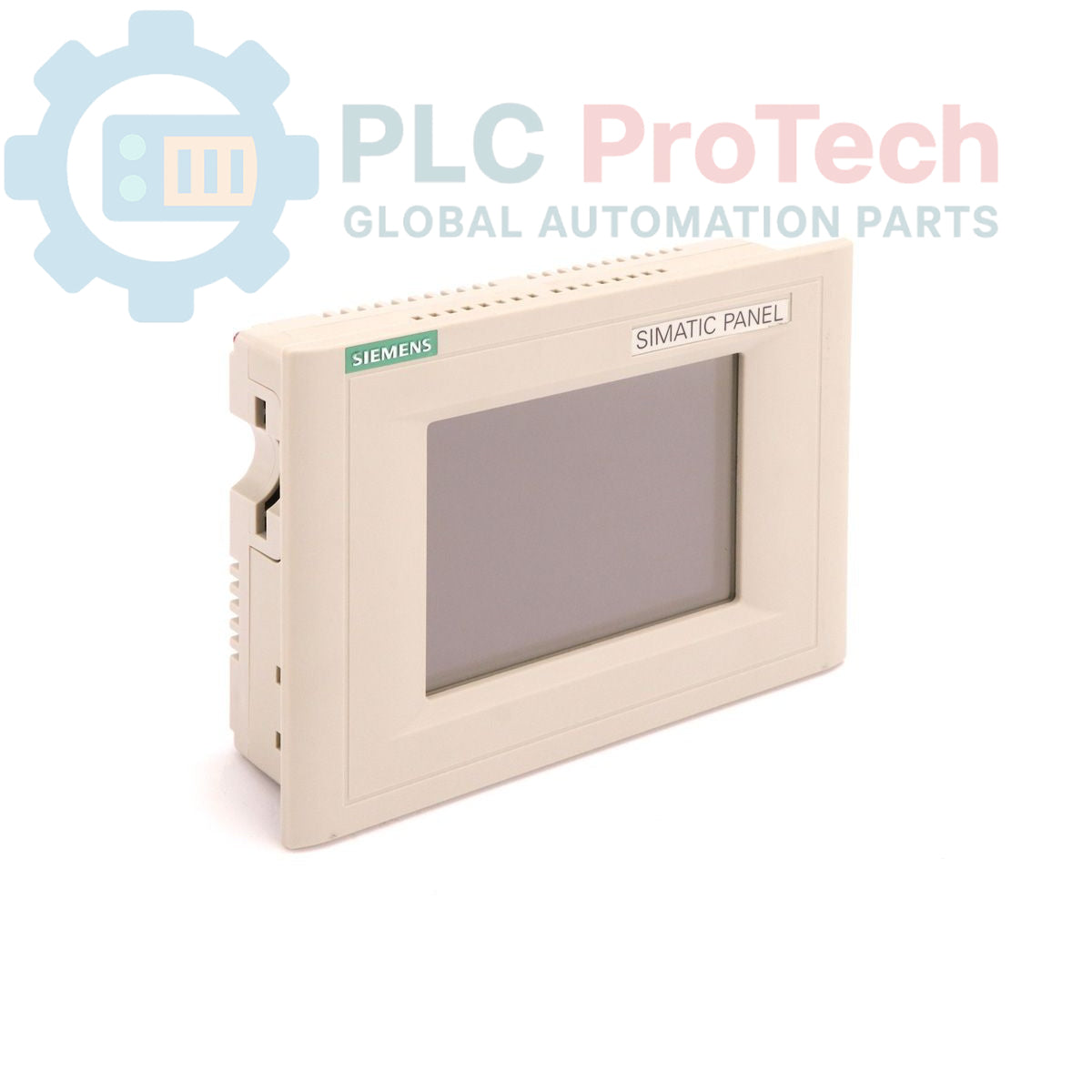

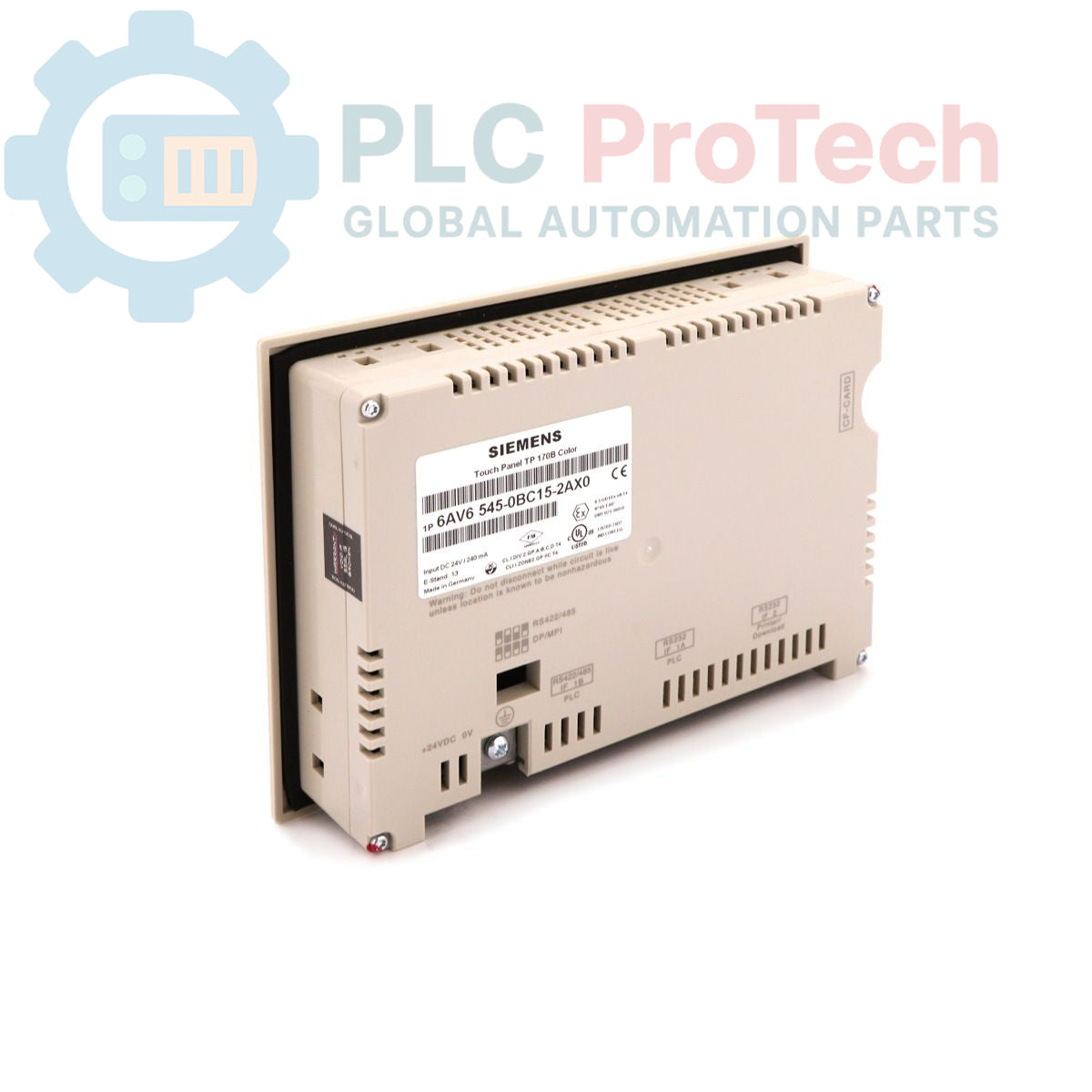

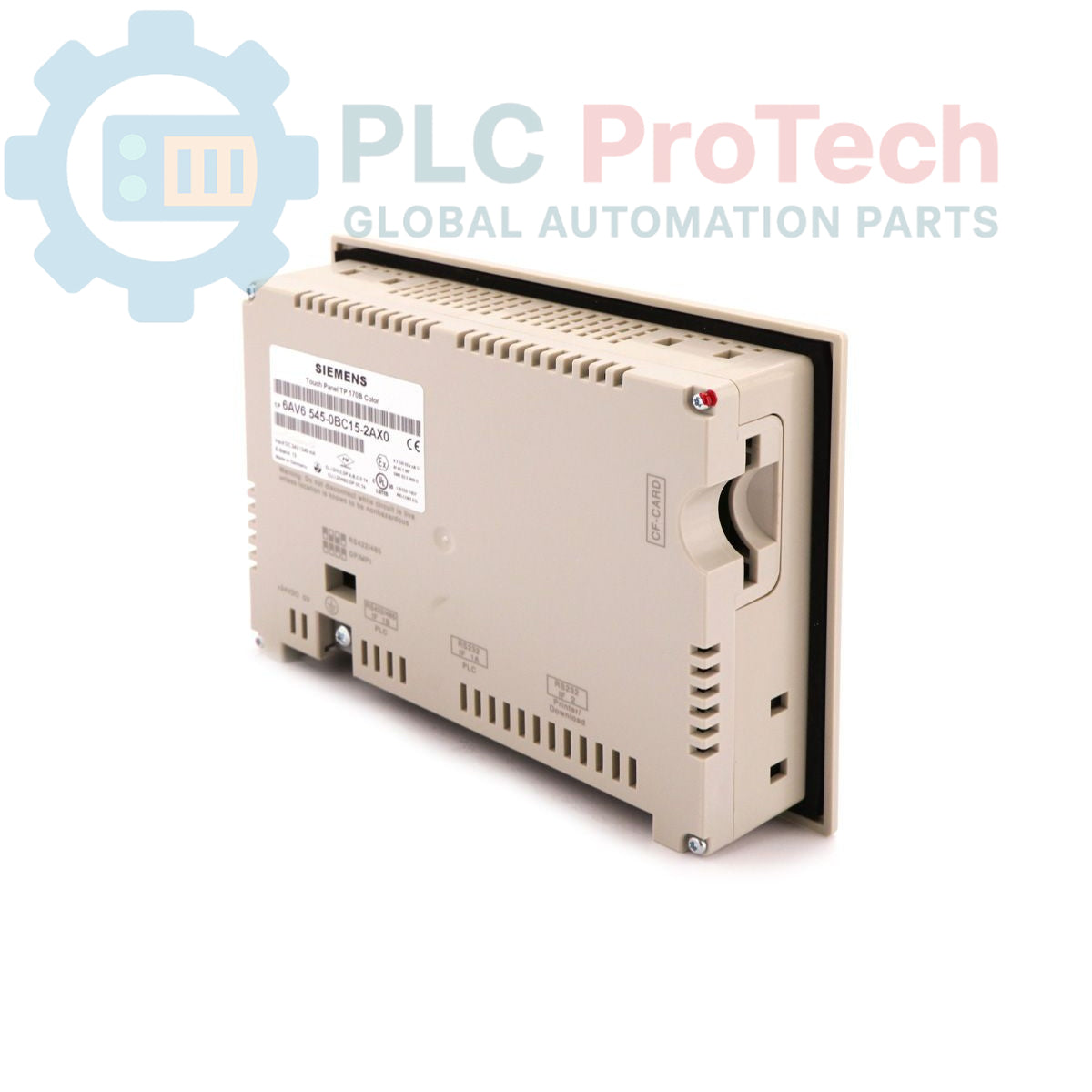

Siemens 6AV6545-0BC15-2AX0 SIMATIC TP 170B Color Touch Panel

Only 8 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV6545-0BC15-2AX0
Country of origin:Germany
Product Type: HMI Touch Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 1030g
Dimensions: 23.0 x 18.0 x 5.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV6545-0BC15-2AX0 is a SIMATIC TP 170B color touch panel designed for reliable human-machine interface (HMI) tasks in demanding industrial environments. This unit features a 5.7-inch STN color display for clear process visualization and operator control. It is equipped with versatile communication options, including an integrated MPI/PROFIBUS-DP interface and a separate port for printer or RS232 connections. For data logging, recipe management, or system backups, the panel includes a slot for a CompactFlash (CF) card. Configuration is performed using ProTool/Lite software, version V5.2 SP2 or higher, ensuring compatibility with established automation systems.

Features

5.7-inch STN color display with touch operation
320 x 240 pixel resolution with 16 displayable colors
Integrated MPI/PROFIBUS-DP communication interface
Dedicated Printer/RS232 serial interface
Onboard slot for CompactFlash (CF) cards
768 kbyte user memory for project data
Operates on a standard 24V DC power supply
Configurable with ProTool/Lite V5.2 SP2 or newer

Applications

Machine control and monitoring
Process visualization in manufacturing plants
Data entry and parameter adjustment stations
Conveyor and material handling systems
Packaging and bottling lines

Technical Specifications

Specification	Value
Brand	Siemens
Model	6AV6545-0BC15-2AX0
Product Series	SIMATIC HMI, Touch Panel 170 Series
Product Type	Touch Panel
Product Lifecycle Status	Obsolete
Display
Screen Diagonal	5.7 inch
Display Type	STN, Color
Resolution	320 x 240 pixels
Color Depth	16 Colors
Operation	Touch Screen
Electrical
Supply Voltage	24V DC
System Resources
User Memory	768 kbyte
Configuration Software	ProTool/Lite Version V5.2 SP2 or higher
Interfaces
Communication	MPI/PROFIBUS-DP
Peripheral	Printer/RS232
Storage	CompactFlash (CF) Card Slot
Logistics and Trade
Country of Origin	Germany (Estimate)
Manufacturer	Siemens
Package Dimensions	23.0 x 18.0 x 5.0 cm
Shipping Weight	1.03 kg
Commodity Code	85371091
ECCN	5D002

Installation Guidelines

CRITICAL WARNING: Hazardous voltages may be present. All installation, wiring, and maintenance must be performed by qualified personnel only. Ensure the control cabinet is de-energized and locked out/tagged out (LOTO) before beginning any work. Failure to comply can result in severe injury or death.

1 Verify the panel cutout dimensions against the HMI's physical dimensions. Ensure adequate clearance for ventilation and cable routing.
2 Insert the touch panel into the prepared cutout from the front of the enclosure.
3 Secure the unit in place from the rear using the provided mounting clips. Tighten the clip screws evenly to ensure a proper seal against the enclosure surface.
4 Connect the 24V DC power supply to the designated terminals, ensuring correct polarity is observed (+24V and 0V/GND).
5 Connect the MPI/PROFIBUS-DP and/or RS232 communication cables to the appropriate ports. Ensure proper shielding and termination as required by the protocol.
6 After all connections are secure and verified, remove the LOTO device and re-energize the cabinet to commission the HMI.

Key Features:

#SIMATIC HMI #Touch Panel

What is the screen size and resolution of the 6AV6545-0BC15-2AX0?

This HMI features a 5.7-inch STN color display with a resolution of 320 x 240 pixels.

Which communication protocols are supported by this touch panel?

The unit is equipped with an integrated MPI/PROFIBUS-DP interface for PLC communication and a separate RS232 port for peripherals like printers.

What software is required to configure this device?

The panel is configurable using Siemens ProTool/Lite software, version V5.2 Service Pack 2 or any higher version.

What is the required input power for this HMI?

The device operates on a standard 24V DC power supply.

Does this unit support external memory?

Yes, it includes a slot for a CompactFlash (CF) card, which can be used for data storage, project backups, or recipe management.
