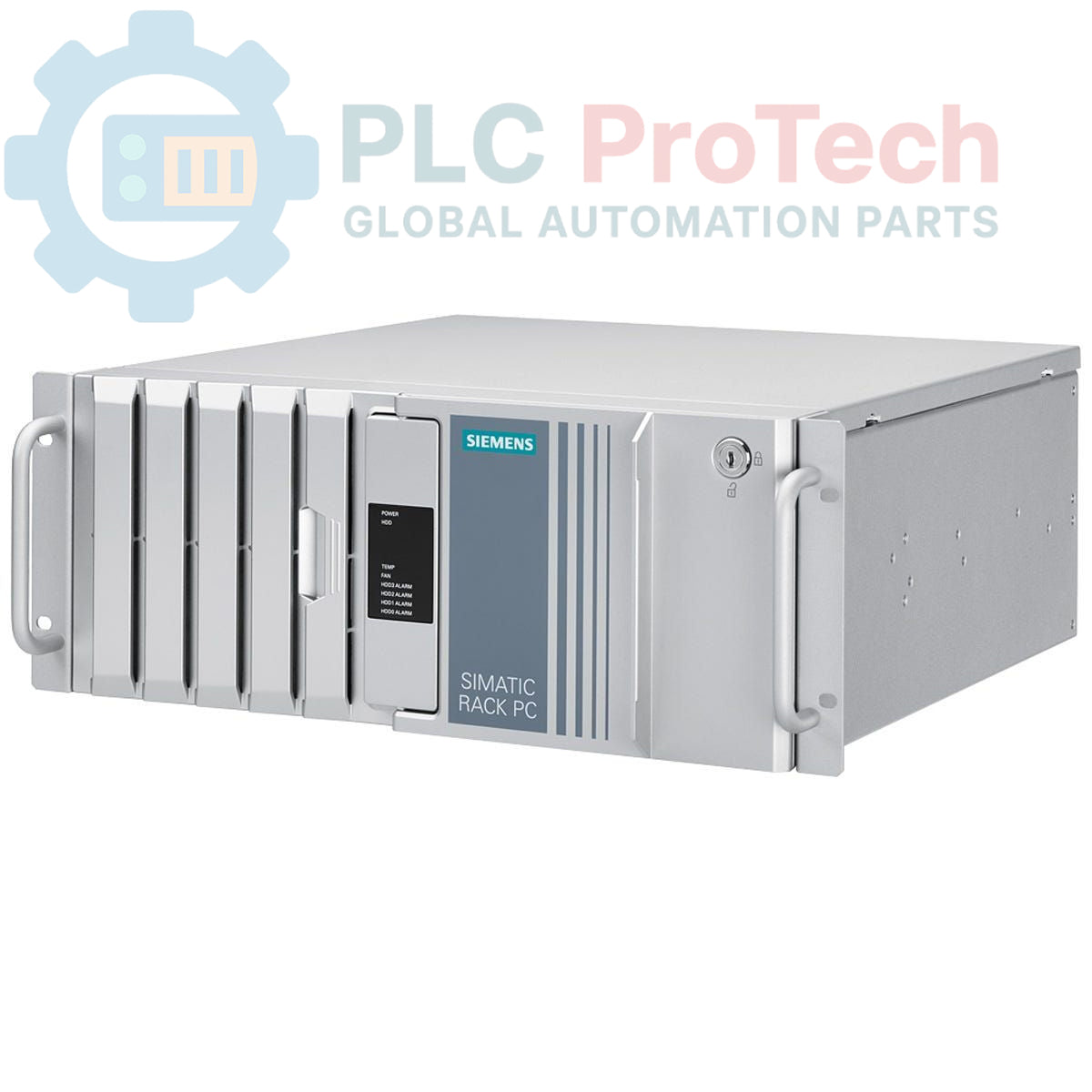

Siemens 6ES7660-7HJ31-3GC1 SIMATIC Rack PC IPC547G Industrial Workstation

Description

The Siemens 6ES7660-7HJ31-3GC1 is a SIMATIC PCS 7 Industrial Workstation IPC547G, designed as a 19-inch, 4 U rack PC for robust industrial applications. This workstation features a powerful Xeon E3-1275v5 processor, 32 GB of DDR4 SDRAM, and a 2 TB RAID1 hot-swap storage configuration. It comes with PCS 7 V9.0 SP3 and Windows Server 2016 Standard Edition pre-installed, making it suitable for demanding process control and automation environments. The unit offers extensive connectivity with multiple Ethernet, display, USB, and serial interfaces, along with seven expansion slots (5x PCI Express, 2x PCI) for system flexibility.

Features

• 19-inch, 4 U Rack PC form factor
• Xeon E3-1275v5 CPU (4C/8T, 3.6(4.0) GHz, 8 MB cache)
• 32 GB DDR4 SDRAM (2x 16 GB), Dual channel
• 2 TB (2 x 2 TB HDD Enterprise) RAID1 storage in removable, hot-swap frame
• Pre-installed PCS 7 V9.0 SP3 and Windows Server 2016 Standard Edition (16 cores, 5 clients, 64-bit, MUI)
• Integrated Industrial Ethernet (CP1623)
• Comprehensive I/O: Gbit Ethernet, DVI-D, Display Port V1.2, COM, PS/2, Audio, USB 3.0, USB 2.0
• 7 expansion slots: 5x PCI Express, 2x PCI
• Temperature and fan monitoring, watchdog, card retainer
• 100/240V AC industrial power supply unit
• Blue chromated enclosure with slim DVD+-RW drive

Applications

This SIMATIC Rack PC is typically deployed in industrial automation systems requiring high reliability and performance. Common applications include:

• Process control systems (PCS 7 environments)
• Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) server roles
• Data acquisition and processing in manufacturing and industrial plants
• Distributed Control System (DCS) workstations
• Industrial data logging and archiving

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Rack Mounting: Install the IPC547G into a standard 19-inch industrial rack, ensuring adequate space for ventilation (4 U height requirement). Secure the unit using appropriate rack mounting hardware.
2. Power Connection: Connect the industrial power supply unit to a stable 100/240V AC source using the provided power supply cable. Ensure proper grounding of the rack and the workstation to prevent electrical interference and ensure safety.
3. Peripheral Connections: Connect necessary peripherals such as monitors to the DVI-D or Display Port interfaces, keyboards/mice to the PS/2 or USB ports, and network cables to the Gbit Ethernet (RJ45) ports.
4. Expansion Cards: If utilizing the PCI Express or PCI slots, ensure that expansion cards are correctly seated and secured with the card retainer mechanism.
5. Cooling and Ventilation: Verify that the rack environment provides sufficient airflow to prevent overheating, especially given the temperature and fan monitoring features of the unit. Do not obstruct ventilation openings.
6. Data Storage: The removable, hot-swap drive frame allows for convenient access to the 2 TB RAID1 storage. Ensure drives are properly seated and secured.
7. System Startup: After all connections are made, power on the workstation. Monitor system status indicators for normal operation.
