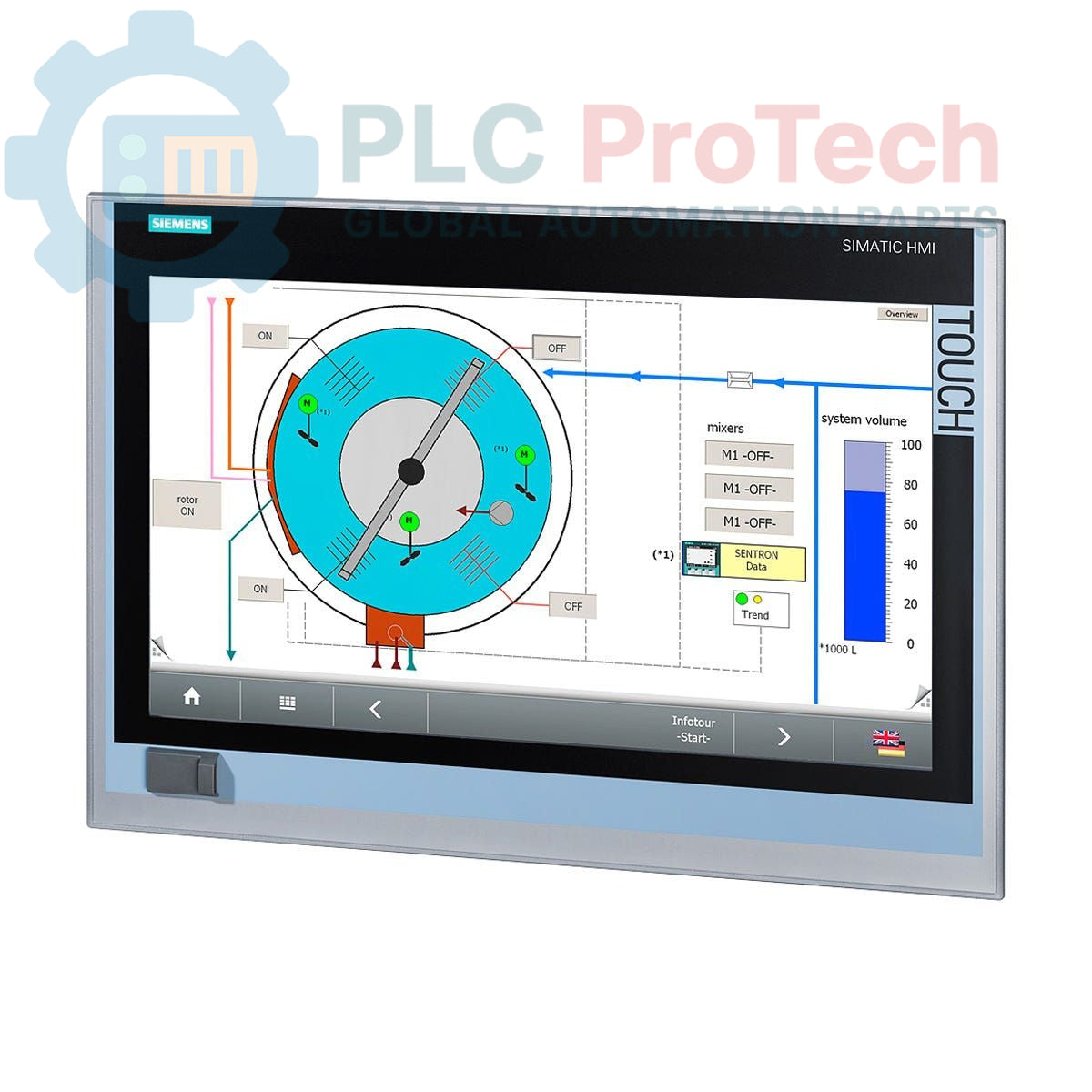

Siemens 6AV7240-6DD07-0HA0 SIMATIC IPC 477D Panel PC

SKU 6AV7240-6DD07-0HA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7240-6DD07-0HA0
Country of origin:Germany
Product Type: Industrial Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 6400g
Dimensions: 61.0 x 41.0 x 18.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This is a Siemens 6AV7240-6DD07-0HA0 SIMATIC IPC 477D, a robust panel PC designed for industrial automation and control applications. It features a 19-inch touch display and is powered by an Intel Core i7-3517UE processor. The unit is configured with 8 GB of RAM and an 80 GB MLC Solid State Drive (SSD) for reliable performance. It operates on a 24 V DC industrial power supply and comes pre-installed with Windows 7 Ultimate (64-bit). Connectivity is provided through dual Gigabit Ethernet ports, multiple USB interfaces, and an RS-232 serial port.

Features

19-inch resistive touch display for operator interaction.
Intel Core i7-3517UE central processing unit.
8 GB of integrated system memory.
80 GB Standard (MLC) Solid State Drive for storage.
Dual Gigabit Ethernet ports supporting IE/PN protocols.
Five USB ports (4 rear, 1 front) for peripheral connectivity.
Pre-installed with Windows 7 Ultimate (64-bit) operating system.
Powered by a 24 V DC industrial power source.

Applications

Human-Machine Interface (HMI) for process visualization.
Supervisory Control and Data Acquisition (SCADA) nodes.
Machine control and data logging in manufacturing environments.
Industrial data processing and plant floor computing.

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC IPC 477D
Display	19" Touch Display
Processor	Intel Core i7-3517UE
Memory (RAM)	8 GB
Storage	80 GB Standard (MLC) SSD
Operating System	Windows 7 Ultimate, 64-bit
Power Supply	24 V DC Industrial Power Supply
Ethernet Ports	2x Gigabit Ethernet (10/100/1000 Mbps), IE/PN compatible
USB Ports	4x Rear, 1x Front
Serial Port	1x RS-232
Expansion Slots	Without PCIe
Product Lifecycle Status	Phase-Out
Shipping Weight	6.40 kg
Shipping Dimensions	61.00 x 41.00 x 18.00 cm
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources before installation or maintenance. Failure to de-energize the system can result in severe electrical shock, equipment damage, or personal injury. Always follow local Lockout/Tagout (LOTO) procedures.

1 Ensure the mounting surface or panel cutout is clean, flat, and meets the dimensional requirements for the IPC 477D chassis. Verify adequate clearance for ventilation and cable routing.
2 Secure the Panel PC into the cutout using the provided mounting clamps. Apply torque evenly to all clamps to ensure a proper seal and prevent chassis distortion.
3 Connect the 24 V DC power supply to the designated power input terminal. Ensure the power source is stable, properly rated, and correctly polarized. Connect the functional earth (FE) terminal to the cabinet's equipotential bonding system.
4 Connect Ethernet, USB, and serial communication cables as required by the application. Use shielded cables for all data lines and ensure shields are properly terminated to the grounded chassis to minimize EMI/RFI interference.
5 After all connections are verified, restore power to the unit. Proceed with software configuration and system commissioning according to project requirements.

FAQ

What processor is installed in the 6AV7240-6DD07-0HA0?

This SIMATIC IPC is equipped with an Intel Core i7-3517UE processor.

What operating system comes with this Panel PC?

The unit is pre-installed with Windows 7 Ultimate, 64-bit edition.

What are the primary communication interfaces on this device?

It includes two Gigabit Ethernet ports (IE/PN), a total of five USB ports (four on the back, one on the front), and one RS-232 serial port.

What is the storage configuration of this industrial PC?

It is configured with an 80 GB Standard Multi-Level Cell (MLC) Solid State Drive (SSD).

What is the required input power for this unit?

This Panel PC requires a 24 V DC industrial power supply for operation.
