Siemens 6AV7241-5BB15-0GA0 SIMATIC IPC 477E Panel PC

Description

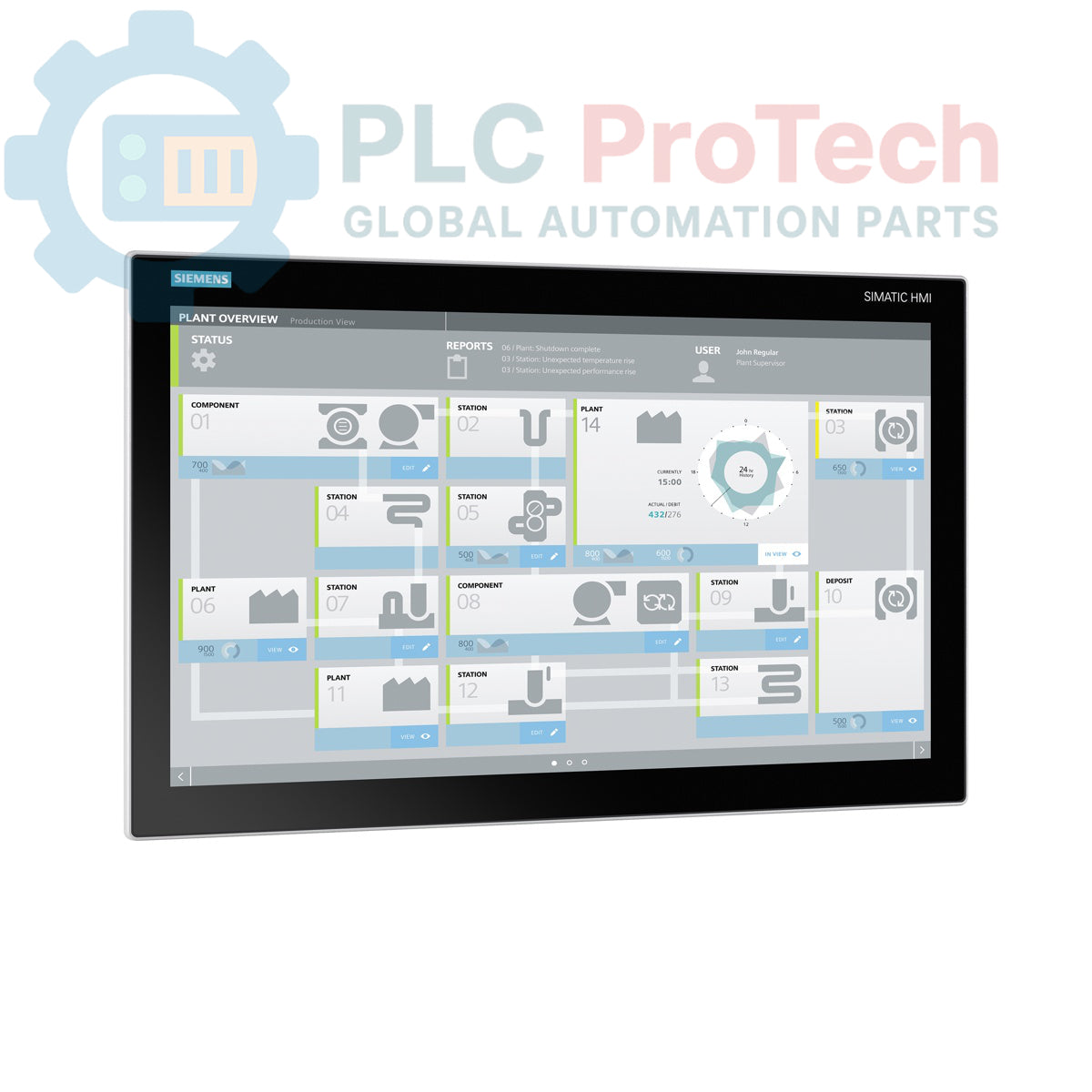

The Siemens 6AV7241-5BB15-0GA0 is a SIMATIC IPC 477E Industrial Panel PC featuring a 15-inch touch display with a resolution of 1280 x 800 pixels. This unit is equipped with an Intel Core i5-6442EQ processor, 8 GB of RAM, and a 480 GB SATA Solid-State Drive for reliable operation in industrial environments. It provides extensive connectivity options including multiple USB ports (front and rear) and several Ethernet ports, including three Gigabit Ethernet ports for Industrial Ethernet/PROFINET. The panel PC supports various operating systems, including embedded Windows 10 Pro, Windows 11 Pro, or Windows 10 Enterprise 2019 LTSC, making it suitable for diverse automation applications. It operates on a 24 V DC industrial power supply.

Features

• 15-inch Touch Display (1280 x 800 resolution)
• Intel Core i5-6442EQ Processor
• 8 GB RAM
• 480 GB SATA Solid-State Drive
• Front USB port and 4 rear USB ports
• Ethernet (10/100/1000) and 3x Gbit Ethernet (IE/PN)
• 1x PCIe (x4) slot
• Supports Embedded Windows 10 Pro, Windows 11 Pro, or Windows 10 Enterprise 2019 LTSC
• 24 V DC Industrial Power Supply

Applications

The Siemens SIMATIC IPC 477E Panel PC is designed for a wide range of industrial applications requiring robust and reliable computing, including:

• Human Machine Interface (HMI) for machine and plant control
• Data acquisition and processing
• Visualization and operational monitoring
• Edge computing in manufacturing and process automation
• Distributed control systems
• Logistics and material handling systems

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
2. Mounting: Securely mount the panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a proper protective earth (PE) connection to the panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the Gbit Ethernet ports for network communication and PROFINET integration. Use shielded cables in noisy environments.
6. USB Connections: Utilize the front and rear USB ports for peripherals such as keyboards, mice, or external storage devices as needed.
7. PCIe Expansion: If using the PCIe (x4) slot for expansion cards, ensure the card is correctly seated and secured according to its manufacturer's instructions.
8. Environmental Considerations: Ensure the operating environment complies with the specified temperature, humidity, and vibration ratings for the IPC. Provide adequate cooling if installed in a confined space.
9. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference.
10. Power Up: After all connections are verified, re-energize the power supply and observe the system startup.

Compliance and Certifications

• Export Control Regulations (ECCN): 5A992
