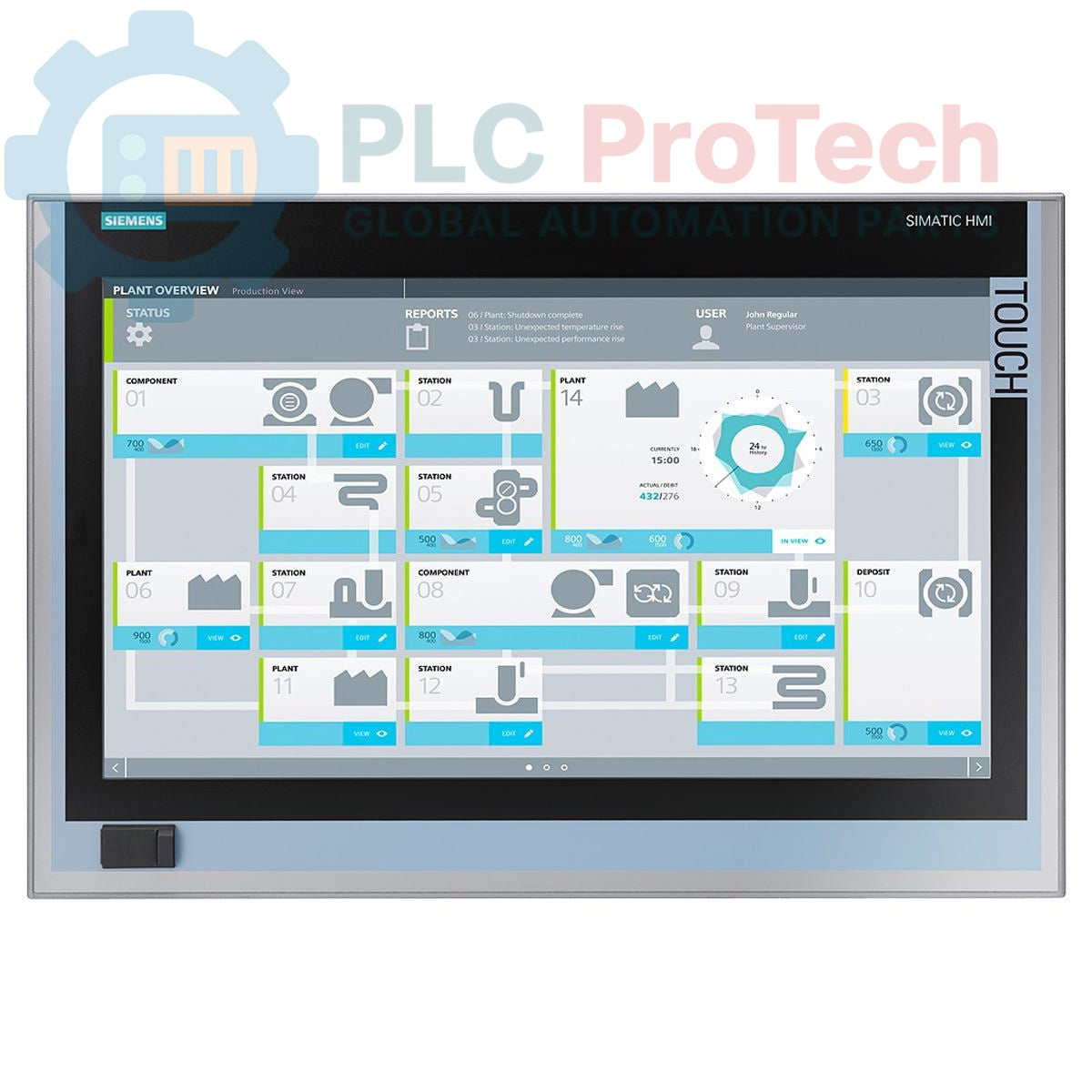

Siemens 6AV7260-0DG20-0AX0 SIMATIC IPC677D Panel PC

SKU 6AV7260-0DG20-0AX0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7260-0DG20-0AX0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 16780g
Dimensions: 55 x 45 x 30 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7260-0DG20-0AX0 is a SIMATIC IPC677D Panel PC designed for robust industrial control and visualization tasks. This unit integrates a 15-inch touchscreen display with a 1280x800 resolution, powered by an Intel Core i3-4330TE processor. It is equipped with 4 GB of DDR3 RAM and a redundant RAID1 storage configuration using two 320 GB SATA hard drives. For connectivity, it provides dual Gigabit Ethernet ports, multiple USB 3.0 ports, and a serial interface. The system includes integrated monitoring for watchdog, temperature, and fan status, and operates on a 24 V DC industrial power supply.

Features

15-inch widescreen touch display (1280x800 resolution)
Intel Core i3-4330TE processor (2.4 GHz, 2 Cores / 4 Threads)
4 GB DDR3 1600 DIMM system memory
RAID1 configuration with 2x 320 GB SATA (2.5-inch) drives
Onboard RAID controller for data redundancy
Dual 10/100/1000 Mbit/s Ethernet ports for network communication
Extensive I/O: 4x USB 3.0 ports, 1x front USB, and 1x serial (COM1) port
Integrated system monitoring for watchdog, temperature, and fan
Pre-installed with Windows 7 Ultimate 64-bit SP1 (MUI)
Operates on a 24 V DC industrial power supply

Applications

Human-Machine Interface (HMI) for process control
Machine-level data acquisition and visualization
Supervisory Control and Data Acquisition (SCADA) nodes
Industrial automation control rooms
Manufacturing execution systems (MES) terminals

Technical Specifications

Specification	Value
Manufacturer	Siemens
Model Number	6AV7260-0DG20-0AX0
Product Series	SIMATIC IPC677D
Product Type	Panel PC
Display	15-inch Touchscreen
Resolution	1280 x 800 pixels
Processor	Intel Core i3-4330TE (2C/4T, 2.4 GHz, 4 MB cache, VT-x)
Memory	4 GB DDR3 1600 DIMM
Storage	RAID1, 2x 320 GB SATA (2.5-inch)
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB 3.0 (rear), 1x USB (front)
Serial Port	1x COM1
Expansion Slots	2x PCI
Operating System	Windows 7 Ultimate 64-bit SP1, MUI (de, en, fr, es, it)
Power Supply	24 V DC Industrial Power Supply
System Monitoring	Watchdog, Temperature, Fan
Product Lifecycle Status	Phase-Out
Shipping Weight	16.78 kg
Commodity Code	85371098
ECCN	5A992
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	55 x 45 x 30 cm

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Disconnect all power sources before installation or maintenance. Work must be performed by qualified personnel only. Failure to comply can result in severe injury or equipment damage.

1 Verify the panel cutout dimensions and ensure sufficient clearance for ventilation and cable routing around the unit.
2 Mount the Panel PC securely into the prepared cutout using all provided mounting clamps. Tighten the clamps evenly to ensure a proper seal against the enclosure surface.
3 Connect the functional earth (FE) terminal to the central grounding point of the control cabinet using a low-impedance conductor. Proper grounding is essential for noise immunity and safety.
4 Connect the 24 V DC power supply, ensuring correct polarity. Use appropriately sized conductors for the load and distance.
5 Connect Ethernet, USB, and serial communication cables as required. Ensure all cable shields are properly terminated to the grounded chassis.
6 After all connections are secure, re-apply power to the system and verify correct boot-up and operation.

FAQ

What is the screen size and resolution of this Panel PC?

The 6AV7260-0DG20-0AX0 features a 15-inch touchscreen display with a native resolution of 1280 x 800 pixels.

What processor is installed in this unit?

This Panel PC is equipped with an Intel Core i3-4330TE processor, which has 2 cores, 4 threads, and runs at 2.4 GHz.

What are the storage specifications?

The unit is configured with a RAID1 array for data redundancy, consisting of two 320 GB SATA hard drives (2.5-inch).

What operating system is pre-installed?

It comes with Windows 7 Ultimate 64-bit Service Pack 1, with a multi-language user interface (MUI) including German, English, French, Spanish, and Italian.

What are the primary communication interfaces on this device?

The primary interfaces include two 10/100/1000 Mbit/s Ethernet ports, four rear USB 3.0 ports, one front USB port, and one serial (COM1) port.
