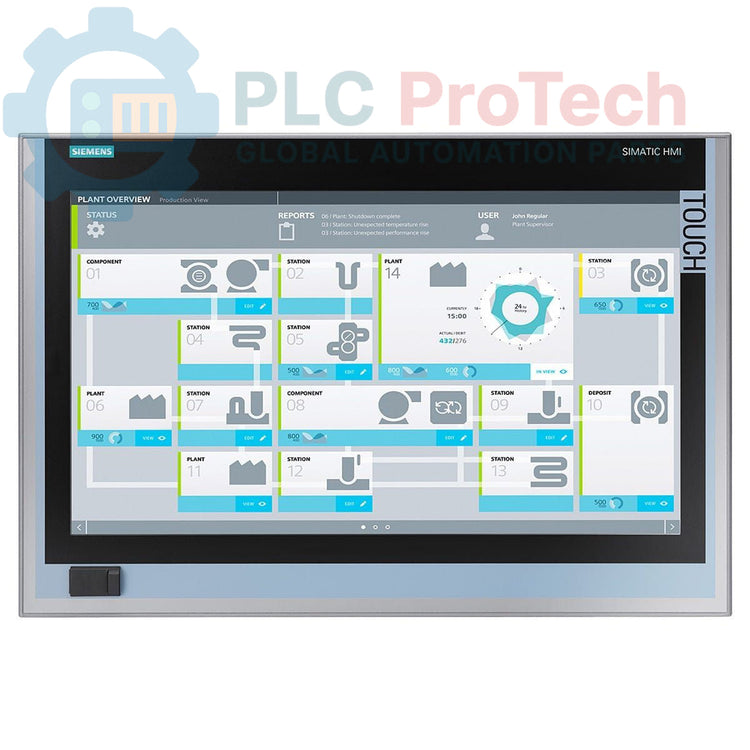

Siemens 6AV7260-2GM30-0CC6 SIMATIC IPC677D Panel PC

Description

The Siemens 6AV7260-2GM30-0CC6 is a SIMATIC IPC677D Panel PC designed for industrial automation applications, offering robust computing power and a user-friendly touch interface. This industrial PC integrates a 22-inch touch display with a 1920x1080 resolution, making it suitable for HMI and control tasks. It features a XEON E3-1268LV3 processor, a 240 GB solid-state drive, and 8 GB DDR3 1600 DIMM memory, ensuring reliable performance in demanding environments. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V3.0 ports, and one serial COM1 port, with an additional front USB for convenient access. The unit also incorporates a watchdog, temperature, and fan monitoring, alongside an onboard RAID controller for data integrity. It comes pre-installed with either Embedded Windows 10 Pro or Windows 11 Pro (64-bit, MUI), and includes SIMATIC IPC DiagMonitor and Image&Partition Creator software. Power is supplied via a 24 V DC industrial power input.

Features

• Integrated 22-inch Touch Display (1920x1080 resolution)
• XEON E3-1268LV3 Processor (4C/8T, 2.3 (3.3) GHz, 8 MB cache VT-D, AMT)
• 240 GB Solid-State Drive (SSD)
• 8 GB DDR3 1600 DIMM Memory
• Dual 10/100/1000 Mbit/s Ethernet Interfaces
• Four USB V3.0 Ports and one Serial (COM1) Port, plus Front USB
• Onboard RAID Controller
• Watchdog, Temperature, and Fan Monitoring
• Pre-installed Embedded Windows 10 Pro or Windows 11 Pro (64-bit, MUI)
• Includes SIMATIC IPC DiagMonitor and Image&Partition Creator
• 24 V DC Industrial Power Supply
• Two PCI Slots (without expansion hardware)

Applications

• Human Machine Interface (HMI) for machine and process control
• Data acquisition and visualization in manufacturing plants
• Supervisory Control and Data Acquisition (SCADA) systems
• Industrial PC for automation tasks in harsh environments
• Production line monitoring and management
• Embedded control systems requiring a robust display and computing platform

Technical Specifications

Connections / Interfaces

• Ethernet: 2x RJ45 ports for 10/100/1000 Mbit/s network connectivity.
• USB: 4x USB V3.0 ports for peripheral connections, plus an additional front-accessible USB port.
• Serial: 1x COM1 port for legacy serial device communication.
• Power: 24 V DC industrial power input terminal.

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and associated equipment is disconnected and locked out before beginning installation.
2. Mounting: Securely mount the Panel PC into a suitable industrial panel cutout, ensuring proper sealing to maintain environmental protection ratings.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated terminals, observing correct polarity. Ensure the power source is stable and within specified voltage tolerances.
4. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network integration. Use shielded cables in noisy industrial environments.
6. Peripheral Connections: Connect USB devices and serial devices (if applicable) to their respective ports. Utilize the front USB port for temporary connections or frequently accessed peripherals.
7. Cable Routing: Route all cables to prevent strain, sharp bends, and interference with other equipment. Separate power and signal cables where possible.
8. Ventilation: Ensure adequate clearance around the Panel PC for proper airflow to prevent overheating, especially considering the fan monitoring feature.
9. Initial Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
