Siemens 6AV7804-0AB20-0AC0 SIMATIC Panel PC 677

SKU 6AV7804-0AB20-0AC0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7804-0AB20-0AC0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17000g
Dimensions: 67.0 x 83.0 x 11.5 cm
Shipping port: Xiamen
Warranty: 12 months

Description

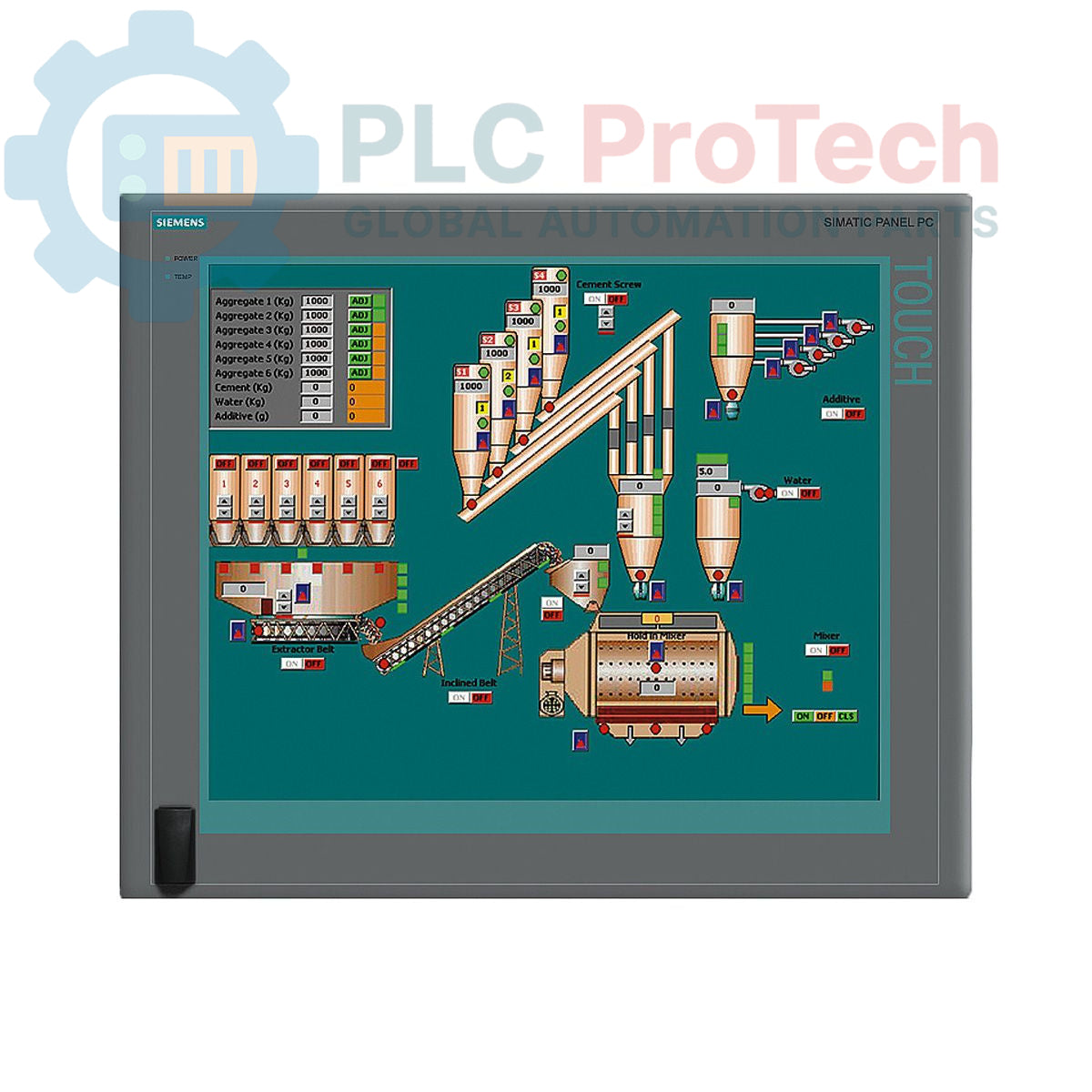

The Siemens 6AV7804-0AB20-0AC0 is a SIMATIC Panel PC 677 designed for industrial human-machine interface (HMI) and control applications. This unit features a 19-inch touchscreen display with a resolution of 1280x1024 pixels, providing a clear and interactive operator interface. It is powered by an Intel Pentium M 770 processor at 1.6 GHz and is equipped with 1 GB of DDR266 SDRAM and an 80 GB SATA hard drive. The system operates on a 24V DC power supply and includes a convenient front-side USB interface for peripheral connections. This model comes pre-installed with Windows XP Professional MUI.

Features

19-inch color touchscreen display
1280 x 1024 pixel screen resolution
Intel Pentium M 770 processor (1.6 GHz)
1 GB DDR266 SDRAM installed
80 GByte 3.5-inch SATA hard drive for storage
Front-accessible USB interface
Operates on a 24V DC power input
Pre-loaded Windows XP Professional (Multi-User Interface)

Applications

Supervisory Control and Data Acquisition (SCADA) clients
Process visualization and control
Machine-level operator stations
Industrial data logging and reporting
Factory floor information systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC Panel PC 677
Model Number	6AV7804-0AB20-0AC0
Display Type	19" Touchscreen
Resolution	1280 x 1024 pixels
Power Supply	24V DC
Processor	Intel Pentium M 770 / 1.6 GHz
Front Side Bus (FSB)	533 MHz
Cache	2 MB SLC
Memory (RAM)	1 GB DDR266 SDRAM (1 x 1 GB)
Storage	80 GByte SATA Hard Drive (3.5")
Optical Drive	Not included
Operating System	Windows XP Professional MUI (EN, GE, FR, IT, SP, JP, CHN, KOR)
Interfaces	Front side USB
Product Lifecycle Phase	Obsolete
Commodity Code	85371098
Export Control (ECCN)	N
Country of Origin	Germany (Estimated)
Package Dimensions	67.0 x 83.0 x 11.5 cm
Shipping Weight	17.00 kg

Installation Guidelines

CRITICAL WARNING: Hazardous voltages may be present. Disconnect and lock out all power sources before installation, wiring, or maintenance. Installation must be performed by qualified personnel familiar with industrial control equipment standards and practices.

1 Inspect the Panel PC for any signs of shipping damage. Do not install if damage is apparent. Verify the model number matches the order specifications.
2 Prepare the panel cutout according to the device's mechanical drawings. Ensure sufficient clearance around the unit for ventilation and cable routing, especially at the rear.
3 Mount the Panel PC securely into the cutout using all provided mounting clamps. Tighten clamps evenly to ensure a proper seal against the panel surface.
4 Connect a reliable chassis ground to the designated grounding terminal on the Panel PC. A low-impedance ground connection is critical for noise immunity and safety.
5 Connect the 24V DC power supply. Verify correct polarity (+/-) before energizing the circuit. Use appropriately sized wiring for the current draw and secure connections at the terminal block.
6 Connect all required communication and peripheral cables (e.g., Ethernet, USB). Route cables away from high-voltage lines to prevent electrical noise interference. Power on the unit and verify correct system boot-up.

FAQ

What operating system is installed on the 6AV7804-0AB20-0AC0?

This Panel PC comes pre-installed with Windows XP Professional Multi-User Interface (MUI), which includes support for English, German, French, Italian, Spanish, Japanese, Chinese, and Korean languages.

What is the screen size and resolution of this SIMATIC Panel PC?

The unit is equipped with a 19-inch touchscreen display that has a native resolution of 1280x1024 pixels.

What is the required input power for this device?

The 6AV7804-0AB20-0AC0 requires a 24V DC power source for operation.

Does this configuration include an optical drive like a CD or DVD reader?

No, this specific model configuration does not include an optical drive.

Is this product still in active production by Siemens?

No, the product lifecycle phase for this model is listed as Obsolete. It is available as a spare or replacement part.
