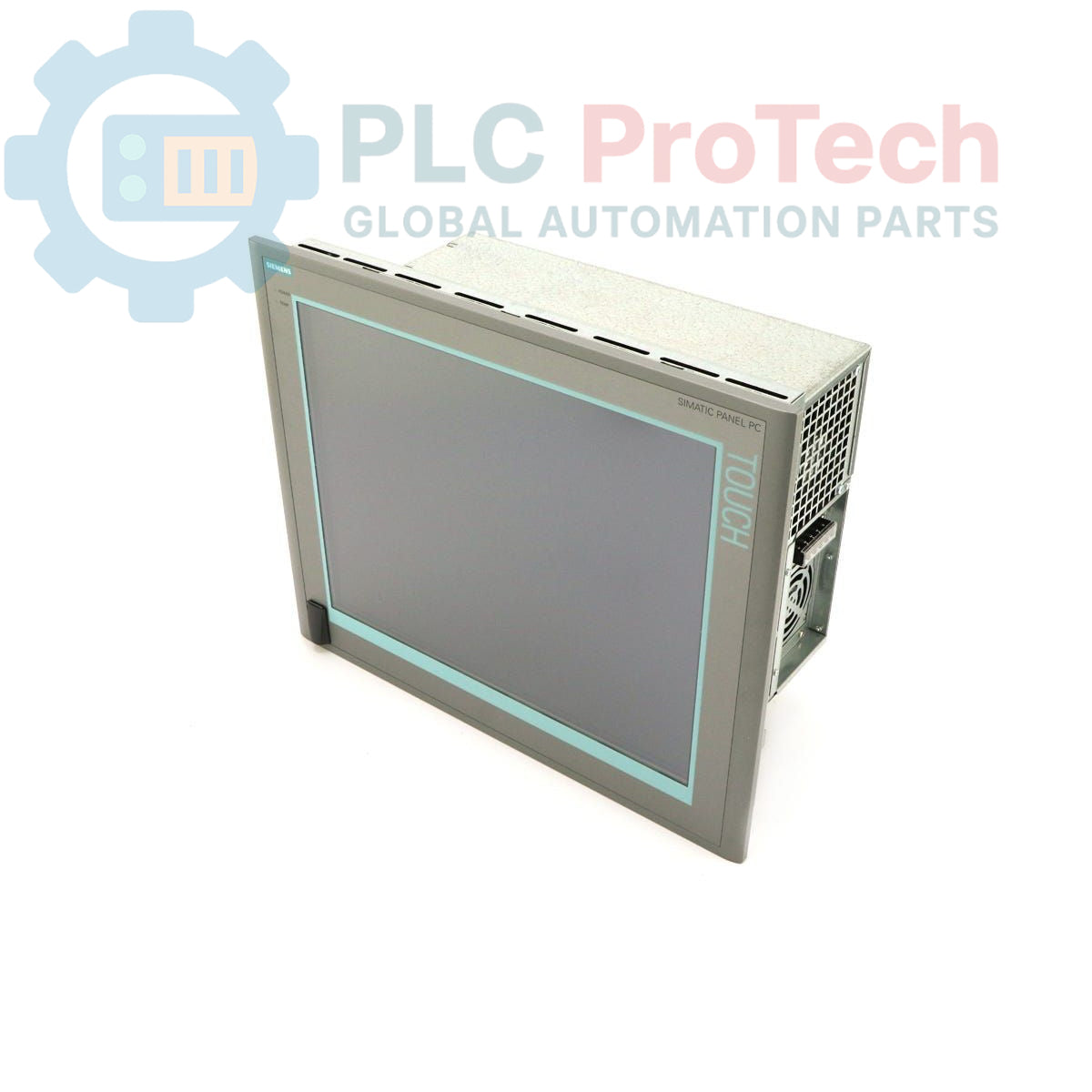

Siemens 6AV7813-0BC31-1AC0 SIMATIC Panel PC 877 15-inch Key Panel PC

Description

The Siemens 6AV7813-0BC31-1AC0 is a SIMATIC Panel PC 877 designed for industrial human-machine interface (HMI) and control applications. This unit features a 15-inch display with an integrated keypad and a native resolution of 1024 x 768 pixels. It is powered by an Intel Pentium 4 Mobile 2.2 GHz processor and is equipped with 2 GB of DDR266 SDRAM. For storage, it includes an 80 GB EIDE hard drive and a DVD-ROM drive. The system comes pre-installed with Windows XP Professional (Multi-Language) and includes a convenient front-side USB interface for peripheral access.

Features

• ■ 15-inch display with integrated keypad
• ■ 1024 x 768 pixel screen resolution
• ■ Intel Pentium 4 Mobile 2.2 GHz processor
• ■ 2 GB DDR266 SDRAM installed (2x 1GB modules)
• ■ 80 GB EIDE 3.5-inch Hard Disk Drive
• ■ Integrated DVD-ROM optical drive
• ■ Front-accessible USB interface
• ■ Pre-installed Windows XP Professional MUI

Applications

• ■ Machine-level operator control and monitoring
• ■ Process visualization and data acquisition
• ■ Industrial control rooms and automation cells
• ■ Legacy system replacement requiring Windows XP compatibility

Technical Specifications

Installation Guidelines

1. De-energize Equipment: Isolate and lock out all power to the control cabinet or panel where the PC will be installed. Verify the absence of voltage using a calibrated multimeter.
2. Prepare Panel Cutout: Ensure the panel cutout dimensions match the requirements for the Panel PC 877 chassis. Clean the mounting surface of any debris or contaminants.
3. Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to ensure a proper seal against the panel gasket.
4. Connect Protective Earth (PE): Connect a dedicated protective earth conductor to the designated grounding terminal on the PC chassis. Ensure a low-impedance connection to the main panel ground.
5. Connect Power and Peripherals: Connect the AC power cable to the unit's power input. Connect any required network cables, USB devices, or other peripherals to their respective ports.
6. Power-Up and Test: After confirming all connections are secure, remove the lockout/tagout and re-energize the main panel. Power on the Panel PC and verify correct system boot and operation.
