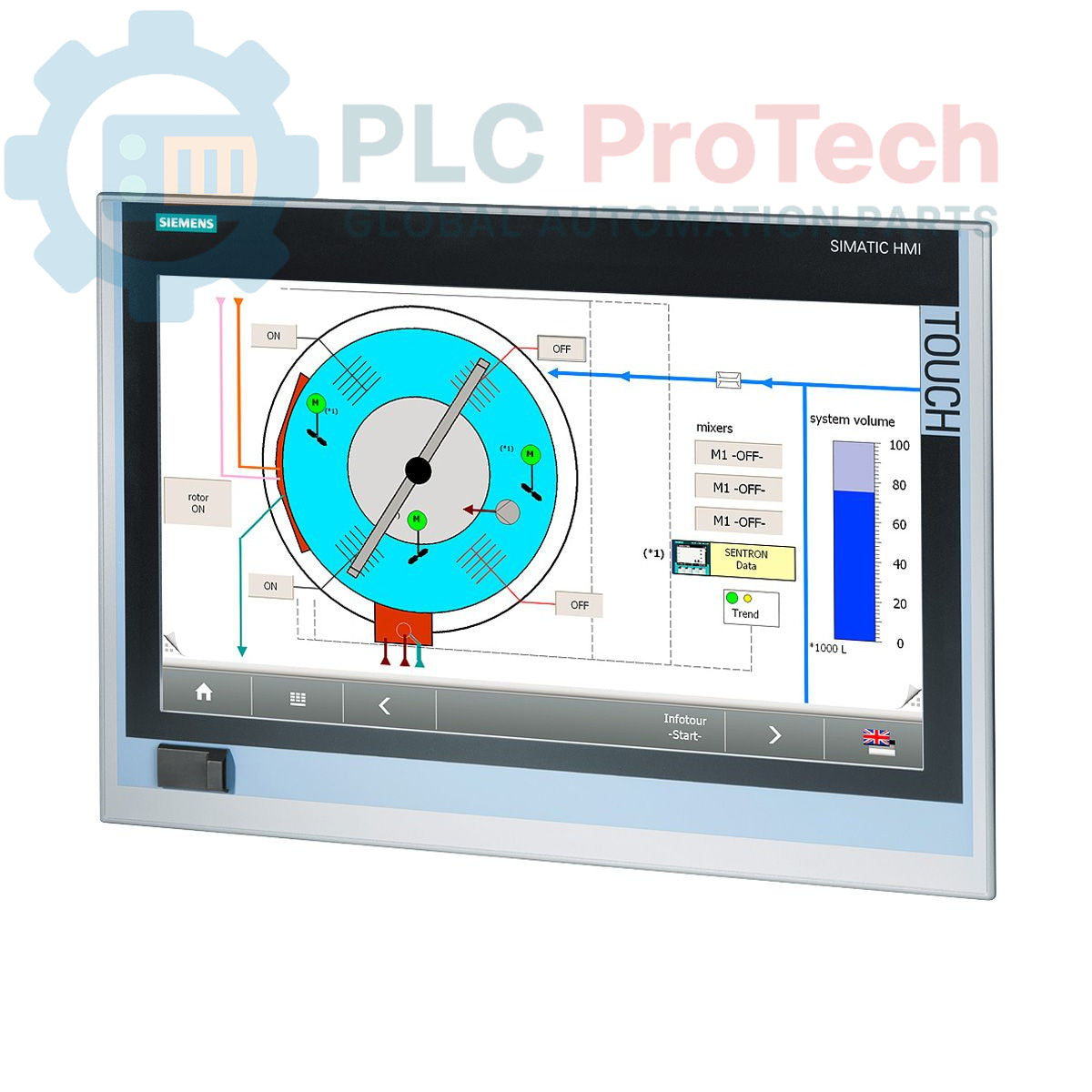

Siemens 6AV7881-5AA00-8EA0 SIMATIC IPC277D Panel PC

SKU 6AV7881-5AA00-8EA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7881-5AA00-8EA0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 6250g
Dimensions: 0.10 x 0.10 x 0.10 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7881-5AA00-8EA0 is a SIMATIC IPC277D Nanopanel PC, featuring a 19-inch Touch TFT display. This industrial panel PC is designed for visualization and control tasks in automation environments, providing a robust and integrated solution. It includes a front USB port, multiple Ethernet and USB interfaces, a serial port, and a CompactFlash slot for flexible connectivity and data management. Powered by an Atom E640 processor and equipped with 1GB RAM and an 80GB Solid-State Drive, it offers reliable performance for various industrial applications.

Features

SIMATIC IPC277D (NANOPANEL PC) series
19-inch Touch TFT display
Atom E640 (1.0 GHz) processor
1GB RAM
80 GB Solid-State Drive
2 x 10/100/1000 Mbit/s Ethernet RJ45 ports
3 x USB V2.0 (High Current) ports, including a front USB
1 x Serial (COM1) port
CompactFlash slot
24V DC power supply
Standard front design

Applications

Machine control and operation
Process visualization and monitoring
Data acquisition and logging
Human-Machine Interface (HMI) for industrial machinery
Embedded control systems
Factory automation and manufacturing execution systems (MES)

Technical Specifications

Manufacturer	Siemens
Range	Simatic Panel PC
Subrange	IPC277D
Product Type	Panel PC
PLM Product Phase	Phase-Out
Processor	Atom E640 (1.0 GHz)
RAM	1GB
Storage	80 GB Solid-State Drive
Display	19" Touch TFT
Power Supply	24V DC
Front Type	Standard Front
Package Dimensions (Calculated)	0.10 x 0.10 x 0.10 cm
Shipping Weight	6.25 kg
Commodity Code	85371098
Export Control Regulations (ECCN)	N

Connections / Interfaces

Connector Type	Details
Ethernet	2 x RJ45 (10/100/1000 Mbit/s)
USB	3 x USB V2.0 (High Current), including front access
Serial	1 x COM1
Expansion Slot	CompactFlash Slot
Power	24V DC input

Installation Guidelines

De-energize System: Ensure all relevant power supplies are disconnected before beginning installation to prevent electrical shock or equipment damage.
Mounting: Securely mount the Panel PC into the designated panel cutout. Ensure proper sealing to maintain the specified IP rating of the front panel.
Power Connection: Connect the 24V DC power supply to the designated power input terminals. Observe correct polarity.
Grounding: Establish a reliable protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
Interface Connections: Connect Ethernet cables to the RJ45 ports for network communication. Connect USB devices and serial peripherals as required.
Cable Management: Route all cables to prevent strain, interference, and damage. Use appropriate cable glands or conduits where necessary.
Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration requirements for the device.
Power Up: After all connections are secure and verified, re-energize the system and power on the Panel PC.

FAQ

What is the primary function of the Siemens 6AV7881-5AA00-8EA0?

It is a SIMATIC IPC277D Nanopanel PC designed for industrial visualization, control, and HMI applications, featuring a 19-inch touch display.

What type of processor and storage does this Panel PC utilize?

It is equipped with an Atom E640 (1.0 GHz) processor, 1GB of RAM, and an 80 GB Solid-State Drive for reliable operation.

What connectivity options are available on the 6AV7881-5AA00-8EA0?

It features two Gigabit Ethernet ports, three USB V2.0 ports (including front access), one serial (COM1) port, and a CompactFlash slot.

What power supply is required for this SIMATIC IPC277D?

The device operates on a 24V DC power supply.

Is this product still actively manufactured by Siemens?

According to the provided information, the product is currently in a 'Phase-Out' stage.
