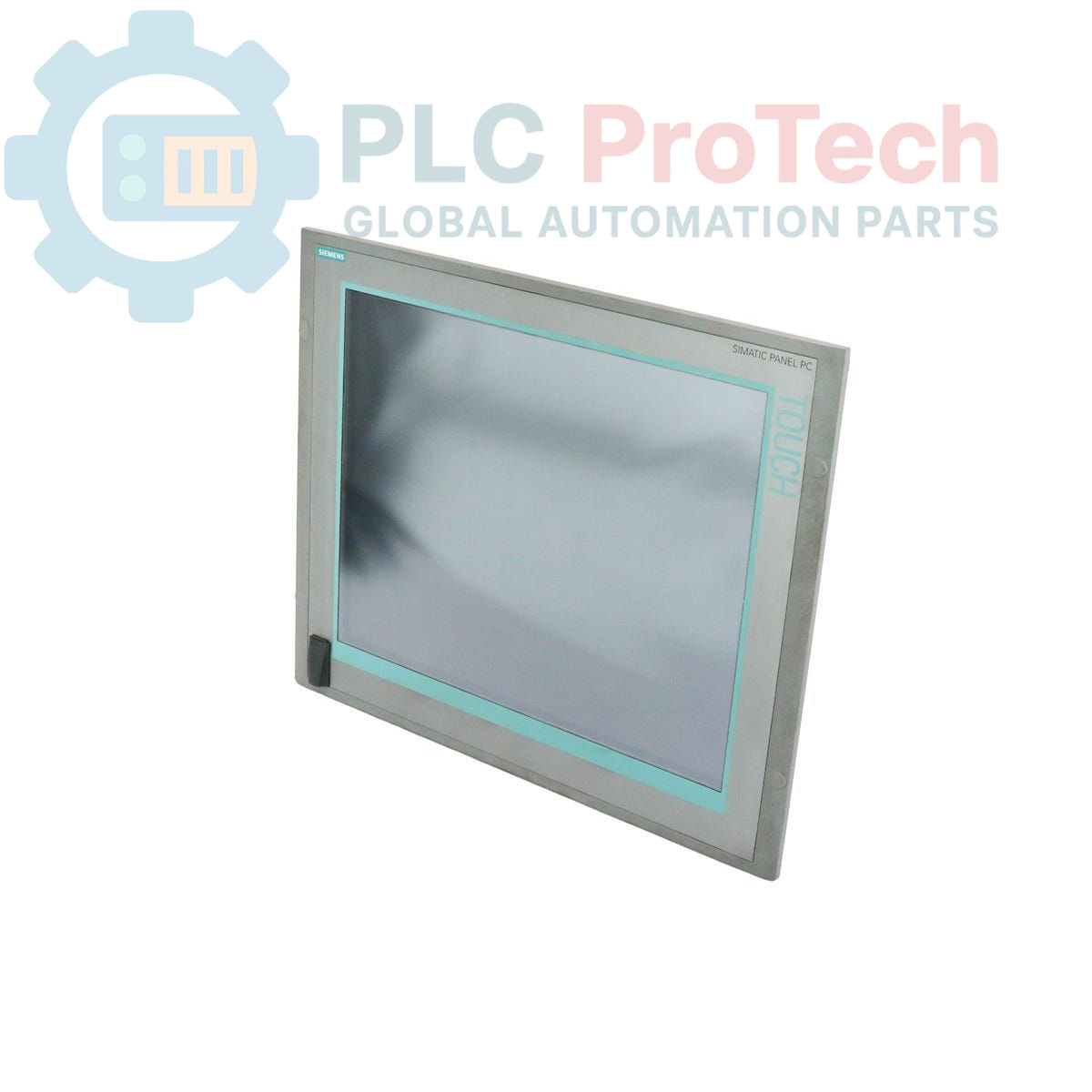

Siemens 6AV7884-5AG22-3BE0 SIMATIC IPC477C Panel PC

Description

This Siemens 6AV7884-5AG22-3BE0 is a SIMATIC HMI IPC 477C Panel PC bundle designed for industrial human-machine interface applications. It features a 19-inch touchscreen display with a native resolution of 1280 x 1024 pixels. The system is powered by an Intel Core 2 Duo 1.2 GHz processor and is equipped with 2 GB of DDR3 RAM. For storage, it includes a primary 4 GB CompactFlash card and a secondary 2 GB CF card. The unit comes pre-installed with Windows Embedded Standard 2009 and includes a WinCC flexible RT 2048 PowerTags license, providing a ready-to-deploy platform for visualization and control tasks.

Features

• 19-inch touchscreen display with 1280 x 1024 resolution
• Intel Core 2 Duo processor operating at 1.2 GHz
• 2 GB of DDR3 system memory
• 4 GB primary CompactFlash card for OS and applications
• Integrated PROFINET (IE) connectivity via dual 1 Gbit Ethernet ports
• Total of five USB ports (4 rear, 1 front) for peripheral connection
• Pre-installed with Windows Embedded Standard 2009
• Includes WinCC flexible RT 2048 PT license with archive and recipe support

Applications

• Process visualization and control
• Machine-level data acquisition and logging
• Supervisory Control and Data Acquisition (SCADA) client nodes
• Manufacturing Execution Systems (MES) terminals
• Factory automation and assembly line monitoring

Technical Specifications

Installation Guidelines

1. 1 Prepare the mounting location. Verify that the panel cutout dimensions match the unit's specifications and ensure the mounting surface is clean, flat, and can support the device weight.
2. 2 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a proper seal.
3. 3 Connect the protective earth (PE) or functional ground terminal to the enclosure's main grounding point using a low-impedance conductor of the appropriate gauge. This is critical for safety and noise immunity.
4. 4 Connect the specified DC power supply to the power input terminals, ensuring correct polarity. Use shielded power cables where possible and route them separately from high-voltage or signal wiring.
5. 5 Connect PROFINET/Ethernet, USB, and any other required communication or peripheral cables. Ensure all connectors are fully seated and secured.
6. 6 After verifying all connections are correct and secure, remove LOTO devices and re-apply power to the enclosure. Power on the Panel PC and confirm that the operating system and HMI application load correctly.
