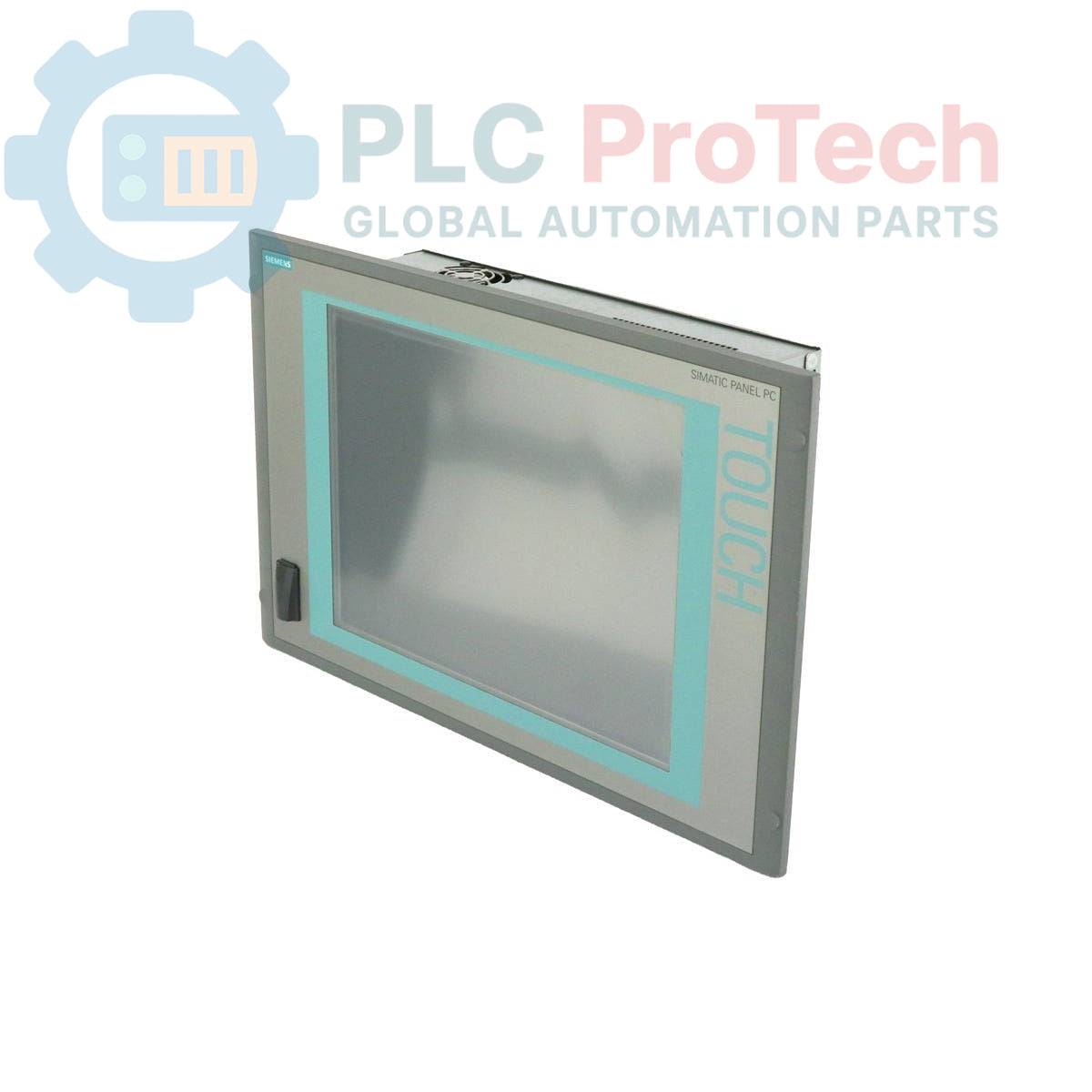

Siemens 6AV7885-2AK30-1DA1 SIMATIC Panel PC HMI 577C Industrial PC

Description

The Siemens 6AV7885-2AK30-1DA1 is a SIMATIC HMI IPC 577C Industrial PC designed for human-machine interface (HMI) applications. This unit features a 15-inch touch display and is powered by a Core 2 Duo 1.86 GHz processor. It includes 4 GB of DDR3 RAM and a 320 GB SATA HDD with Windows XP Professional pre-installed. Connectivity options include a PCI slot, multiple USB ports (4 rear, 1 front), Ethernet (10/100/1000), and PROFINET (IE) for industrial communication. The system is equipped with a 110/230 V AC power supply unit with NAMUR.

Features

• SIMATIC HMI IPC 577C series
• 15-inch touch display
• Core 2 Duo 1.86 GHz processor
• 4 GB DDR3 RAM
• 320 GB SATA HDD with Windows XP Professional pre-installed
• PCI expansion slot
• 4 rear USB ports and 1 front USB port
• Integrated Ethernet (10/100/1000)
• PROFINET (IE) communication interface
• 110/230 V AC power supply with NAMUR
• Designed for industrial HMI applications

Applications

The Siemens 6AV7885-2AK30-1DA1 Industrial PC is suitable for a wide range of industrial applications requiring robust HMI functionality and computing power. Typical deployments include:

• Machine operation and visualization
• Process control and monitoring
• Data acquisition and logging
• Factory automation systems
• Building management systems
• Distributed control systems (DCS) interfaces

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the SIMATIC Panel PC in a suitable industrial enclosure or panel, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the 110/230 V AC power supply unit to a stable and protected power source. Observe correct polarity and grounding practices. The NAMUR connection should be properly terminated if utilized.
4. Grounding: Establish a proper protective earth (PE) connection for the unit to minimize electromagnetic interference and ensure safety.
5. Peripheral Connections: Connect necessary peripherals such as keyboards, mice, or external storage devices to the available USB ports.
6. Network Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports for network integration. For PROFINET communication, connect to the designated PROFINET (IE) interface.
7. PCI Expansion: If utilizing the PCI slot, ensure any expansion cards are correctly seated and secured according to the card manufacturer's instructions.
8. Cable Management: Route all cables to prevent strain, interference, and accidental disconnection. Use cable ties and conduits where appropriate.
9. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
