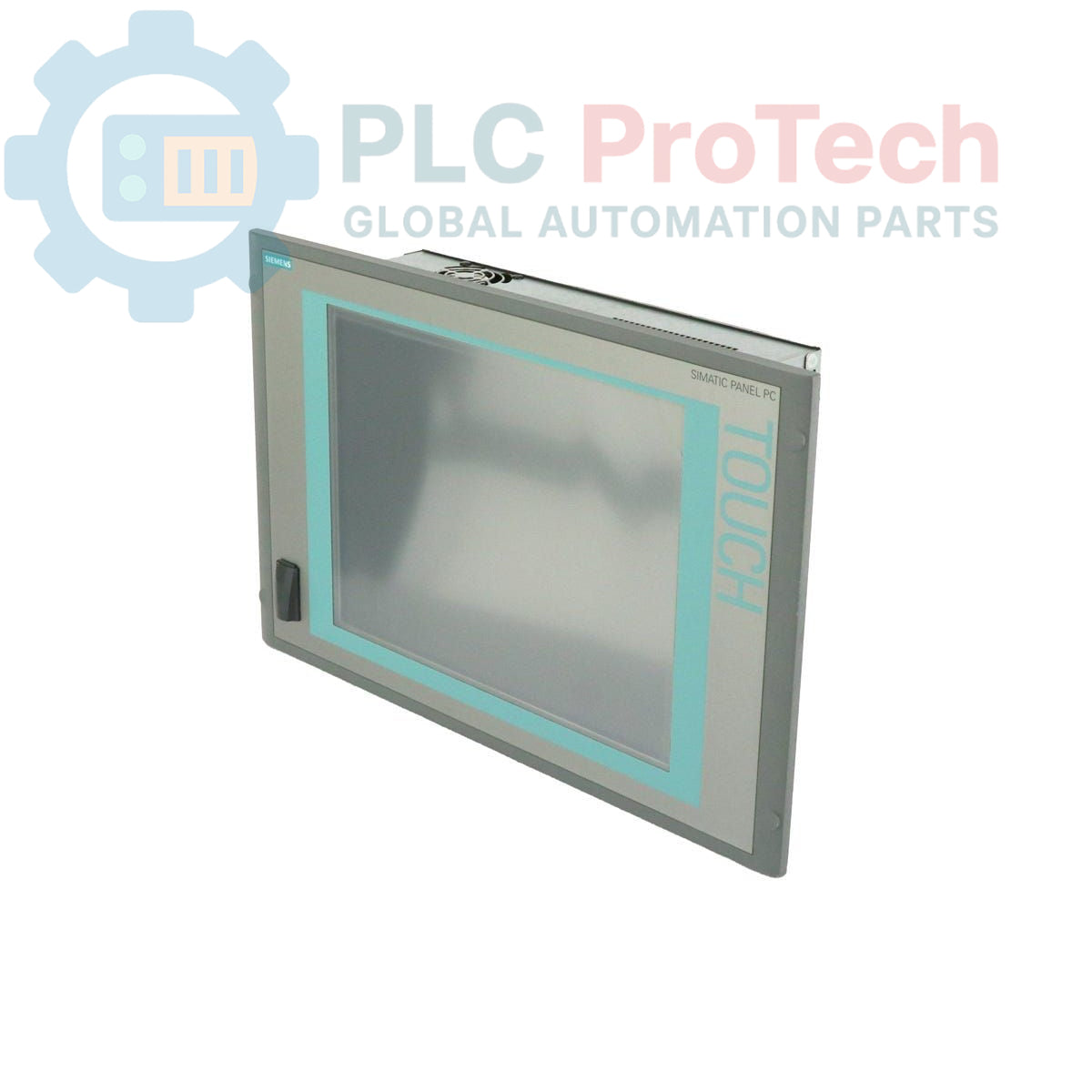

Siemens 6AV7885-2AK10-1AA2 SIMATIC HMI IPC 577C Panel PC

Description

The Siemens 6AV7885-2AK10-1AA2 is a SIMATIC HMI IPC 577C Panel PC designed for industrial visualization and control applications. This unit features a 15-inch touch display, an Intel Core 2 Duo 1.86 GHz processor, and 1 GB of DDR3 RAM (configured as 2x 1 Gbit). It includes a 320 GB SATA HDD for its first mass storage, with the operating system being optional and not pre-installed. The Panel PC offers extensive connectivity with a PCI expansion slot, four USB ports on the back, one USB port on the front, and an Ethernet interface supporting 10/100/1000 Mbit/s. Integrated PROFINET (IE) functionality is also provided. The unit is powered by a 110/230 V AC power supply unit with NAMUR compatibility and includes a power supply cable for Europe.

Features

• 15-inch Touch Display
• Intel Core 2 Duo 1.86 GHz Processor
• 1 GB DDR3 RAM (2x 1 Gbit)
• 320 GB SATA HDD (First Mass Storage)
• Integrated PROFINET (IE) Interface
• Ethernet (10/100/1000 Mbit/s) Connectivity
• Multiple USB Ports (4 rear, 1 front)
• 1x PCI Expansion Slot
• 110/230 V AC Power Supply Unit with NAMUR

Applications

• Industrial visualization and operator control
• Machine operation and monitoring systems
• Process control and data acquisition
• Human-Machine Interface (HMI) for manufacturing environments

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work.
2. Mounting: Securely mount the Panel PC in its designated enclosure or panel cutout. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the 110/230 V AC power supply cable to the unit. Verify correct voltage and polarity before applying power.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Peripheral Connections: Connect necessary USB devices, Ethernet cables, and PROFINET cables to their respective ports. Ensure secure and strain-free connections.
6. Cable Management: Route all cables neatly and ensure they are properly secured to prevent accidental disconnection or damage. Separate power and signal cables where possible to reduce interference.
7. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for the device to ensure reliable operation.
