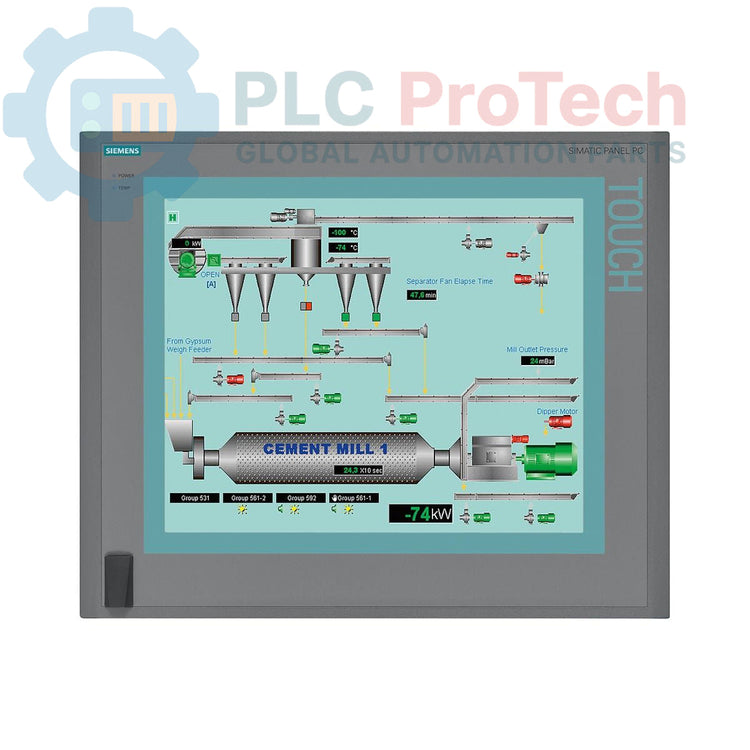

Siemens 6AV7892-0AF33-1AC0 SIMATIC HMI IPC677C Panel PC

Description

The Siemens 6AV7892-0AF33-1AC0 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) applications. This robust Panel PC integrates a 15-inch touch display with a 1024x768 resolution, providing an interactive interface for operational control and monitoring. It features an Intel Core i3-330E processor (2 cores/4 threads, 2.13 GHz, with HT and VT technology, 3 MB cache) and is equipped with 4 GB DDR3 1066 DIMM RAM and 2 MB buffered SRAM for reliable performance. Storage is handled by two 320 GB SATA HDDs, complemented by a DVD+-R+-RW optical drive.

Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports (including a front-side USB interface), and one serial (COM1) port. For industrial communication, it supports PROFINET via three RJ45 ports, compatible with CP 1616. The unit incorporates a watchdog, temperature, and fan monitoring system, along with an onboard RAID controller for data integrity. Power is supplied via a 24 V DC input. The system comes pre-installed with Windows 7 Ultimate 32 Bit SP1, offering a Multi-User Interface (MUI) in German, English, French, Spanish, and Italian.

Features

• SIMATIC HMI IPC677C Panel PC
• 15-inch Touch Display with 1024x768 Resolution
• Intel Core i3-330E Processor (2C/4T, 2.13 GHz, HT, VT, 3 MB Cache)
• 4 GB DDR3 1066 DIMM RAM and 2 MB Buffered SRAM
• Dual 320 GB SATA HDDs with Onboard RAID Controller
• DVD+-R+-RW Optical Drive
• 2x 10/100/1000 Mbit/s Ethernet Ports
• 4x USB V2.0 Ports (including front-side USB interface)
• 1x Serial (COM1) Port
• PROFINET Interface (3x RJ45, CP 1616-compatible)
• Integrated Watchdog, Temperature, and Fan Monitoring
• 24 V DC Power Supply
• 2x Free PCI Expansion Slots
• Pre-installed Windows 7 Ultimate 32 Bit SP1 (MUI: DE, EN, FR, ES, IT)

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a wide range of industrial automation and control applications, including:

• Machine operation and visualization in manufacturing plants.
• Process control and monitoring in discrete and continuous industries.
• Data acquisition and supervisory control systems.
• Building automation and infrastructure management.
• Logistics and material handling systems requiring local HMI.
• Embedded control solutions where an integrated PC and display are beneficial.

Technical Specifications

Installation Guidelines

1. De-energize System: Before beginning any installation or maintenance, ensure that all power to the system and associated equipment is completely de-energized and locked out according to safety procedures.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the 24 V DC power supply to the designated power input terminals. Verify correct polarity before applying power.
4. Grounding: Ensure the Panel PC chassis is properly grounded to the protective earth (PE) of the control cabinet to minimize electrical noise and ensure safety.
5. Ethernet Connections: Connect industrial Ethernet cables to the 10/100/1000 Mbit/s Ethernet ports and PROFINET ports as required by the network architecture. Use shielded cables for industrial environments.
6. USB and Serial Connections: Connect USB devices and serial communication cables (e.g., to COM1) as needed for peripherals or external communication.
7. Cable Management: Route all cables neatly and secure them to prevent strain or interference. Separate power cables from signal cables where possible.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for the Panel PC.
9. Initial Power-Up: After all connections are made and verified, re-energize the system. Monitor for proper boot-up and system operation.
