Siemens 6AV7892-0AH20-1AB0 SIMATIC HMI IPC677C Panel PC

Description

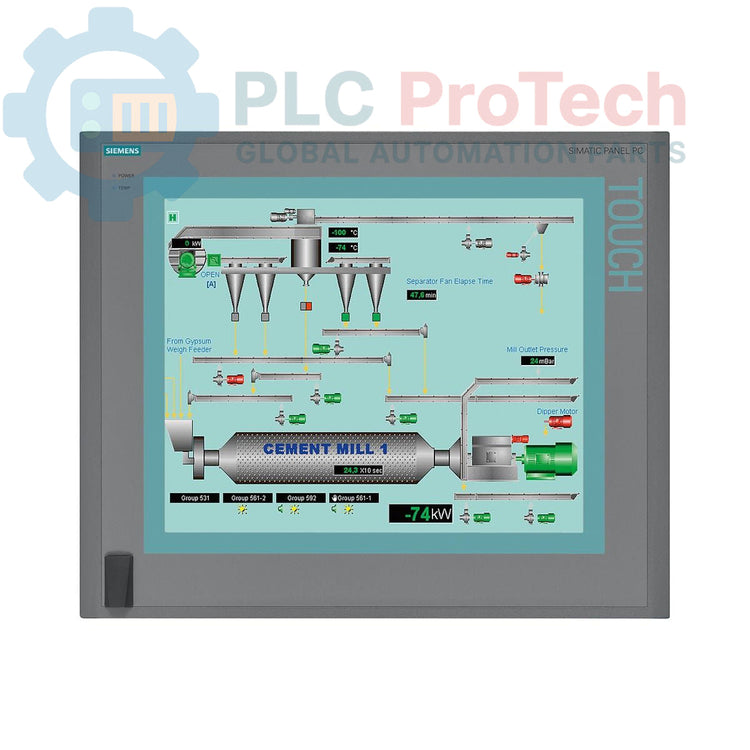

The Siemens 6AV7892-0AH20-1AB0 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) and control applications. This robust industrial computer features a 15-inch touch display with a resolution of 1024x768 pixels and includes a front-side USB interface for convenient access. It is powered by an Intel Core i7-610E processor, supported by 2 GB of DDR3 1066 DIMM RAM and 2 MB of buffered SRAM. Storage is provided by a 250 GB SATA HDD and an integrated DVD+-R+-RW drive.

Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, one serial (COM1) port, and a PROFIBUS/MPI interface (CP 5611-A2-compatible). The unit incorporates a watchdog, temperature, and fan monitoring system, along with an onboard RAID controller for data integrity. It operates on a 24 V DC power supply and comes pre-installed with Windows 7 Ultimate 64 Bit SP1, Multi-User Interface (MUI) supporting German, English, French, Spanish, and Italian.

Features

• 15-inch Touch Display (1024x768 resolution) with front-side USB interface
• Integrated Intel Core i7-610E CPU (2C/4T, 2.53GHz, TB, HT, VT, 4 MB Cache)
• 2 GB DDR3 1066 DIMM RAM and 2 MB Buffered SRAM
• 250 GB SATA HDD and DVD+-R+-RW Optical Drive
• Dual 10/100/1000 Mbit/s Ethernet Ports
• Four USB V2.0 Ports and one Serial (COM1) Port
• PROFIBUS/MPI Interface (CP 5611-A2-compatible)
• Watchdog, Temperature, and Fan Monitoring
• Onboard RAID Controller
• Two Free PCI Expansion Slots
• 24 V DC Power Supply
• Pre-installed Windows 7 Ultimate 64 Bit SP1, MUI (DE, EN, FR, ES, IT)

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a wide range of industrial automation applications, including:

• Process visualization and control in manufacturing plants
• Machine operation and monitoring
• Data acquisition and logging systems
• Supervisory Control and Data Acquisition (SCADA) systems
• Factory automation and production line management
• Industrial data processing and communication hubs

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Power Supply: Connect the unit to a stable 24 V DC power source. Ensure the power supply meets the required current draw and has appropriate overcurrent protection.
2. Mounting: Mount the Panel PC securely in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation to prevent overheating.
3. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference (EMI).
4. Cable Routing: Route power, communication, and I/O cables separately to reduce interference. Use shielded cables for sensitive signals and ground the shielding correctly.
5. Environmental Considerations: Ensure the operating environment adheres to the specified temperature, humidity, and vibration limits for industrial PC equipment.
6. Interface Connections: Connect Ethernet cables to the Gigabit Ethernet ports, USB devices to the USB V2.0 ports, and serial devices to the COM1 port as required. For PROFIBUS/MPI, use appropriate cabling and termination.
7. System Configuration: After physical installation, power on the unit and configure the operating system and application software as per system requirements.
