Siemens 6AV7892-0BE34-1AC0 SIMATIC IPC677C Panel PC

Description

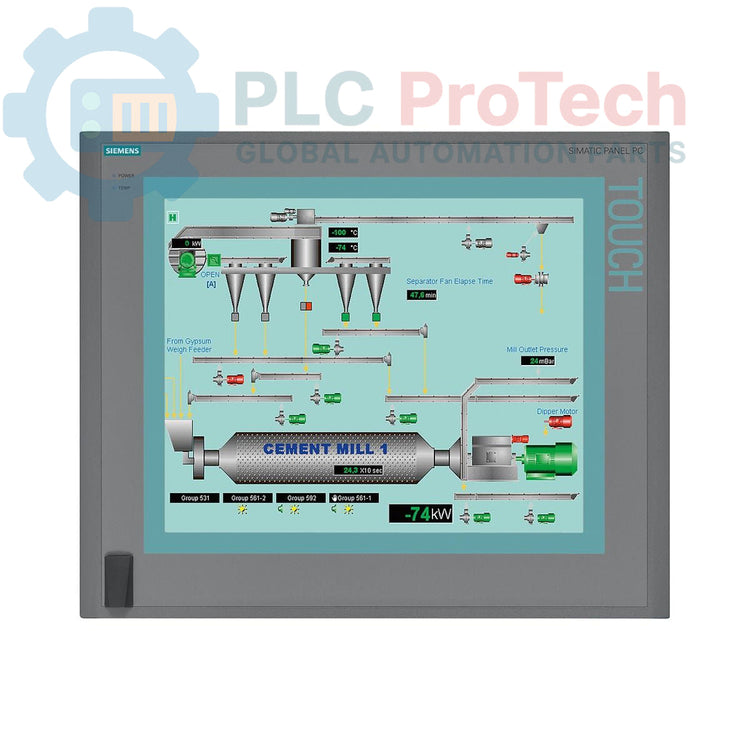

This is a Siemens SIMATIC HMI IPC677C Panel PC, model 6AV7892-0BE34-1AC0, designed for demanding human-machine interface and control applications. It features a 15-inch touch display with a 1024 x 768 resolution and is powered by an Intel Core i3-330E processor. The system is configured with 4 GB of DDR3 RAM and a 50 GB SLC Solid-State Drive for reliable performance and data integrity. Connectivity options are extensive, including dual Gigabit Ethernet, PROFIBUS/MPI, multiple USB 2.0 ports, and a serial port. Integrated system monitoring for watchdog, temperature, and fan status, along with an onboard RAID controller, ensures high availability in industrial environments.

Features

• 15-inch color touch display with 1024 x 768 pixel resolution.
• Intel Core i3-330E processor (2.13 GHz, 2 Cores, 4 Threads).
• 4 GB DDR3 1066 DIMM system memory.
• 50 GB SATA Solid-State Drive (SLC) for high-reliability storage.
• Integrated PROFIBUS/MPI interface (CP 5611-A2 compatible).
• Dual 10/100/1000 Mbit/s Ethernet ports for network redundancy or separation.
• Onboard RAID controller for data protection.
• System diagnostics including watchdog, temperature, and fan monitoring.
• Pre-installed with Windows 7 Ultimate 32-bit SP1.
• Includes a DVD+-R+-RW optical drive and two free PCI expansion slots.

Applications

• Human-Machine Interface (HMI) for process visualization.
• Supervisory Control and Data Acquisition (SCADA) systems.
• Machine-level control and data logging platforms.
• Industrial gateways and communication servers.
• Factory automation and assembly line control panels.

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out (LOTO). Verify the absence of voltage before proceeding.
2. 2 Prepare the panel cutout according to the device's mechanical specifications. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the Panel PC chassis. This is a mandatory safety connection.
5. 5 Connect the 110/230 V AC power supply cable to the unit's power input. Ensure the source voltage matches the device rating.
6. 6 Connect Ethernet, PROFIBUS/MPI, USB, and any other required communication or peripheral cables. Ensure proper cable strain relief and routing.
7. 7 After closing the enclosure, re-energize the cabinet. Power on the Panel PC and verify that the operating system boots correctly and all peripherals are recognized.
