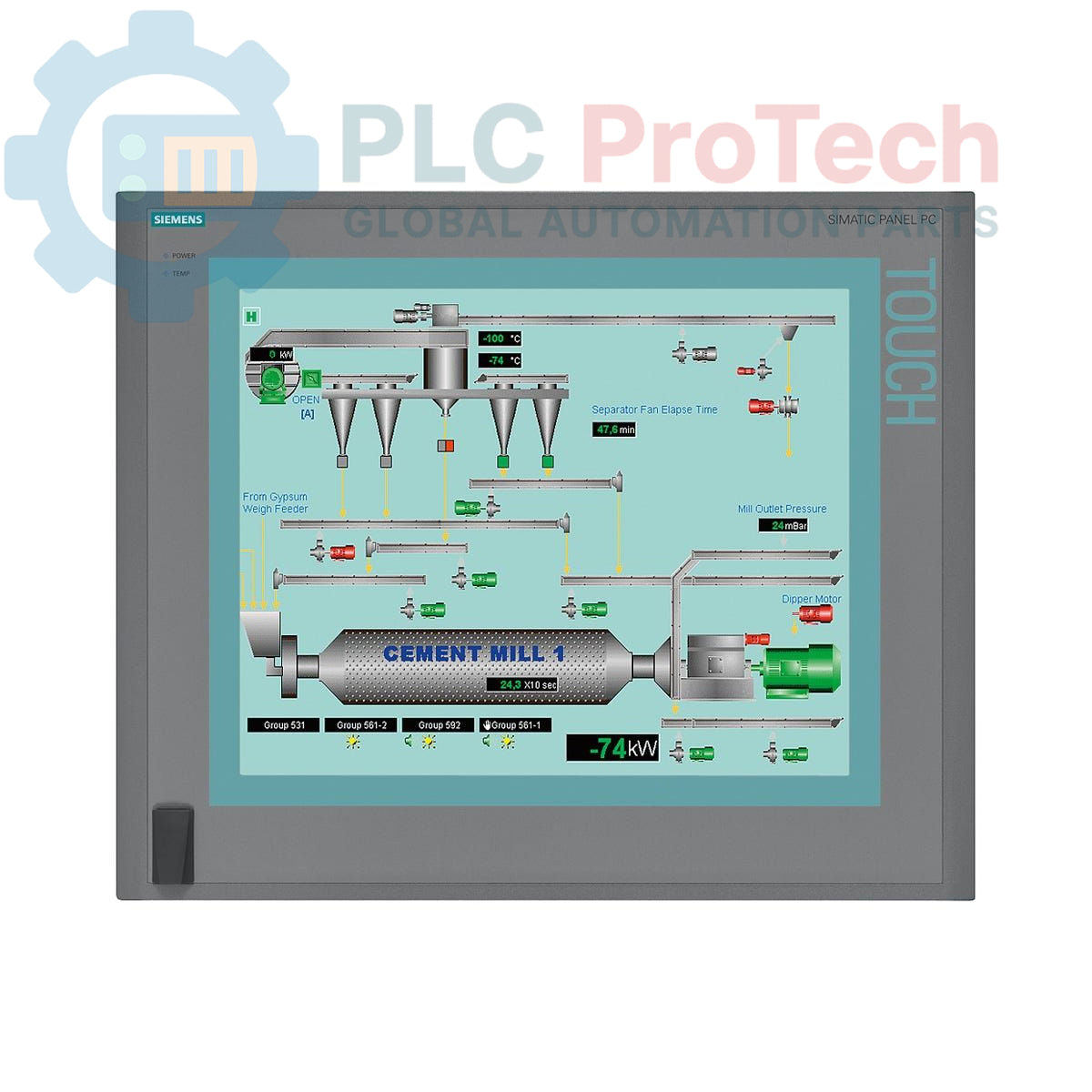

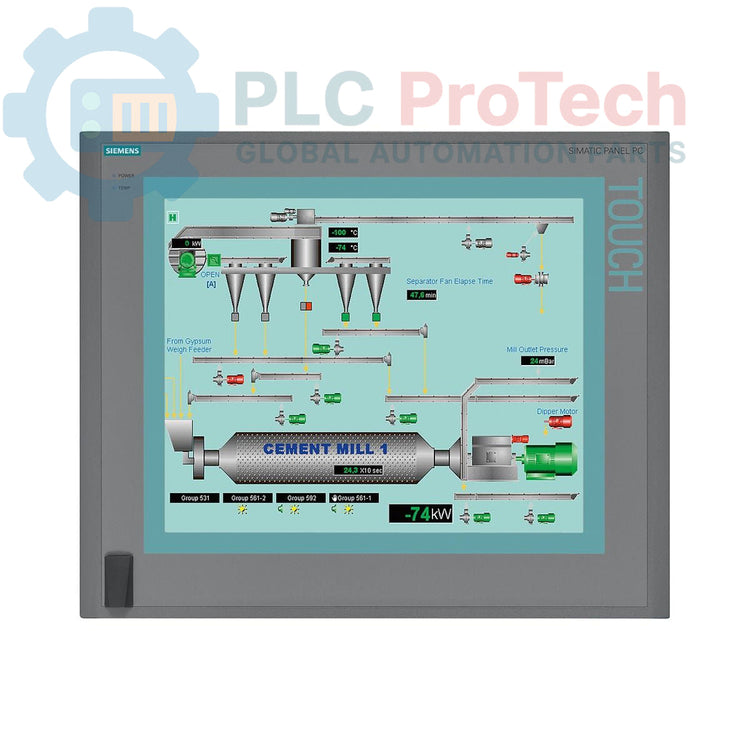

Siemens 6AV7893-0AE10-0BC0 SIMATIC IPC677C Panel PC

SKU 6AV7893-0AE10-0BC0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7893-0AE10-0BC0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17g
Dimensions: 60.0 x 56.5 x 30.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This is a Siemens 6AV7893-0AE10-0BC0 SIMATIC HMI IPC677C, an industrial Panel PC designed for demanding visualization and control tasks. It features a 15-inch keypad display with a 1024x768 resolution and is powered by an Intel Core i3-330E processor. The unit is equipped with extensive connectivity options, including dual Gigabit Ethernet, PROFIBUS/MPI, and multiple USB ports. Integrated monitoring functions for watchdog, temperature, and fan status ensure high operational reliability. This Panel PC operates on a 24 V DC power supply and comes pre-installed with Windows 7 Ultimate.

Features

15-inch display with integrated keypad for operator input.
Front-side USB interface for convenient data access.
Onboard RAID controller for enhanced data integrity.
Integrated watchdog, temperature, and fan monitoring for system stability.
PROFIBUS/MPI interface (CP 5611-A2 compatible) for fieldbus communication.
PCI and PCIe (x16) expansion slots for additional hardware.
Robust design suitable for industrial environments.

Applications

Human-Machine Interface (HMI) for process visualization.
Machine control and data acquisition systems.
Manufacturing Execution Systems (MES) terminals.
Industrial automation and plant floor control panels.
Supervisory Control and Data Acquisition (SCADA) nodes.

Technical Specifications

Specification	Value
Product Model	6AV7893-0AE10-0BC0
Series	SIMATIC HMI IPC677C
Display	15" Keypad Display
Resolution	1024 x 768 pixels
Processor	Intel Core i3-330E (2 Cores / 4 Threads, 2.13 GHz, HT, VT, 3 MB Cache)
Memory (RAM)	2 GB DDR3 1066 DIMM
Buffered SRAM	2 MB
Storage	250 GB HDD SATA
Optical Drive	Not included
Power Supply	24 V DC
Ethernet Ports	2 x 10/100/1000 Mbit/s
USB Ports	4 x USB 2.0 (rear), 1 x USB (front)
Serial Port	1 x COM1
Fieldbus Interface	PROFIBUS/MPI (CP 5611-A2 compatible)
Expansion Slots	1 x PCI, 1 x PCIe (x16)
Operating System	Windows 7 Ultimate 32-bit SP1, MUI (DE, EN, FR, ES, IT)
System Monitoring	Watchdog, Temperature, Fan monitoring
RAID Controller	Onboard
Product Lifecycle Status	Phase-Out
Country of Origin	Germany (Estimated)
Manufacturer	Siemens
Package Dimensions (Calculated)	60.0 x 56.5 x 30.0 cm
Shipping Weight	17.00 kg

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation or maintenance. Installation must be performed by qualified personnel only. Failure to de-energize the system can result in severe electrical shock, equipment damage, or personal injury.

1 Verify that the control cabinet or panel cutout dimensions match the IPC677C's mounting requirements. Ensure adequate clearance for ventilation and cable routing.
2 Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
3 Connect a low-impedance protective earth (PE) ground wire to the designated grounding terminal on the PC chassis. This is essential for safety and noise immunity.
4 Connect the 24 V DC power supply to the power input connector, ensuring correct polarity. Use appropriately sized wiring and ensure the power source is stable and within the specified voltage range.
5 Connect Ethernet, PROFIBUS/MPI, USB, and any other required communication cables. Route cables neatly, avoiding sharp bends and proximity to high-voltage power lines to prevent interference.
6 After all connections are secure and the panel is closed, remove the LOTO device and re-apply power to the cabinet to commission the Panel PC.

FAQ

What processor is installed in this Panel PC?

It is equipped with an Intel Core i3-330E processor, featuring 2 cores, 4 threads, a 2.13 GHz clock speed, and 3 MB of cache.

What operating system is pre-installed on the 6AV7893-0AE10-0BC0?

The unit comes with Windows 7 Ultimate 32-bit SP1, which includes a multi-language user interface (DE, EN, FR, ES, IT).

What are the primary communication interfaces?

It includes two Gigabit Ethernet ports, four rear USB 2.0 ports, one front USB port, one serial port (COM1), and a PROFIBUS/MPI interface.

What is the required input power for this device?

The device requires a 24 V DC power supply for operation.

Are there expansion slots available on this model?

Yes, this Panel PC provides one PCI slot and one PCIe (x16) slot for installing additional expansion cards.
