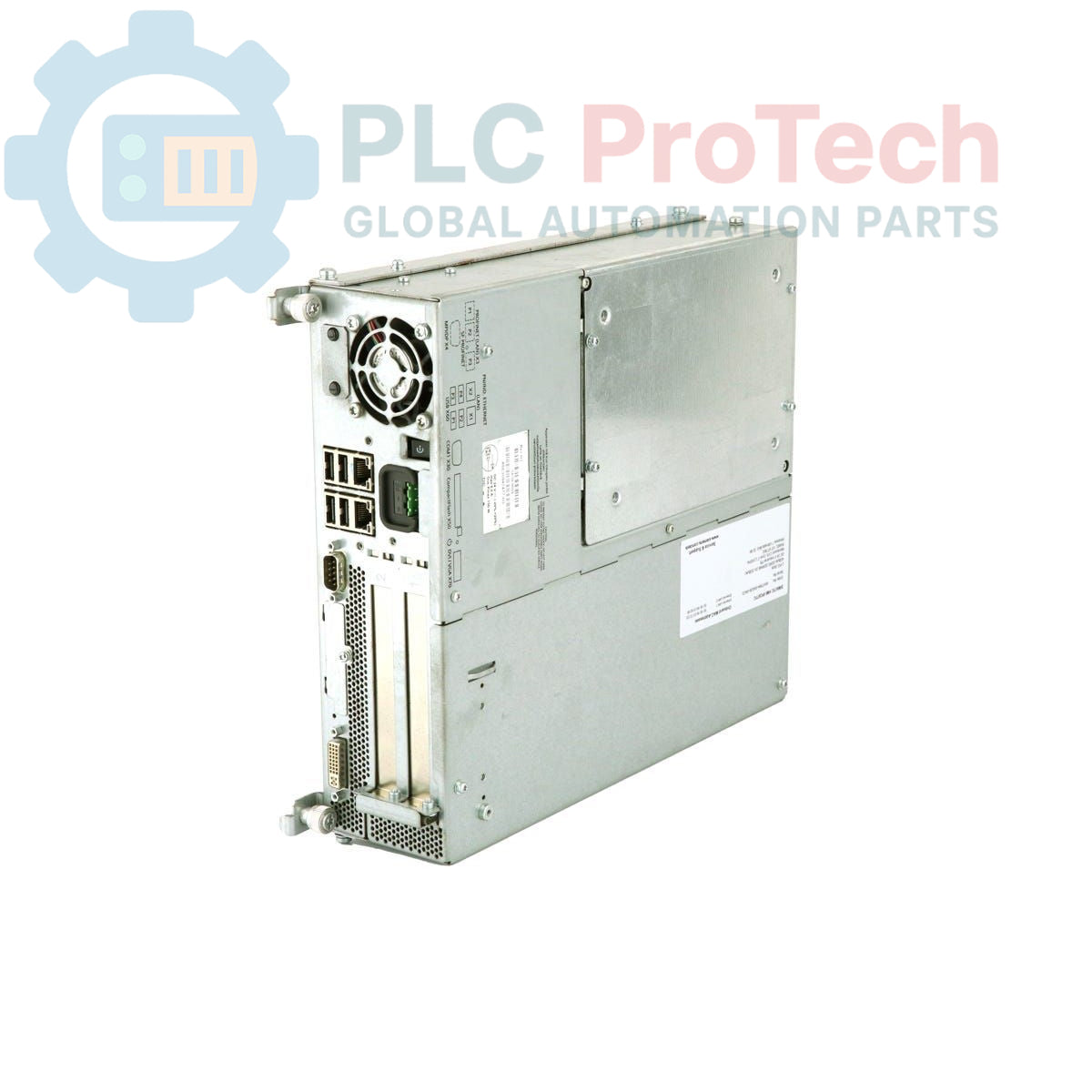

Siemens 6AV7893-1AG32-0AA0 SIMATIC IPC677C Panel PC

SKU 6AV7893-1AG32-0AA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7893-1AG32-0AA0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17350g
Dimensions: 55 x 45 x 25 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7893-1AG32-0AA0 is a SIMATIC IPC677C Panel PC, an integrated human-machine interface (HMI) solution for demanding industrial environments. This unit features a 15-inch display with keypad input and is powered by an Intel Core i7-610E processor. It is configured with 4 GB of DDR3 RAM and a redundant RAID1 storage system using two 320 GB SATA hard drives. Integrated monitoring for watchdog, temperature, and fan status ensures high operational reliability. Connectivity is provided through dual Gigabit Ethernet ports, four USB 2.0 ports, and a serial interface, all powered by a 24 V DC supply.

Features

15-inch display with 1024 x 768 resolution and keypad
Intel Core i7-610E dual-core processor (2.53 GHz)
Onboard RAID controller with RAID1 disk mirroring for data redundancy
Integrated system monitoring for watchdog, temperature, and fan
Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
Four rear-mounted USB 2.0 ports and one serial (COM1) port
Two free PCI slots for hardware expansion
Robust design for industrial applications

Applications

Process visualization and control (SCADA)
Machine-level operator control and monitoring
Data acquisition and logging systems
Factory automation and plant floor management
Industrial IT gateway applications

Technical Specifications

Specification	Value
Product Type	Panel PC
Series	SIMATIC HMI IPC677C
Display	15-inch Keypad Interface, 1024 x 768 Resolution
Processor	Intel Core i7-610E (2C/4T, 2.53 GHz, TB, HT, VT, 4 MB Cache)
Memory	4 GB DDR3 1066 DIMM
Storage	RAID1 Configuration (Mirror Disks), 2x 320 GB SATA (2.5")
RAID Controller	Onboard
Optical Drive	Not included
Expansion Slots	2x PCI (Free)
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0 (Rear)
Front USB Interface	Not included
Serial Port	1x Serial (COM1)
System Monitoring	Watchdog, Temperature, and Fan Monitoring
Power Supply	24 V DC
Operating System	Not included
Expansion Software	Not included
Product Lifecycle Status	Phase-Out
Shipping Weight	17.35 kg
Commodity Code	85371098
Manufacturer	Siemens
Country of Origin	Germany (Estimated)
Package Dimensions (Calculated)	55 x 45 x 25 cm

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation or servicing. Installation must be performed by qualified personnel familiar with industrial control panel standards.

1
Panel Mounting: Ensure the control cabinet cutout dimensions match the IPC677C specifications. Secure the unit into the panel using all provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a proper seal (IP rating).
2
Protective Earth (PE) Connection: Connect the chassis PE terminal to the main protective earth busbar of the cabinet using a low-impedance conductor. This is critical for operator safety and electromagnetic compatibility (EMC).
3
Power Supply Wiring: Connect a stable, filtered 24 V DC power source to the designated power supply terminals. Use appropriately sized wiring for the current draw and ensure correct polarity. It is recommended to use a dedicated circuit breaker for the Panel PC.
4
I/O and Network Cabling: Route all communication cables (Ethernet, USB, Serial) away from high-voltage power lines to minimize electrical noise. Use shielded cables for all data connections where specified, and ensure shields are properly terminated at one end to the cabinet ground.
5
Ventilation and Clearance: Maintain adequate clearance around the rear of the unit as specified by the manufacturer to ensure proper airflow for cooling. Do not block ventilation openings. Verify cabinet cooling is sufficient for the total heat load.
