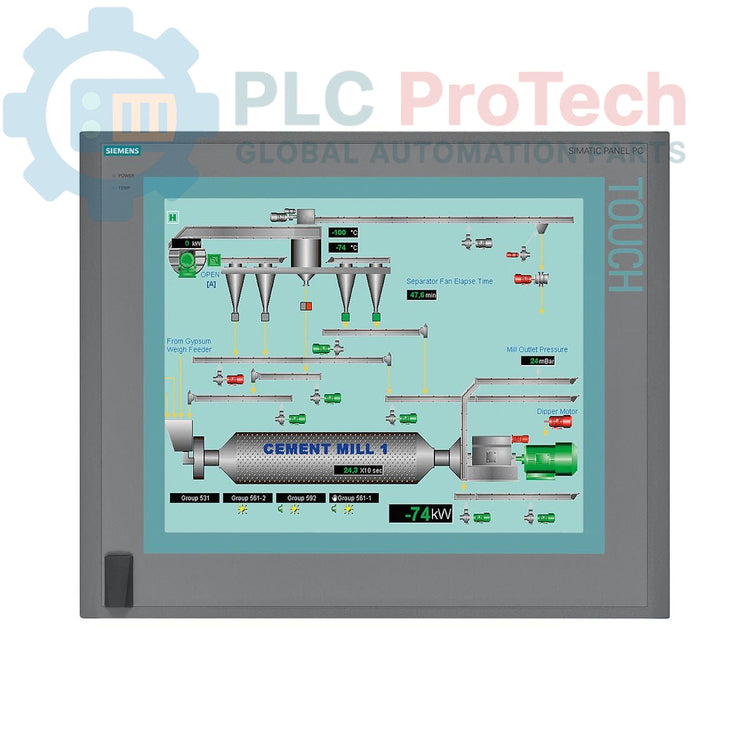

Siemens 6AV7894-0HD10-0AB0 SIMATIC IPC677C Panel PC

SKU 6AV7894-0HD10-0AB0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7894-0HD10-0AB0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17350g
Dimensions: 55 x 50 x 25 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7894-0HD10-0AB0 is a SIMATIC IPC677C Panel PC designed for robust human-machine interface (HMI) and control applications in industrial environments. This unit integrates a 19-inch touch display with a 1280x1024 resolution and is powered by an Intel Core i3-330E processor. It is equipped with 2 GB of DDR3 RAM and a 250 GB SATA hard drive for application and data storage. Key features include dual Gigabit Ethernet ports for network connectivity, an onboard RAID controller for data redundancy, and integrated monitoring for watchdog, temperature, and fan status to ensure operational reliability. The device is pre-installed with Windows XP Professional SP3 and is powered by a 110/230 V AC supply.

Features

19-inch touch display with 1280 x 1024 resolution
Intel Core i3-330E processor (2.13 GHz, 3 MB Cache)
Onboard RAID controller for enhanced data integrity
Integrated system monitoring for watchdog, temperature, and fan
Dual 10/100/1000 Mbit/s Ethernet ports
Convenient front-side USB port
Two free PCI slots for hardware expansion

Applications

Process visualization and control
Data acquisition and logging
Machine-level HMI stations
Factory automation control rooms
Industrial SCADA systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC IPC677C
Display	19" Touchscreen
Resolution	1280 x 1024 pixels
Processor	Intel Core i3-330E (2 Cores, 4 Threads, 2.13 GHz, HT, VT, 3 MB Cache)
Memory	2 GB DDR3 1066 DIMM
Storage	250 GB HDD SATA
Optical Drive	Not included
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0 (rear), 1x front-side
Serial Port	1x COM1
Expansion Slots	2x PCI (free)
Power Supply	110/230 V AC with NAMUR
Power Cable	Included (China)
Operating System	Windows XP Professional SP3 MUI (DE, EN, FR, ES, IT)
Product Lifecycle Status	Phase-Out
Shipping Weight	17.35 kg
Commodity Code	85371098
Country of Origin	Germany (Estimated)
Package Dimensions (Calculated)	55 x 50 x 25 cm

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation or maintenance. This equipment contains hazardous voltages that can cause severe injury or death. Installation must be performed by qualified personnel only.

1 Panel Cutout: Prepare the control cabinet or panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is flat, clean, and can support the weight of the unit.
2 Mounting: Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps. Tighten the clamps evenly to the specified torque to ensure a proper seal and prevent bezel distortion.
3 Grounding: Connect the protective earth (PE) terminal on the PC chassis to the main grounding point of the control cabinet using a low-impedance conductor. A reliable ground connection is critical for safety and noise immunity.
4 Power Connection: Connect the 110/230 V AC power supply cable to a stable, correctly rated power source. Ensure the power source is protected by an appropriate circuit breaker or fuse.
5 I/O Connections: Connect Ethernet, USB, and serial cables as required. Route all cables away from high-voltage lines and sources of electromagnetic interference (EMI). Use shielded cables for communication lines where specified.

FAQ

What processor is installed in the 6AV7894-0HD10-0AB0?

This Panel PC is equipped with an Intel Core i3-330E processor, which has 2 cores, 4 threads, a clock speed of 2.13 GHz, and a 3 MB cache.

What are the primary communication interfaces on this device?

The unit features two 10/100/1000 Mbit/s Ethernet ports, four rear USB 2.0 ports, one front-side USB port, and one serial (COM1) port.

What is the screen size and resolution?

The device has a 19-inch touch display with a native resolution of 1280 x 1024 pixels.

Does this Panel PC come with a pre-installed operating system?

Yes, it comes with Windows XP Professional SP3 Multi-Language User Interface (MUI) pre-installed, including support for German, English, French, Spanish, and Italian.

What is the power supply requirement for this unit?

The IPC677C requires a 110/230 V AC power source. It includes a NAMUR-compliant power supply unit.
